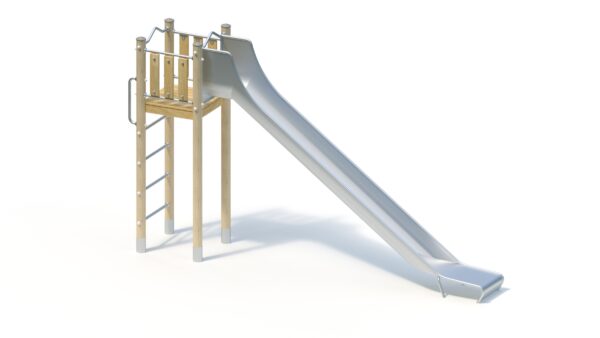

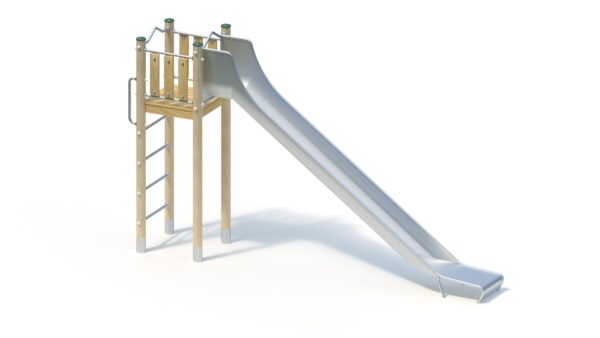

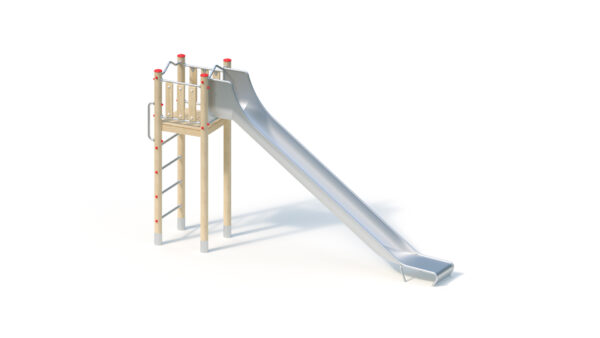

Combi slide (2,00)
Variante wählen:
The most important information
| Altersgruppe ? | 3+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 4 Personen |
| Aktivitäten ? | Physical activity, Slide |
Technical data
| Gerätelänge ? | 4,97 m |
|---|---|
| Gerätebreite ? | 0,93 m |
| Gerätehöhe ? | 2,94 m |
| Freie Fallhöhe ? | 2,10 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 285.00 kg |
| Schwerstes Einzelteil ? | 115.00 kg |
| Mindestraumlänge ? | 8,67 m |
| Mindestraumbreite ? | 4,59 m |
| Mindestraumhöhe ? | 2,94 m |
Assembly & Foundations
| Montagezeit ? | 3.0 hours |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 4 (0.4m x 0.4m x 0.4m) Quantity: 1 (0.75m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data
Floor area: 0.93 x 4.97 m

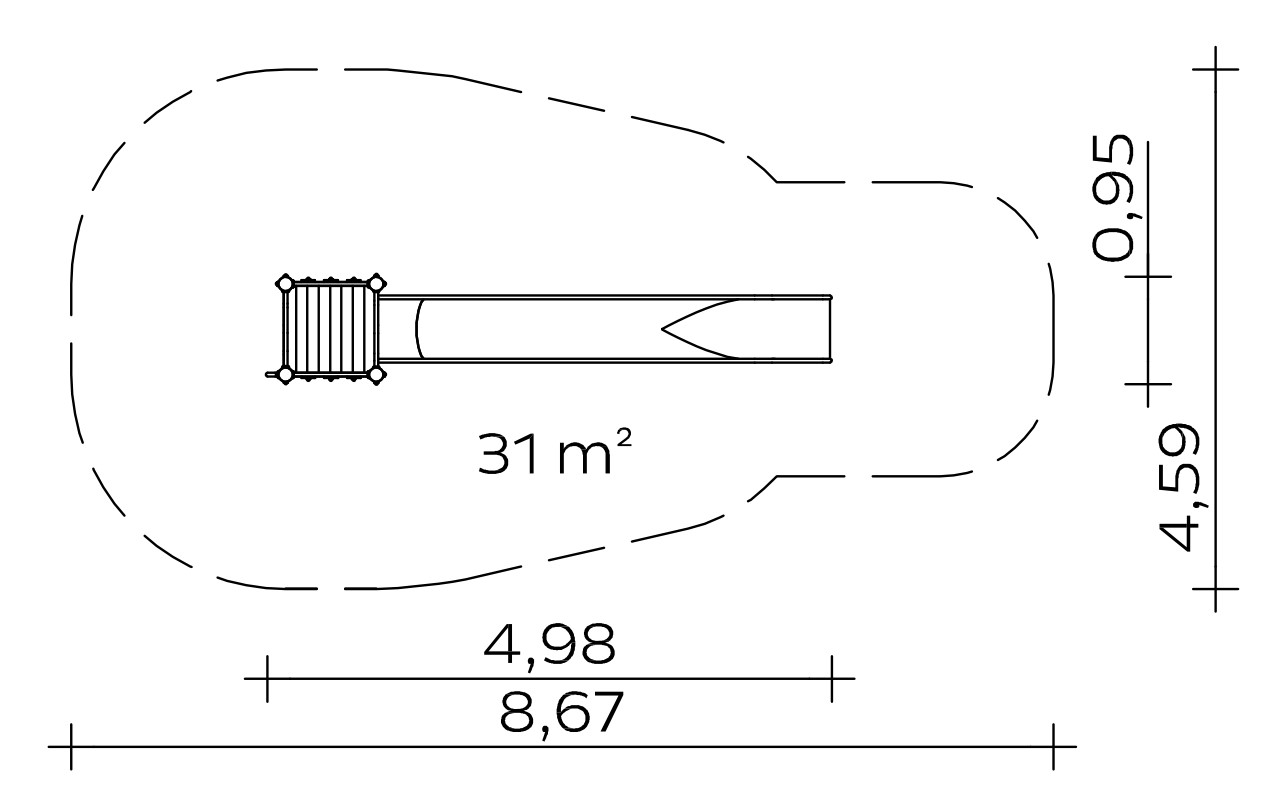

Minimum space: 4.60 x 8.75 m (31 m²)
Total height: 2.94 m
Platform height: 2.00 m
Seat height: 2.10 m
Slide inclination: 36°
Weight: 115 kg heaviest individual part
285 kg in total
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Wooden balustrade made of robinia, 125 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Climbing rungs made of stainless steel tube, Ø 38 mm, torsion-resistant
- Vertical handle as climbing aid made of stainless steel tube, Ø 33.7 x 2 mm
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
4 pcs. 0.40 x 0.40 x 0.40 m
1 piece 0.40 x 0.75 x 0.40 m
Concrete volume: 0.38 m³
Assembly time
2 fitters 3 hours each
(without foundation)
Free fall height
2,10 m
Suitable for
Children aged 5 and over,
public playgrounds etc.
Movement activities.
Item number: 041219702
