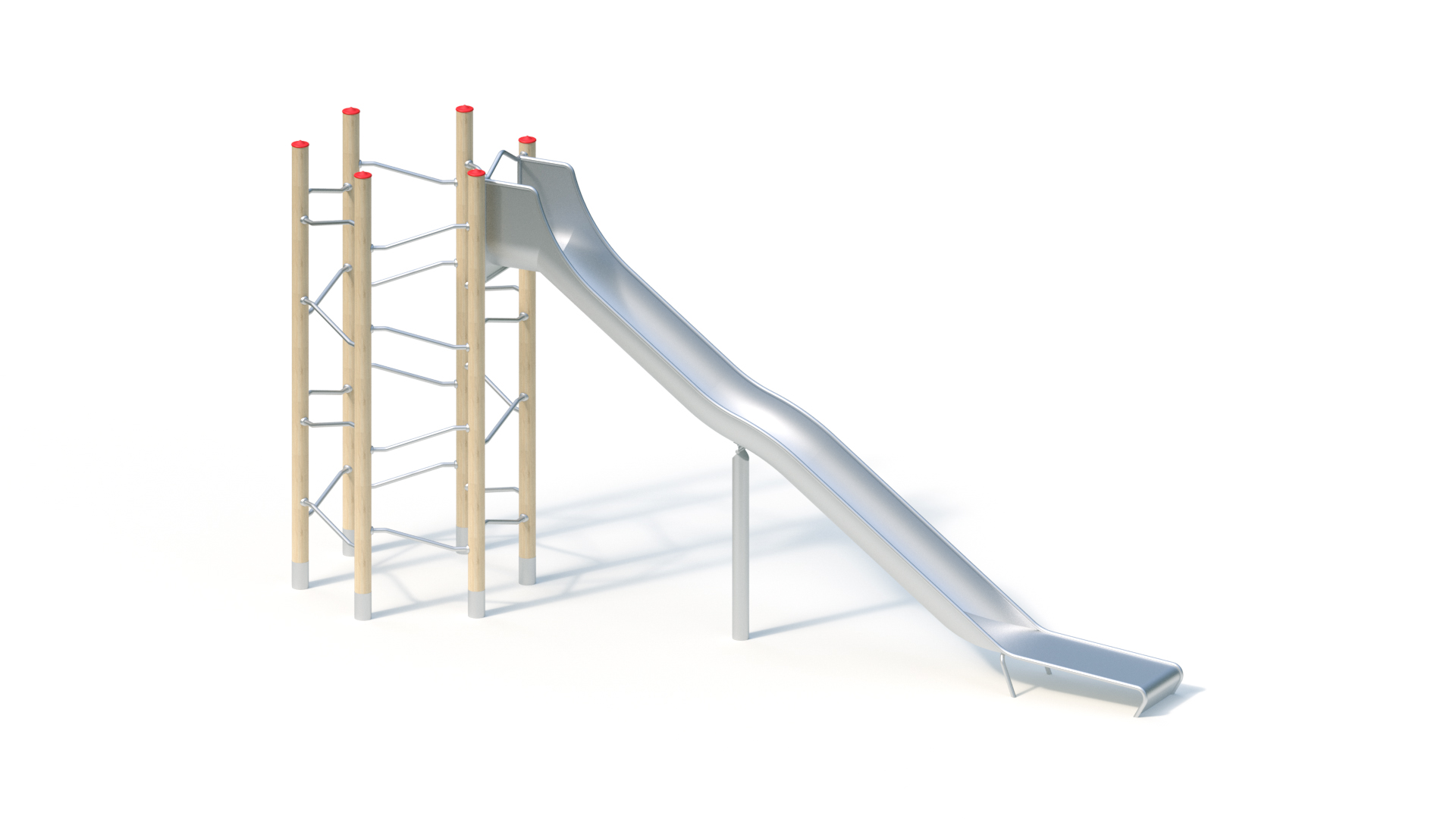

Combi slide (2,40)

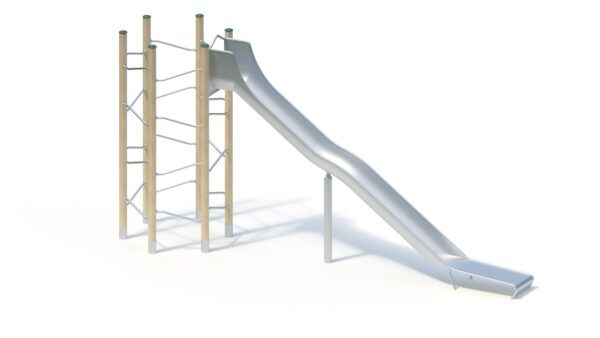

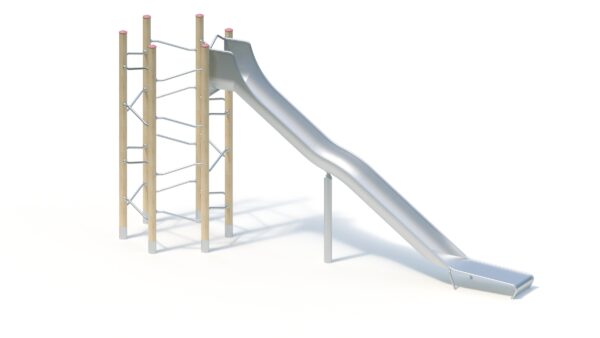

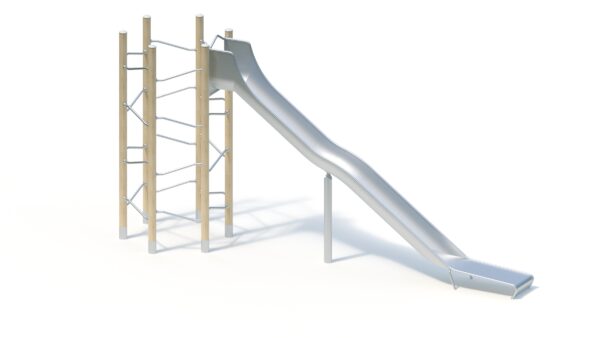

Select variant:
The most important information
| Age group ? | 5+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 8 people |
| Activities ? | Climbing, Slide |
Technical data
| Minimum space length ? | 11,75 m |
|---|---|
| Minimum space width ? | 6,70 m |
| Minimum space height ? | 3,40 m |
| Equipment length ? | 6,70 m |
| Equipment width ? | 1,75 m |
| Equipment height ? | 3,35 m |
| Free-fall height ? | 2,95 m |
| Platform heights | - |
| Total weight ? | 410.00 kg |
| Heaviest single part ? | 165.00 kg |
Assembly & Foundations
| Assembly time ? | 3.0 hours |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 6 (0.4m x 0.4m x 0.4m) Quantity: 1 (0.4m x 0.4m x 0.6m) Quantity: 1 (0.9m x 0.75m x 0.4m) |
Product Downloads
Product description
Technical data
Total height: 3.35 m
Floor area: 1.75 x 6.70 m

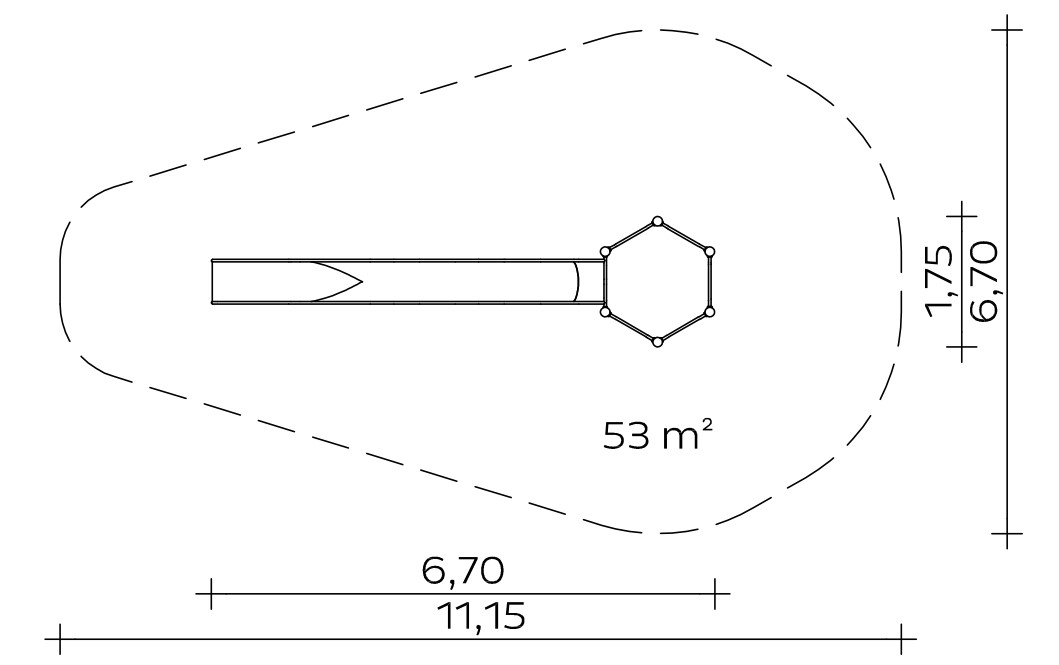

Minimum space: 6.70 x 11.15 m (53 m²)
Seat height: 2.50 m
Slide inclination: 36°
Slide width: 0.60 m
Sliding plate thickness: 2.5 mm
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Attachments
- Climbing rungs made of stainless steel tube, Ø 38 mm, torsion-resistant
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with anti-roll guard above the single-seat section, including K&K slope slide support posts for the wave area and fastening flange, each made of stainless steel.
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
6 pcs. 0.40 x 0.40 x 0.40 m
1 piece 0.40 x 0.40 x 0.60 m
1 piece 0.90 x 0.75 x 0.40 m
Concrete volume: 0.60 m³
Assembly time
2 fitters 3 hours each
(without foundation)
Free fall height
2,95 m
Suitable for
Children aged 5 and over,
public playgrounds etc.
Movement activities.
Item number: 041166700
