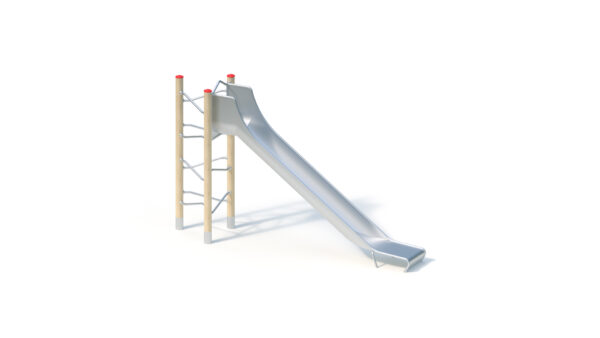

Combi slide (1,60)
Select variant:
The most important information
| Age group ? | 5+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 5 persons |
| Activities ? | Climbing, Slide |
Technical data
| Device length ? | 4,20 m |
|---|---|
| Device width ? | 0,95 m |
| Device height ? | 2,55 m |
| Free fall height ? | 2,30 m |
| Platform heights | - |
| Total weight ? | 200.00 kg |
| Heaviest single item ? | 105.00 kg |
| Minimum room length ? | 8,25 m |
| Minimum room width ? | 5,00 m |
| Minimum room height ? | 2,60 m |
Assembly & Foundations
| Assembly time ? | 2,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | - |
| Foundations | 040x040x040 |
Product Downloads
Product description
Technical data

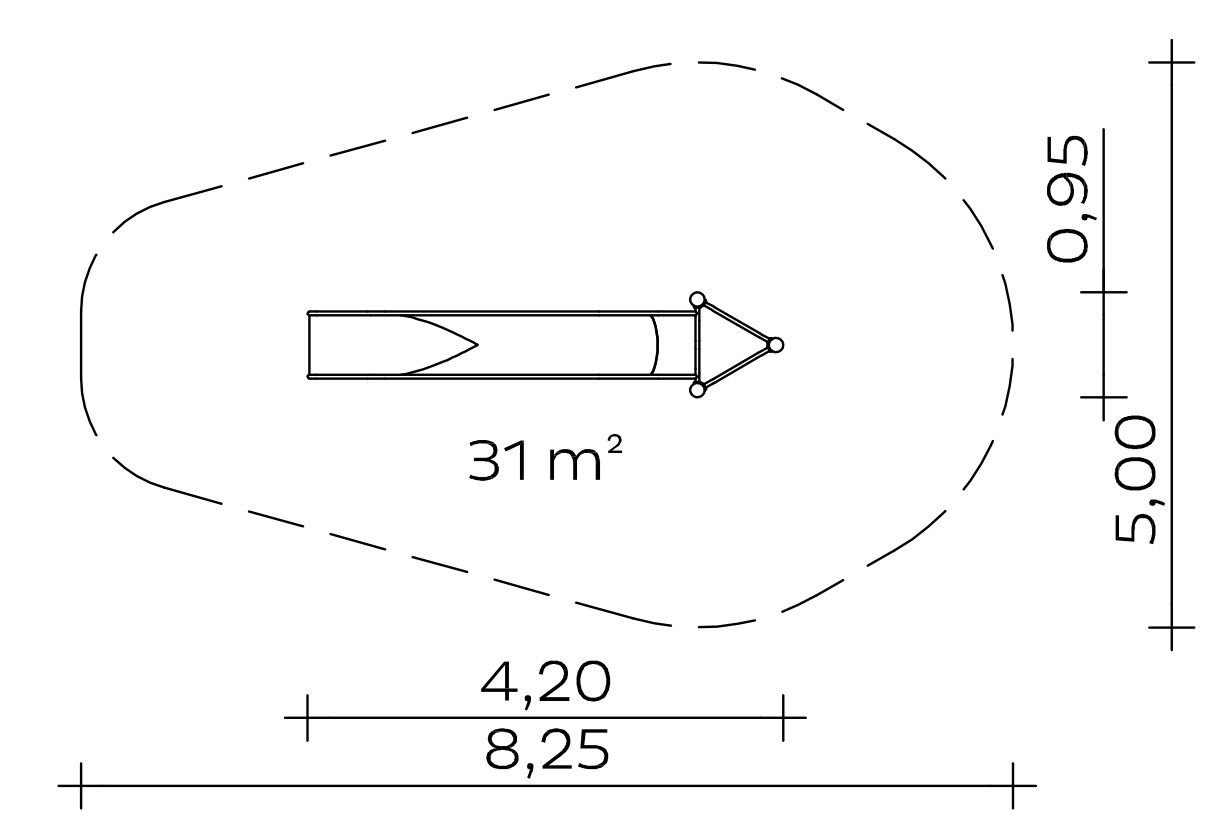

Equipment room: 0.95 x 4.20 x 2.55 m
Minimum space: 5.00 x 8.25 x 2.55 m
Impact area: 31 m²
Total height: 2.55 m
Free fall height: 2.32 m
Seat height: 1.70 m
Slide inclination: 36°
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Attachments
- Climbing rungs made of stainless steel tube, Ø 38 mm, torsion-resistant
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
3 pcs. 0.40 x 0.40 x 0.40 m
1 piece 0.40 x 0.75 x 0.40 m
Concrete volume: 0.31 m³
Assembly time
2 fitters 2 hours each
(without foundation)
Suitable for
Children aged 5 and over,
public playgrounds etc.
Movement activities.
Item number: 041158700
