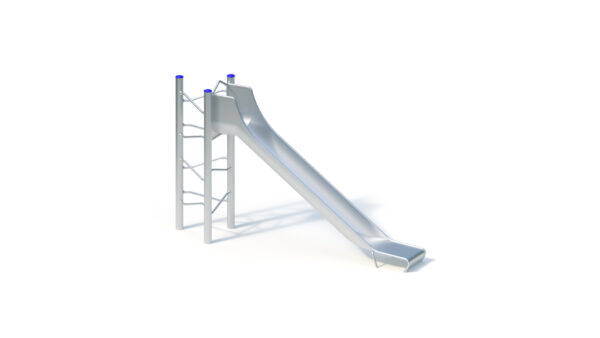

Combi slide (1,60)
Variante wählen:
The most important information
| Altersgruppe ? | 5+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 5 Personen |
| Aktivitäten ? | Climbing, Slide |
Technical data
| Mindestraumlänge ? | 8,25 m |
|---|---|
| Mindestraumbreite ? | 5,00 m |
| Mindestraumhöhe ? | 2,60 m |
| Gerätelänge ? | 4,20 m |
| Gerätebreite ? | 0,95 m |
| Gerätehöhe ? | 2,55 m |
| Freie Fallhöhe ? | 2,30 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 200.00 kg |
| Schwerstes Einzelteil ? | 105.00 kg |
Assembly & Foundations
| Montagezeit ? | 2,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 3 (0.4m x 0.4m x 0.4m) Quantity: 1 (0.75m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data
Equipment room: 0.95 x 4.20 x 2.55 m
Minimum space: 5.00 x 8.25 x 2.55 m
Impact area: 31 m²
Total height: 2.55 m
Free fall height: 2.32 m
Seat height: 1.70 m
Slide inclination: 36°
Support post
Posts made of stainless steel tube Ø 120 mm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Attachments
- Climbing rungs made of stainless steel tube, Ø 38 mm, torsion-resistant
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel
Foundations (client-provided)
3 pcs. 0.40 x 0.40 x 0.40 m
1 piece 0.40 x 0.75 x 0.40 m
Concrete volume: 0.31 m³
Assembly time
2 fitters 2 hours each
(without foundation)
Suitable for
Children aged 5 and over,
public playgrounds etc.,
Physical activities
Item number: 041158500
