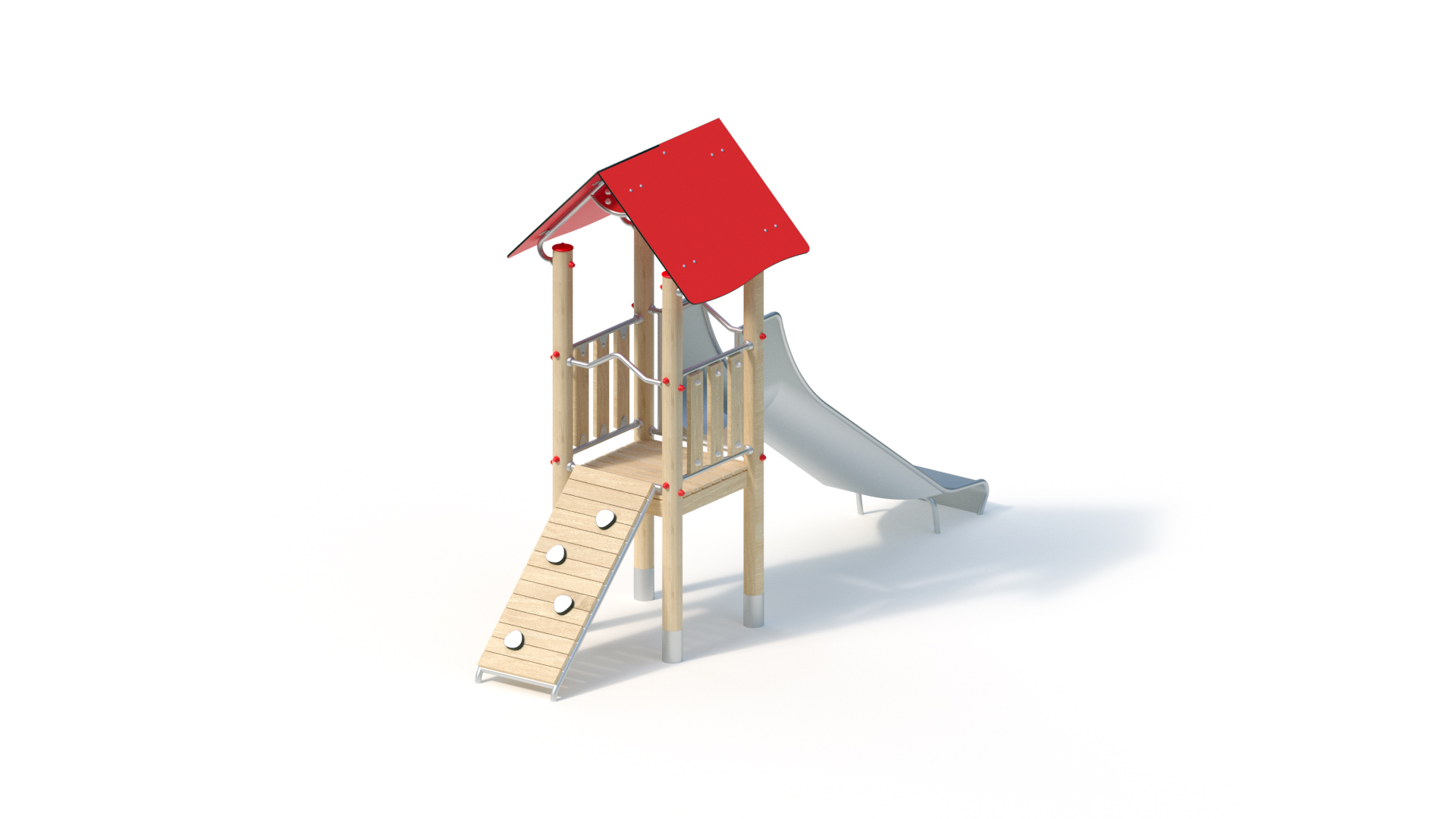

Combi slide (0,80)

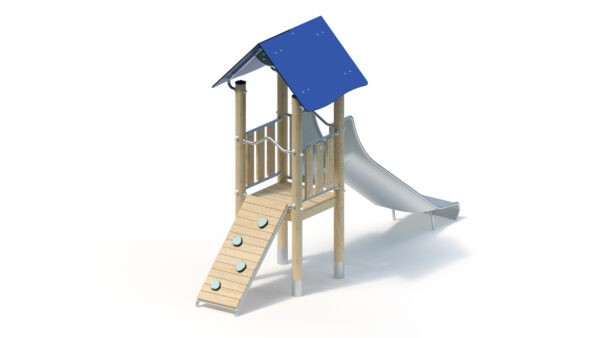

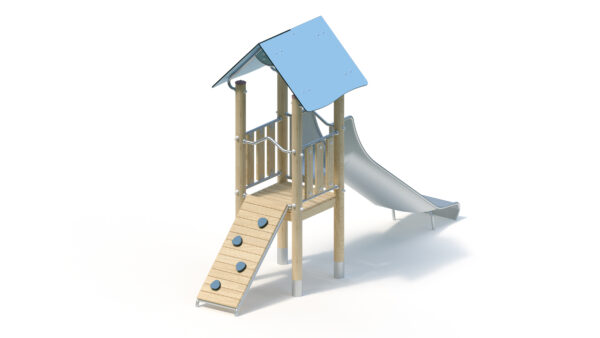

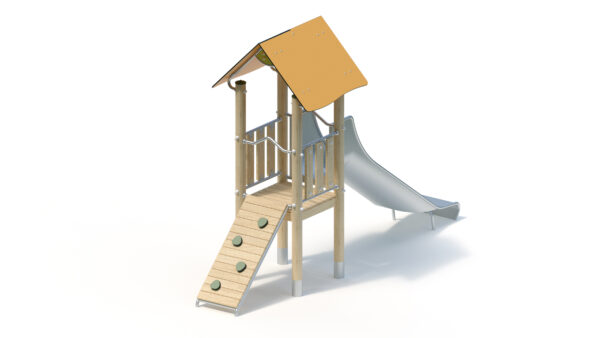

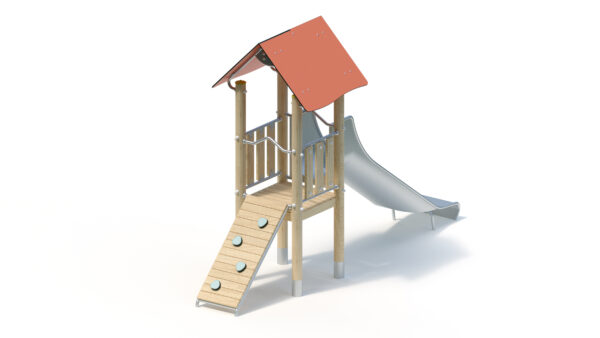

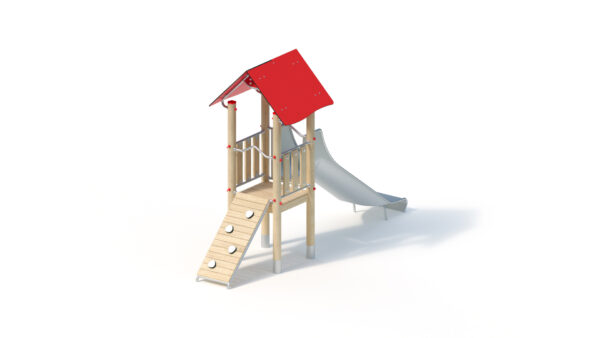

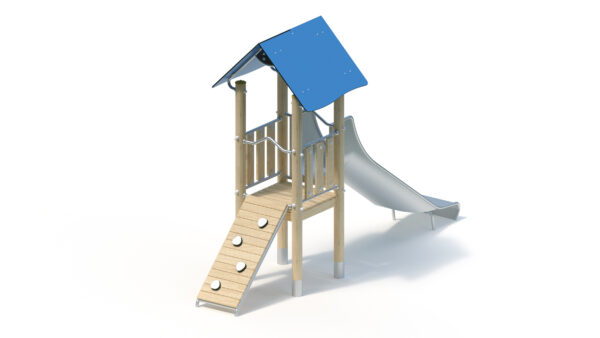

Select variant:
The most important information
| Age group ? | 3+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 5 persons |
| Activities ? | Physical activity, Climbing, Slide |
Technical data
| Device length ? | 4,30 m |
|---|---|
| Device width ? | 1,45 m |
| Device height ? | 3,05 m |
| Free fall height ? | 1,10 m |
| Platform heights | - |
| Total weight ? | 290.00 kg |
| Heaviest single item ? | 85.00 kg |
| Minimum room length ? | 7,80 m |
| Minimum room width ? | 3,95 m |
| Minimum room height ? | 2,00 m |
Assembly & Foundations
| Assembly time ? | 3.0 hours |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | - |
| Foundations | 030x030x040 |
Product Downloads
Product description
Technical data

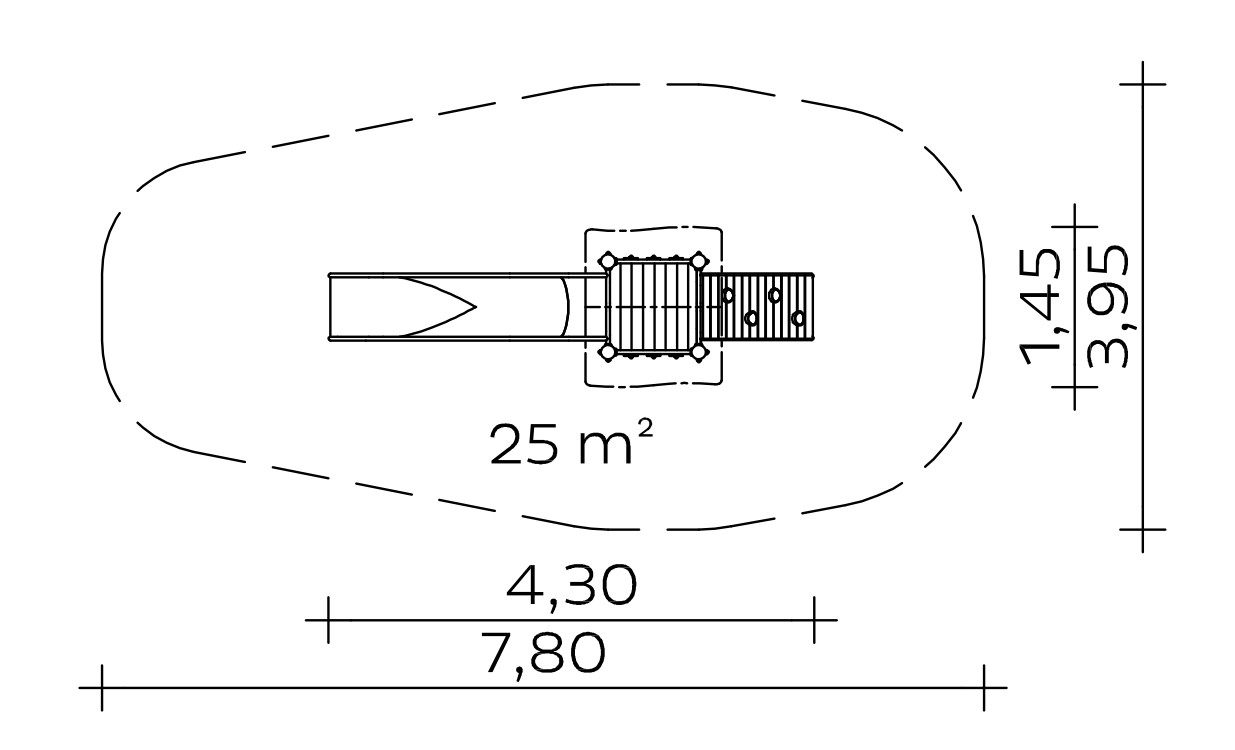

Floor area: 1.45 x 4.30 m
Minimum space: 3.95 x 7.80 m (25 m²)
Total height: 3.05 m
Platform height: 1.00 m
Slide attachment height: 1.00 m
Seat height: 1.10 m
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Wooden balustrade made of robinia, 125 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Climbing wall made of robinia wood with attached climbing elements made of HPL laminate board
- Gable roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, fastened to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
2 pcs. 0.30 x 0.30 x 0.40 m
4 pcs. 0.40 x 0.40 x 0.40 m
1 piece 0.40 x 0.75 x 0.40 m
Concrete volume: 0.45 m³
Assembly time
2 fitters 2.5 hours each
(without foundation)
Free fall height
1,10 m
Suitable for
Children aged 5 and over,
public playgrounds etc.
Movement activities.
Item number: 041146700
