Freestanding slide (1,60)
The most important information
| Age group ? | 2+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 3 people |
| Activities ? | Physical activity, Slide |
Technical data
| Minimum space length ? | 7,15 m |
|---|---|
| Minimum space width ? | 3,65 m |
| Minimum space height ? | 3,50 m |
| Equipment length ? | 3,65 m |
| Equipment width ? | 0,50 m |
| Equipment height ? | 2,35 m |
| Free-fall height ? | 1,60 m |
| Platform heights | - |
| Total weight ? | 125.00 kg |
| Heaviest single part ? | 100.00 kg |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 2 (0.85m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data

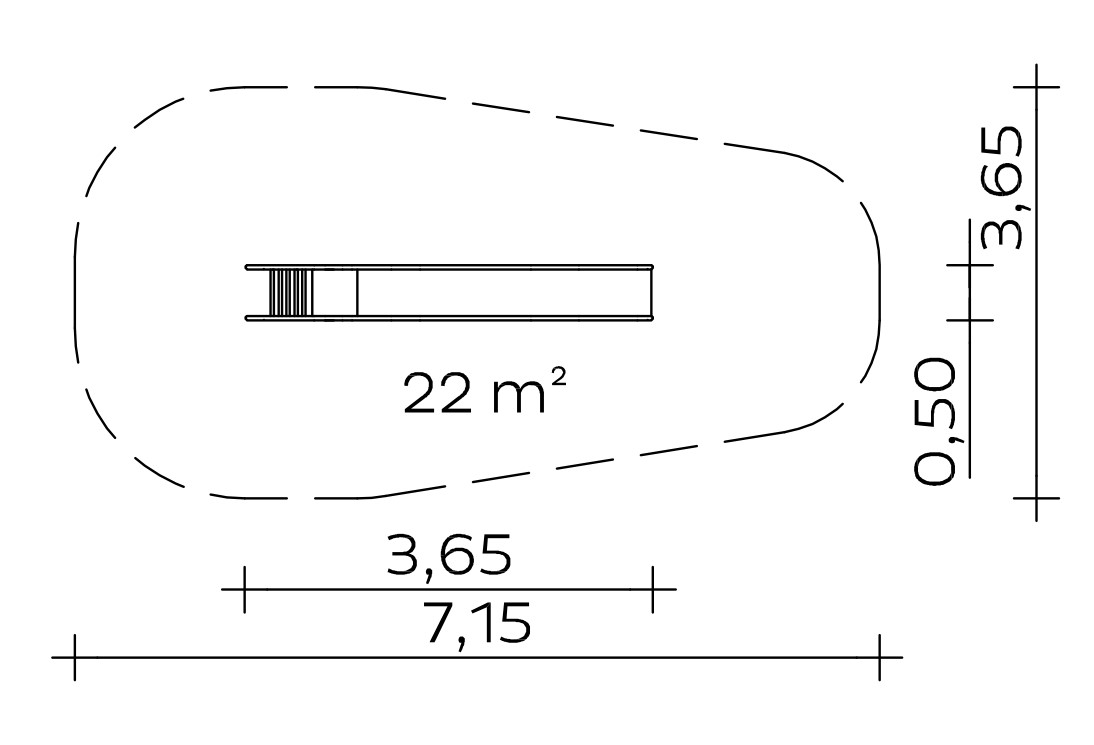

Base area: 0.50 x 3.65 m
Minimum space: 3.65 x 7.15 m (22 m²)
Total height: 2.35 m
Seat height: 1.60 m
Slide inclination: 38°
Slide width: 0.41 m
Cheek piece height: 0.17 m
Weight: 100 kg heaviest individual part
125 kg in total
Two-part stainless steel construction, rung ladder with handrail, gapless entry, slide and exit area, particularly quiet thanks to the 3 mm thick slide plate
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Foundations (client-provided)
2 units 0.40 x 0.85 x 0.40 m
Concrete volume: 0.27 m³
Assembly time
2 fitters 1 hour each
(without foundation)
Free fall height
1,60 m
Suitable for
Children aged 4 and over,
public playgrounds etc.
Movement activities.
Item number: 041127000
