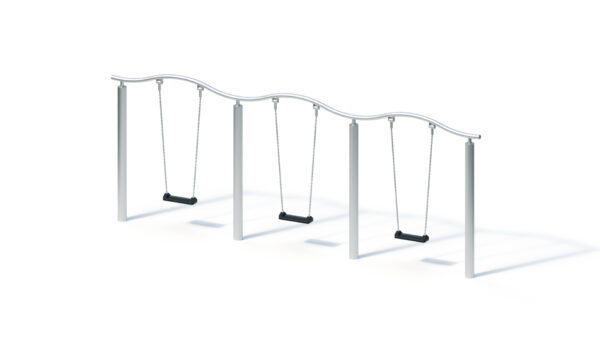

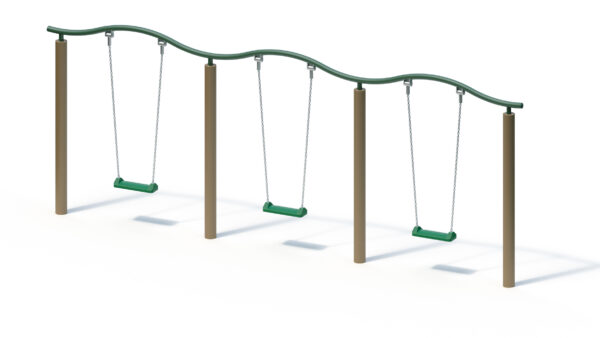

Fivefold Post swing (2,00)

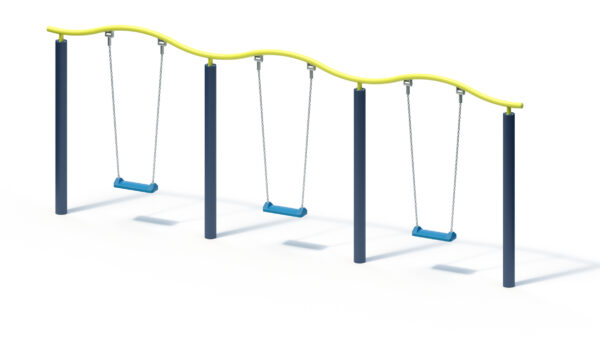

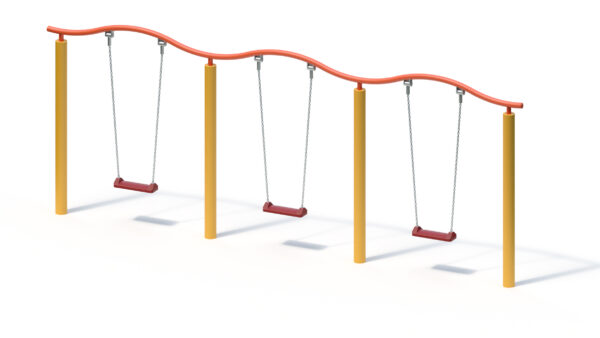

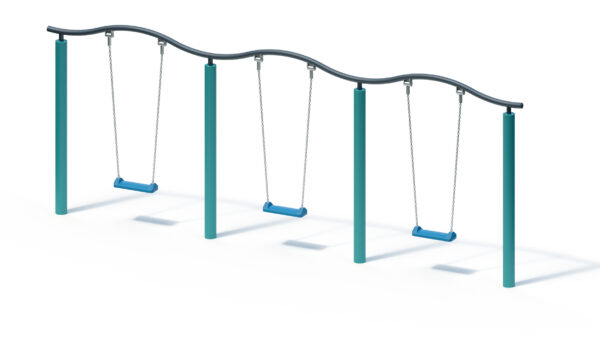

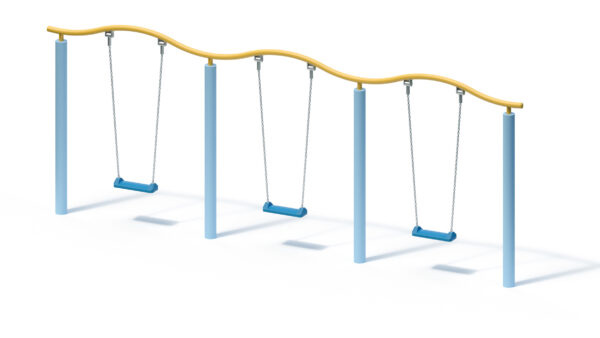

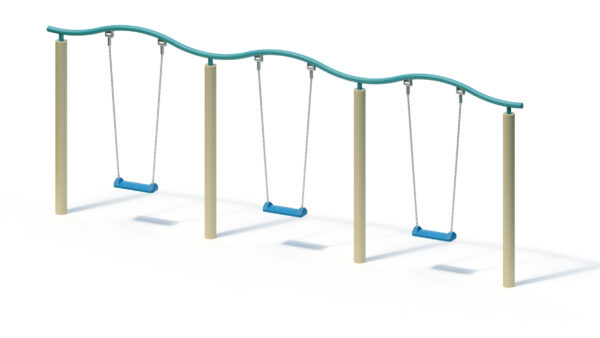

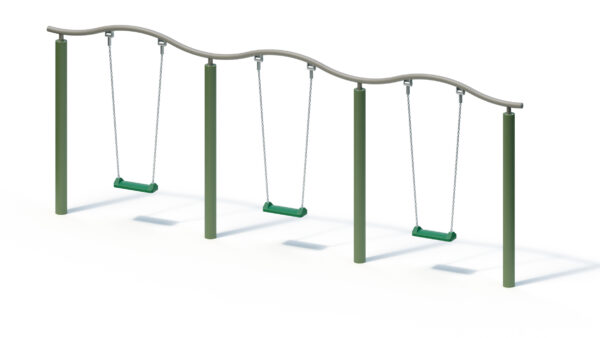

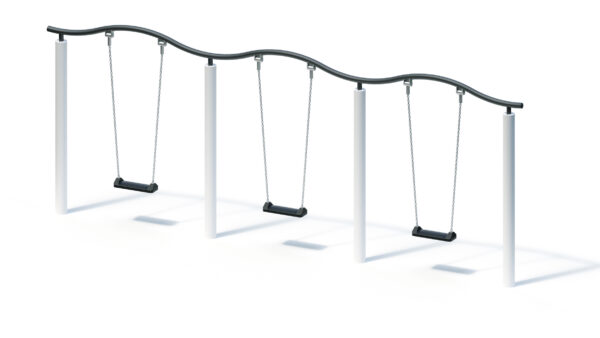

Select variant:
The most important information
| Age group ? | 3+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 3 people |
| Activities ? | Physical activity, Swinging |
Technical data
| Minimum space length ? | 7,30 m |
|---|---|
| Minimum space width ? | 5,45 m |
| Minimum space height ? | 2,14 m |
| Equipment length ? | 0,12 m |
| Equipment width ? | 5,45 m |
| Equipment height ? | 2,14 m |
| Free-fall height ? | 1,25 m |
| Platform heights | - |
| Total weight ? | 195.00 kg |
| Heaviest single part ? | 32.00 kg |
Assembly & Foundations
| Assembly time ? | 2,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 4 (1m x 0.8m x 0.5m) |
Product Downloads
Product description
Technical data

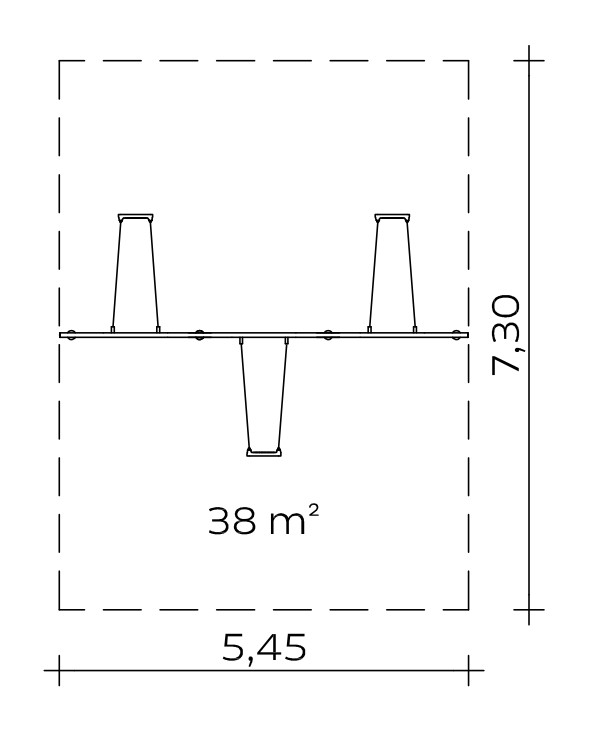

Minimum space: 5.45 x 7.30 m (38 m²)
Swing height: 2.00 m
Weight: 32 kg heaviest individual part
195 kg in total
- Support post made of stainless steel tube, Ø 120 x 3 mm
- Swing support: stainless steel tube, Ø 60 mm
- Stainless steel swing axle with plain bearings, incl. swivel
- Safety swing seat made of rubber with dimensionally stable aluminium insert and gapless single-point suspension
- Matching infant seat (item no. 15818) can be supplied at an extra charge
Foundations (client-provided)
4 pcs. 1.00 x 0.80 x 0.50 m
Concrete volume: 1.60 m³
Assembly time
2 fitters 1.5 hours each
(without foundation)
Free fall height
1,25 m
Suitable for
Children aged 3 and over,
public playgrounds etc.,
Physical activities
Item number: 040216000
