Products
Chimes

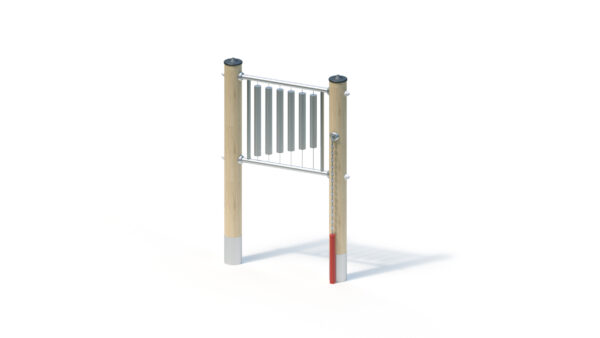

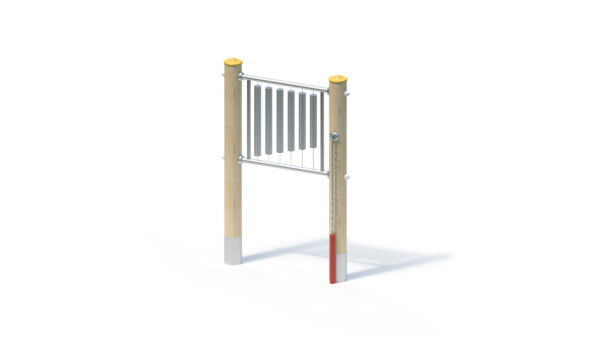

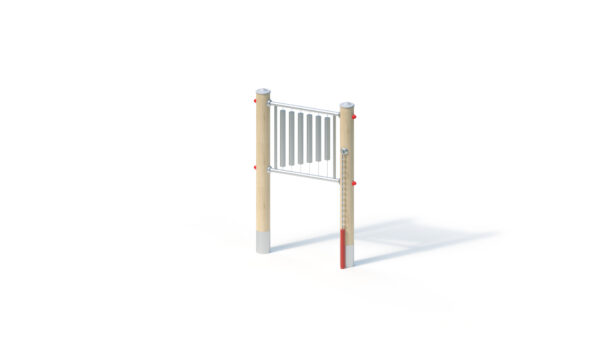

Select variant:
The most important information
| Age group ? | 2+ |
|---|---|
| Areas of use ? | supervised playgrounds |
| Number of users ? | 2 people |
| Activities ? | Manual activity |
Technical data
| Minimum space length ? | 3,95 m |
|---|---|
| Minimum space width ? | 3,20 m |
| Minimum space height ? | 1,50 m |
| Equipment length ? | 0,95 m |
| Equipment width ? | 0,15 m |
| Equipment height ? | 1,50 m |
| Free-fall height ? | 0,00 m |
| Platform heights | - |
| Total weight ? | 55.00 kg |
| Heaviest single part ? | 20.00 kg |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 2 (0.4m x 0.4m x 0.6m) |
Product Downloads
Product description
eurTechnical data
Total height: 1.50 m
Base area: 0.15 x 0.95 m

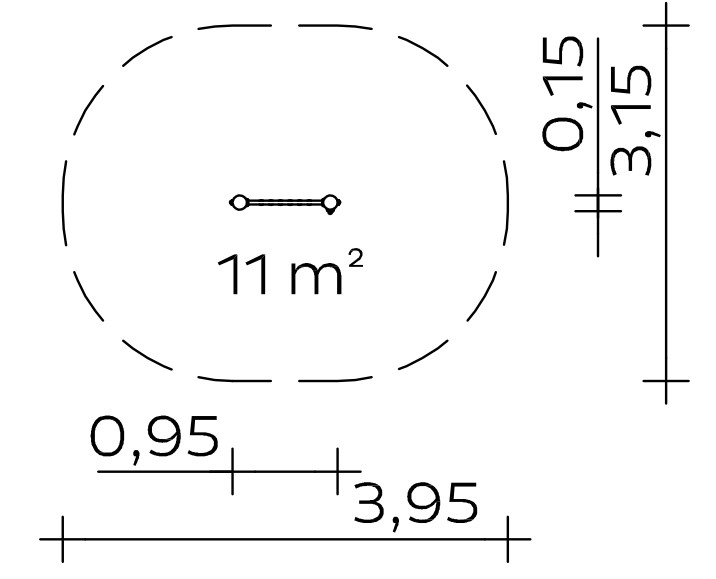

Minimum space: 3.25 x 3.95 m (11 m²)
Weight: 20 kg heaviest individual part
55 kg in total
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Attachments
- Stainless steel sound tubes, suspended on wire ropes. Attached between stainless steel tubes Ø 33.7 x 2 mm. Incl. PVC sound mallet, attached to a stand post with a stainless steel chain.
Metal components: Stainless steel
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
2 units 0.40 x 0.40 x 0.60 m
Concrete volume: 0.19 m³
Assembly time
2 fitters 0.5 hours each
(without foundation)
Suitable for
all age groups,
supervised playgrounds
Manual activities
Item number: 037204700
This Kaiser & Kühne product enables:
