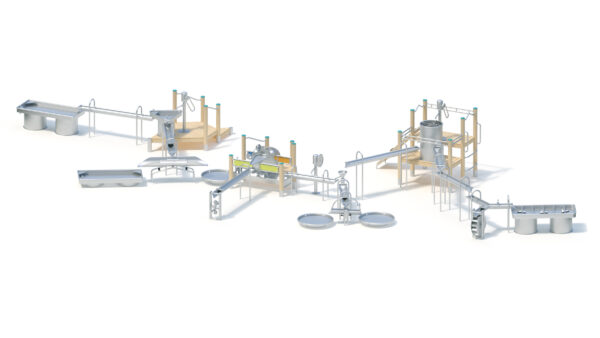

Technical data
Floor area: 18.35 x 7.10 m
Minimum space: 21.40 x 10.15 x 2.37 m (141 m²)
Total height: 2.37 m
Platform height: 0.20/0.40/0.80/1.20 m
Weight: 88 kg heaviest individual part
2030 kg total

Support post
Posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps. Posts that are flush with the platform are covered with welded-on stainless steel discs. Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.

Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection. Pump platform(s) with profiled stainless steel sheet.

Attachments
- Railing bracket to prevent rolling, made of stainless steel tube, Ø 33.7 x 2 mm
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Climbing rung (cranked) made of stainless steel tube, Ø 33.7 x 2 mm
- Vertical handle as climbing aid made of stainless steel tube, Ø 33.7 x 2 mm
- Step railing made of stainless steel tube, Ø 33.7 x 2 mm

Water pump with handwheel / with pump swivel arm
Suction pipe connection 1 ¼ inch (pipe diameter at least ¾ inch), welded stainless steel construction, encapsulated pump housing, pump mechanism with roller and plain bearings, upper pump housing with swivel or handwheel must be removed during the frost period, cover („winterisation plate“) for the remaining lower part of the pump is supplied, optional mounting on a solid surface such as a platform provided by the customer
Please note:
When connecting the water pump to a pressurised water line, the K&K valve combination (item no. 0-33190-000 or 0-33195-000) is required.
Please also observe the framework data specified in the installation instructions (distances, cable diameters, etc.); these are available on request from K&K or directly as a PDF at www.kaiser-kuehne.com.
If the water supply is intentionally interrupted temporarily (timer or similar), a vacuum will build up in the pipework system if the pump is operated again, which will cause the pump swivel to kick back. It is therefore essential to prevent the pump swivel arm from being actuated (e.g. by using the pump lock part number 1040639).

Flange pipe
Flange pipe for setting a K&K water pump or water tapping point in concrete, below play level

Y-channel
Y-shaped water channel with one inlet and two outlets, sheet thickness: min. 2 mm / pipe Ø 38 mm, sheet thickness: min. 2 mm / pipe Ø 38 mm

Water wheel Ø 0.60 m
Water wheel consisting of 12 blades, folded flat at the front and enclosed by side walls. Wheel bearing with roller bearings, sheet thickness 2.5 mm, with support, tube Ø 38 mm, prepared to accommodate the water channel.

Water channel
Welded stainless steel construction. Sheet thickness: min. 2.5 mm / pipe Ø 38 mm, bevelled outlet.
Additional elevation(s) during installation enable the required gradient for the water inlet and outlet to be infinitely variable.

Stowage flap
Storage flap for K&K water channels, freely positionable, stainless steel handle, rubber blade with fabric insert

Mill wheel
Welded stainless steel construction, 6 hemispheres with edge protection, wheel bearings with roller bearings

Distribution funnel
Rotatable stainless steel funnel with inclined outlet pipe for water distribution, can be continuously swivelled through 360°, for attachment to the stand post made of stainless steel pipe Ø 120 x 3 mm

Scoop wheel
Stainless steel scoop wheel Sheet thickness: min. 2.5 mm / pipe Ø 38 mm, including storage tray and drain pan, coloured HPL elements

Water reservoir
Welded stainless steel construction with two water drainage pipes, safety cover grille, rubber cone catch with locking mechanism for complete water drainage, sheet thickness: 2.5 mm/pipe Ø 38 mm, anchoring to flange ring. Matching ring foundation and moulded stones for bricking up and levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.) available at an extra charge.

Water table
Welded stainless steel construction with a water drain pipe and four shelves. Rubber cone closure with locking mechanism for residue-free water removal. Sheet thickness: 2 mm / pipe Ø 38 mm, anchored to the flange ring. Matching ring foundation and moulded stones for bricking up and levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.) available at an extra charge.

Mud plate
Welded stainless steel construction with 6 water drainage openings, sheet thickness: 2.5 mm / 2 mm / tube Ø 38 mm, anchored to the flange ring. Matching ring foundation and moulded stones for bricking up and levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.) available at an extra charge.

Water distribution table
Welded stainless steel construction with two water drain pipes, rubber cone closure with locking mechanism for complete water removal, sheet thickness: min. 2 mm/ pipe Ø 38 mm

Distributing trough
Welded stainless steel construction with adjustable, shock-absorbing tilting mechanism for two-way water distribution, with elevation and water channel with edge protection tube Ø 38 x 2 mm
Sheet thickness 2.5 mm

Water scales
Welded stainless steel construction with adjustable, shock-absorbing tilting mechanism for two-way water distribution, sheet thickness: 2.5 mm Pipe: Ø 20 mm and Ø 38 mm

Whirling table
Welded stainless steel construction with a water drainage opening and five adjustable HPL prisms as flow obstacles, sheet thickness: min. 2 mm, anchored to the flange ring. Matching ring foundation and moulded stones for bricking up and levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.) available at an extra charge.

Foundations (client-provided)
20 pcs. 0.40 x 0.40 x 0.40 m
18 units 0.50 x 0.50 x 0.50 m
1 piece 0.50 x 0.70 x 0.50 m
2 pcs. 0.50 x 0.50 x 0.40 m
2 pcs. 0.30 x 0.30 x 0.40 m
Concrete quantity: 4.00 m³

Free fall height
1,30 m

Suitable for
Children aged 3 and over,
public playgrounds etc.,
Manual activities

Item number: 034680700
