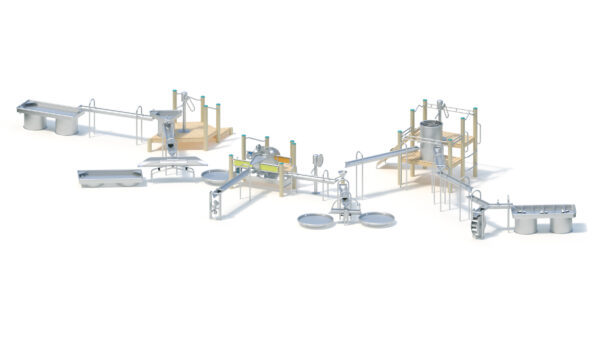

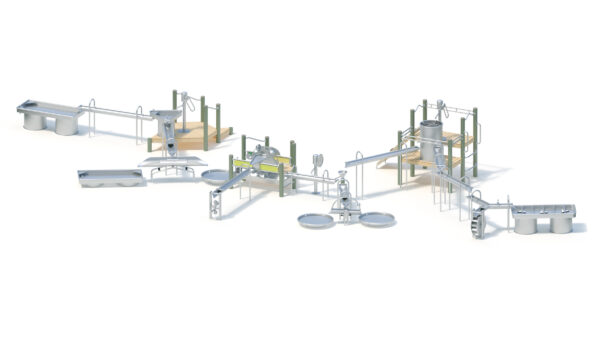

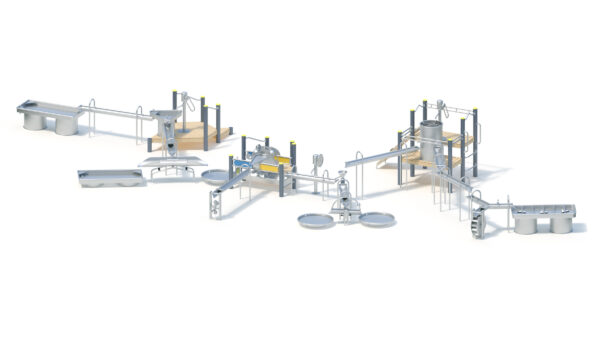

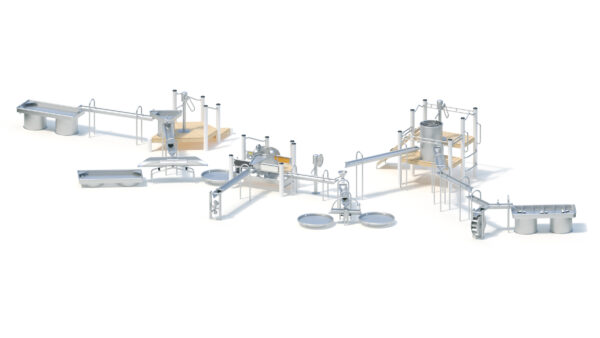

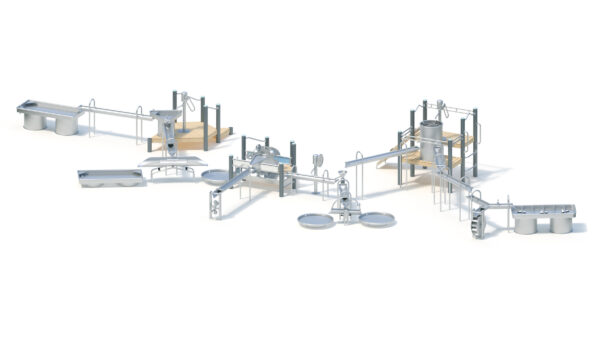

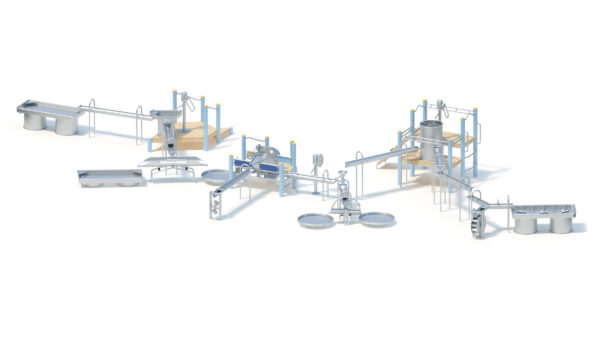

Technical data
Floor area: 18.35 x 7.10 m
Minimum space: 21.40 x 10.15 x 2.37 m (141 m²)
Total height: 2.37 m
Platform height: 0.20/0.40/0.80/1.20 m
Weight: 88 kg heaviest individual part
2030 kg total

Support post
Posts made of stainless steel tube Ø 120 mm, covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Posts that are flush with the platform are covered with welded-on stainless steel discs.

Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection. Pump platform with profiled stainless steel sheet.

Attachments
- Railing bracket to prevent rolling, made of stainless steel tube, Ø 33.7 x 2 mm
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Climbing rung (cranked) made of stainless steel tube, Ø 33.7 x 2 mm
- Vertical handle as climbing aid made of stainless steel tube, Ø 33.7 x 2 mm
- Step railing made of stainless steel tube, Ø 33.7 x 2 mm

Water pump article no. 033130001 or 033131001
Suction pipe connection 1 ¼ inch (pipe diameter min. ¾ inch), welded stainless steel construction, encapsulated pump housing, pump mechanism with roller and plain bearings, upper pump housing with swivel or handwheel must be removed, e.g. during the frost period, sealing cover („winterisation plate“) for the remaining lower part of the pump is supplied.

Please note:
When connecting the water pump to a pressurised water line, the K&K valve combination (item no. 0-33190-000 or 0-33195-000) is required.

If the water supply is intentionally interrupted temporarily (timer or similar), a negative pressure builds up in the pipe system when the pump is operated again, which causes the pump swivel to kick back.
It is therefore essential to prevent the pump swivel arm from being actuated (e.g. by using the pump lock, part number 1040639).

Please also observe the framework data specified in the installation instructions (spacing, diameter of the cables, etc.); these are available on request from K&K or directly as a PDF from our website at www.kaiser-kuehne.com.

Flange pipe
Flange pipe for screwing onto K&K water pump or water tapping point.
For setting in concrete below the play level.

Y-channel
Y-shaped water channel with one inlet area and two outlets, sheet thickness: min. 2 mm / pipe Ø 38 mm

Water wheel Ø 0.60 m
Water wheel consisting of 12 blades, folded flat at the front and enclosed by side walls. Wheel bearing with roller bearings, sheet thickness 2.5 mm, with support, tube Ø 38 mm, prepared to accommodate the water channel.

Water channel
Welded stainless steel construction. Sheet thickness: min. 2 mm / pipe Ø 38 mm. Bevelled spout.
Stepless inclination for installation for the required gradient for the water inlet and outlet through additional elevation.

Stowage flap
Storage flap for K&K water channels, freely positionable, stainless steel handle, rubber blade with fabric insert

Mill wheel
Welded stainless steel construction, 6 hemispheres with edge protection, wheel bearings with roller bearings

Distribution funnel
Rotatable stainless steel funnel with inclined outlet pipe for water distribution, can be continuously swivelled through 360°, for attachment to the stand post made of stainless steel pipe Ø 120 x 3 mm

Scoop wheel
Stainless steel scoop wheel Sheet thickness: min. 2.5 mm / pipe Ø 38 mm, including storage tray and drain pan, coloured HPL elements

Water reservoir
Welded stainless steel construction with 2 water drain pipes, safety cover grille, rubber cone catch with locking mechanism for complete water removal, sheet thickness: 2.5 mm/pipe Ø 38 mm, anchoring on flange ring

Water table
Welded stainless steel construction with a water drain pipe and four shelves. Rubber cone closure with locking mechanism for residue-free water removal. Sheet thickness: 2 mm / tube Ø 38 mm

Mud plate
Welded stainless steel construction with 6 water drainage openings, sheet thickness: 2.5 mm / 2 mm / pipe Ø 38 mm, anchoring on flange ring

Water distribution table
Welded stainless steel construction with 2 water drain pipes, rubber cone closure with locking mechanism for complete water removal, sheet thickness: min. 2 mm/ pipe Ø 38 mm

Distributing trough
Welded stainless steel construction with adjustable, shock-absorbing tilting mechanism for two-way water distribution, with elevation and water channel with edge protection tube Ø 38 x 2 mm
Sheet thickness 2.5 mm

Water scales
Welded stainless steel construction with adjustable, shock-absorbing tilting mechanism for two-way water distribution, sheet thickness: 2.5 mm Tube: Ø 20 mm and Ø 38 mm

Whirling table
Welded stainless steel construction with 1 water drainage opening and 5 adjustable HPL prisms as flow obstacles, sheet thickness: min. 2 mm, anchored to the flange ring

Foundations (client-provided)
20 pcs. 0.40 x 0.40 x 0.40 m
18 units 0.50 x 0.50 x 0.50 m
1 piece 0.50 x 0.70 x 0.50 m
2 pcs. 0.50 x 0.50 x 0.40 m
2 pcs. 0.30 x 0.30 x 0.40 m
Concrete quantity: 4.00 m³

Free fall height
1,30 m

Suitable for
Children aged 3 and over,
public playgrounds etc.,
Manual activities

Item number: 034680500
