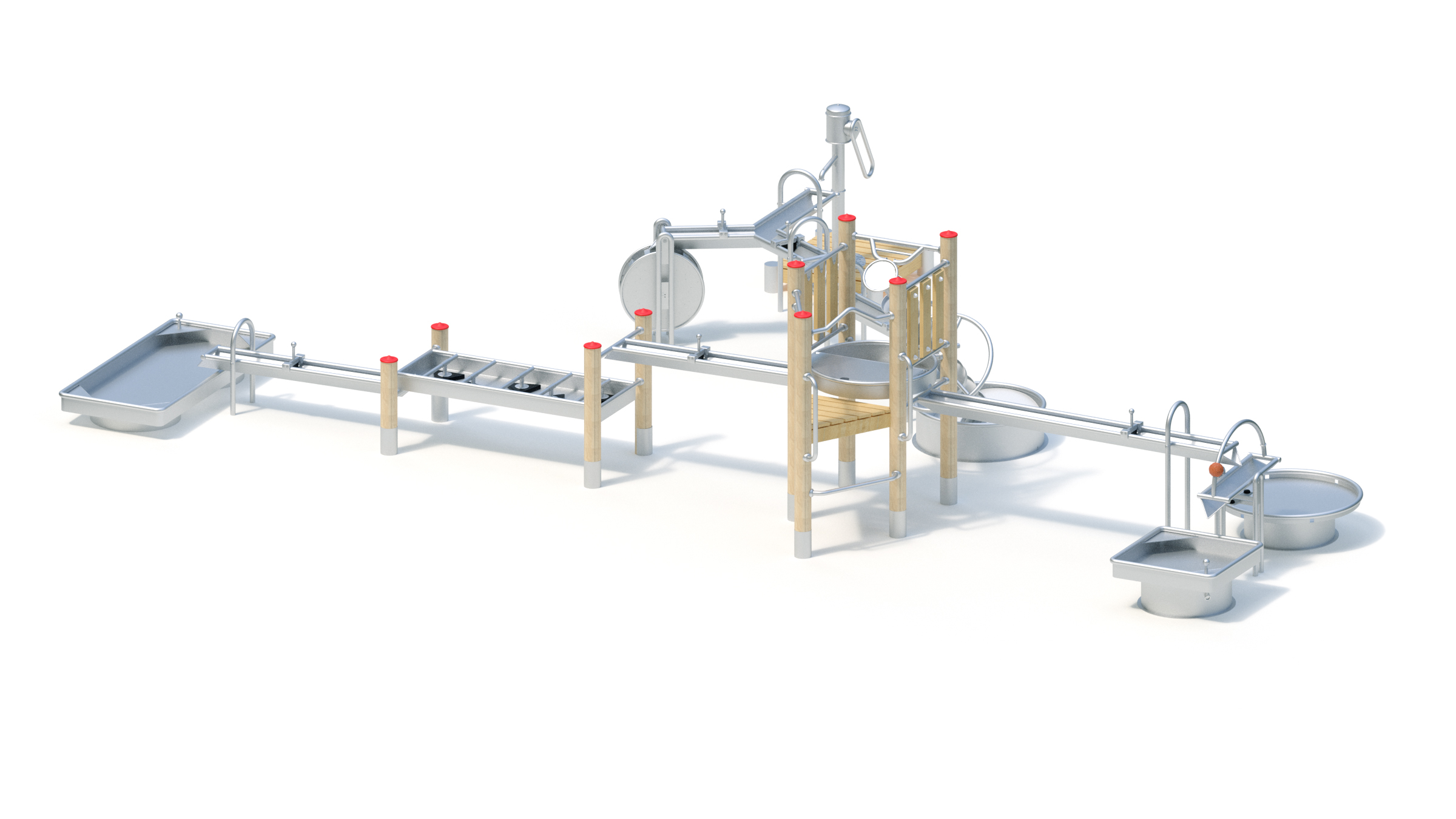

The 3D model serves as a spatial view. The colours do not correspond to the selected variant.
Water play structure
Select variant:
The most important information
| Age group ? | 2+ |
|---|---|
| Areas of application ? | - |
| Number of users ? | 42 persons |
| Activities ? | - |
Technical data
| Device length ? | 9,38 m |
|---|---|
| Device width ? | 6,02 m |
| Device height ? | 2,00 m |
| Free fall height ? | 1,00 m |
| Platform heights | - |
| Total weight ? | 815.00 kg |
| Heaviest single item ? | 85.00 kg |
| Minimum room length ? | 12,38 m |
| Minimum room width ? | 9,02 m |
| Minimum room height ? | 2,00 m |
Assembly & Foundations
| Assembly time ? | 20,0 h |
|---|---|
| Number of fitters ? | 3 persons |
| Lifting gear required ? | - |
| Foundations | 040x040x040 |
Product Downloads
Product description
Technical data
Total height: 2.00 m

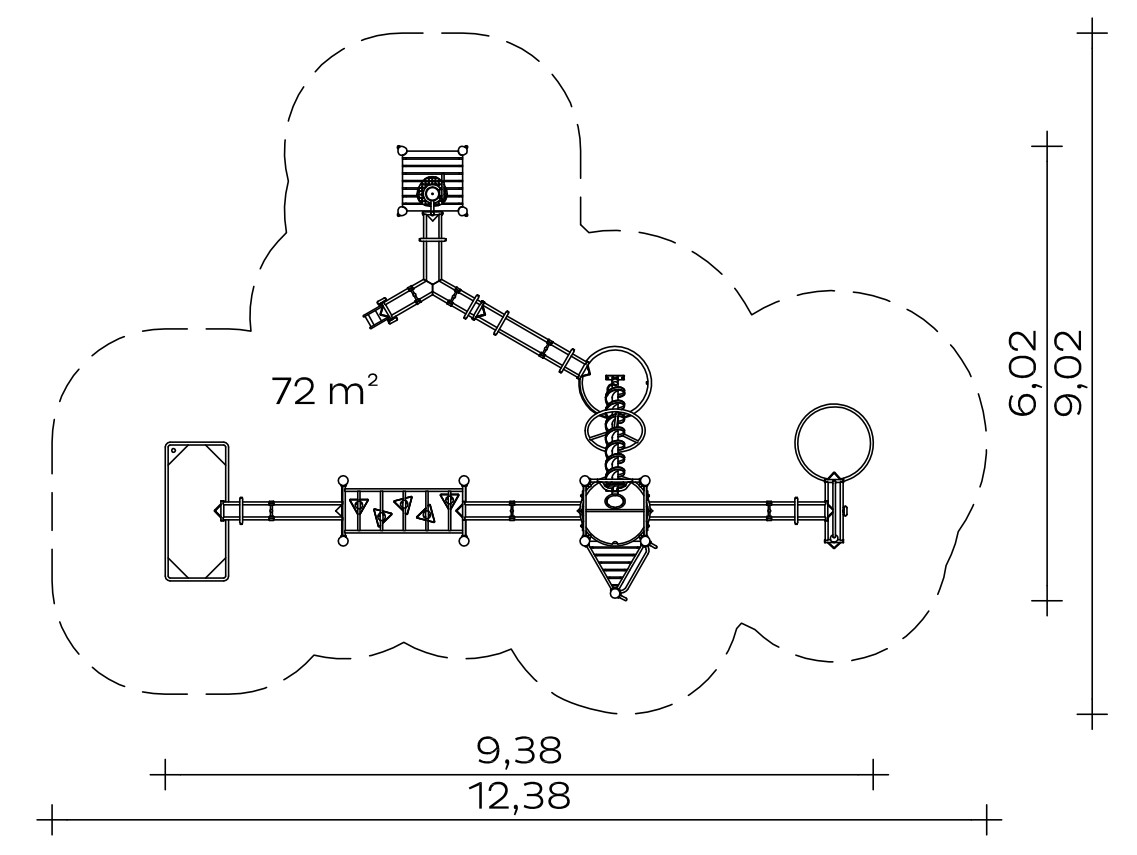

Floor area: 6.02 x 9.38 m
Minimum space: 9.02 x 12.38 m
Platform height: 0.20/0.95 m
Weight: approx. 85 kg heaviest individual part
approx. 815 kg in total
Support post
Posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps. Stainless steel tubular base for the foundation and elevation of robinia roundwood posts, Ø 120 mm, below the play level. Posts that are flush with the platform are not fitted with post caps.
Platform floors
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets and a continuous bolt connection. Pump platform with profiled stainless steel sheet.
Attachments
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Wooden balustrade made of robinia, 125 x 30 mm. Fastening between stainless steel tubes Ø 33.7 x 2 mm
- Climbing rung (cranked) made of stainless steel tube, Ø 33.7 x 2 mm
- Vertical handle as climbing aid made of stainless steel tube, Ø 33.7 x 2 mm
Water pump, part no. 0-33130-001
Height: 1.17 m
Water pump for direct connection to a water pipe, suction pipe connection 1 ¼ inch (pipe diameter min. ¾ inch). Welded stainless steel construction, encapsulated pump housing, pump mechanism with roller and plain bearings, upper pump housing with swivel must be removed, e.g. during the frost period. Cover („winterisation plate“) for the remaining pump base is supplied. Suitable for mounting on a solid surface, e.g. on a platform provided by the customer.
Please note:
When connecting the water pump to a pressurised water line, the valve combination (item no. 0-33190-000 or 0-33195-000) is required.
Please also observe the framework data specified in the installation instructions (spacing, diameter of the cables, etc.); these are available on request from K&K or directly as a PDF from our website at www.kaiser-kuehne.com.
If the water supply is intentionally interrupted temporarily (timer or similar), a negative pressure builds up in the pipe system when the pump is operated again, which causes the pump swivel to kick back.
It is therefore essential to prevent the pump swivel arm from being actuated (e.g. by using the pump lock, part number 1040639).
Y-channel
Y-shaped water channel with one inlet area and two outlets, sheet thickness: min. 2 mm / pipe Ø 38 mm
Water wheel (0.60)
Water wheel consisting of 12 blades, folded flat at the front and enclosed by side walls. Wheel bearing with roller bearings, sheet thickness min. 2 mm, with support, tube Ø 38 mm, prepared to accommodate the water channel.
Water channel (1.60), 3 pcs.
Welded stainless steel construction. Sheet thickness: min. 2 mm / pipe Ø 38 mm. Bevelled outlet. Stepless inclination for installation for the required gradient for the water inlet and outlet.
Conveyor basin solitary
Welded stainless steel construction with mounting device for the base bearing of the water spiral. Sheet thickness: min. 2 mm / tube Ø 38 mm. Water drainage opening closed by cylinder screw. Matching ring foundation (15168) for anchoring to the flange ring and moulded stones (15169) for bricking up and levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an extra charge.
Water spiral (2.00) with handwheel drive
Length: 2.00 m
Outer diameter: 0.25 m
Handwheel Ø: 0.80 m
Welded stainless steel construction with roller bearings, screw-on foot bearing, connection to posts.
Modular catch basin
Welded stainless steel construction for water absorption with two water drainage openings (90° and 270°). Sheet thickness min. 2 mm / tube Ø 38 mm. For connection to posts.
Water trough (2,40)
Welded stainless steel construction 0.80 m x 2.40 m, sheet thickness: min. 2 mm / pipe Ø 38 mm. Stepless inclination for installation for the required gradient for the water inlet and outlet through additional elevation.
Storage flap, 6 pcs.
Storage flap for water channels, freely positionable, stainless steel handle, rubber blade with fabric insert
Distribution tray, art. no. 0-33493-00
Base area: 0.35 x 1.05 m
Weight: 35 kg in total
Welded stainless steel construction with adjustable, shock-absorbing tilting mechanism for two-way water distribution, with elevation and water channel with edge protection tube Ø 38 x 2 mm, sheet thickness min. 2 mm/tube Ø 38 mm
Mud plate (0.25), item no. 0-33450-000
Base area: Ø 1.04 m
Total height: 0.32 m
Weight: 40 kg in total
Welded stainless steel construction with 6 water drainage openings. Sheet thickness: min. 2 mm / pipe Ø 38 mm. Anchored to the flange ring. Matching ring foundation (15165) for anchoring to the flange ring and moulded stones (15170) for bricking up and levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an extra charge.
Water table (0.25), art. no. 0-33445-000
Dimensions: 0.84 x 1.84 m
Total height: 0.48 m
Weight: 85 kg in total
Welded stainless steel construction with a water drain pipe and four shelves. Rubber cone closure with locking mechanism for residue-free water removal. Sheet thickness: min. 2 mm / pipe Ø 38 mm. Matching ring foundations (015165) for anchoring to the flange ring and moulded stones (015170) for bricking up and levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an extra charge.
Whirling table
Welded stainless steel construction with 5 adjustable HPL prisms as flow obstacles. Sheet thickness min. 2 mm, pipe Ø 33.7 mm or Ø 30 mm.
Water table (0.25), art. no. 0-33440-000
Base area: 0.84 x 0.84 m
Total height: 0.40 m
Weight: 45 kg in total
Welded stainless steel construction with 1 water drain pipe. Rubber cone closure with locking mechanism for complete water drainage. 2 shelves. Sheet thickness: min. 2 mm / pipe Ø 38 mm. Anchored to the flange ring. Matching ring foundation (15165) for anchoring to the flange ring and moulded stones (15170) for bricking up and levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an extra charge.
Metal components: Stainless steel.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
13 units 0.40 x 0.40 x 0.40 m
6 pcs. 0.50 x 0.50 x 0.50 m
2 units 0.50 x 0.70 x 0.50 m
Free fall height
0,95 m
Suitable for
Children aged 3 and over,
public playgrounds etc.,
Manual activities
Item number: 034360700
