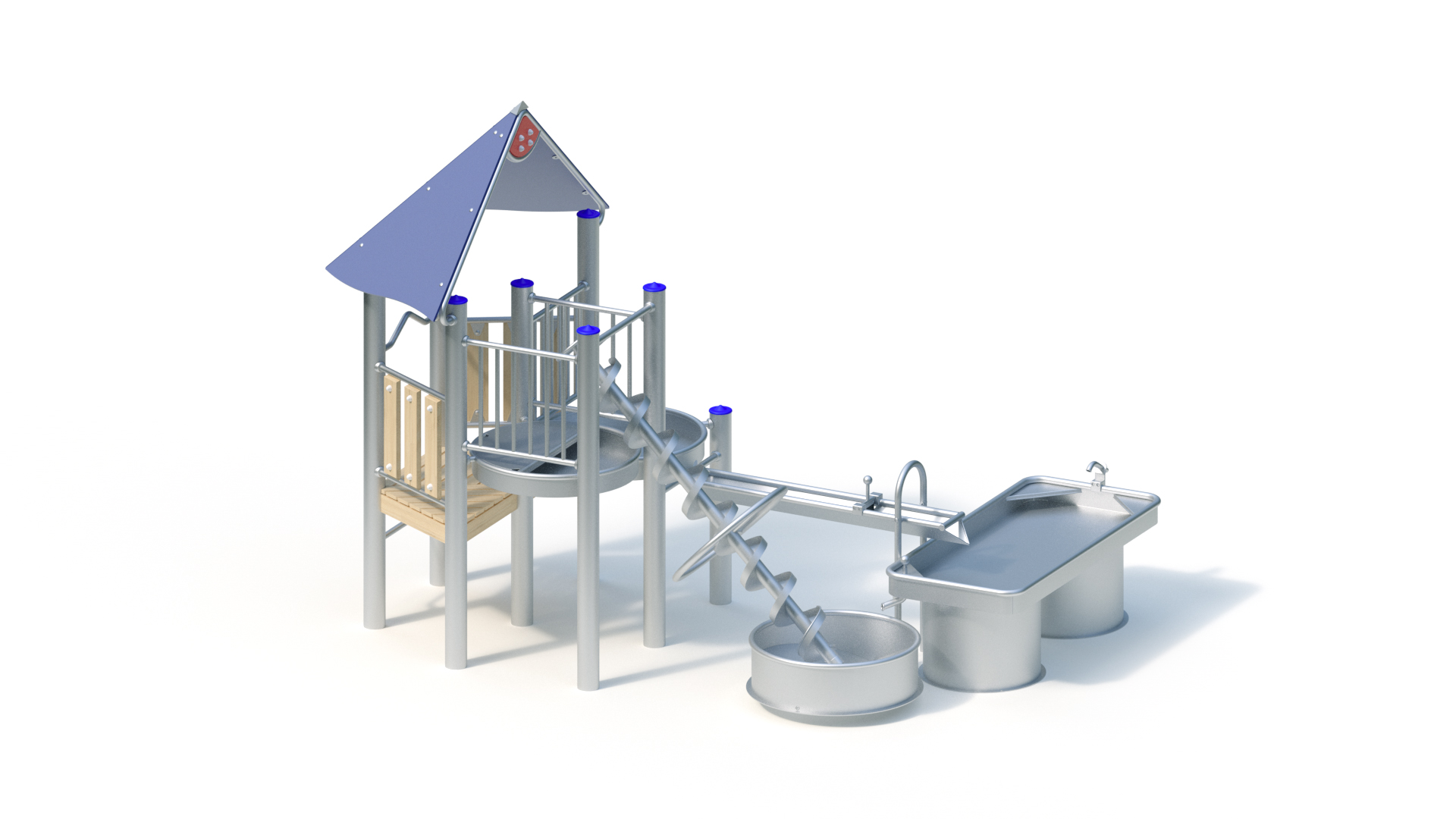

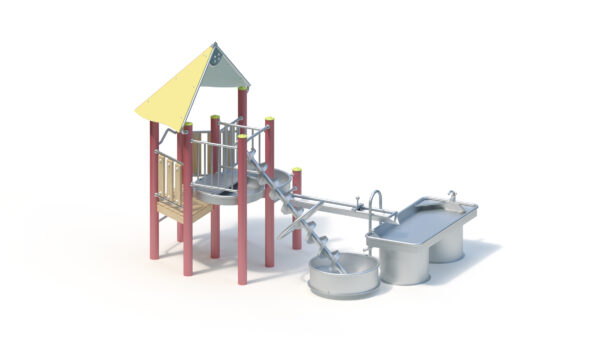

Water play structure

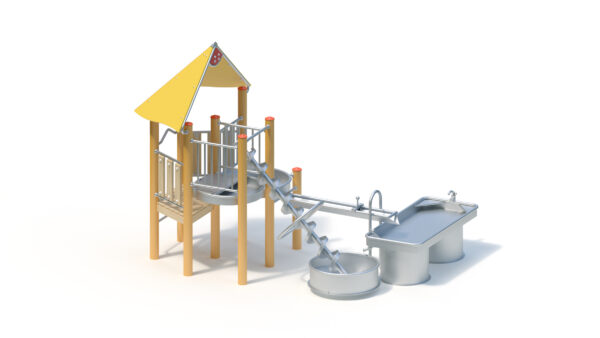

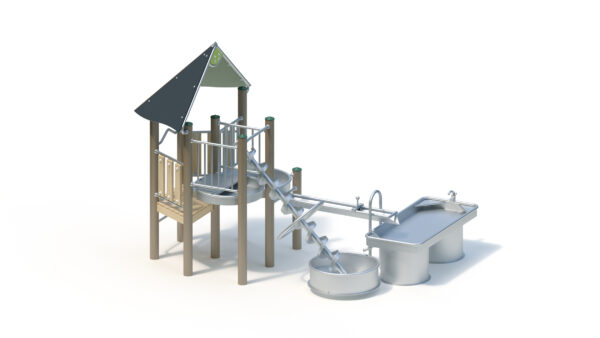

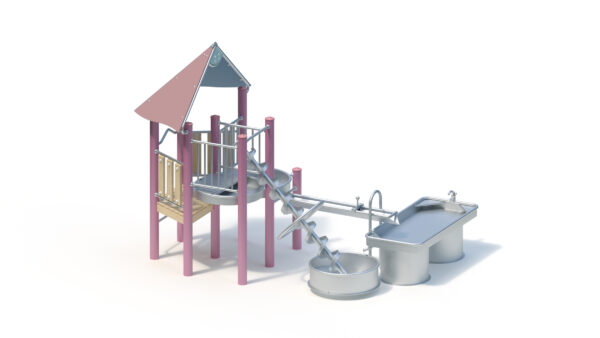

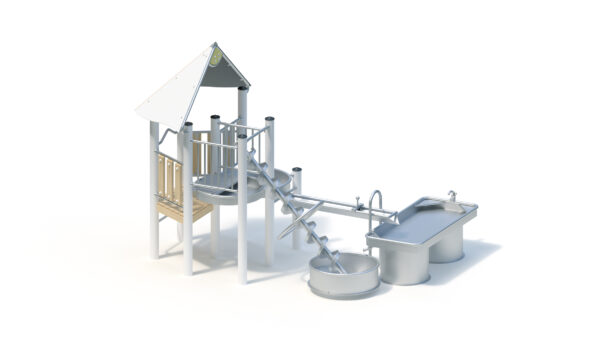

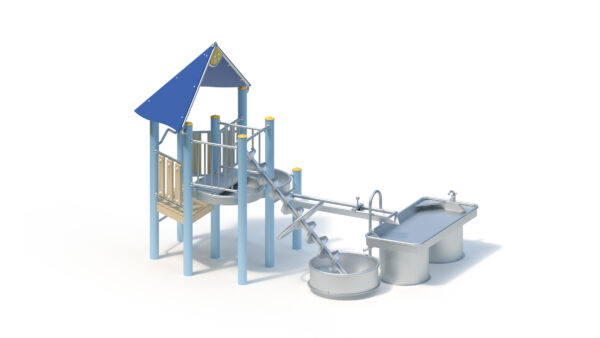

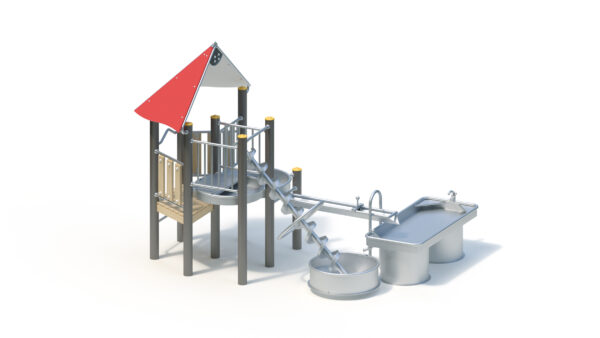

Select variant:
The most important information
| Age group ? | 2+ |
|---|---|
| Areas of application ? | supervised playgrounds |
| Number of users ? | 16 persons |
| Activities ? | Manual activity |
Technical data
| Device length ? | 4,02 m |
|---|---|
| Device width ? | 2,68 m |
| Device height ? | 3,00 m |
| Free fall height ? | 1,20 m |
| Platform heights | - |
| Total weight ? | 545.00 kg |
| Heaviest single item ? | 88.50 kg |
| Minimum room length ? | 7,02 m |
| Minimum room width ? | 5,66 m |
| Minimum room height ? | 3,00 m |
Assembly & Foundations
| Assembly time ? | 3.0 hours |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | - |
| Foundations | 040x040x040 |
Product Downloads
Product description
Technical data

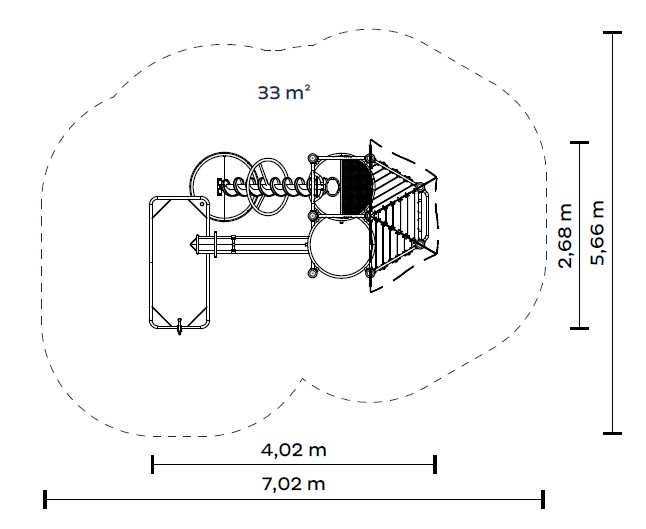

Floor area: 2.68 x 4.02 m
Minimum space: 5.66 x 7.02 m (33 m²)
Total height: 3.00 m
Platform height: 0.80/1.20 m
Weight:105 kg heaviest individual part
560 kg in total
Support post
Support posts made of stainless steel tube Ø 120 x 3 mm, covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Attachments
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Climbing rung (cranked) made of stainless steel tube, Ø 33.7 x 2 mm
- Half tent roof, inclination 45°, made of highly weather-resistant HPL laminate (blue), 13 mm, attachment to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Wooden balustrade made of robinia, 125 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Lattice balustrade made of stainless steel tube, Ø 33.7 x 2 / 25 x 2 mm, one-piece welded construction
Conveyor basin solitary
Welded stainless steel construction with mounting device for the base bearing of the water spiral, with drain hole. Sheet thickness 2 mm / pipe Ø 33.7 mm.
Matching ring foundation (015168) for anchoring to the flange ring and moulded stones (015169) for bricking up and levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an extra charge.
Modular catch basin
Welded stainless steel construction for water absorption with a water drainage pipe, sheet thickness 2 mm / pipe Ø 33.7 mm, for connection to posts.
Water spiral handwheel drive
Length: 2.00 m
Outer diameter: 0.25 m
Handwheel Ø: 0.80 m
Welded stainless steel construction with roller bearings, screw-on foot bearing, connection to posts.
Water table (0,50)
Base area: 0.84 x 1.84 m
Total height: 0.65 m
Welded stainless steel construction with 1 water drain pipe. Rubber cone closure with locking mechanism for complete water drainage. 4 shelves. Sheet thickness: 2 mm / pipe Ø 38 mm. Anchored to the flange ring.
Matching ring foundations (015165) for anchoring to the flange ring and moulded bricks (015170) for bricking up and levelling height differences can be supplied at an extra charge.
Gargoyle
Welded stainless steel construction, clamping part for fastening to pipe Ø 38 mm, with connection for a garden hose with 1/2″ or 3/4″ hose section. (e.g. Gardena® or comparable).
Water channel M5 1.60 m
Welded stainless steel construction. Sheet thickness: 2 mm / tube Ø 38 mm. With connection to support posts and additional elevation for stepless inclination of the channel. Sloped outlet. Including positionable storage flap, stainless steel handle, rubber blade with fabric insert.
Patio tray with 1 drain
Base area: Ø 0.90 m
Total height: 0.14 m
Welded stainless steel construction with a water drainage pipe, sheet thickness: 2 mm / pipe Ø 33.7 mm, connection to posts.
Foundations (client-provided)
8 pcs. 0.40 x 0.40 x 0.40 m
1 piece 0.50 x 0.50 x 0.50 m
Concrete volume: 0.7 m³
Assembly time
2 fitters 3 hours each.
(without foundation, without water connection)
Suitable for
Children from 2 years,
supervised playgrounds etc.,
Manual activities
Item number: 034352501
