Water play structure
The most important information
| Altersgruppe ? | 2+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 19 Personen |
| Aktivitäten ? | Manual activity |
Technical data
| Mindestraumlänge ? | 8,35 m |
|---|---|
| Mindestraumbreite ? | 5,85 m |
| Mindestraumhöhe ? | 1,60 m |
| Gerätelänge ? | 5,35 m |
| Gerätebreite ? | 2,85 m |
| Gerätehöhe ? | 1,60 m |
| Freie Fallhöhe ? | 0,90 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 445.00 kg |
| Schwerstes Einzelteil ? | 65.00 kg |
Assembly & Foundations
| Montagezeit ? | 2,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 6 (0.4m x 0.4m x 0.4m) Quantity: 3 (0.5m x 0.5m x 0.5m) Quantity: 1 (0.7m x 0.5m x 0.5m) |
Product Downloads
Product description
Technical data

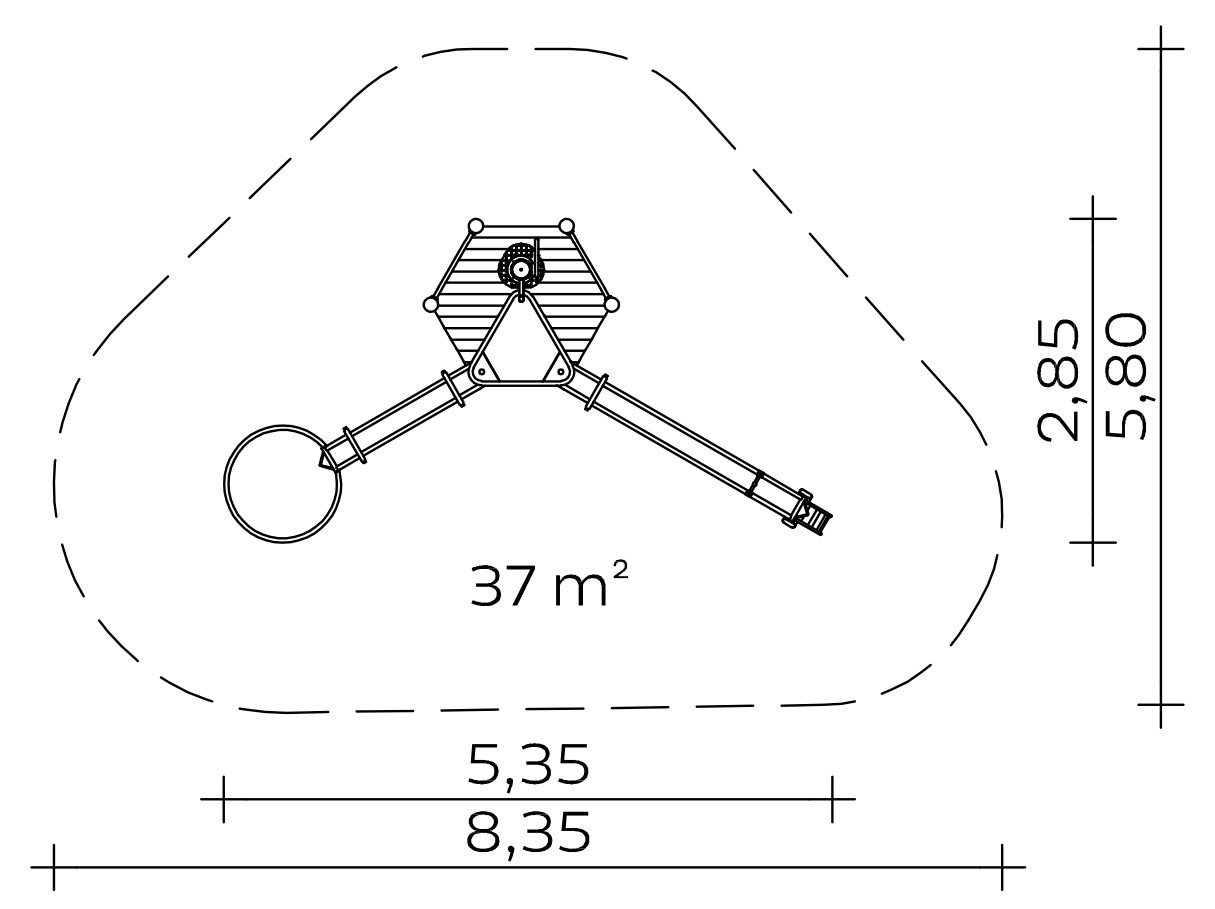

Floor area: 2.85 x 5.35 m
Minimum space: 5.80 x 8.35 m (37 m²)
Total height: 1.60 m
Platform height: 0.40 m
Weight: 65 kg heaviest individual part
445 kg in total
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Posts that are flush with the platform are not fitted with post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Pump platform with additional profiled stainless steel plate.
Attachments
- Step railing made of stainless steel tube, Ø 33.7 x 2 mm
Water pump article no. 0-33130-001
Water pump for direct connection to a water pipe, suction pipe connection 1 ¼ inch (pipe diameter at least ¾ inch)
Welded stainless steel construction, encapsulated pump housing, pump mechanism with roller and plain bearings, upper pump housing with swivel must be removed, e.g. during the frost period.
Please note:
When connecting the water pump to a pressurised water line, the K&K valve combination (item no. 0-33190-000 or 0-33195-000) is required.
If the water supply is intentionally interrupted temporarily (timer or similar), a negative pressure builds up in the pipe system when the pump is operated again, which causes the pump swivel to kick back.
It is therefore essential to prevent the pump swivel arm from being actuated (e.g. by using the pump lock, part number 1040639).
Please also observe the framework data specified in the installation instructions (spacing, diameter of the cables, etc.); these are available on request from K&K or directly as a PDF from our website at www.kaiser-kuehne.com.
Water distribution table (0.50) Article no. 0-33480-000
Welded stainless steel construction with 2 water drain pipes. Rubber cone closure with locking mechanism for complete water drainage. Tube Ø 38 mm.
Water channel 2.40 m / water wheel 0.60 m
Welded stainless steel construction with elevation and water channel. Sheet thickness: min. 2 mm. Water wheel consisting of 12 blades, folded flat at the front and enclosed by side walls. Wheel bearing with roller bearings.
Including storage flap, freely positionable, stainless steel handle, rubber blade with fabric insert.
Water channel 1.60 m
Welded stainless steel construction with elevation and water channel. Sheet thickness: min. 2 mm.
Mud plate (0.50) Article no. 0-33451-000
Welded stainless steel construction with 6 water drainage openings. Sheet thickness: min. 2 mm, pipe Ø 38 mm. Anchored to the flange ring.
Matching ring foundation (15165) for anchoring to the flange ring and moulded stones (15170) for bricking up and levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an extra charge.
Metal components: Stainless steel.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
6 pcs. 0.40 x 0.40 x 0.40 m
3 pcs. 0.50 x 0.50 x 0.50 m
1 piece 0.50 x 0.70 x 0.50 m
Concrete quantity: 1.01 m³
Assembly time
2 fitters 1.5 hours each.
(without foundation, without water connection)
Free fall height
0,90 m
Suitable for
Children aged 4 and over,
public playgrounds etc.,
Manual activities
Item number: 034152701
