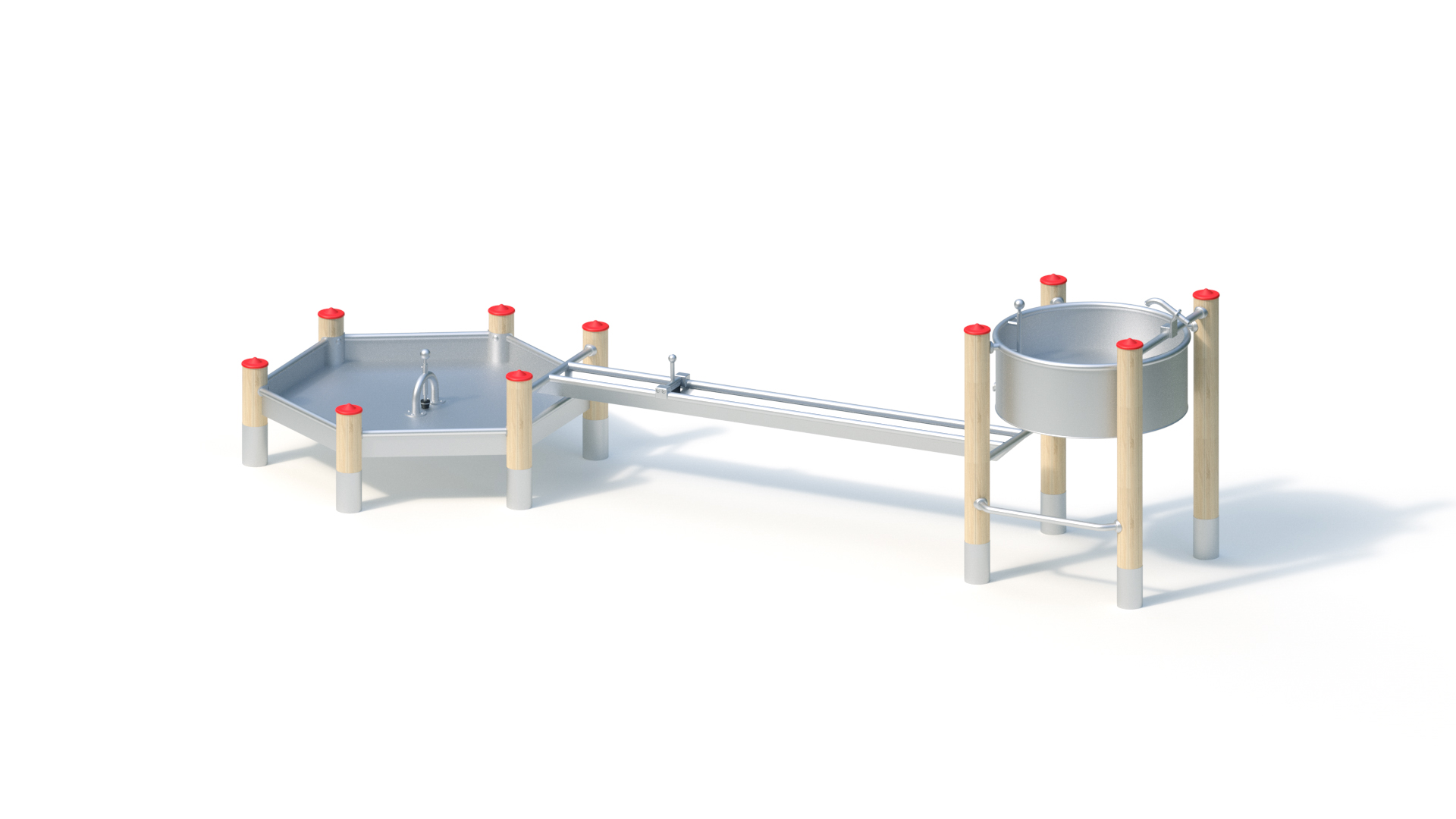

Water play structure
The most important information
| Altersgruppe ? | 2+ |
|---|---|
| Einsatzgebiete ? | supervised playgrounds |
| Benutzeranzahl ? | 13 Personen |
| Aktivitäten ? | Manual activity |
Technical data
| Mindestraumlänge ? | 7,75 m |
|---|---|
| Mindestraumbreite ? | 4,75 m |
| Mindestraumhöhe ? | 1,40 m |
| Gerätelänge ? | 4,75 m |
| Gerätebreite ? | 1,75 m |
| Gerätehöhe ? | 1,40 m |
| Freie Fallhöhe ? | 0,95 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 270.00 kg |
| Schwerstes Einzelteil ? | 63.00 kg |
Assembly & Foundations
| Montagezeit ? | 2,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 10 (0.4m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data
Total height: approx. 1.40 m

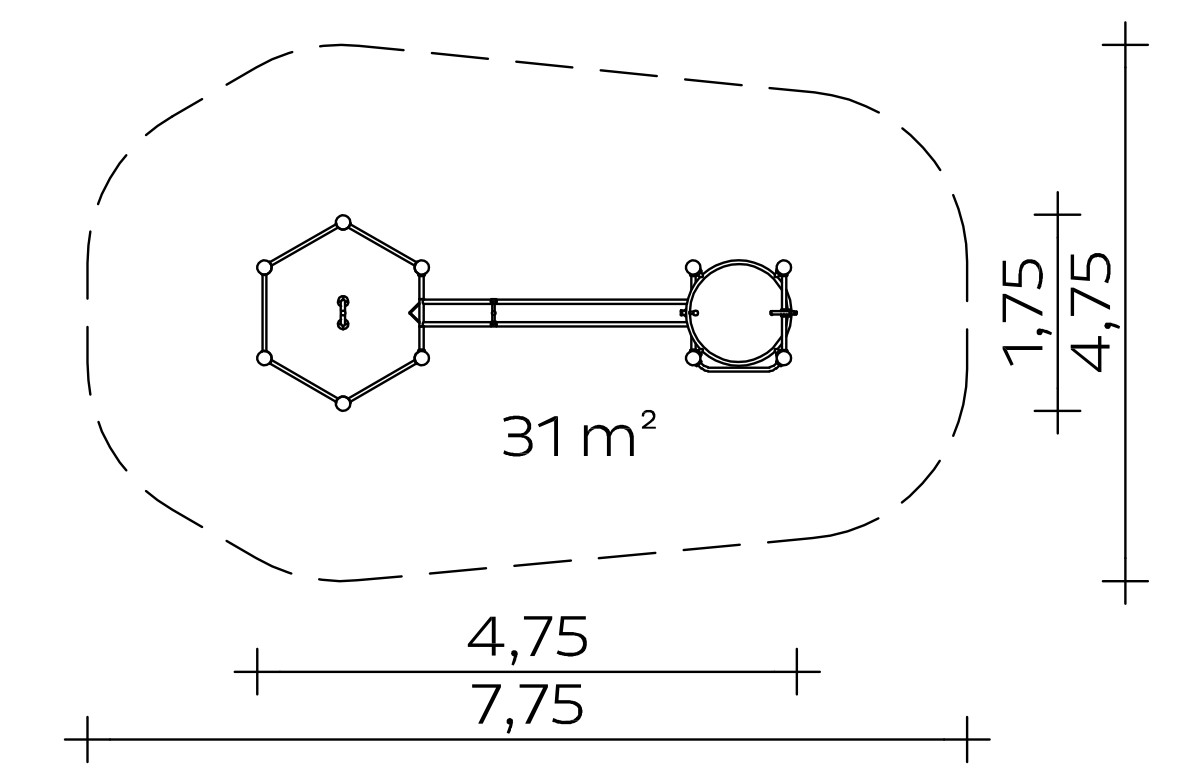

Floor area: approx. 1.75 x 4.75 m
Minimum space: approx. 4.75 x 7.75 m (31 m²)
Weight: 80 kg heaviest individual part
270 kg in total
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm, covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Attachments
- Support tube made of stainless steel tube, Ø 38 x 2.5 mm, torsion-resistant
- Climbing rung (cranked) made of stainless steel tube, Ø 33.7 x 2 mm
K&K water reservoir with 1 drain pipe
Base area: Ø 0.68 m
Welded stainless steel construction with a water drain pipe. Rubber cone closure with locking mechanism for complete water drainage. Sheet thickness: min. 2 mm / pipe Ø 38 mm.
K&K Water spout Article no. 0-33125-000
Welded stainless steel construction, clamping part for attaching to pipe Ø 38 mm, with connection element suitable for connecting a garden hose with 1/2″ or 3/4″ hose section. (e.g. Gardena® or comparable).
K&K water channel M1 2.40 m
Welded stainless steel construction. Sheet thickness: min. 2 mm / pipe Ø 38 mm. For connection to support posts, with stepless inclination for installation for the required gradient for the water inlet and outlet.
K&K baffle
Storage flap for K&K water channels, freely positionable, stainless steel handle, rubber blade with fabric insert.
K&K maxi table 6 x 0.80 m with water valve
Base area: 1.40 x 1.70 m
Height: 0.80 m
Hexagonal stainless steel construction with lockable rubber cone closure for stowing and regulating water. Sheet thickness: min. 2 mm.
Metal components: Stainless steel.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
10 pcs. 0.40 x 0.40 x 0.40 m
Concrete volume: 0.64 m³
Assembly time
2 fitters 2 hours each.
(without foundation, without water connection)
Free fall height
0,95 m
Suitable for
Children from 2 years,
supervised playgrounds etc.,
Manual activities
Item number: 034060702
