Water play structure
The most important information
| Age group ? | 2+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 11 persons |
| Activities ? | Manual activity |
Technical data
| Device length ? | 3,15 m |
|---|---|
| Device width ? | 1,85 m |
| Device height ? | 1,25 m |
| Free fall height ? | 0,25 m |
| Platform heights | - |
| Total weight ? | 105.00 kg |
| Heaviest single item ? | 85.00 kg |
| Minimum room length ? | 6,15 m |
| Minimum room width ? | 4,85 m |
| Minimum room height ? | 1,25 m |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | - |
| Foundations | 050x050x050 |
Product Downloads
Product description
Technical data
Total height: approx. 1.25 m
Floor area: approx. 1.85 x 3.15 m

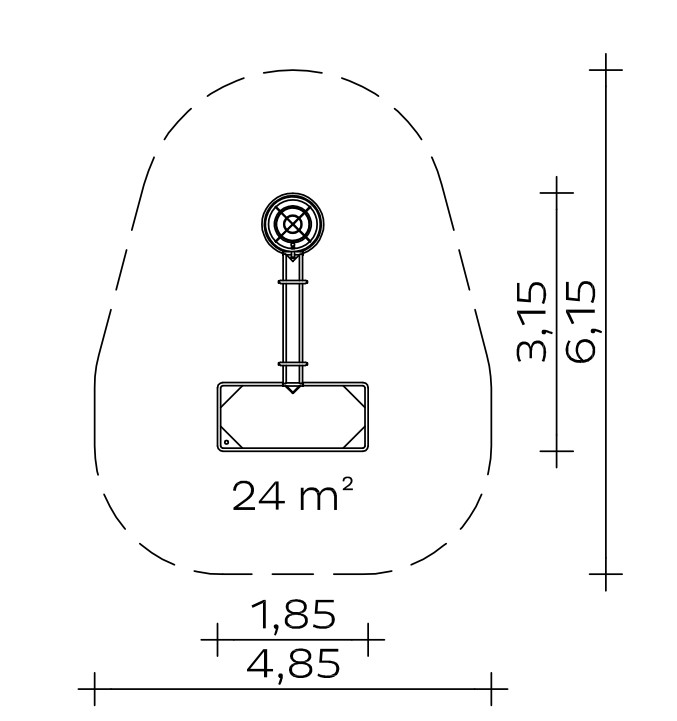

Minimum space: approx. 4.85 x 6.15 m (24 m²)
Weight: 85 kg heaviest individual part
240 kg in total
Water reservoir with 1 drain pipe Article no. 0-33410-000
Base area: Ø 0.68 m
Height: 1.04 m
Water capacity: 140 litres
- Welded stainless steel construction with 1 water drain pipe
- Safety cover grille
- Rubber cone stopper with locking mechanism for residue-free water extraction
- Sheet thickness: min. 2 mm/tube Ø 38 mm
- Anchoring on the flange ring
Matching moulded stones (15170) for bricking up and levelling height differences or for a secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an extra charge.
Ring foundation Article no. 15165
Size: Ø 0.76/0.45 x 0.10 m
Weight: 64 kg
Concrete base, rounded edges; 4 threaded dowels, suitable as concrete base for K&K water reservoir item no. 0-33410-000.
Water channel S1 1.60 m
Welded stainless steel construction. Sheet thickness: min. 2 mm / pipe Ø 38 mm. Stepless inclination for installation for the required gradient for the water inlet and outlet through additional elevation.
Water table (0.25) Article no. 0-33445-000
Base area: 0.84 x 1.84 m
Total height: 0.40 m
Welded stainless steel construction with 1 water drain pipe. Rubber cone closure with locking mechanism for residue-free water removal. 4 shelves. Sheet thickness: min. 2 mm / pipe Ø 38 mm. Anchored to the flange ring.
Matching ring foundation (15165) for anchoring to the flange ring and moulded stones (15170) for bricking up and levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an extra charge.
Metal components: Stainless steel.
Foundations (client-provided)
2 pcs. 0.50 x 0.50 x 0.50 m
Concrete quantity: 0.25 m³
Assembly time
2 fitters 0.5 hours each.
(without foundation, without water connection)
Free fall height
0,25 m
Suitable for
Children from 2 years,
public playgrounds etc.,
Manual activities
Item number: 034040000
