Water play structure
The most important information
| Age group ? | 2+ |
|---|---|
| Areas of application ? | supervised playgrounds |
| Number of users ? | 11 persons |
| Activities ? | Manual activity |
Technical data
| Device length ? | 2,45 m |
|---|---|
| Device width ? | 1,85 m |
| Device height ? | 1,00 m |
| Free fall height ? | 0,25 m |
| Platform heights | - |
| Total weight ? | 120.00 kg |
| Heaviest single item ? | 85.00 kg |
| Minimum room length ? | 5,45 m |
| Minimum room width ? | 4,85 m |
| Minimum room height ? | 1,00 m |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | - |
| Foundations | 050x050x050 |
Product Downloads
Product description
Technical data

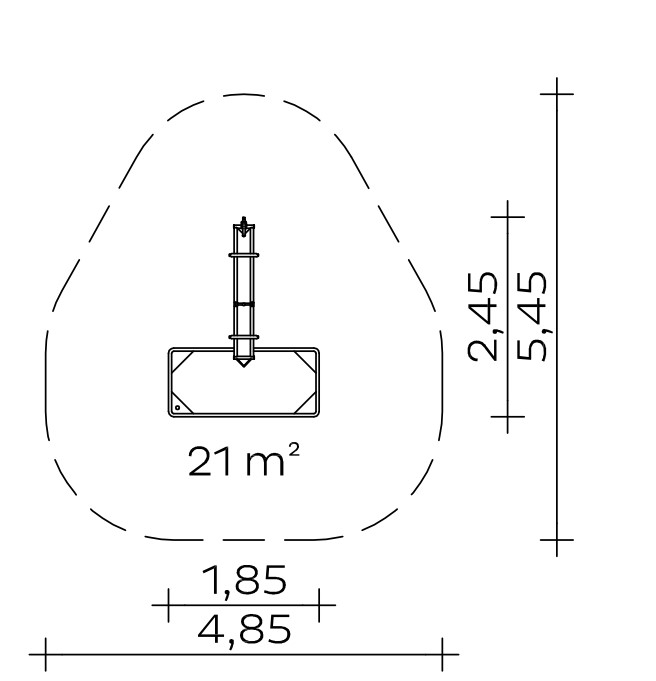

Floor area: approx. 1.85 x 2.45 m
Minimum space: approx. 4.85 x 5.45 m (21 m²)
Weight: 85 kg heaviest individual part
120 kg in total
Water spout article no. 0-33125-000
Weight: 2 kg in total
Welded stainless steel construction, clamping part for fastening to Ø 38 mm holder pipe, with connection element suitable for connecting a garden hose with 1/2″ or 3/4″ hose section. (e.g. Gardena® or comparable).
Water channel 1.60 m
Welded stainless steel construction. Sheet thickness: min. 2 mm / pipe Ø 38 mm, stepless inclination for installation for the required gradient for the water inlet and outlet by additional elevation.
Stowage flap
Storage flap for K&K water channels, freely positionable, stainless steel handle, rubber blade with fabric insert
Water table (0.25) Article no. 0-33445-000
Base area: 0.84 x 1.84 m
Total height: 0.40 m
Welded stainless steel construction with 1 water drain pipe. Rubber cone closure with locking mechanism for complete water drainage. 4 shelves. Sheet thickness: min. 2 mm / pipe Ø 38 mm. Anchored to the flange ring.
Matching ring foundation (15165) for anchoring to the flange ring and moulded stones (15170) for bricking up and levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an extra charge.
Metal components: Stainless steel.
Foundations (client-provided)
2 pcs. 0.50 x 0.50 x 0.50 m
Concrete quantity: 0.25 m³
Assembly time
2 fitters 1 hour each.
(without foundation, without water connection)
Free fall height
0,25 m
Suitable for
Children from 2 years,
supervised playgrounds etc.,
Manual activities
Item number: 034036000
