Water play structure
The most important information
| Age group ? | 2+ |
|---|---|
| Areas of application ? | supervised playgrounds |
| Number of users ? | 13 persons |
| Activities ? | Manual activity |
Technical data
| Device length ? | 2,70 m |
|---|---|
| Device width ? | 2,40 m |
| Device height ? | 1,05 m |
| Free fall height ? | 0,25 m |
| Platform heights | - |
| Total weight ? | 145.00 kg |
| Heaviest single item ? | 40.00 kg |
| Minimum room length ? | 5,70 m |
| Minimum room width ? | 5,40 m |
| Minimum room height ? | 1,05 m |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | - |
| Foundations | 050x050x050 |
Product Downloads

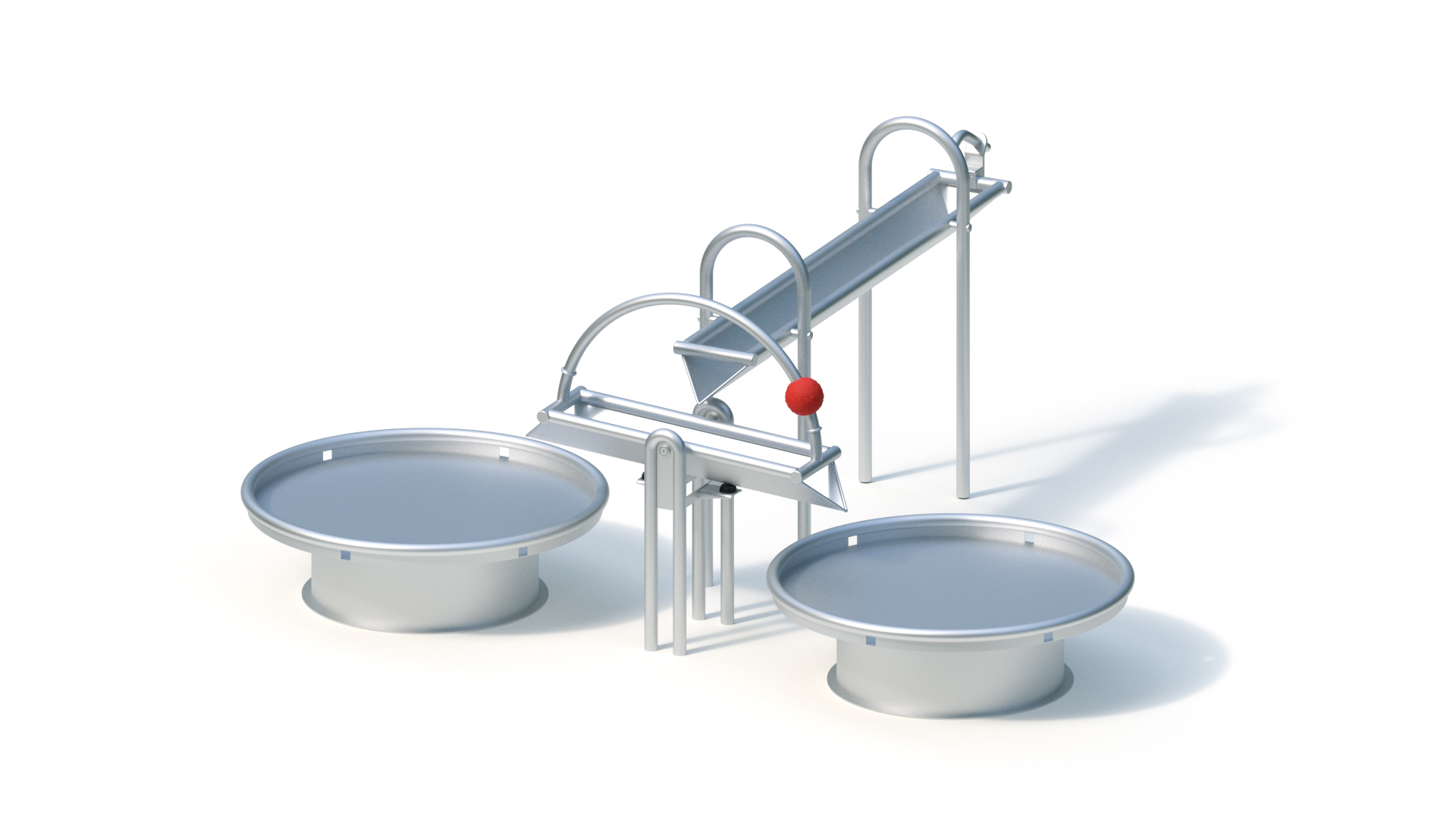

Product description
Technical data
Total height: 1.05 m
Floor area: 2.40 x 2.70 m

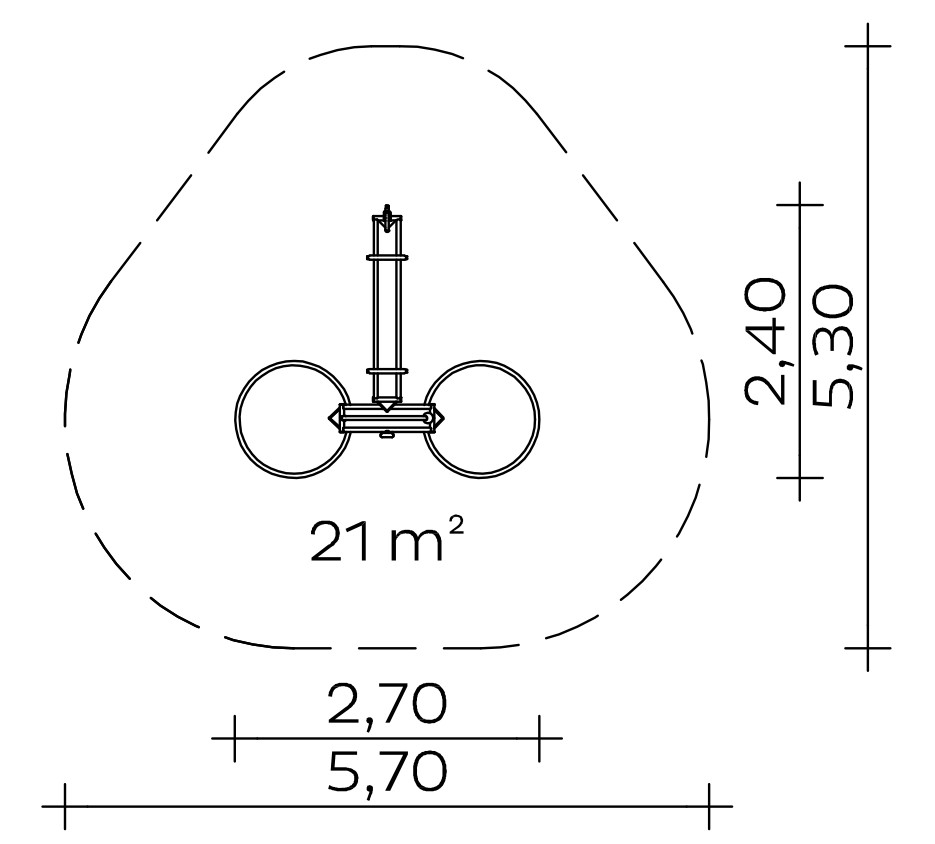

Minimum space: 5.30 x 5.70 m (21 m²)
Weight: 40 kg heaviest individual part
145 kg in total
Water spout article no. 0-33125-000
Welded stainless steel construction, clamping part for fastening to pipe Ø 38 mm, with connection element. Suitable for connecting a garden hose with 1/2″ or 3/4″ hose section. (e.g. Gardena® or comparable).
Water channel S1 1.60 m
Welded stainless steel construction. Sheet thickness: min. 2 mm / pipe Ø 38 mm, stepless inclination for installation for the required gradient for the water inlet and outlet by additional elevation.
Distribution tray Article no. 0-33493-000
Base area: 0.35 x 1.05 m
Welded stainless steel construction with adjustable, shock-absorbing tilting mechanism for two-way water distribution, sheet thickness min. 2 mm/tube Ø 38 mm, with elevation and water channel with edge protection tube Ø 38 x 2 mm.
Mud plate (0.25) Article no. 0-33450-000, two pieces
Base area: Ø 1.04 m
Total height: 0.32 m
Welded stainless steel construction with 6 water drainage openings. Sheet thickness: min. 2 mm / pipe Ø 38 mm. Anchored to the flange ring.
Matching ring foundation (15165) for anchoring to the flange ring and moulded stones (15170) for bricking up and levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an extra charge.
Metal components: Stainless steel.
Foundations (client-provided)
2 pcs. 0.50 x 0.50 x 0.50 m
1 piece 0.50 x 0.70 x 0.50 m
Concrete volume: 0.43 m³
Assembly time
2 fitters 1 hour each.
(without foundation, without water connection)
Free fall height
0,25 m
Suitable for
Children from 2 years,
supervised playgrounds etc.,
Manual activities
Item number: 034030000
