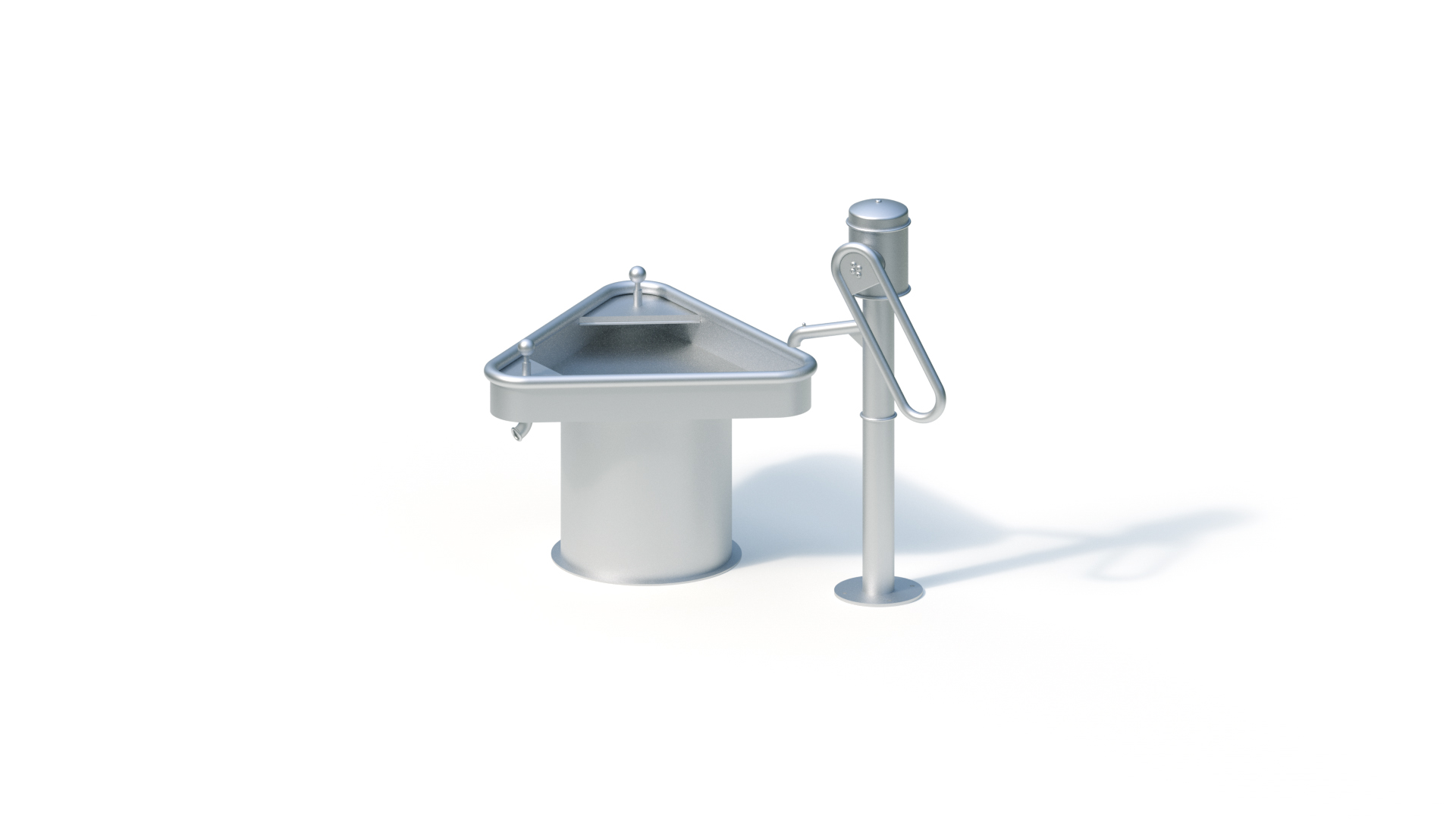

Water play structure
The most important information
| Age group ? | 3+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 6 persons |
| Activities ? | Manual activity |
Technical data
| Device length ? | 1,35 m |
|---|---|
| Device width ? | 0,95 m |
| Device height ? | 1,17 m |
| Free fall height ? | 0,50 m |
| Platform heights | - |
| Total weight ? | 105.00 kg |
| Heaviest single item ? | 55.00 kg |
| Minimum room length ? | 4,35 m |
| Minimum room width ? | 3,95 m |
| Minimum room height ? | 1,17 m |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | - |
| Foundations | 050x050x050 |
Product Downloads
Product description
Technical data
Total height: approx. 1.17 m
Floor area: approx. 0.95 x 1.35 m

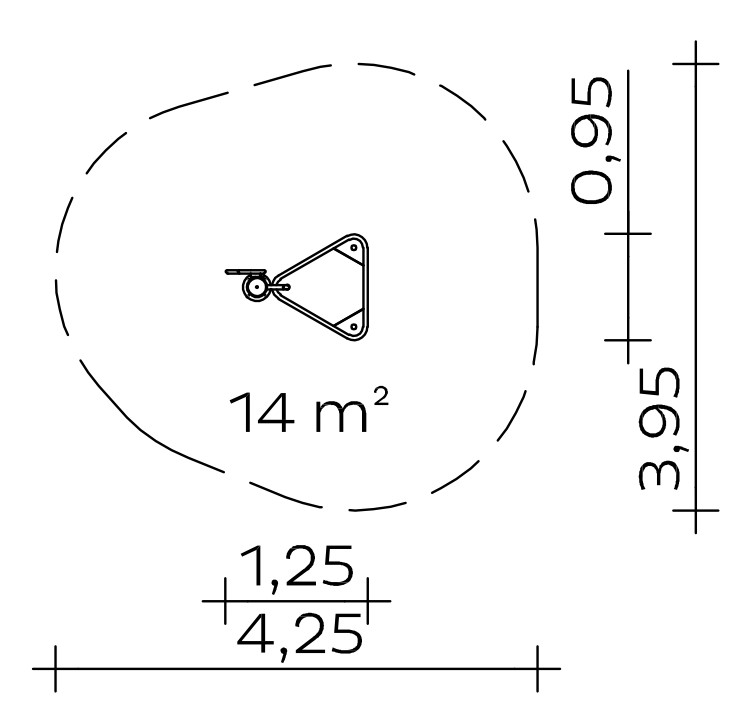

Minimum space: approx. 3.95 x 4.35 m (14 m²)
Weight: 55 kg heaviest individual part
105 kg in total
Water pump article no. 0-33130-001
Height: 1.17 m
Water pump for direct connection to a water pipe, suction pipe connection 1 ¼ inch (pipe diameter min. ¾ inch).
Welded stainless steel construction, encapsulated pump housing, pump mechanism with roller and plain bearings, upper pump housing with swivel must be removed, e.g. during the frost period, sealing cover („winterisation plate“) for the remaining lower part of the pump is supplied.
Please note:
When connecting the water pump to a pressurised water line, the K&K valve combination (art. no. 0-33190-000) is required.
If the water supply is intentionally interrupted temporarily (timer or similar), a negative pressure builds up in the pipe system when the pump is operated again, which causes the pump swivel to kick back.
It is therefore essential to prevent the pump swivel arm from being actuated (e.g. by using the pump lock, part number 1040639).
Please also observe the framework data specified in the installation instructions (spacing, diameter of the cables, etc.); these are available on request from K&K or directly as a PDF from our website
Flange pipe article no. 1040065
Flange pipe for screwing onto K&K water pump.
For setting in concrete below the play level.
Water distribution table (0.50) Item no.0-33480-000
Base area: 0.85 x 0.94 m
Total height: 0.65 m
Welded stainless steel construction with 2 water drain pipes. Rubber cone closure with locking mechanism for complete water drainage. Sheet thickness min. 2 mm/ pipe Ø 38 mm.
Matching ring foundation (15166) for anchoring to the flange ring and moulded stones (15167) for bricking up and levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an extra charge.
Foundations (client-provided)
1 piece 0.50 x 0.50 x 0.50 m
Concrete volume: 0.13 m³
Assembly time
2 fitters 1 hour each
(without foundation, without water connection)
Free fall height
0,50 m
Suitable for
Children from 4 years
public playgrounds etc.
Manual activities
Item number: 034024000
