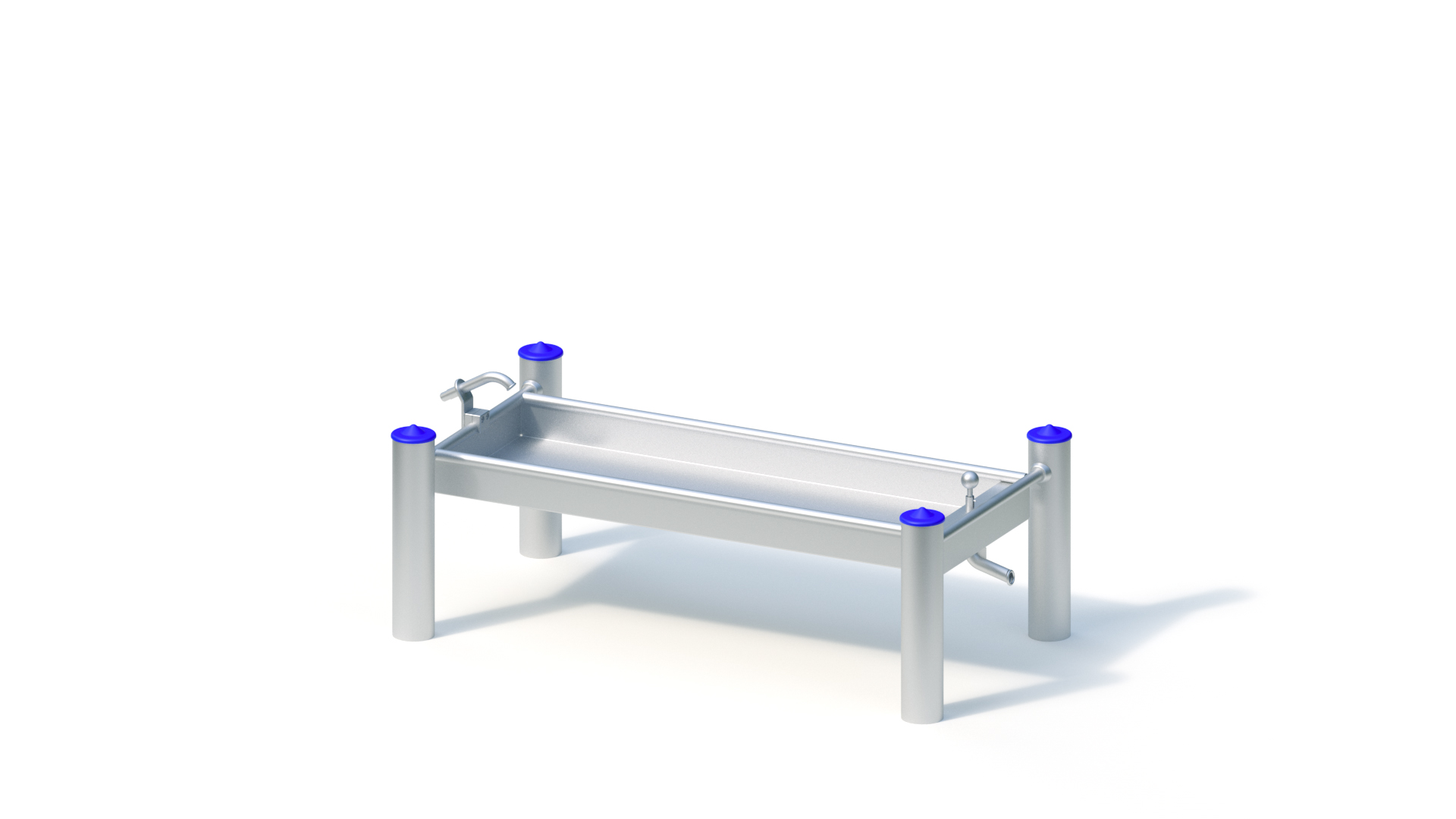

Water play structure
The most important information
| Age group ? | 2+ |
|---|---|
| Areas of use ? | supervised playgrounds |
| Number of users ? | 7 People |
| Activities ? | Manual activity |
Technical data
| Minimum space length ? | 4,75 m |
|---|---|
| Minimum space width ? | 3,95 m |
| Minimum space height ? | 0,70 m |
| Equipment length ? | 1,75 m |
| Equipment width ? | 0,95 m |
| Equipment height ? | 0,70 m |
| Free-fall height ? | 0,40 m |
| Platform heights | - |
| Total weight ? | 85.00 kg |
| Heaviest single part ? | 35.00 kg |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 1 person |
| Lifting equipment required | - |
| Foundations | Quantity: 4 (0.4m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data

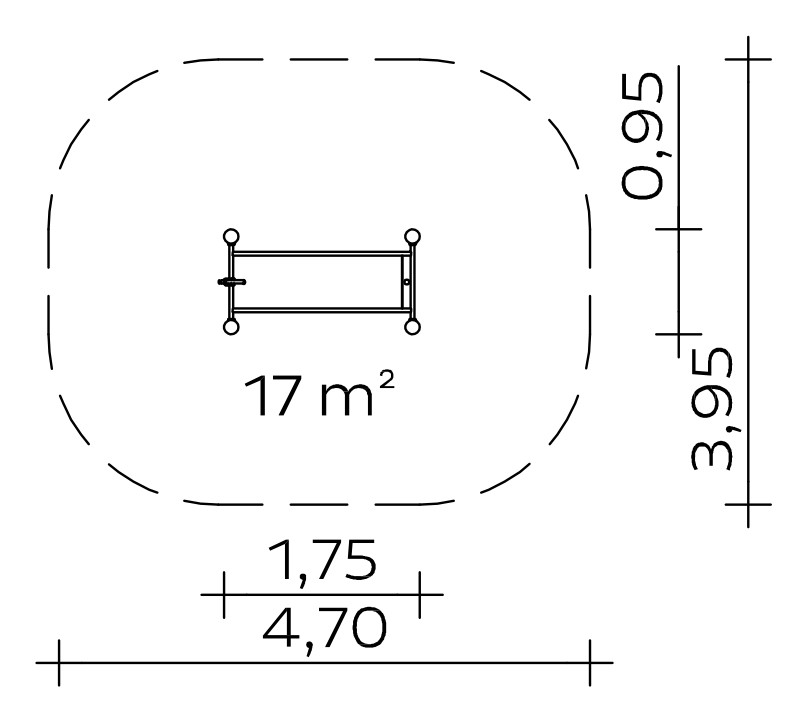

Total height: approx. 0.70 m
Floor area: approx. 0.95 x 1.75 m
Minimum space: approx. 3.95 x 4.70 m (17 m²)
Weight: 35 kg heaviest individual part
85 kg in total
Support post
Stainless steel posts, Ø 120 mm, covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Modular water table
Welded stainless steel construction, 0.80 x 1.60 m with 1 water drain pipe. Rubber cone closure with locking mechanism for complete water drainage. 1 shelf. Sheet thickness: min. 2 mm / pipe Ø 33.7 mm. For connection to posts.
Water spout article no. 0-33124-000
Welded stainless steel construction, clamping part for attaching to pipe Ø 33.7 mm, with connection element suitable for connecting a garden hose with 1/2″ or 3/4″ hose section. (e.g. Gardena® or comparable).
Foundations (client-provided)
4 pcs. 0.40 x 0.40 x 0.40 m
Concrete volume: 0.26 m³
Assembly time
1 fitter per 0.5 hours.
(without foundation)
Free fall height
0,40 m
Suitable for
Children from 2 years,
supervised playgrounds etc.,
Manual activities
Item number: 034010500
