Water trough (2,40)
The most important information
:
;
| Age group ? | - |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 0 people |
| Activities ? | Manual activity |
Technical data
:
;
| Minimum space length ? | 5,55 m |
|---|---|
| Minimum space width ? | 3,34 m |
| Minimum space height ? | 1,00 m |
| Equipment length ? | 2,55 m |
| Equipment width ? | 0,34 m |
| Equipment height ? | 1,00 m |
| Free-fall height ? | 0,00 m |
| Platform heights | - |
| Total weight ? | 40.00 kg |
| Heaviest single part ? | 0.00 kg |
Assembly & Foundations
:
;
| Assembly time ? | 0,0 h |
|---|---|
| Number of fitters ? | 0 people |
| Lifting equipment required | - |
| Foundations | Quantity: 2 (0.5m x 0.5m x 0.5m) |
Product Downloads
:
;
Product description
:
;
Technical data

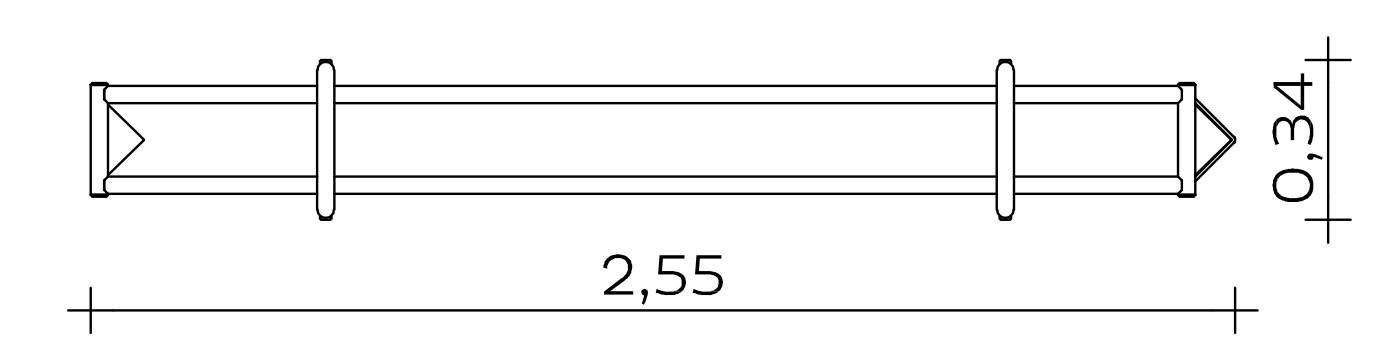

Base area: 0.34 x 2.55 m
Height: approx. 1.00 m
Welded stainless steel construction. Sheet thickness: 2 mm / pipe Ø 38 mm. Bevelled spout.
Stepless inclination for installation for the required gradient for the water inlet and outlet through additional elevation.
Foundations (client-provided)
2 pcs. 0.50 x 0.50 x 0.50 m
Concrete quantity: 0.25 m³
Item number: 033254000
