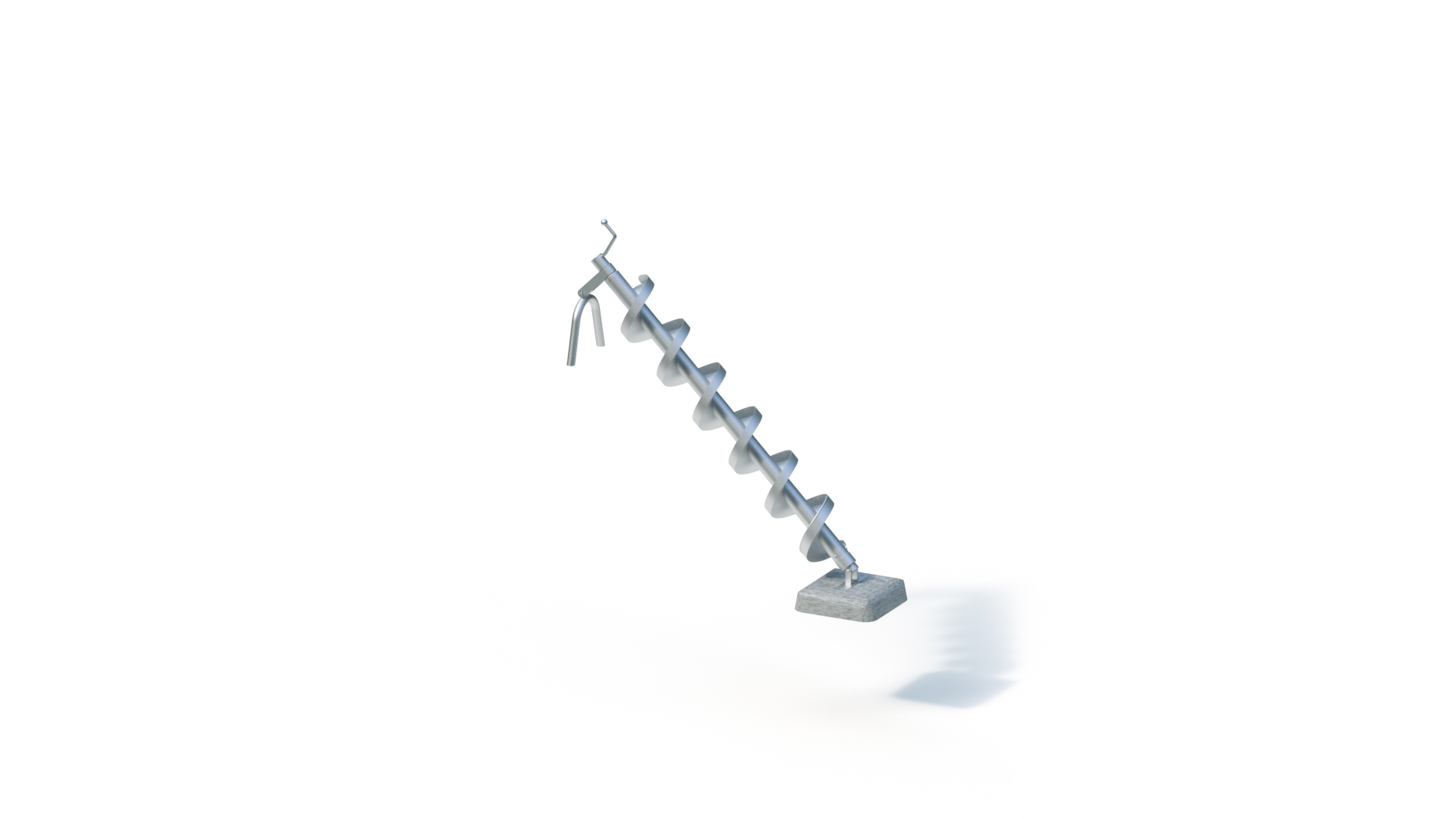

Water spiral (1,50)
The most important information
:
;
| Age group ? | 3+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 1 person |
| Activities ? | Manual activity |
Technical data
:
;
| Minimum space length ? | 4,50 m |
|---|---|
| Minimum space width ? | 3,25 m |
| Minimum space height ? | 1,55 m |
| Equipment length ? | 1,50 m |
| Equipment width ? | 0,25 m |
| Equipment height ? | 1,55 m |
| Free-fall height ? | 0,00 m |
| Platform heights | - |
| Total weight ? | 35.00 kg |
| Heaviest single part ? | 0.00 kg |
Assembly & Foundations
:
;
| Assembly time ? | 0,0 h |
|---|---|
| Number of fitters ? | 0 people |
| Lifting equipment required | - |
| Foundations | Quantity: 1 (0.7m x 0.3m x 0.3m) |
Product Downloads
:
;
Product description
:
;
Technical data

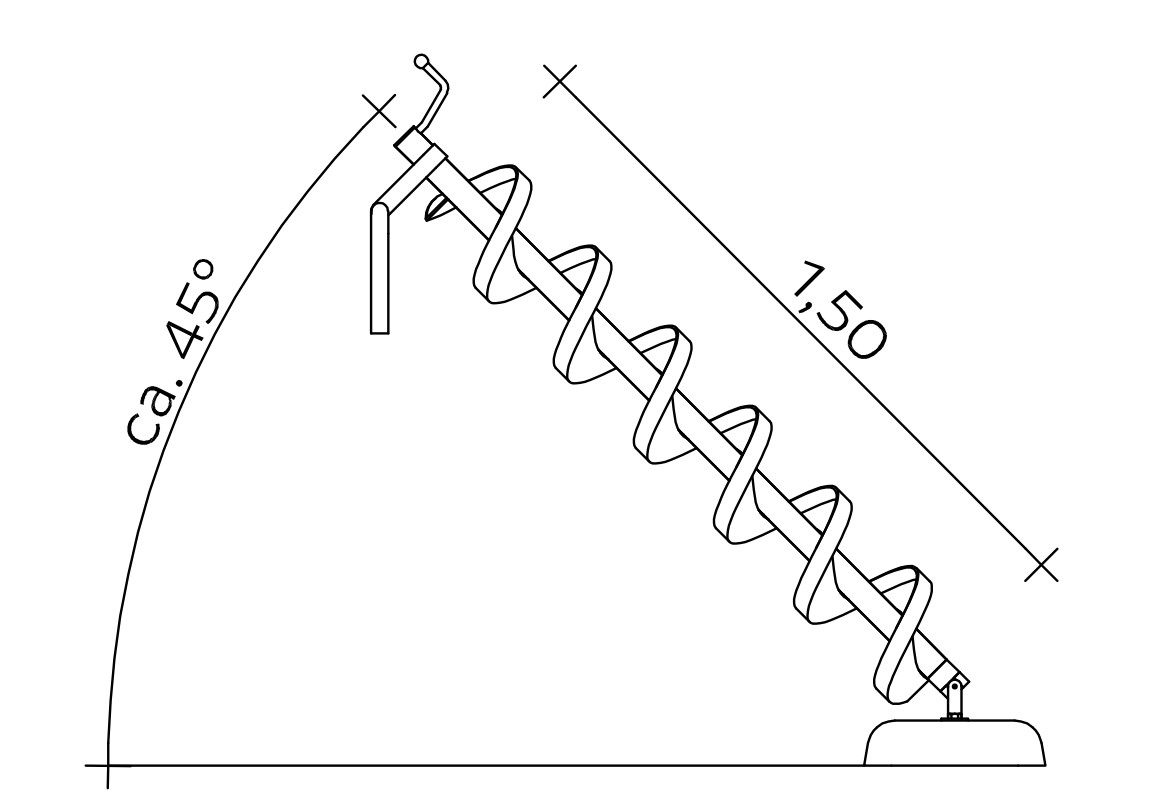

Spiral length: 1.50 m
Outer diameter: 250 mm
Weight: 31 kg heaviest individual part
35 kg in total
Welded stainless steel construction with roller bearings, hand crank stand for setting in concrete, base bearing for screwing on. Matching prefabricated foundation (item no. 15150) can be supplied at an extra charge.
Foundation (on site)
1 piece 0.30 x 0.70 x 0.30 m
Assembly time
is delivered in one piece
Item number: 033202001
