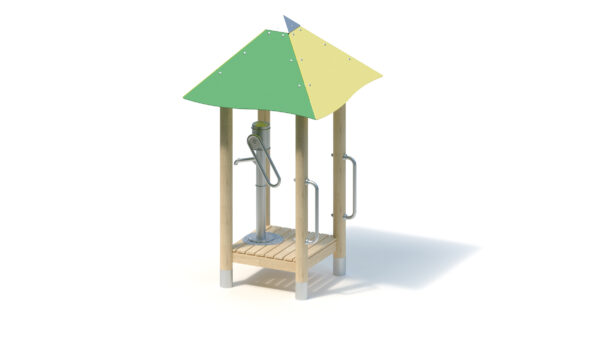

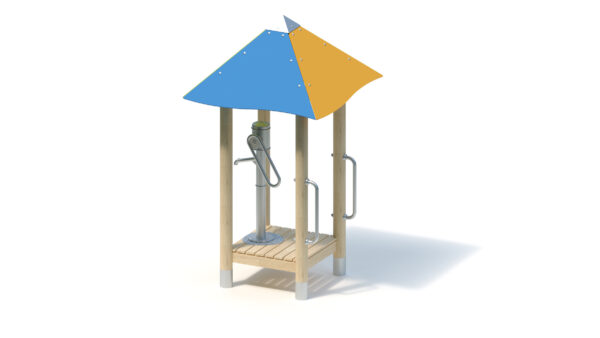

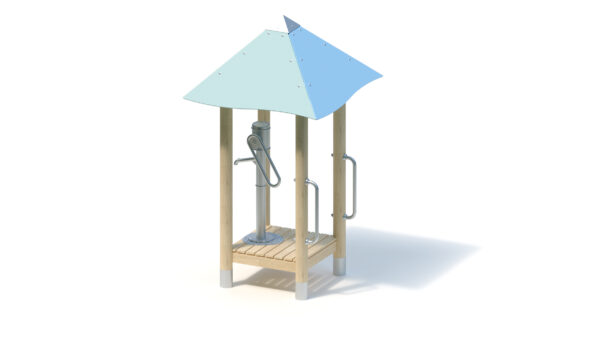

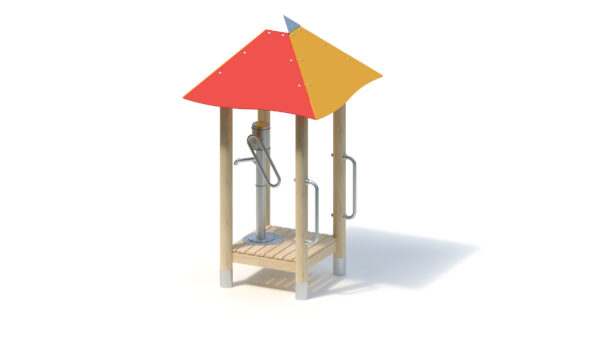

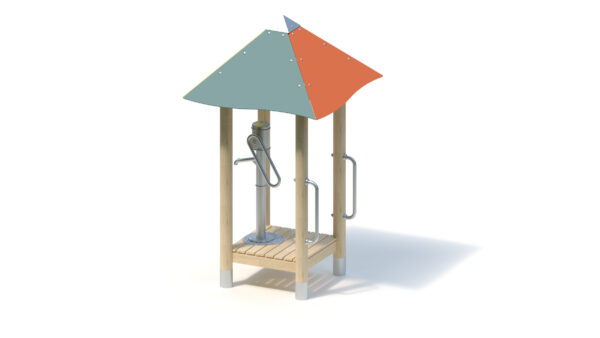

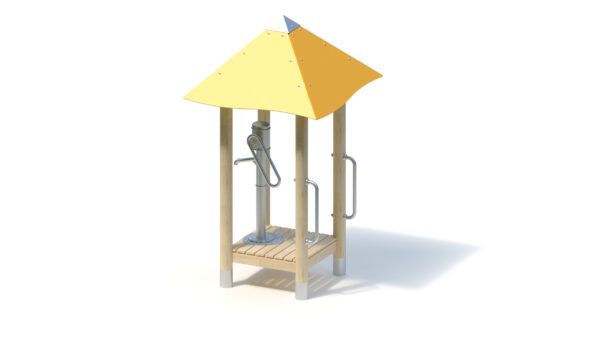

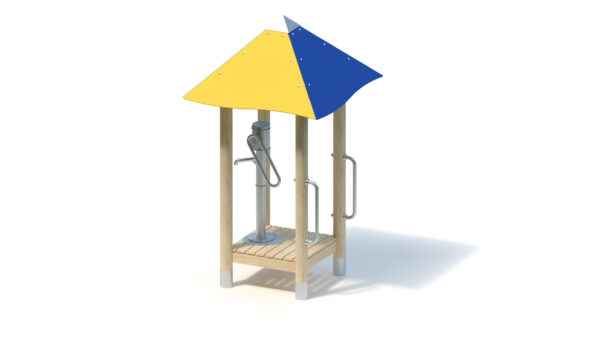

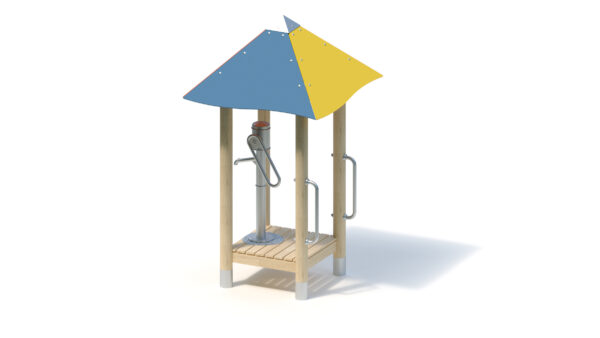

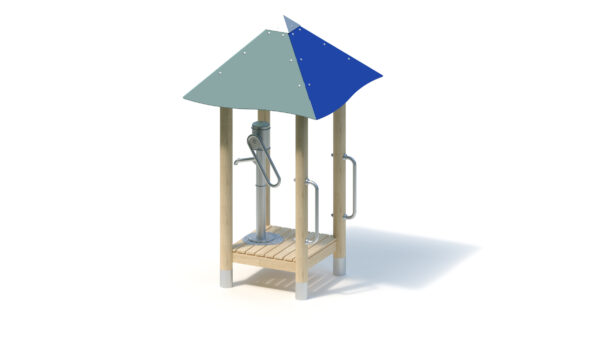

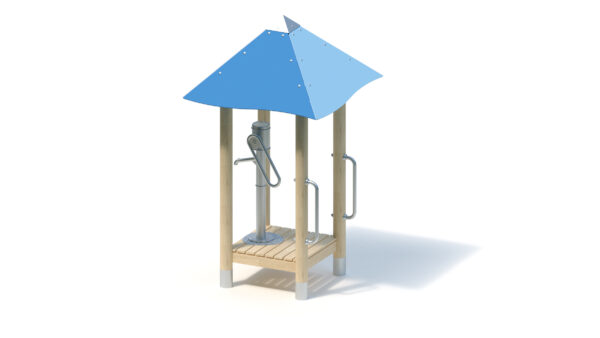

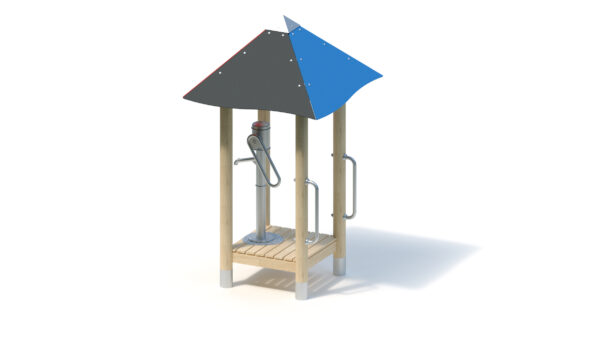

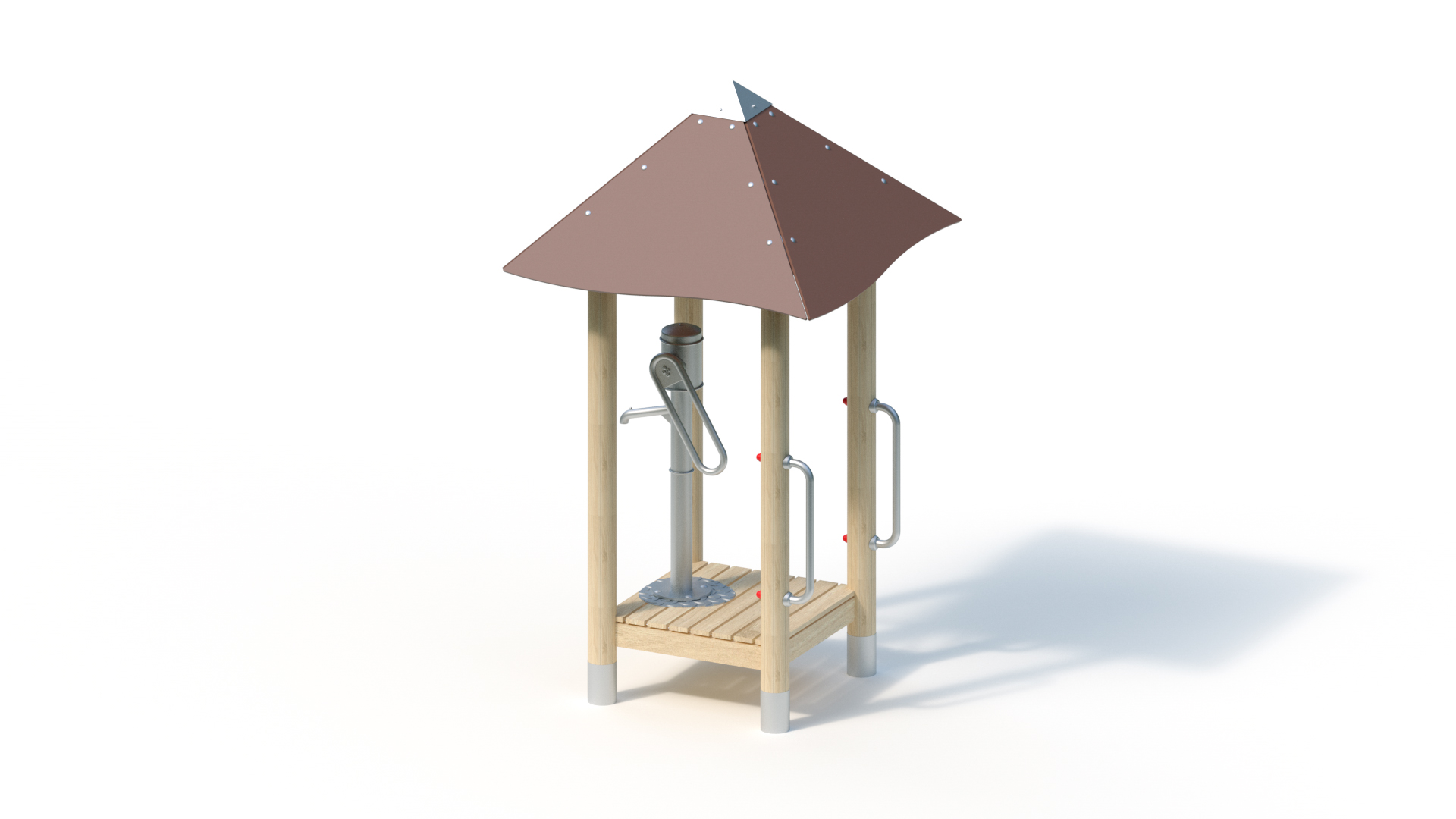

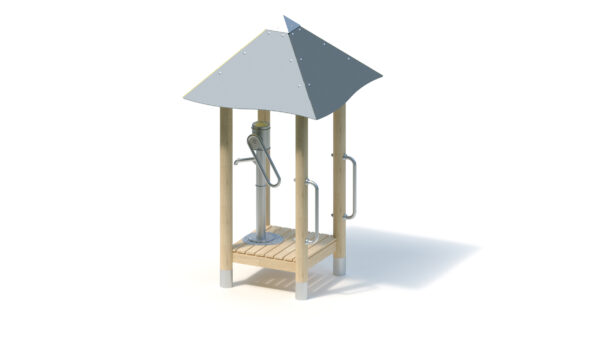

House for water pump with handle
Select variant:
The most important information
| Age group ? | 3+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 2 persons |
| Activities ? | - |
Technical data
| Device length ? | 1,45 m |
|---|---|
| Device width ? | 1,45 m |
| Device height ? | 2,70 m |
| Free fall height ? | 0,40 m |
| Platform heights | - |
| Total weight ? | 255.00 kg |
| Heaviest single item ? | 45.00 kg |
| Minimum room length ? | 4,45 m |
| Minimum room width ? | 4,45 m |
| Minimum room height ? | 2,70 m |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | - |
| Foundations | 040x040x040 |
Product Downloads
Product description
Technical data
Base area: 1.45 x 1.45 m
Minimum space: 4.45 x 4.45 m (19 m²)
Total height: 2.70 m
Platform height: 0.40 m
Weight: 45 kg heaviest individual part
255 kg in total
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Pump platform with additional profiled stainless steel plate.
Attachments
- Vertical handles as climbing aid made of stainless steel tube, Ø 33.7 x 2 mm
- Tent roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, attached to roof frame made of stainless steel tube Ø 33.7 x 2 mm, with canopy
K&K water pump article no. 0-33130-001
Suction pipe connection 1 ¼ inch (pipe diameter min. ¾ inch), welded stainless steel construction, encapsulated pump housing, pump mechanism with roller and plain bearings, upper pump housing with swivel must be removed, e.g. during the frost period, sealing cover (wintering plateҩ for the remaining lower part of the pump is supplied.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Please note:
When connecting the water pump to a pressurised water line, the K&K valve combination (art. no. 0-33190-000) is required.
If the water supply is intentionally interrupted temporarily (timer or similar), a negative pressure builds up in the pipe system when the pump is operated again, which causes the pump swivel to kick back.
It is therefore essential to prevent the pump swivel arm from being actuated (e.g. by using the pump lock, part number 1040639).
Please also observe the framework data specified in the installation instructions (spacing, diameter of the cables, etc.); these are available on request from K&K or directly as a PDF from our website at www.kaiser-kuehne-play.com.
Foundations (client-provided)
4 pcs. 0.40 x 0.40 x 0.40 m
Concrete volume: 0.26 m³
Assembly time
2 fitters 1 hour each
(without foundation)
Free fall height
0,40 m
Item number: 033155702
