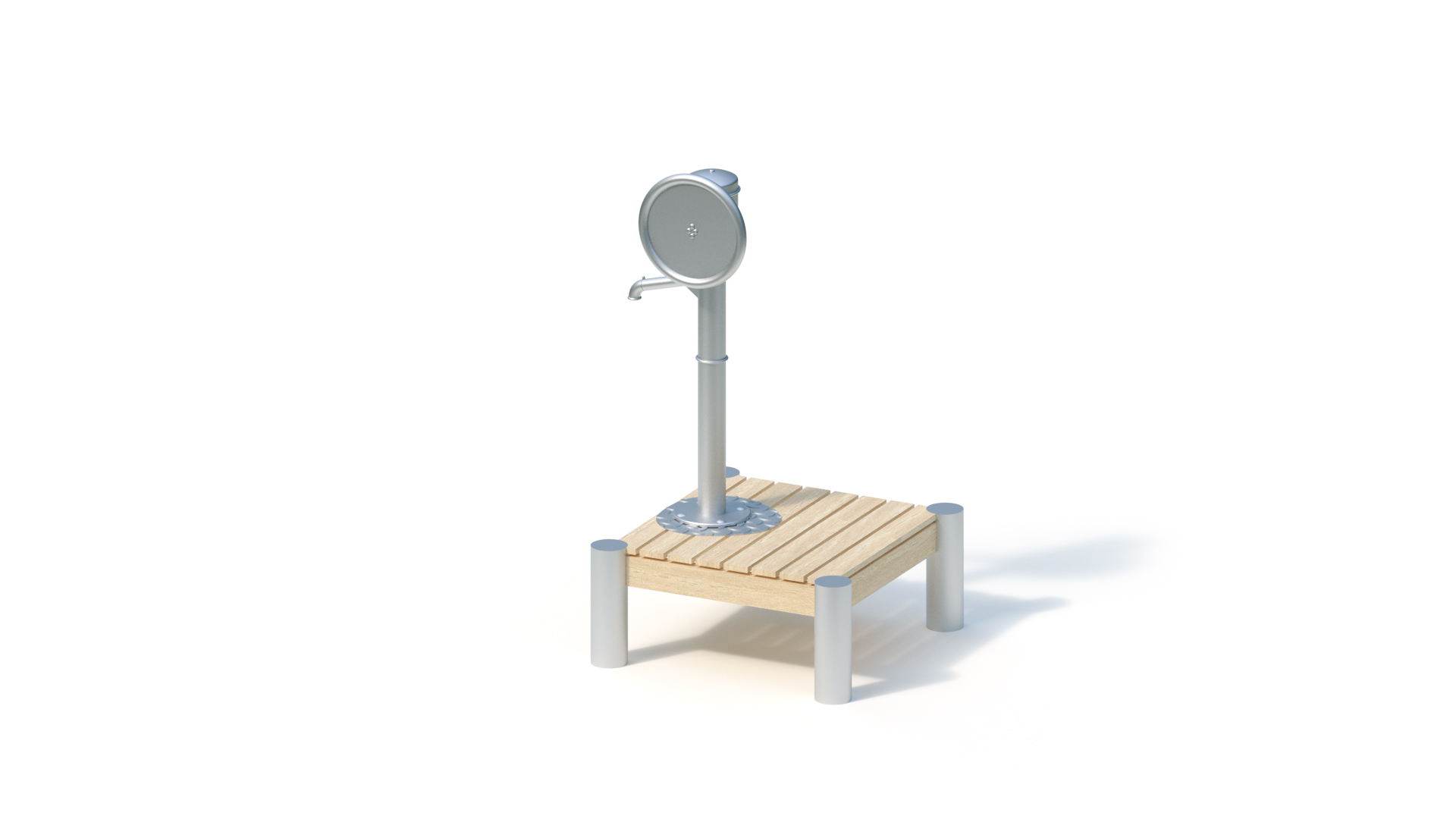

Platform for water pump with handwheel
The most important information
| Age group ? | 3+ |
|---|---|
| Areas of application ? | - |
| Number of users ? | 2 persons |
| Activities ? | - |
Technical data
| Device length ? | 0,95 m |
|---|---|
| Device width ? | 1,00 m |
| Device height ? | 1,57 m |
| Free fall height ? | 0,40 m |
| Platform heights | - |
| Total weight ? | 100.00 kg |
| Heaviest single item ? | 35.00 kg |
| Minimum room length ? | 3,95 m |
| Minimum room width ? | 4,00 m |
| Minimum room height ? | 1,57 m |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 1 persons |
| Lifting gear required | - |
| Foundations | 040x040x040 |
Product Downloads
Product description
Technical data
Base area: 0.95 x 1.00 m
Minimum space: 3.95 x 4.00 m
Total height: 1.57 m
Platform height: 0.40 m
Support post
Support post made of stainless steel tube Ø 120 mm, closed with welded-on stainless steel discs
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection. Profiled stainless steel sheet.
K&K water pump, part no. 0-33131-001
Water pump for direct connection to a water pipe, suction pipe connection 1 ¼ inch (pipe diameter at least ¾ inch)
Welded stainless steel construction, encapsulated pump housing, pump mechanism with roller and plain bearings, upper pump housing with handwheel must be removed, e.g. during the frost period.
Cover („winterisation plate“) for the remaining pump base is supplied
Please note:
When connecting the water pump to a pressurised water line, the K&K valve combination (art. no. 0-33190-000) is required.
Please also observe the framework data specified in the installation instructions (spacing, diameter of the cables, etc.); these are available on request from K&K or directly as a PDF from our website at www.kaiser-kuehne.com.
Foundations (client-provided)
4 pcs. 0.40 x 0.40 x 0.40 m
Assembly time
2 fitters 1 hour each
(without foundation, without water connection)
Free fall height
0,40 m
Item number: 033151502
