Combi sandworks

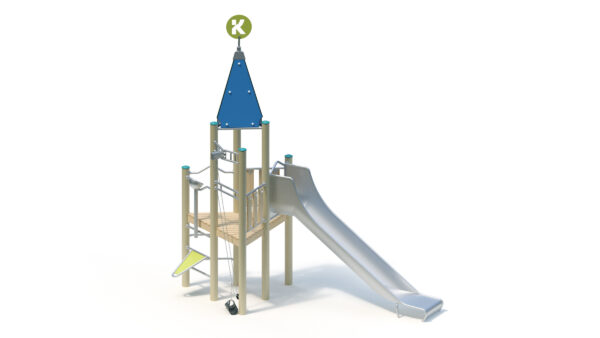

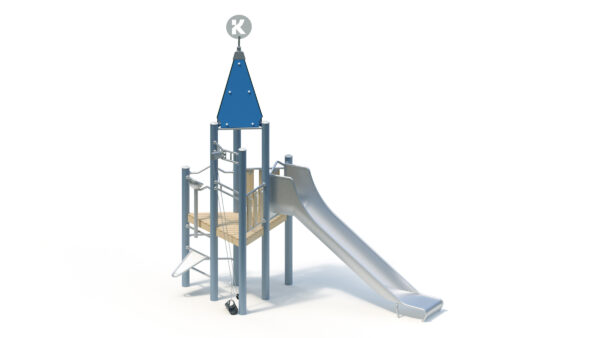

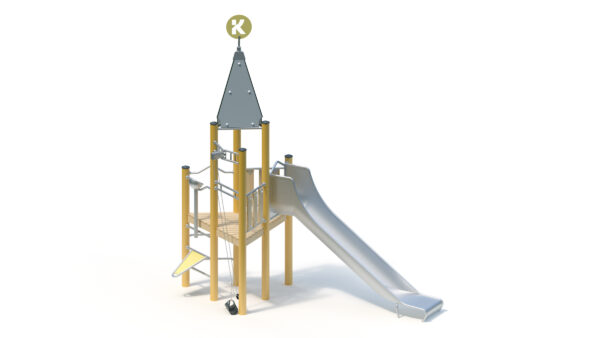

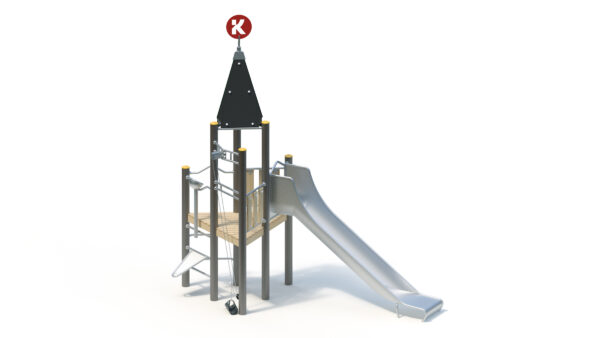

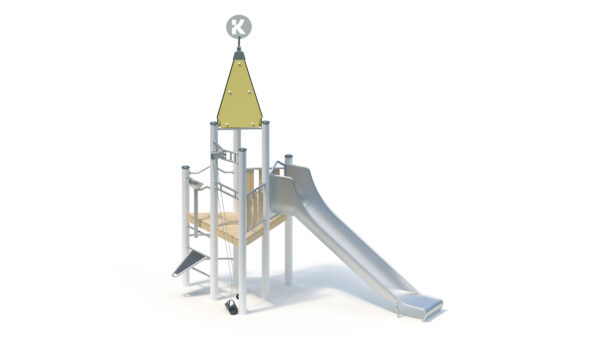

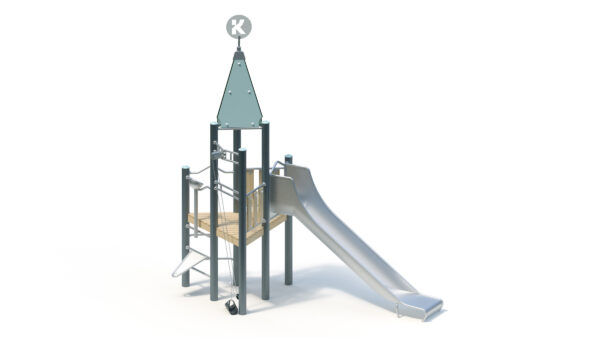

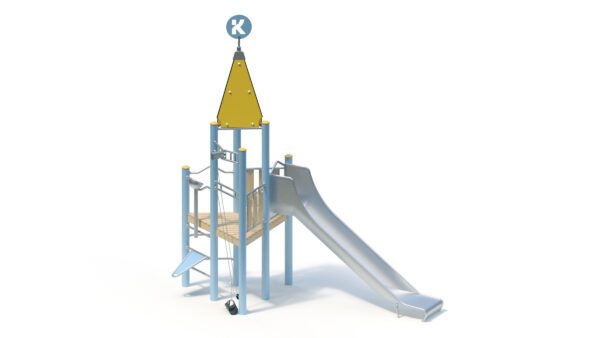

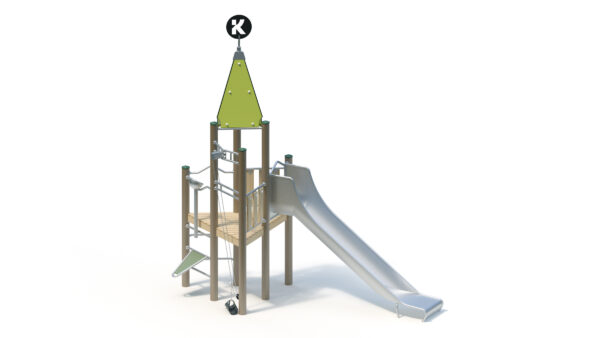

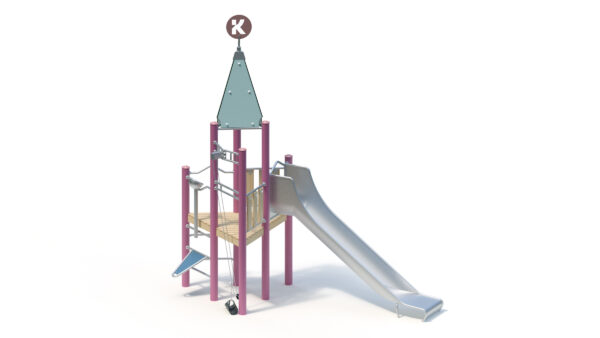

Variante wählen:
The most important information
| Altersgruppe ? | 3+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 8 Personen |
| Aktivitäten ? | Manual activity, Slide, Social activity |
Technical data
| Mindestraumlänge ? | 7,75 m |
|---|---|
| Mindestraumbreite ? | 4,75 m |
| Mindestraumhöhe ? | 4,60 m |
| Gerätelänge ? | 4,25 m |
| Gerätebreite ? | 1,75 m |
| Gerätehöhe ? | 4,60 m |
| Freie Fallhöhe ? | 1,30 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 415.00 kg |
| Schwerstes Einzelteil ? | 85.00 kg |
Assembly & Foundations
| Montagezeit ? | 7,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 6 (0.4m x 0.4m x 0.4m) Quantity: 1 (0.75m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data
Floor area: 1.75 x 4.25 m

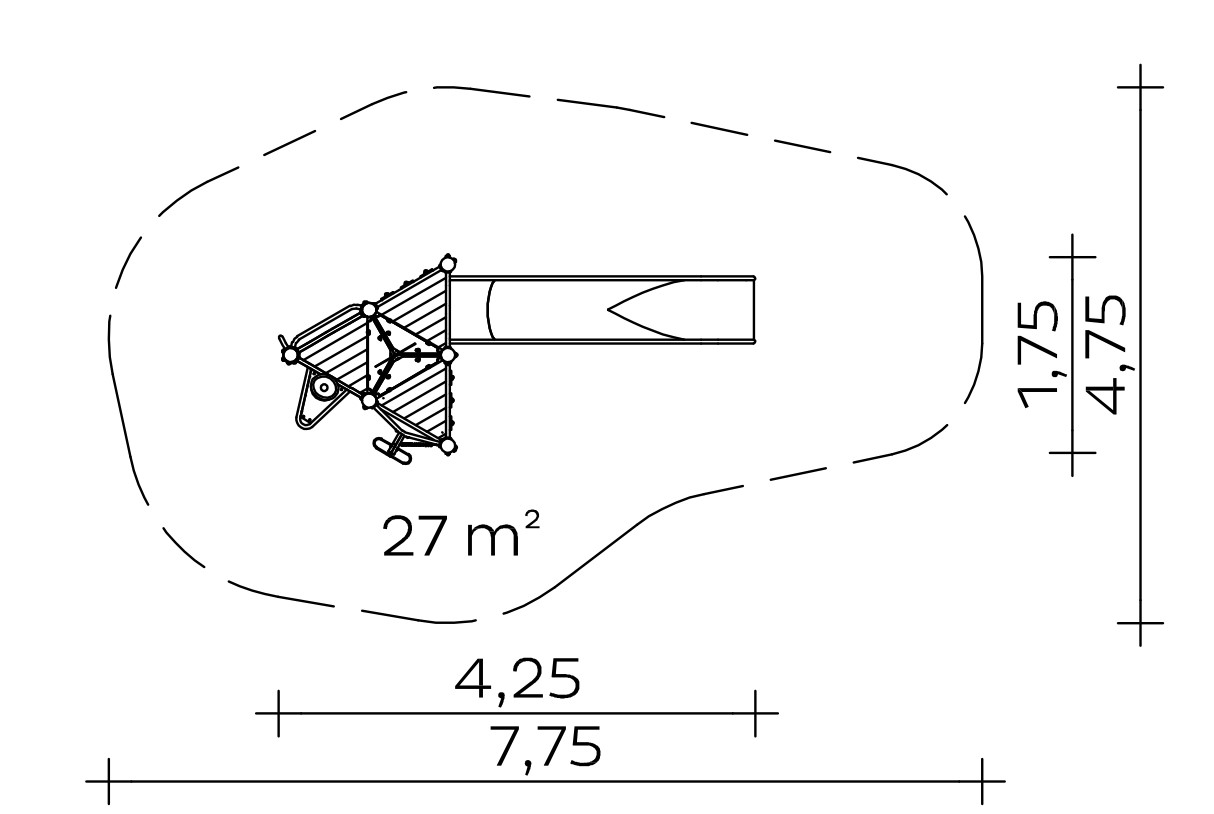

Minimum space: 4.75 x 7.75 x 4.60m (27 m²)
Total height: 4.60 m
Platform height: 1.20 m
Seat height: 1.30 m
Weight: 85 kg heaviest individual part
415 kg in total
Support post
Posts made of stainless steel tube Ø 120 mm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Wooden balustrade made of robinia, 125 x 30 mm. Fastening between stainless steel tubes Ø 33.7 x 2 mm
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Tower roof, pitch 80°, made of highly weather-resistant HPL laminate, 13 mm, with wind chimes
- Sand lift with rubber transport container and a 4 mm stainless steel chain, designed as a circumferential element so that the transport container cannot be pulled into neighbouring play areas or open spaces
- Sand pouring pipe
- Sand slide made of stainless steel tube with HPL laminate panel
- Climbing rungs (cranked) made of stainless steel tube, Ø 33.7 mm
- Vertical handle as climbing aid made of stainless steel tube, Ø 33.7 x 2 mm
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
6 pcs. 0.40 x 0.40 x 0.40 m
1 piece 0.40 x 0.75 x 0.40 m
Concrete quantity: 0.50 m³
Assembly time:
2 fitters 7 hours each
(without foundation)
Free fall height
1,30 m
Suitable for
Children aged 5 and over,
public playgrounds etc.
Social / manual activities
Item number: 031611504
