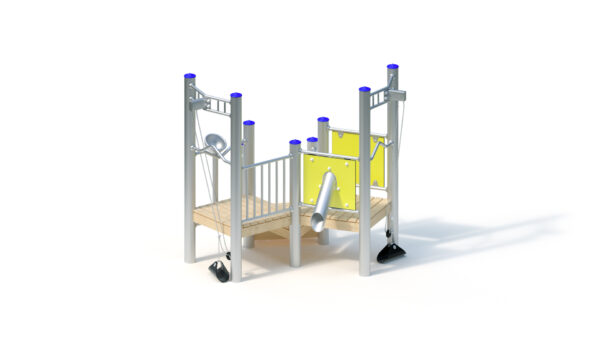

Das 3D-Modell dient der räumlichen Ansicht. Die Farben entsprechen nicht der gewählten Variante.
Sandworks

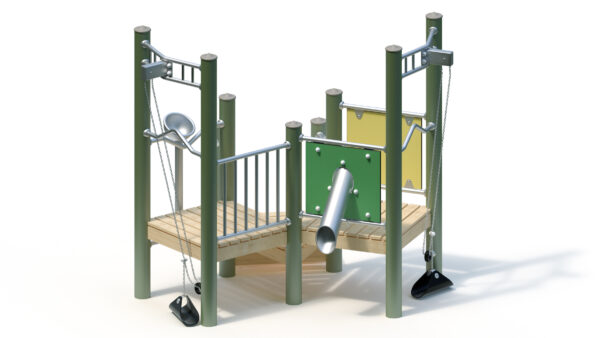

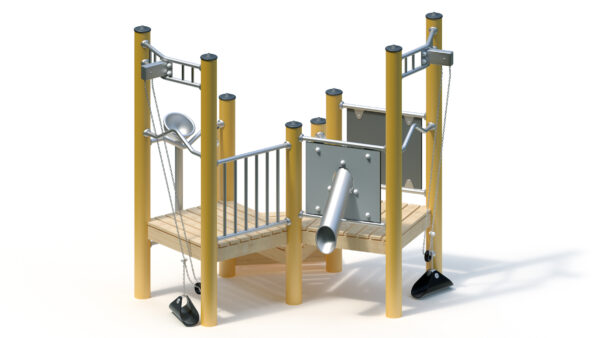

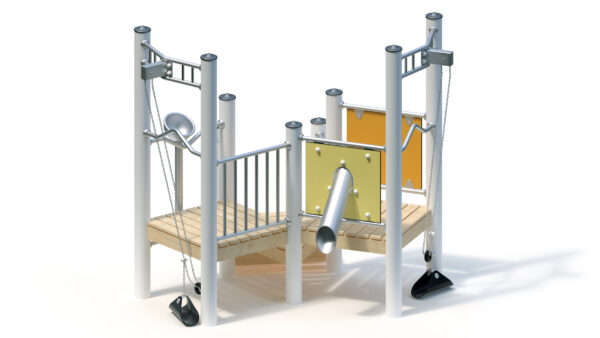

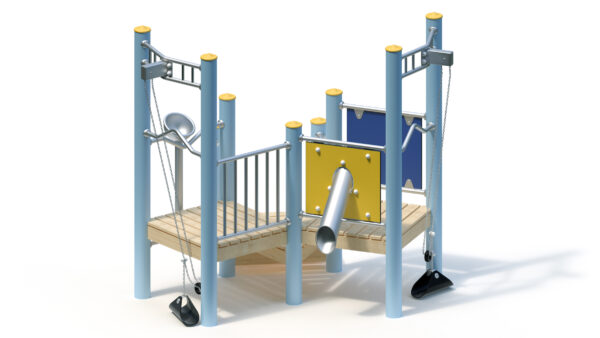

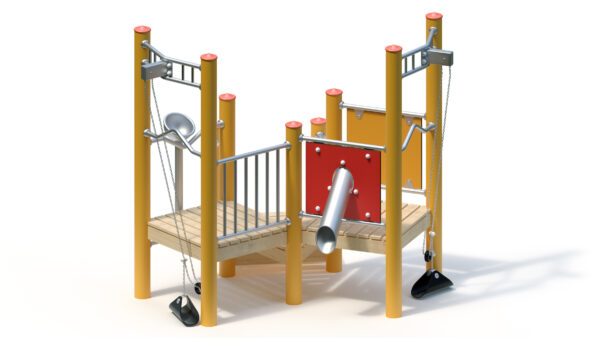

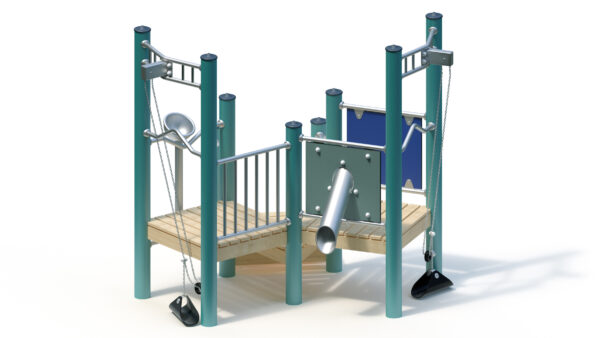

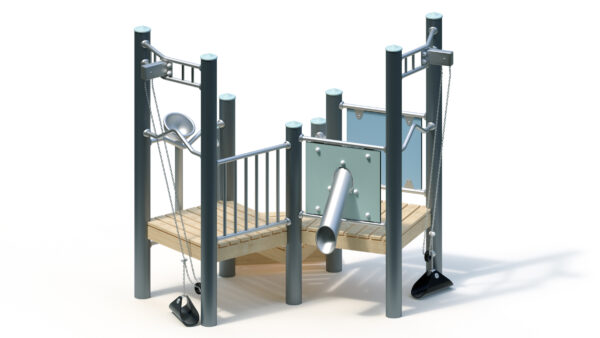

Variante wählen:
The most important information
| Altersgruppe ? | 2+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 12 Personen |
| Aktivitäten ? | Manual activity, Social activity |
Technical data
| Mindestraumlänge ? | 5,35 m |
|---|---|
| Mindestraumbreite ? | 5,10 m |
| Mindestraumhöhe ? | 2,15 m |
| Gerätelänge ? | 2,35 m |
| Gerätebreite ? | 2,10 m |
| Gerätehöhe ? | 2,15 m |
| Freie Fallhöhe ? | 0,60 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 340.00 kg |
| Schwerstes Einzelteil ? | 25.00 kg |
Assembly & Foundations
| Montagezeit ? | 5,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 9 (0.4m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data

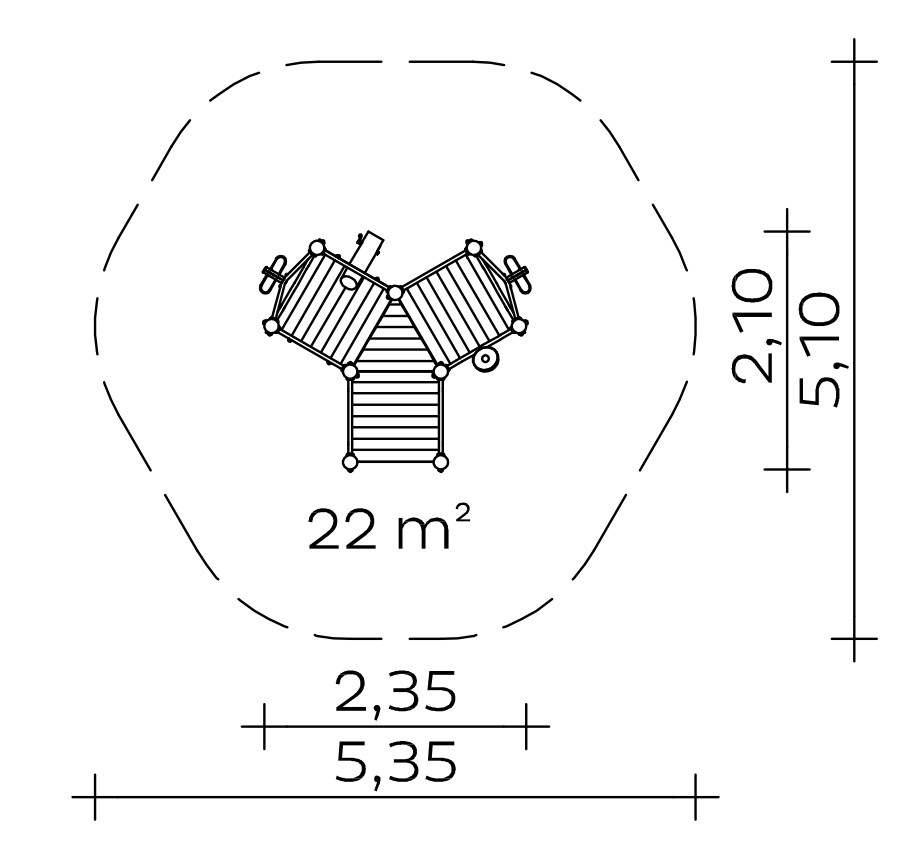

Floor area: 2.10 x 2.35 m
Minimum space: 5.10 x 5.35 m (22 m²)
Total height: 2.15 m
Platform heights: 0.20/0.40/0.60 m
Weight: 25 kg heaviest individual part
340 kg in total
Support post
Posts made of stainless steel tube Ø 120 mm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Step railing made of stainless steel tube, Ø 33.7 x 2 mm
- Panelled balustrade made of highly weather-resistant HPL laminate
- Pouring tube wall made of HPL laminate with sand pouring tube including shut-off damper, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Lattice balustrade made of stainless steel tube, Ø 33.7 x 2 / 25 x 2 mm, one-piece welded construction
- Sand lift with rubber transport container and a 4 mm stainless steel chain, designed as a circumferential element so that the transport container cannot be pulled into neighbouring play areas or open spaces
- Stainless steel sand pouring pipe
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
9 pcs. 0.40 x 0.40 x 0.40 m
Concrete volume: 0.58 m³
Assembly time
2 fitters 5 hours each
(without foundation)
Free fall height
0,60 m
Suitable for
Children from 2 years,
public playgrounds etc.,
Social / manual activities
Item number: 031321501
