Sand play space

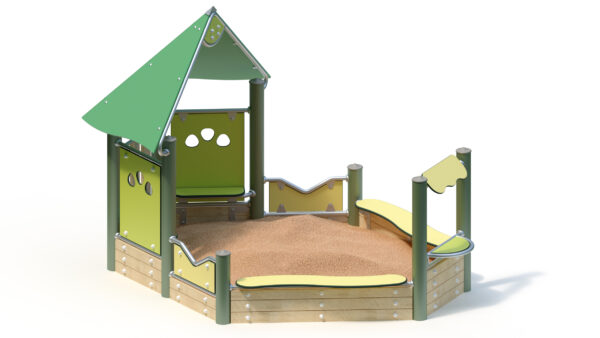

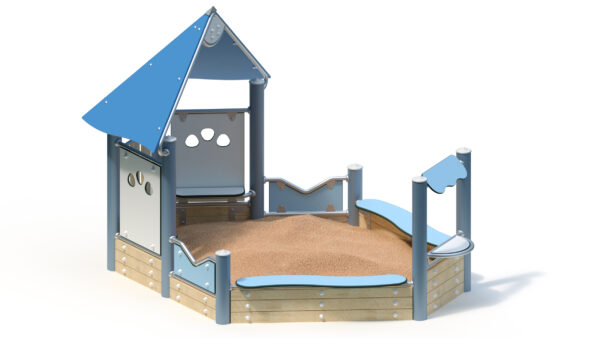

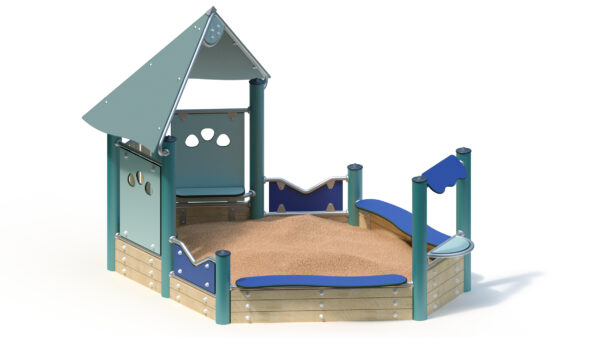

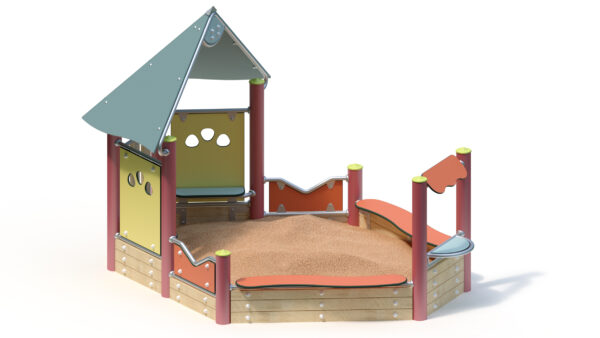

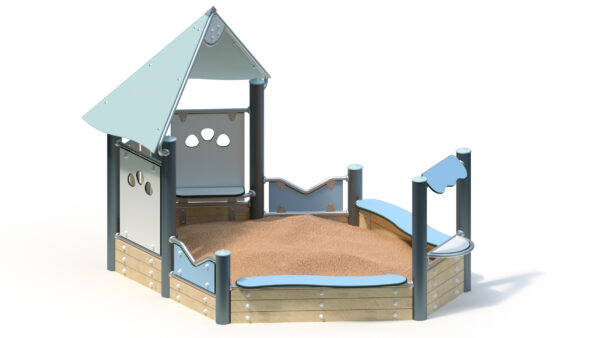

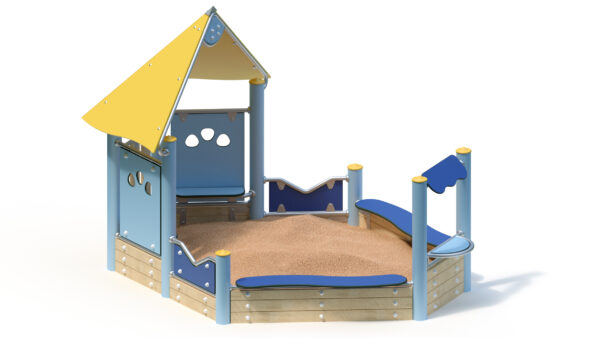

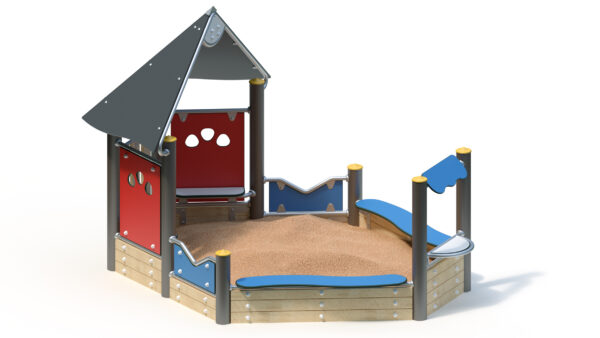

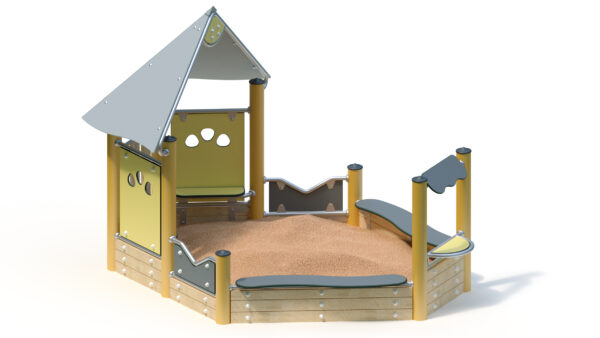

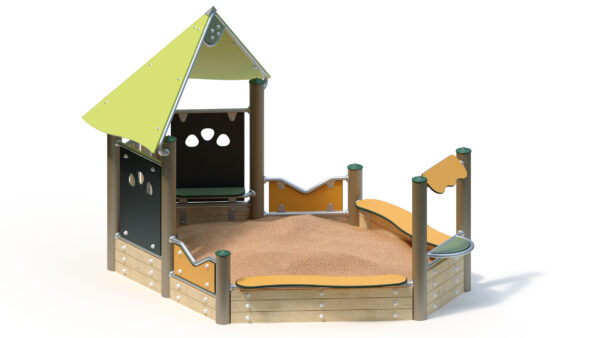

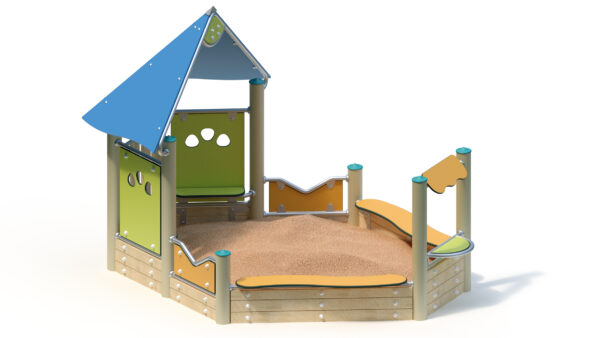

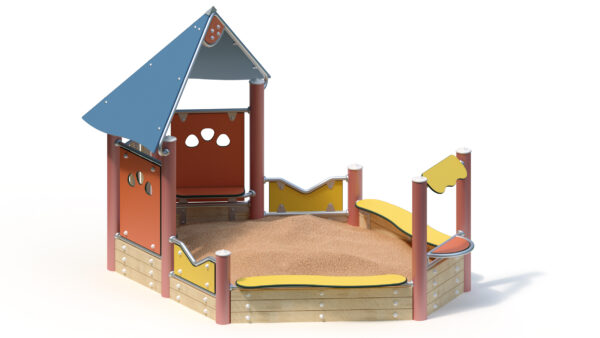

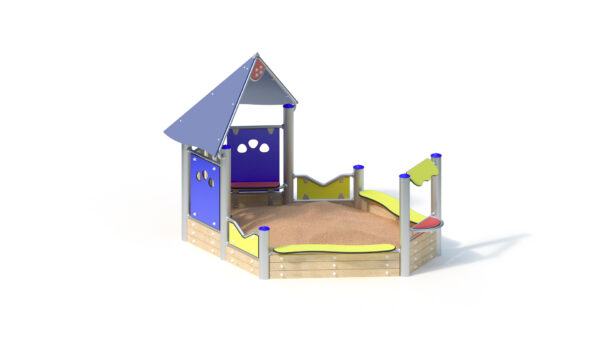

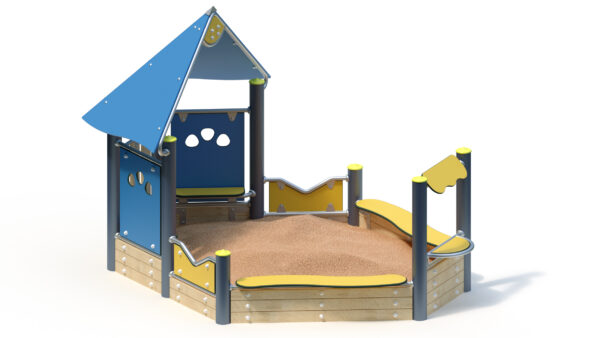

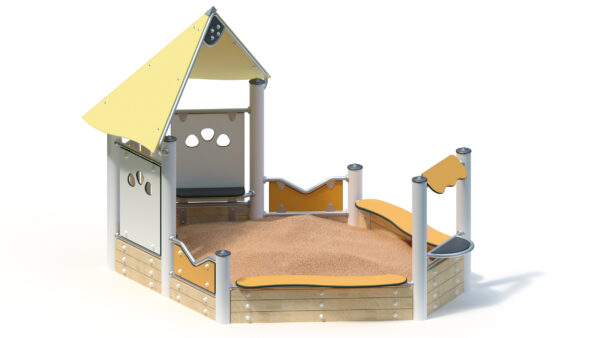

Variante wählen:
The most important information
| Altersgruppe ? | 1+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 15 Personen |
| Aktivitäten ? | Manual activity, Social activity |
Technical data
| Mindestraumlänge ? | 6,30 m |
|---|---|
| Mindestraumbreite ? | 5,55 m |
| Mindestraumhöhe ? | 2,25 m |
| Gerätelänge ? | 3,30 m |
| Gerätebreite ? | 2,55 m |
| Gerätehöhe ? | 2,25 m |
| Freie Fallhöhe ? | 0,55 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 290.00 kg |
| Schwerstes Einzelteil ? | 30.00 kg |
Assembly & Foundations
| Montagezeit ? | 3.0 hours |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 8 (0.4m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data
Floor area: 2.55 x 3.30 m
Minimum space: 5.55 x 6.30 x 2.25 m (27 m²)
Height: 2.25 m
Weight: 30 kg heaviest individual part
290 kg in total
Support post
Posts made of stainless steel tube Ø 120 mm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Attachments
- Panelled balustrade made of highly weather-resistant HPL laminate
- Wooden balustrade made of robinia, 125 x 30 mm. Fastening between stainless steel tubes Ø 33.7 x 2 mm
- Tent roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm. Attachment to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Seat/counter: made of coloured, highly weather-resistant HPL laminate, 20 mm
- Table/awning: made of coloured, highly weather-resistant HPL laminate, 15 mm
- Sand edging made of robinia 95 x 30 mm, planed, bevelled and free of rotting knots
- Play and seat plate made of coloured, highly weather-resistant HPL laminate, 20 mm
Metal components: The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
8 pcs. 0.40 x 0.40 x 0.40 m
Concrete volume: 0.51 m³
Assembly time
2 fitters 3 hours each
(without foundation)
Free fall height
0,55 m
Suitable for
All age groups,
public playgrounds etc.
Social / manual activities
Item number: 030220501
