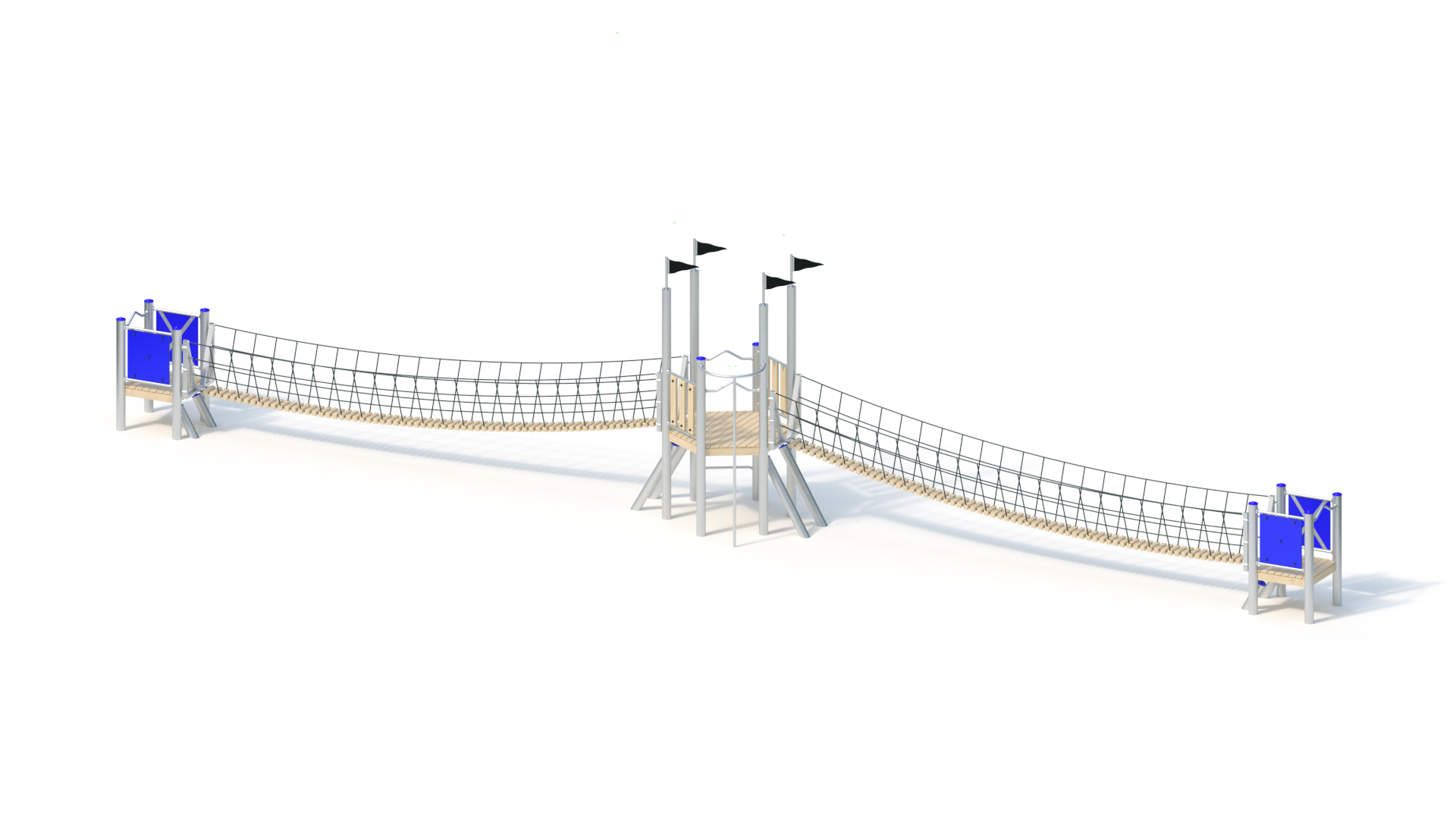

Bridge combination
The most important information
| Altersgruppe ? | 3+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 25 Personen |
| Aktivitäten ? | Physical activity |
Technical data
| Gerätelänge ? | 17,15 m |
|---|---|
| Gerätebreite ? | 1,95 m |
| Gerätehöhe ? | 3,55 m |
| Freie Fallhöhe ? | 1,20 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 1030.00 kg |
| Schwerstes Einzelteil ? | 105.00 kg |
| Mindestraumlänge ? | 20,15 m |
| Mindestraumbreite ? | 5,00 m |
| Mindestraumhöhe ? | 3,55 m |
Assembly & Foundations
| Montagezeit ? | 8,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 14 (0.4m x 0.4m x 0.6m) Quantity: 4 (1m x 0.6m x 0.6m) Quantity: 1x (0.3m x 0.3m x 0.4m) |
Product Downloads
Product description
Technical data
Total height: 3.55 m
Floor area: 1.95 x 17.15 m

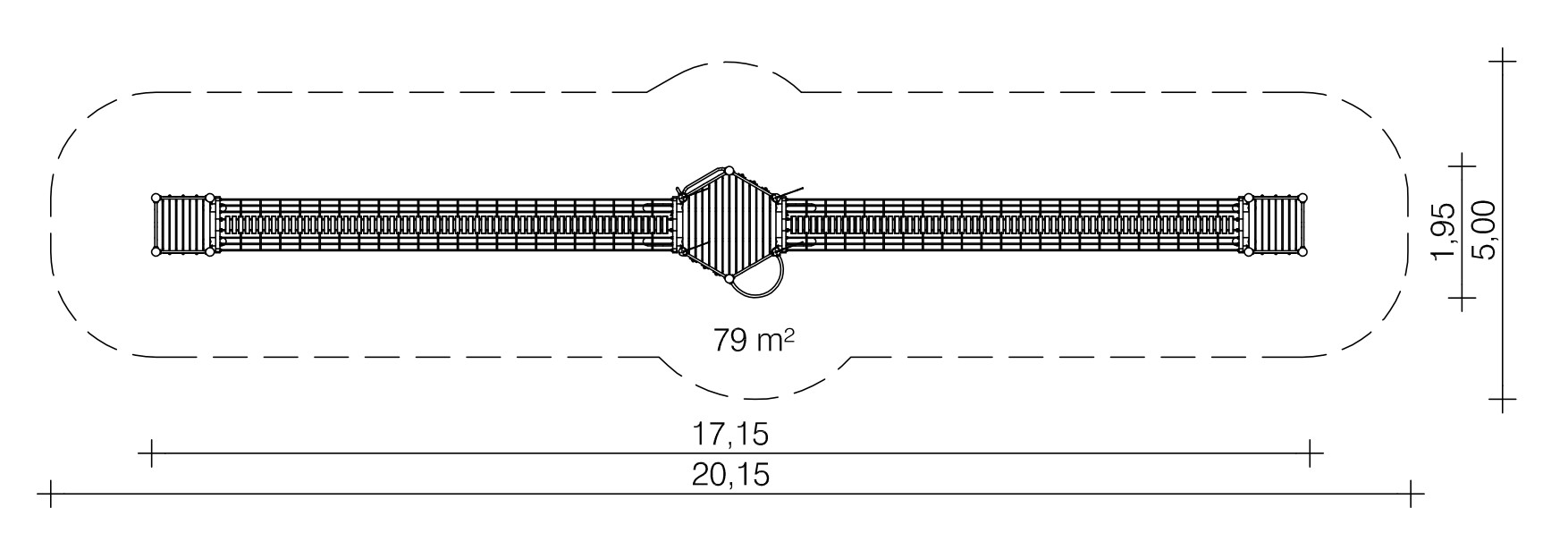

Minimum space: 5.00 x 20.15 m (79 m²)
Platform height: 0.60 to 1.20 m
Weight: 105 kg heaviest individual part
1030 kg in total
Support post
Posts made of stainless steel tube Ø 120 mm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Wooden balustrade made of robinia, 120 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Panel balustrade made of coloured, highly weather-resistant HPL laminate, with stainless steel cross bracing
- Climbing rungs made of stainless steel tube, Ø 33.7 x 2 mm
- Vertical climbing pole made of stainless steel tube, Ø 38 mm
- Vertical handle as climbing aid made of stainless steel tube, Ø 33.7 x 2 mm
- Rubber flag
- Footbridge: V-shaped net construction made of Hercules rope, walkway made of wooden rungs with approx. 40 mm clear rung spacing. Attached to steel frame construction. Parapet height approx. 0.75 m. Length: 7.00 m
Metal components: Stainless steel
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
This appliance is only available with stainless steel posts.
Foundations (client-provided)
1 piece 0.30 x 0.30 x 0.40 m
4 pcs. 0.60 x 1.00 x 0.60 m
14 units 0.40 x 0.40 x 0.60 m
Concrete volume: 2.4 m³
Assembly time
2 fitters 8 hours each
(without foundation)
Free fall height
1,20 m
Suitable for
Children aged 5 and over,
public playgrounds etc.
Physical activities
Item number: 028200502
