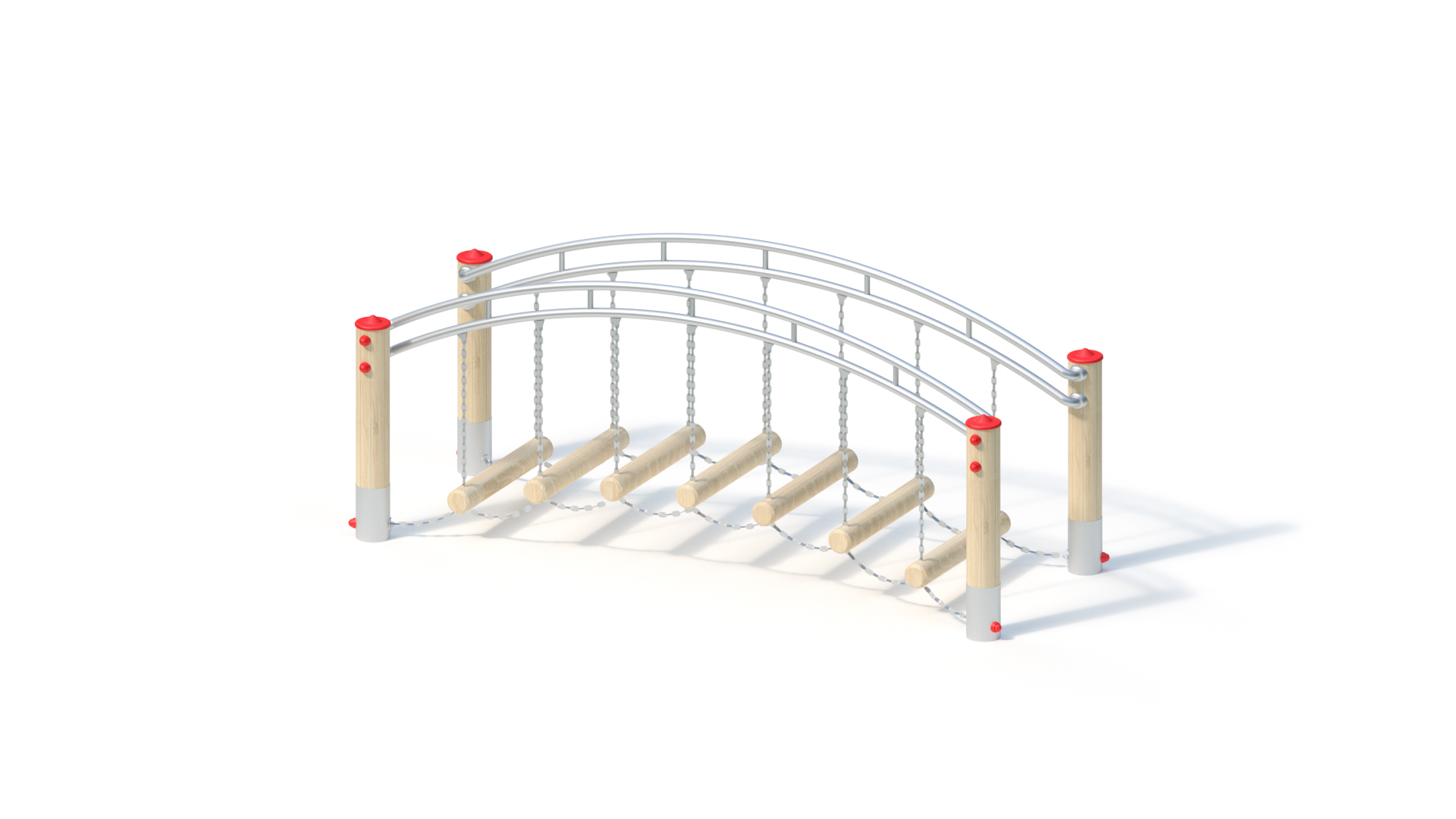

Totter bow
The most important information
| Age group ? | 2+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 4 people |
| Activities ? | Balance, Physical activity |
Technical data
| Minimum space length ? | 5,55 m |
|---|---|
| Minimum space width ? | 3,95 m |
| Minimum space height ? | 1,10 m |
| Equipment length ? | 2,55 m |
| Equipment width ? | 0,95 m |
| Equipment height ? | 1,10 m |
| Free-fall height ? | 0,40 m |
| Platform heights | - |
| Total weight ? | 115.00 kg |
| Heaviest single part ? | 60.00 kg |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 4 (0.4m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data

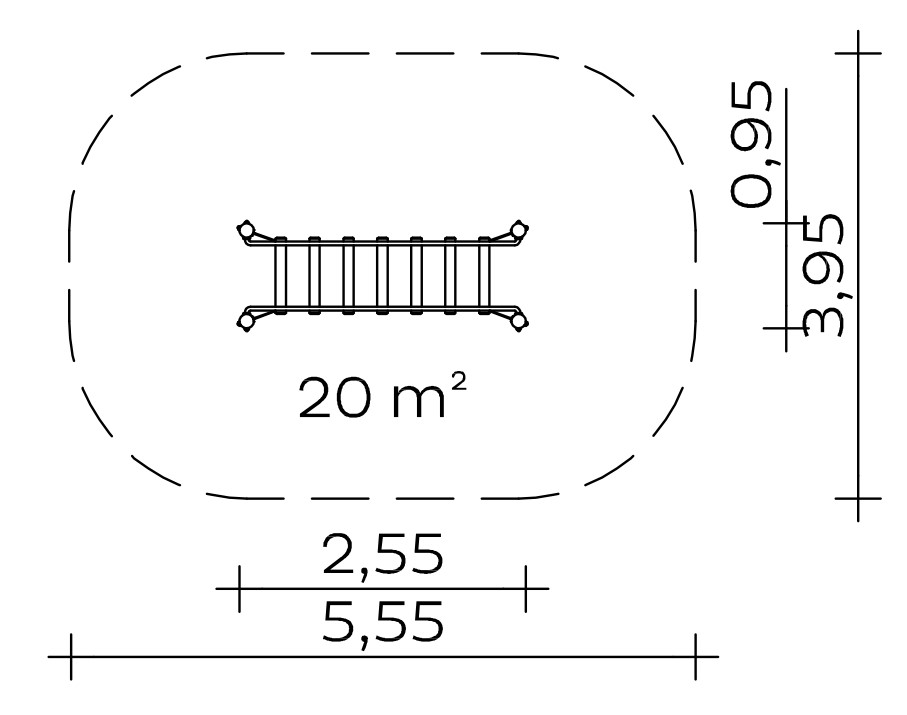

Base area: 0.95 x 2.55 m
Minimum space: 3.95 x 5.55 m (20 m²)
Total height: 1.10 m
Bridge height: 0.40 m
Weight: 60 kg heaviest individual part
115 kg in total
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Attachments
- Wobbly arch on tandem crossbeam, robinia beams Ø 100 mm, fine-linked stainless steel railing chains
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
4 pcs. 0.40 x 0.40 x 0.40 m
Concrete volume: 0.26 m³
Assembly time
2 fitters 1 hour each
(without foundation)
Free fall height
0,40 m
Suitable for
Children aged 3 and over,
public playgrounds etc.
Physical activities
Item number: 028060700
