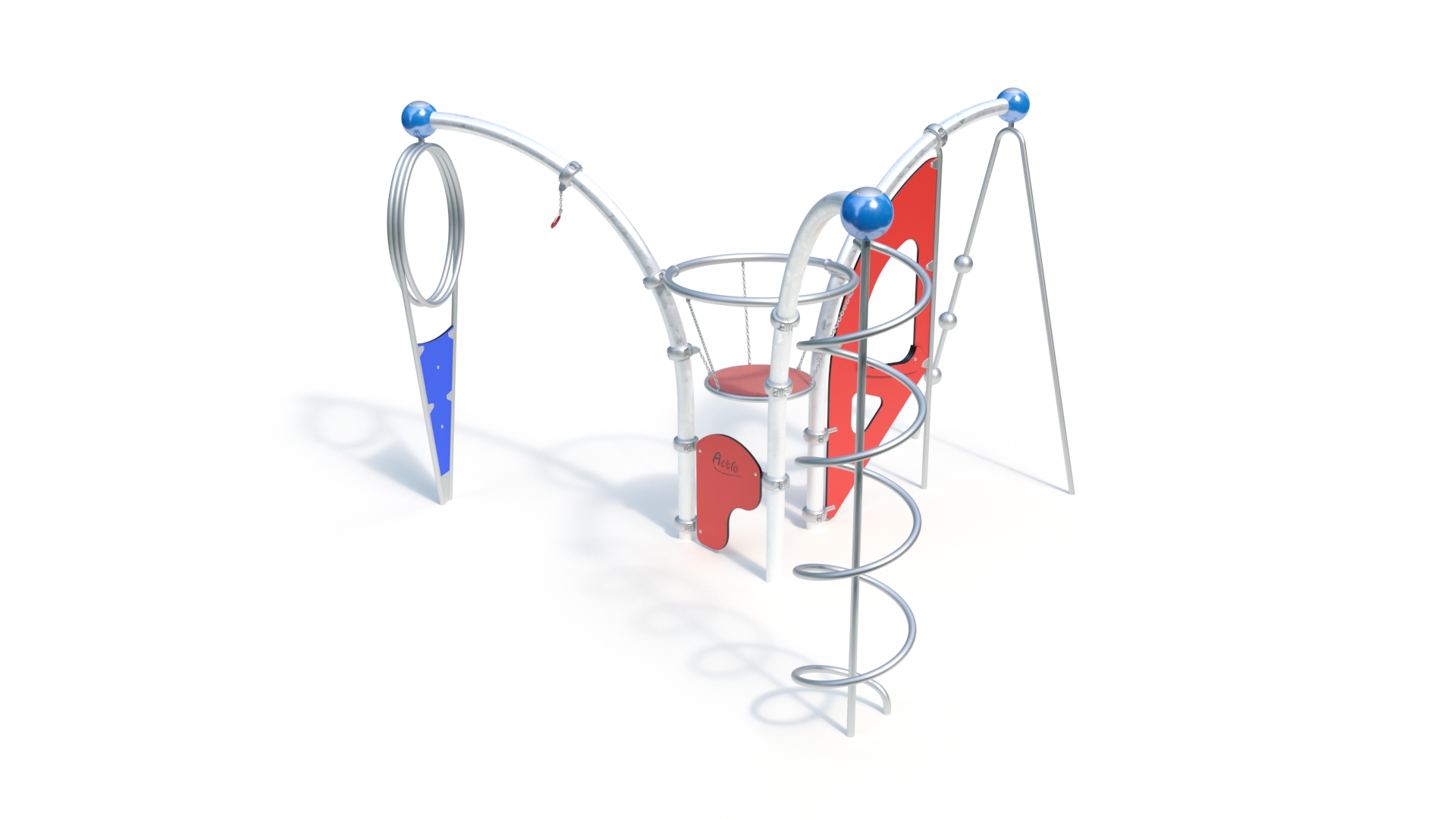

Actio 319

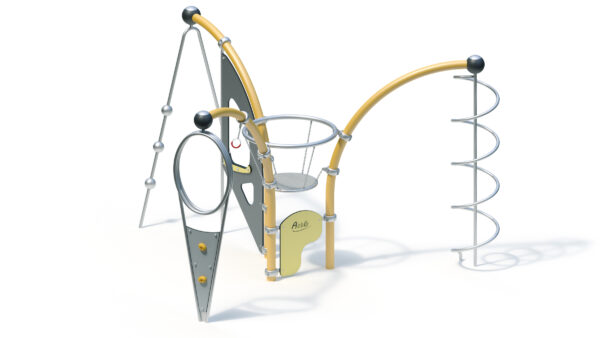

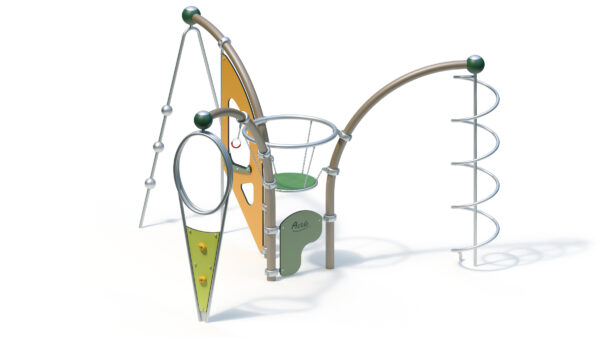

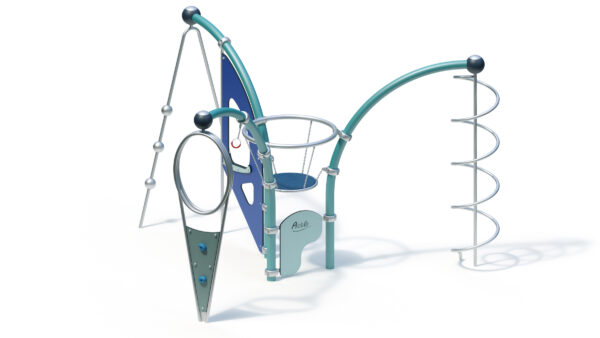

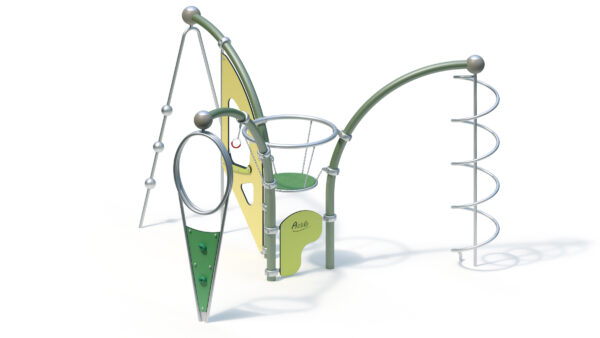

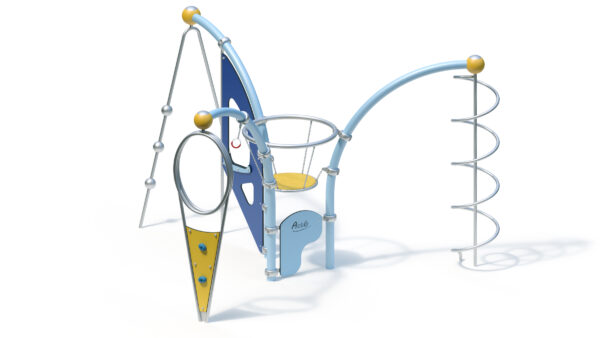

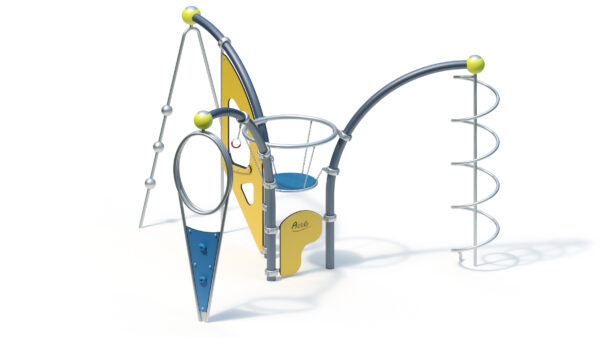

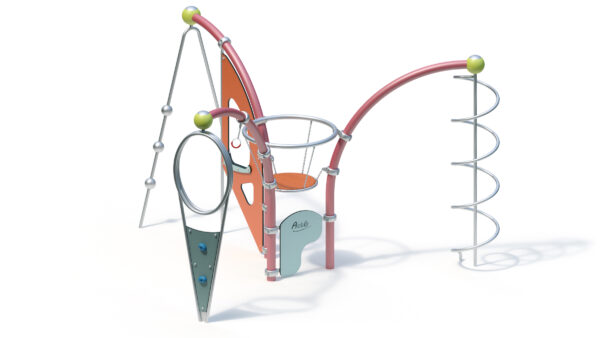

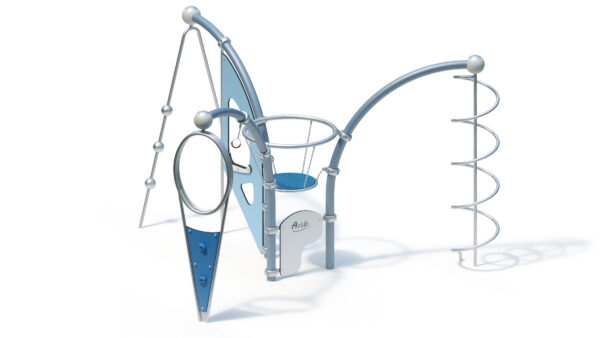

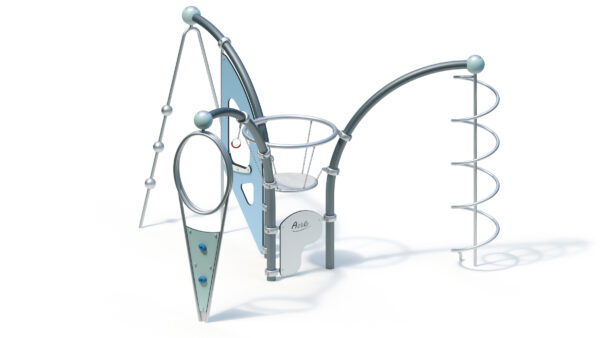

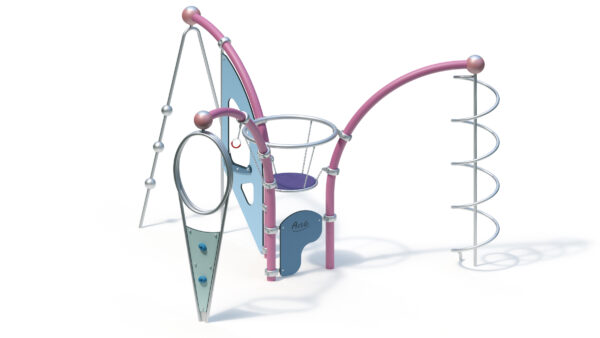

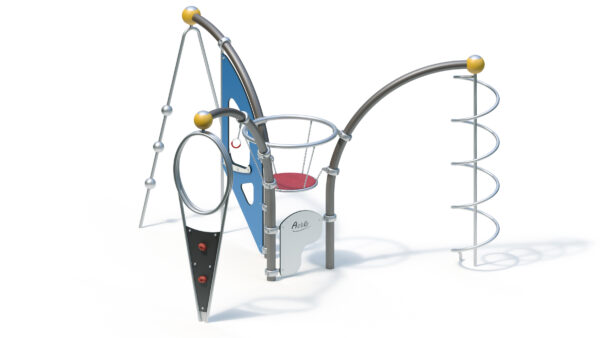

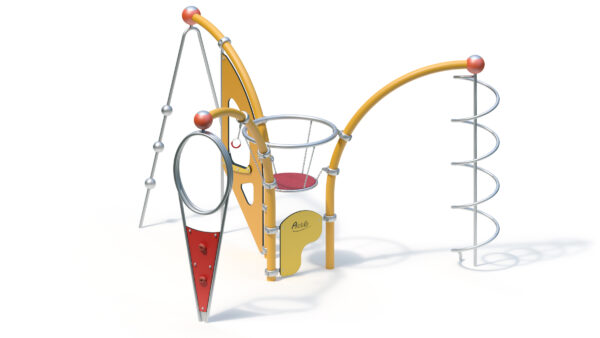

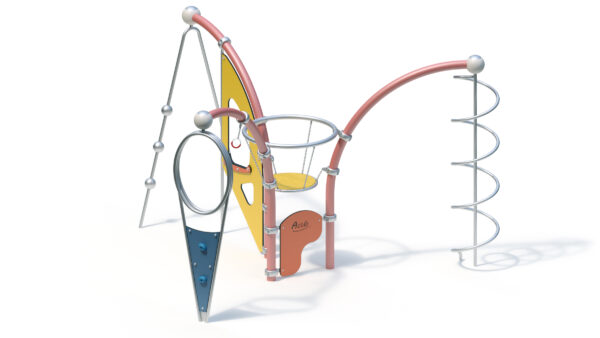

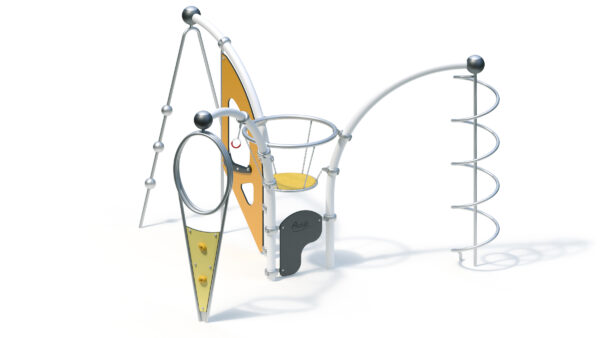

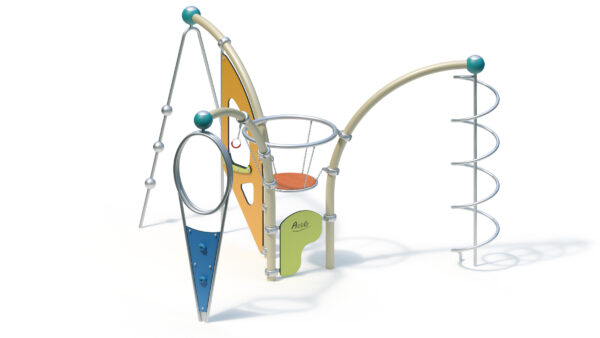

Select variant:
The most important information
| Age group ? | 6+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 16 persons |
| Activities ? | Physical activity, Climbing, Slide, Social activity |
Technical data
| Device length ? | 4,10 m |
|---|---|
| Device width ? | 4,79 m |
| Device height ? | 2.93 m |
| Free fall height ? | 2,86 m |
| Platform heights | - |
| Total weight ? | 552.00 kg |
| Heaviest single item ? | 67.00 kg |
| Minimum room length ? | 8,30 m |
| Minimum room width ? | 8,84 m |
| Minimum room height ? | 2.93 m |
Assembly & Foundations
| Assembly time ? | 5,0 h |
|---|---|
| Number of fitters ? | 3 persons |
| Lifting gear required | - |
| Foundations | 130x050x050 |
Product Downloads
Product description
Technical data

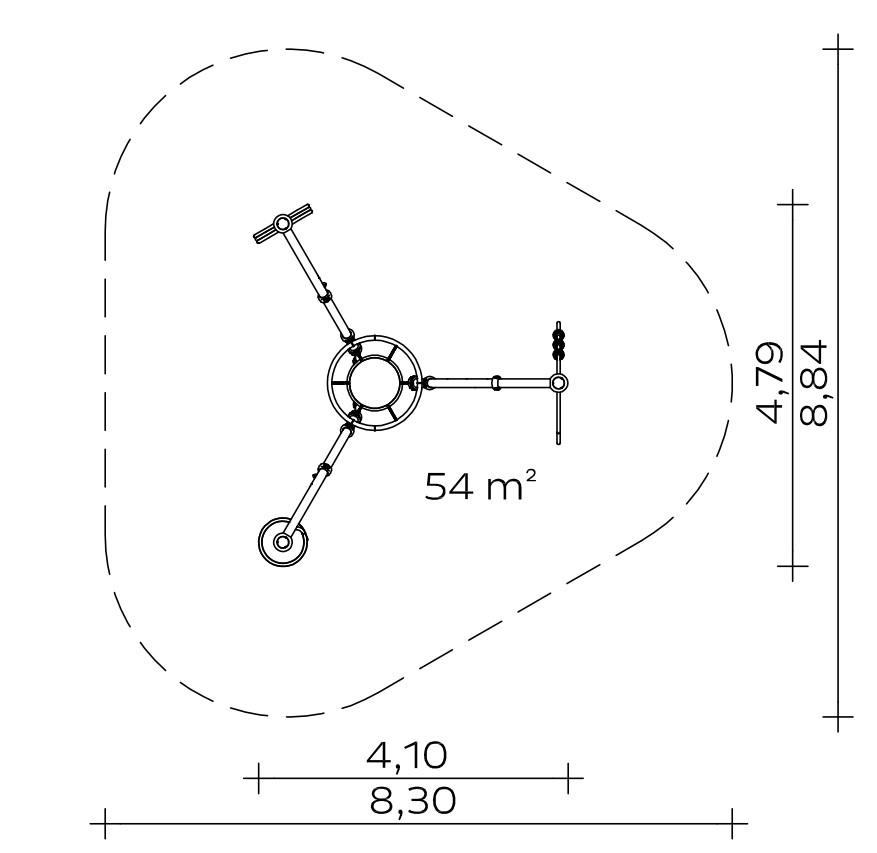

Equipment room: 4.10 x 4.79 x 2.93 m
Minimum space: 8.30 x 8.84 x 2.93 m
Impact area: 54 m²
Total height: 2.93 m
Free fall height: 2.86 m
Weight: 67 kg heaviest individual part
552 kg in total
Arc 75°
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
– Aluminium sphere, Ø 250 mm, powder-coated in a RAL colour of your choice (see items below)
Arc 90 degrees
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
– Aluminium sphere, Ø 250 mm, powder-coated in a RAL colour of your choice (see items below)
Chill Wall
- Climbing wall made of highly weather-resistant HPL laminate, 20 mm.
- Above: Connection to Actio construction element using aluminium clip (optionally powder-coated in RAL colour of choice) and a welded construction made of stainless steel tube Ø 38 mm
– below: Fixation by site foundations
Climbing Pipe
- Welded construction made of stainless steel tube Ø 38 mm with three stainless steel balls Ø 150 mm
– top: screw-on connection to Actio construction element
– below: Fixation by site foundations
Resting Point
- Climbing wall made of highly weather-resistant HPL laminate, colour blue similar to RAL 5015, 20 mm, in a frame made of stainless steel tube Ø 38 mm, with free climbing elements attached on one side
– top: screw-on connection to Actio construction element
– below: Fixation by site foundations
Spring Slide
- Welded construction made of stainless steel tube Ø 42.4 mm
– top: screw-on connection to Actio construction element
– below: Fixation by site foundations
Wobble Disc
- Welded construction made of stainless steel tube Ø 60.3 mm with 6 mm chains
- Non-slip standing surface made of EPDM
- Connection to Actio construction element using aluminium clamps (optionally powder-coated in RAL colour of choice)
Hanging handle
- Hanging handle with rubberised grip surface and 6 mm chain
– Connection to Actio construction element using an aluminium clamp (optional powder-coated in a RAL colour of your choice)
Actio shield
- Actio sign made of a highly weather-resistant HPL laminate, including „Actio“ labelling, 20 mm.
Connection via aluminium clamps (optionally powder-coated in RAL colour of choice)
Number of components for optional powder coating
2 pipe bends 90°
1 pipe bend 75°
13 pcs. Aluminium clamp Ø 114 mm
Foundation (on site)
3 pcs. 1.30 x 0.50 x 0.50 m
4 units 0.60 x 0.60 x 0.50 m
Concrete volume: 1.70 m³
Assembly time
3 fitters 5 hours each.
(without foundation)
Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities
Item number: 027319001
