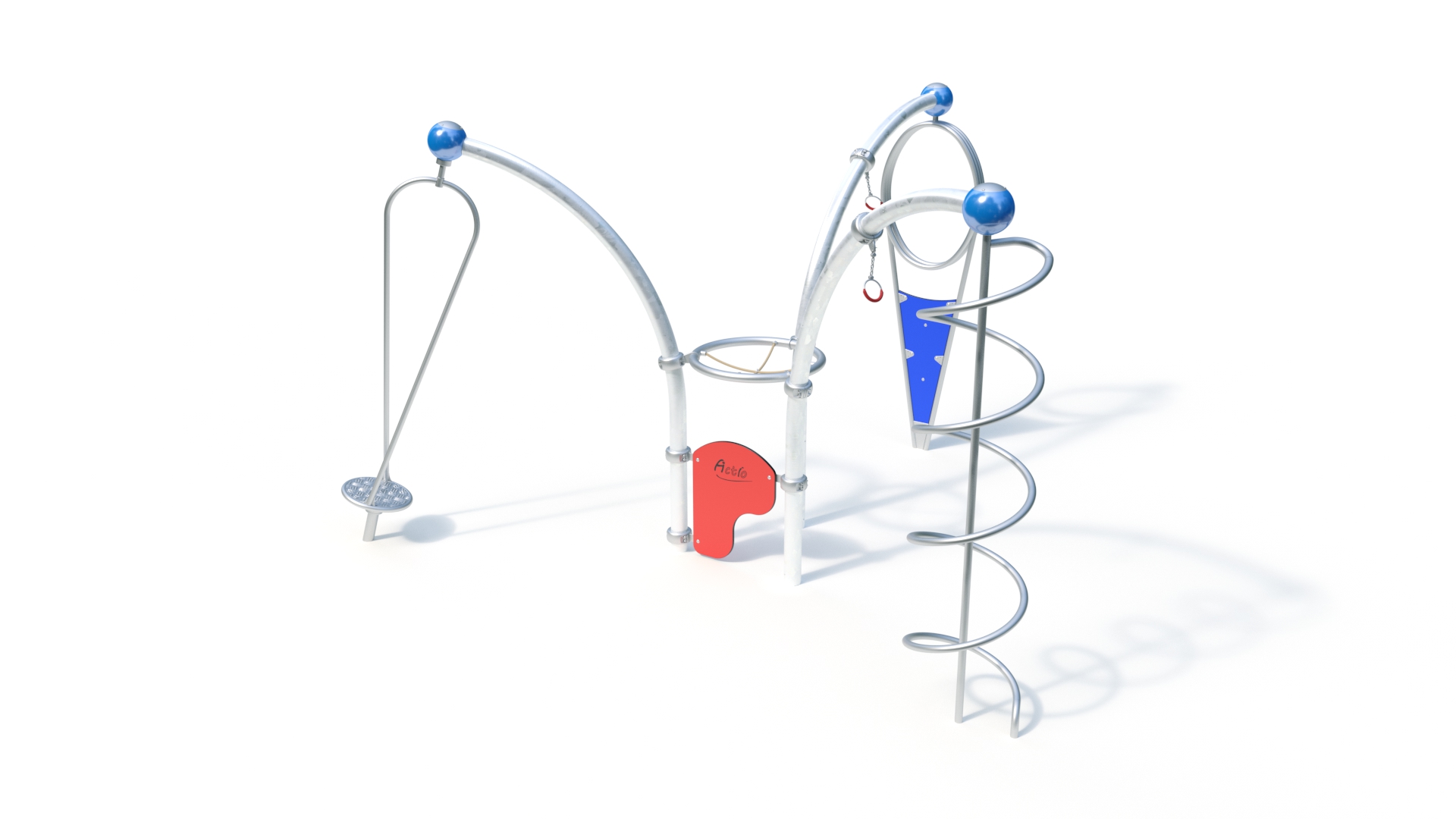

Actio 309

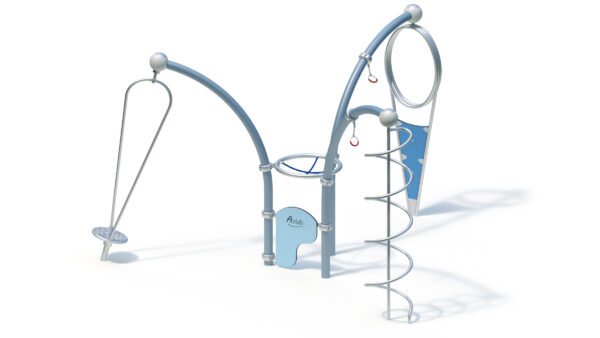

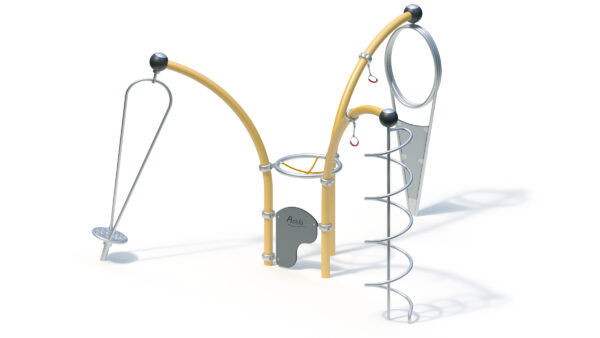

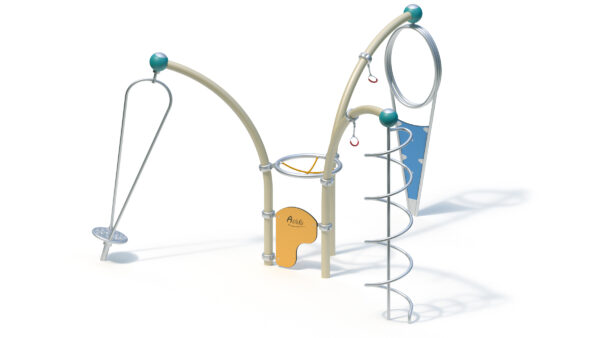

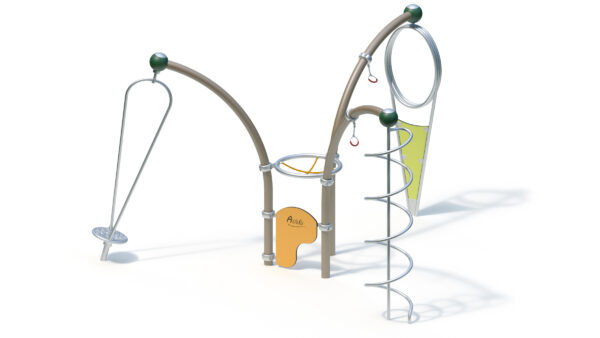

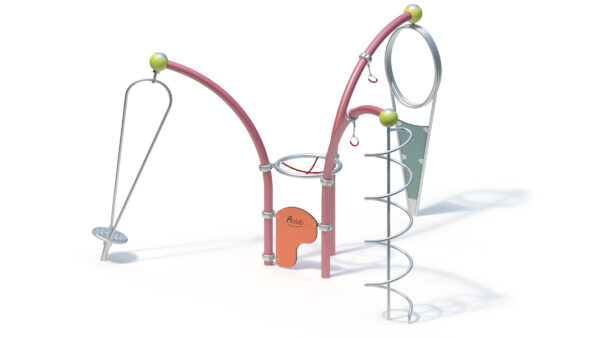

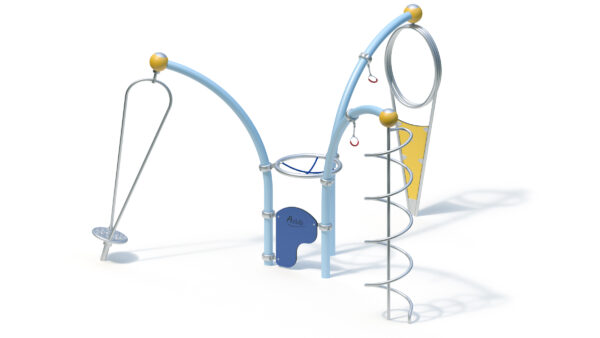

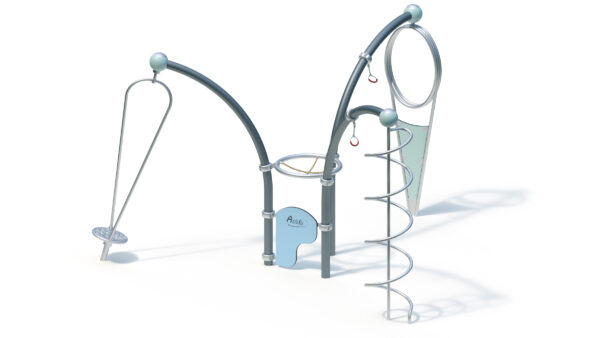

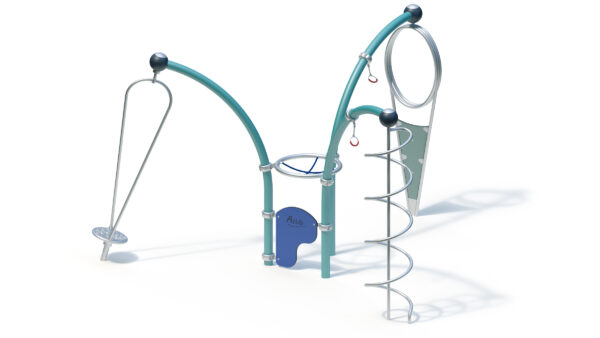

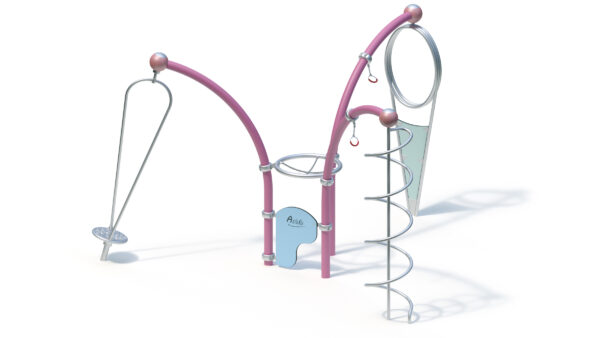

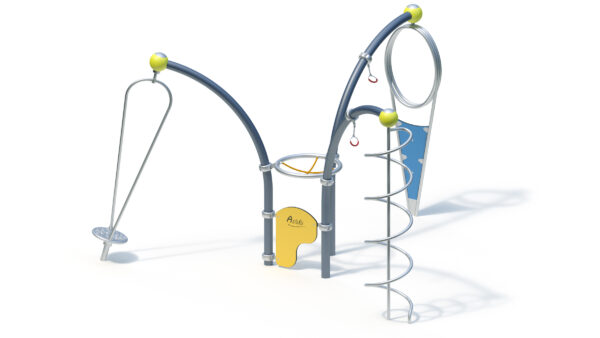

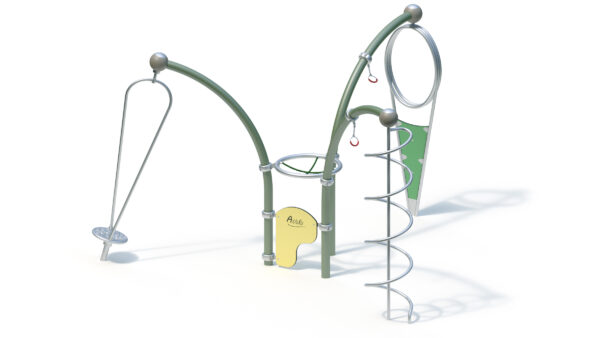

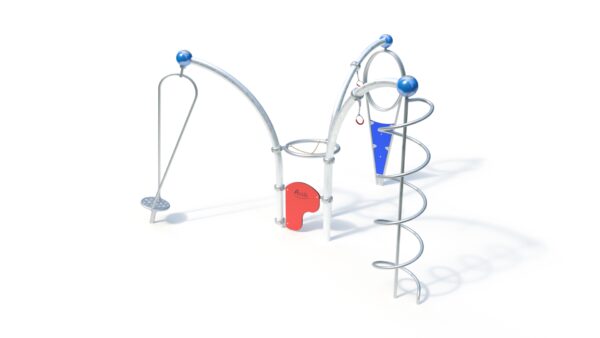

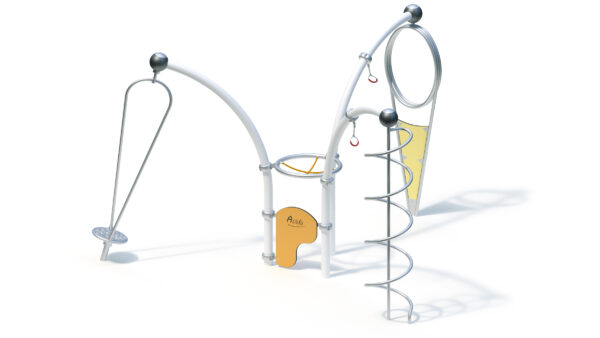

Variante wählen:
The most important information
| Altersgruppe ? | 6+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 13 Personen |
| Aktivitäten ? | Physical activity, Climbing, Slide, Social activity |
Technical data
| Mindestraumlänge ? | 8,38 m |
|---|---|
| Mindestraumbreite ? | 8,30 m |
| Mindestraumhöhe ? | 2.93 m |
| Gerätelänge ? | 4,86 m |
| Gerätebreite ? | 4,35 m |
| Gerätehöhe ? | 2.93 m |
| Freie Fallhöhe ? | 2,86 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 466.00 kg |
| Schwerstes Einzelteil ? | 67.00 kg |
Assembly & Foundations
| Montagezeit ? | 5,0 h |
|---|---|
| Monteuranzahl ? | 3 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 3 (1.3m x 0.5m x 0.5m) Quantity: 3 (0.6m x 0.6m x 0.5m) |
Product Downloads
Product description
Technical data

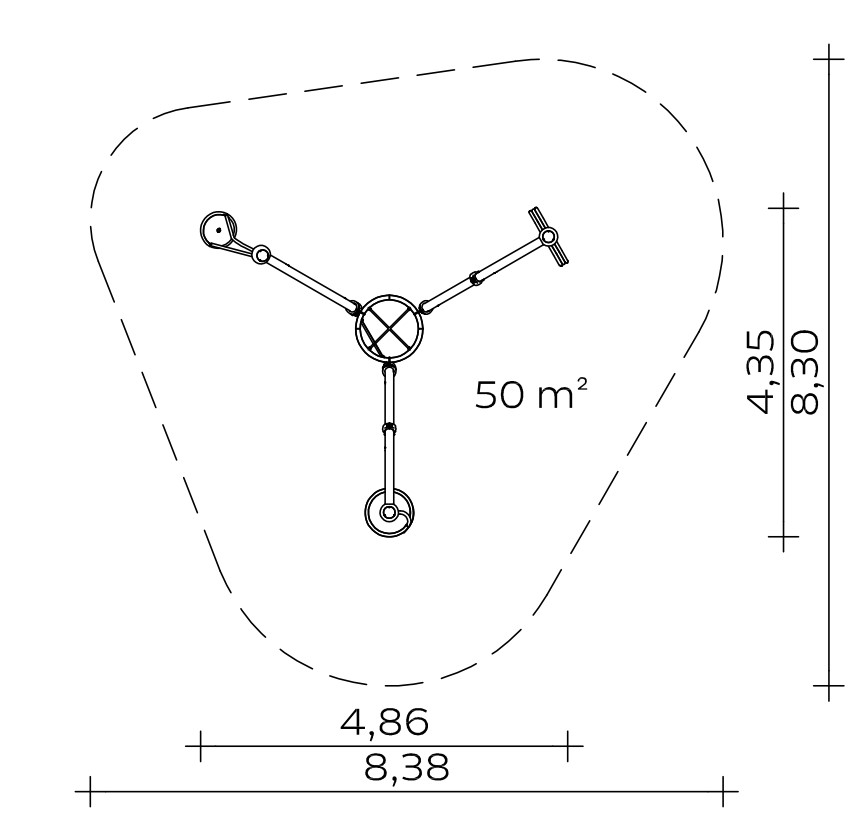

Equipment room: 4.86 x 4.35 x 2.93 m
Minimum space: 8.38 x 8.30 x 2.93 m
Impact area: 50 m²
Total height: 2.93 m
Free fall height: 2.86 m
Weight: 67 kg heaviest individual part
466 kg in total
Arc 75°
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
– Aluminium sphere, Ø 250 mm, powder-coated in a RAL colour of your choice (see items below)
Arc 90 degrees
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
– Aluminium sphere, Ø 250 mm, powder-coated in a RAL colour of your choice (see items below)
Big Hurricane
- Welded, twisted stainless steel tube construction
- Rotating base made from profiled stainless steel sheet
- Roller bearings at the bottom and top: protected against interference and dirt
– top: screw-on connection to Actio construction element
- below: Anchoring via a hot-dip galvanised steel foundation anchor to be set in concrete
Spring Slide
- Welded construction made of stainless steel tube Ø 42.4 mm
– top: screw-on connection to Actio construction element
– below: Fixation by site foundations
Resting Point
- Climbing wall made of highly weather-resistant HPL laminate, colour blue similar to RAL 5015, 20 mm, in a frame made of stainless steel tube Ø38 ; with free climbing elements attached on one side
– top: screw-on connection to Actio construction element
below: Clamping through in-situ foundations
Meeting Point
- Welded construction made of stainless steel tube Ø 60.3 mm with Hercules rope cross made of Ø16 mm Hercules rope with 6-strand steel core
- Connection to Actio construction element using aluminium clamps (optionally powder-coated in RAL colour of choice)
Hanging handle
- Hanging handle with rubberised grip surface and 6 mm chain
- Above: Connection to Actio construction element via aluminium clip (optionally powder-coated in RAL colour of choice)
Actio shield
- Actio sign made of a highly weather-resistant HPL laminate, including „Actio“ marking, 20 mm, colour red similar to RAL 2002.
Connection via aluminium clamps (optionally powder-coated in RAL colour of choice)
Number of components for optional powder coating
2 pipe bends 90°
1 pipe bend 75°
8 pcs. Aluminium clamp Ø 114 mm
Foundations (client-provided)
3 pcs. 1.30 x 0.50 x 0.50 m
3 units 0.60 x 0.60 x 0.50 m
Concrete volume: 1.50 m³
Assembly time
3 fitters 5 hours each.
(without foundation)
Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities
Item number: 027309000
