Actio 293

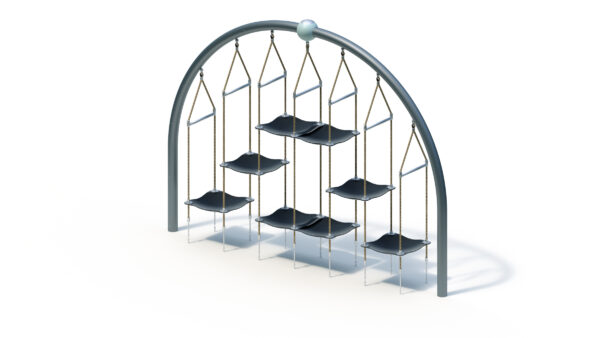

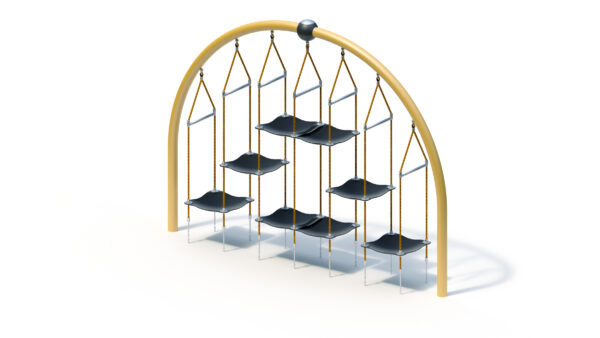

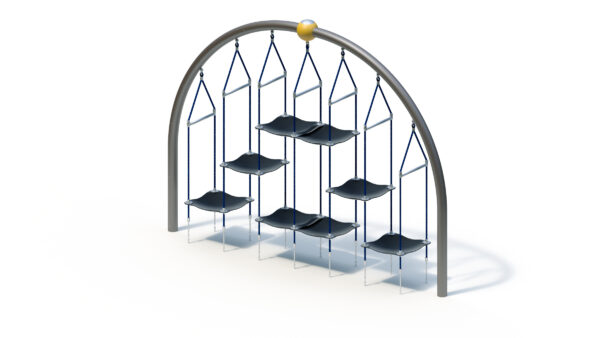

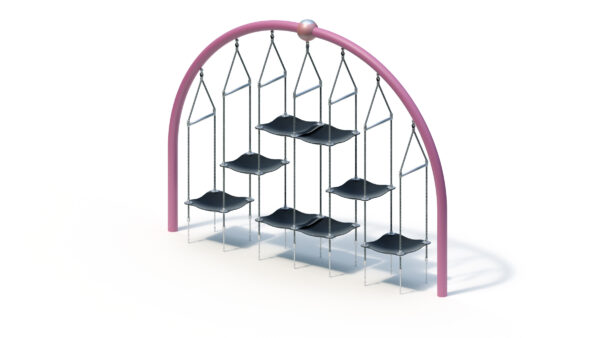

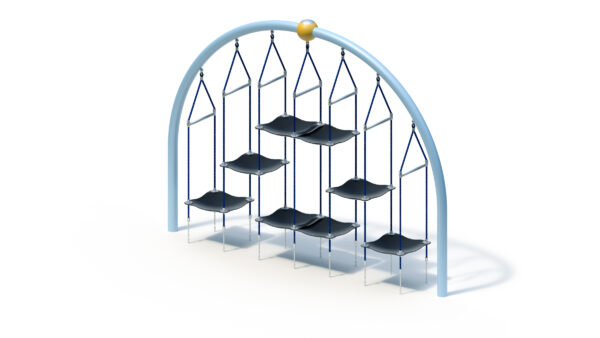

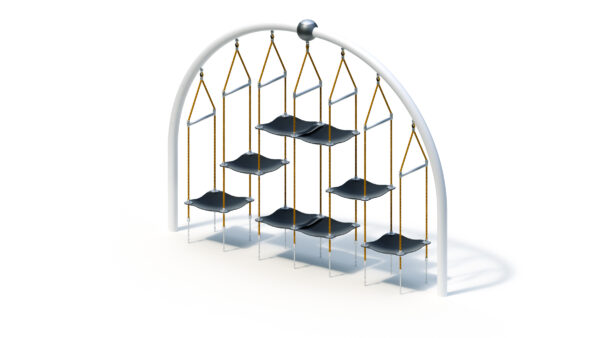

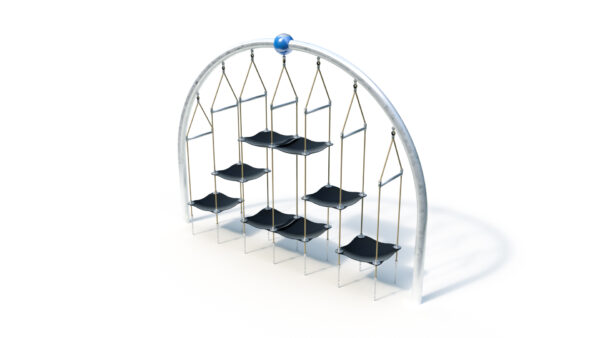

Select variant:
The most important information
| Age group ? | 5+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 14 people |
| Activities ? | - |
Technical data
| Minimum space length ? | 6,93 m |
|---|---|
| Minimum space width ? | 4,82 m |
| Minimum space height ? | 2.93 m |
| Equipment length ? | 3,93 m |
| Equipment width ? | 0,60 m |
| Equipment height ? | 2.93 m |
| Free-fall height ? | 2,86 m |
| Platform heights | - |
| Total weight ? | 200.00 kg |
| Heaviest single part ? | 67.00 kg |
Assembly & Foundations
| Assembly time ? | 3.0 hours |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 1 (4.5m x 0.85m x 0.5m) |
Product Downloads
Product description
Technical data

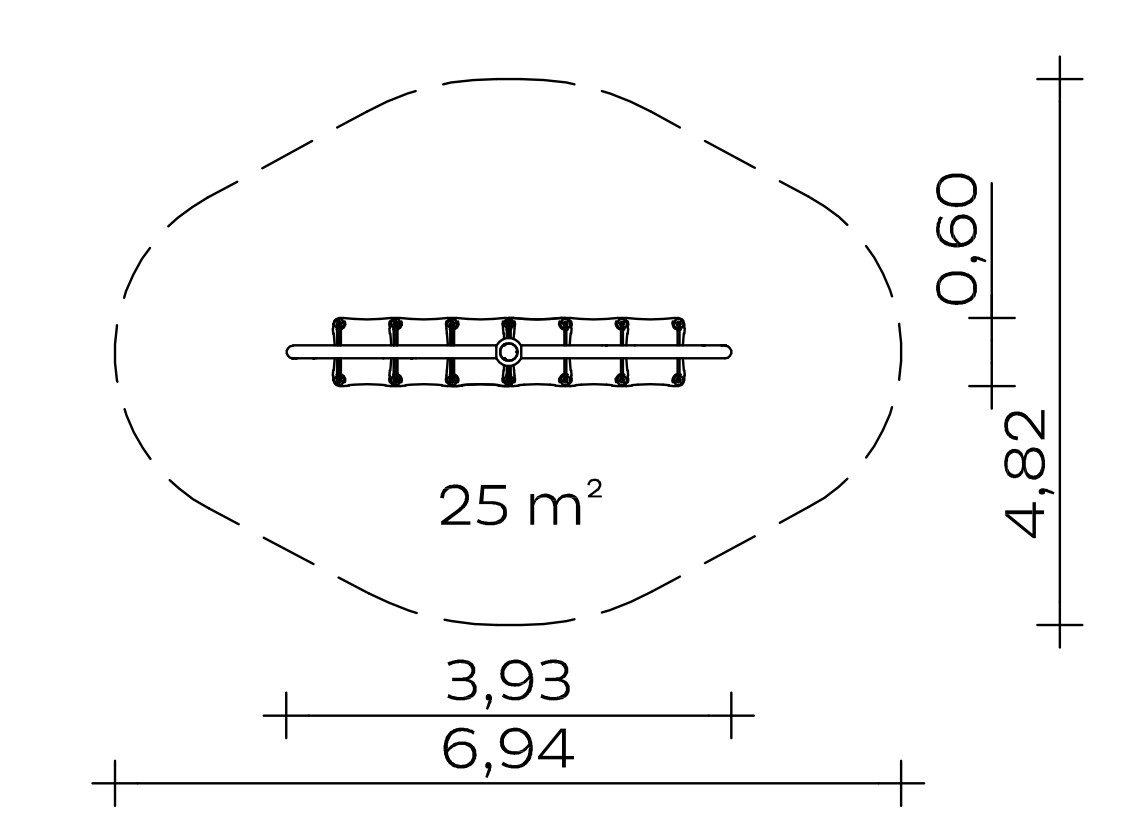

Equipment room: 3.93 x 0.60 x 2.93 m
Minimum space: 6.93 x 4.82 x 2.93 m
Impact area: 25 m²
Total height: 2.93 m
Free fall height: 2.86 m
Weight: 67 kg heaviest individual part
200 kg in total
Arc 90° Flying Carpet
- Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optionally powder-coated in RAL colour)
- Aluminium ball, Ø 250 mm, powder-coated in RAL colour of choice
- Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)
Flying Carpet
- Polypropylene rope (Ø 16 mm), 6-strand, with galvanised steel core
- elastic mat element made of 8 mm thick, PAH-free and 4-fold textile-reinforced rubber
- Cross clamping tube, welded stainless steel construction consisting of tube (Ø 33.7 x 2 mm) welded to clamping tube (Ø 34 x 8.5 mm)
- Floor fastening, stainless steel chains (Ø 7 mm) welded with round plate (Ø 90 x 3 mm) at the upper end, screwed to foundation tube (Ø 38 x 2 mm) at the bottom
- Connection to Arc 90° with shackle, Ø 10 mm
Foundations (client-provided)
1 piece 4.50 x 4.85 x 0.50 m
Concrete volume: 1.90 m³
Assembly time
2 fitters 3 hours each.
(without foundation)
Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities
Item number: 027293000
This Kaiser & Kühne product enables:
