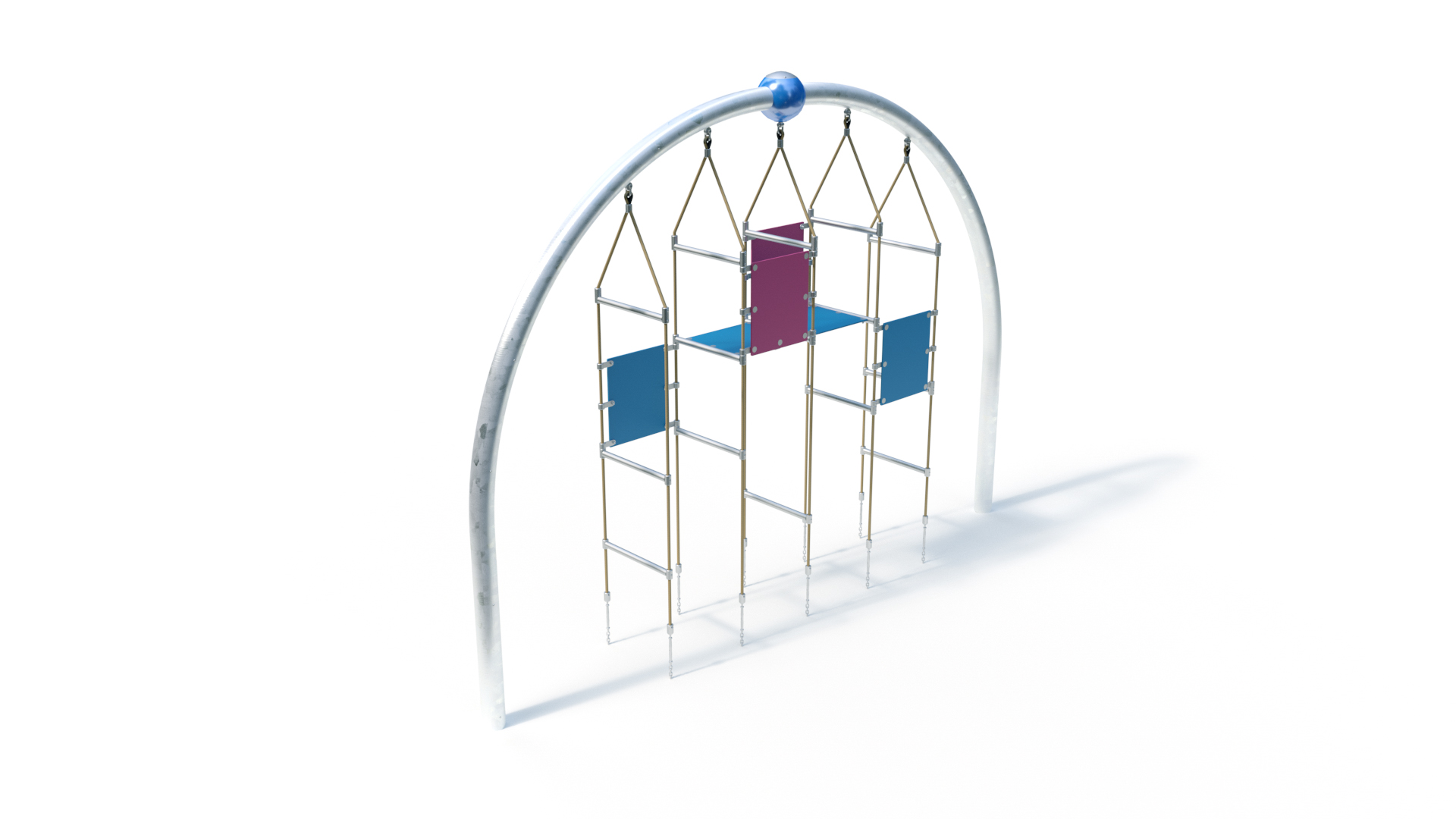

Actio 292

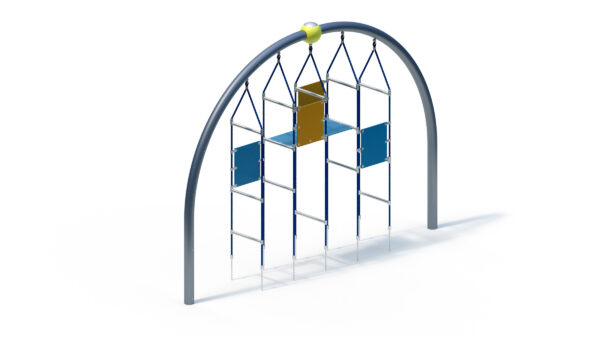

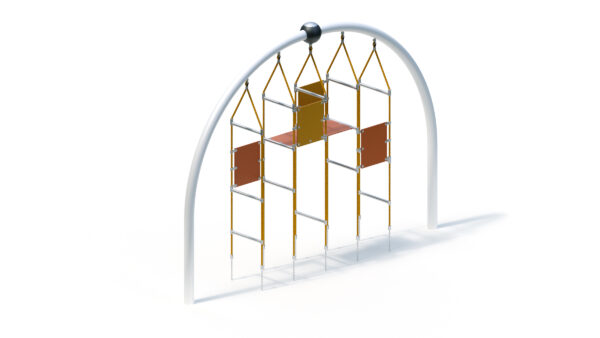

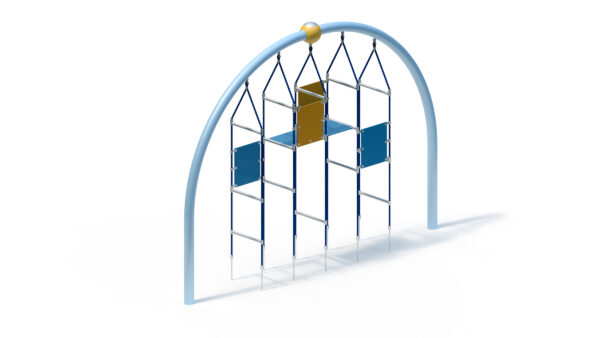

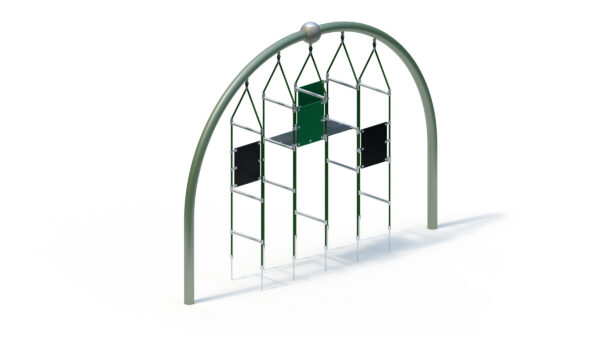

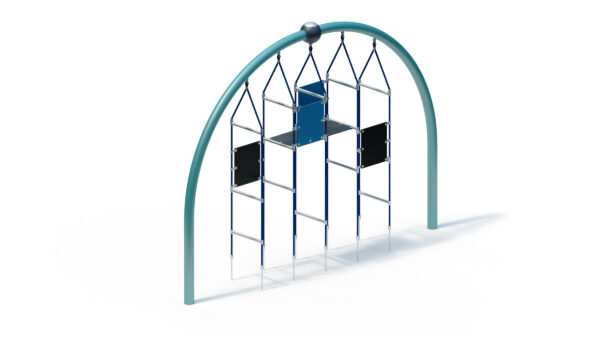

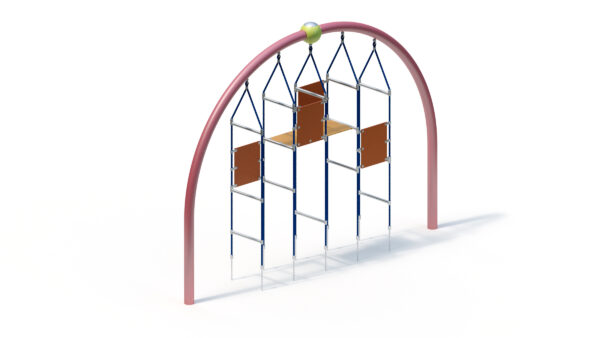

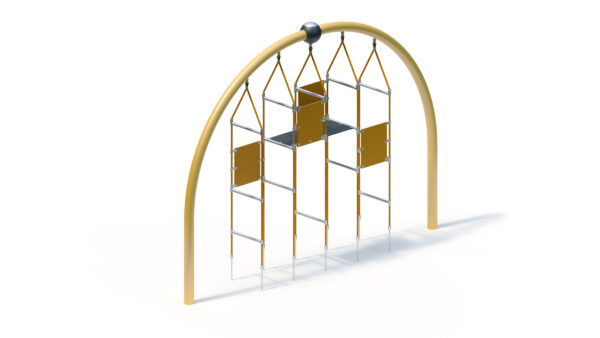

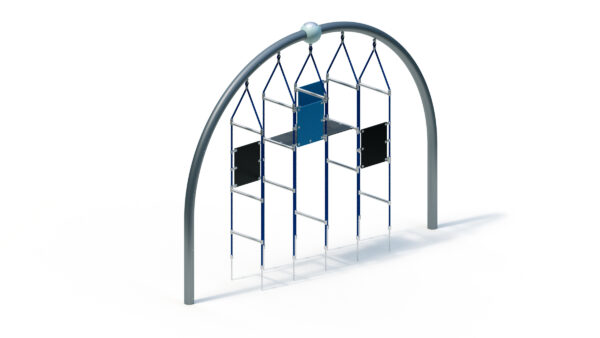

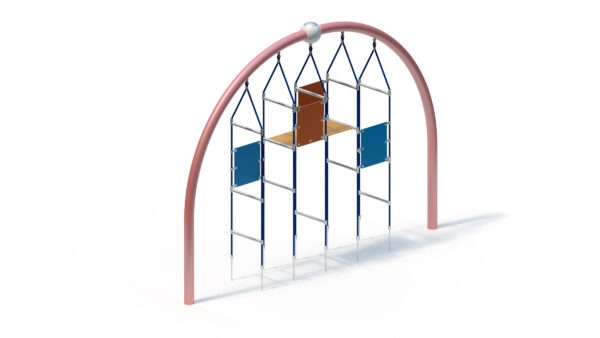

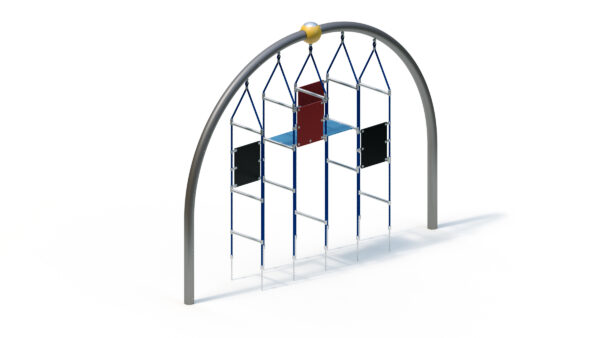

Select variant:
The most important information
| Age group ? | 5+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 12 people |
| Activities ? | - |
Technical data

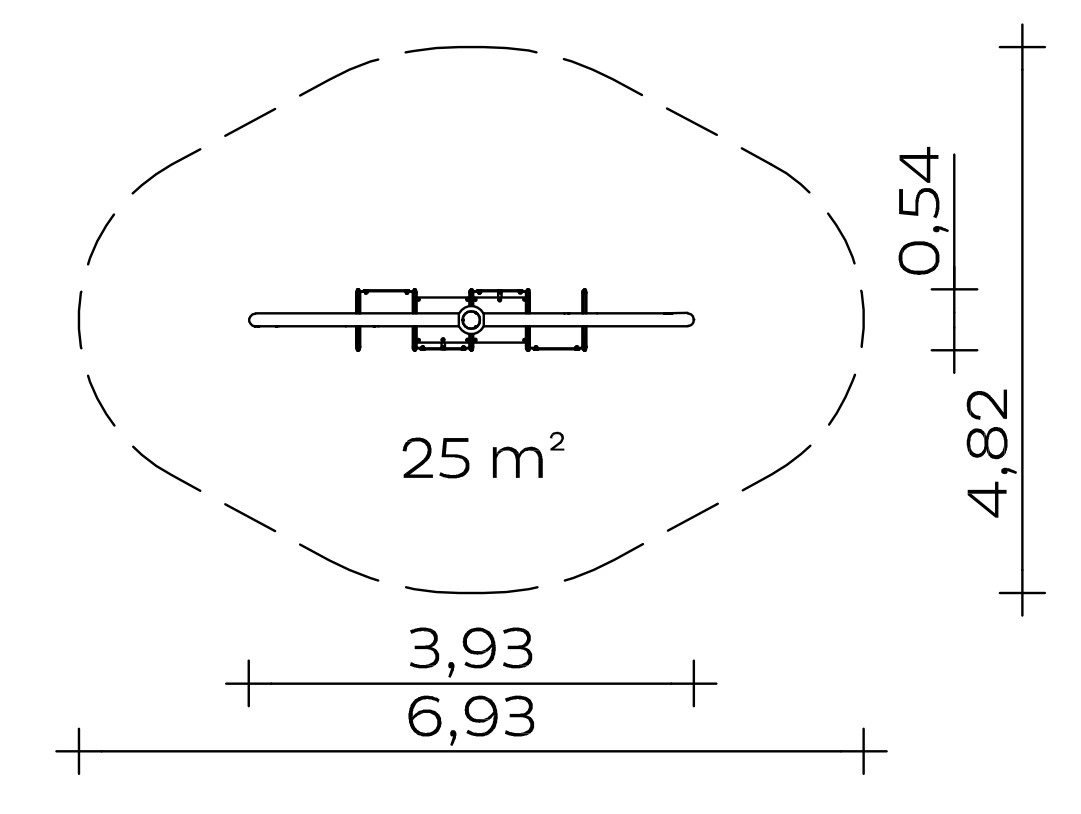

| Minimum space length ? | 6,93 m |
|---|---|
| Minimum space width ? | 4,82 m |
| Minimum space height ? | 2.93 m |
| Equipment length ? | 3,93 m |
| Equipment width ? | 0,54 m |
| Equipment height ? | 2.93 m |
| Free-fall height ? | 2,86 m |
| Platform heights | - |
| Total weight ? | 180.00 kg |
| Heaviest single part ? | 67.00 kg |
Assembly & Foundations
| Assembly time ? | 3.0 hours |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 2 (1.2m x 0.5m x 0.5m) Quantity: 1 (2.1m x 0.8m x 0.5m) |
Product Downloads
Product description
Technical data
Equipment room:
Minimum space:
Impact surface:
Total height:
Free fall height:
Weight: kg heaviest individual part
kg total
Arc 90° Climbing Cube
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
– Aluminium sphere, Ø 250 mm, powder-coated in a RAL colour of your choice (see items below)
- Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)
Climbing Cube 180°
- Polypropylene rope (Ø 16 mm), 6-strand, with galvanised steel core
- Rubber mats (8mm), PAH-free and 4-fold textile-reinforced rubber
- Mounting bracket for rubber mat, clamping tube (Ø 34 x 8.5 mm) welded to sheet metal (30 x 68 mm)
- Cross clamping tube, welded stainless steel construction consisting of tube (Ø 33.7 x 2 mm) welded to clamping tube (Ø 34 x 8.5 mm)
- Floor mounting, stainless steel chains (Ø 7 mm) welded with chain adapter (Ø 34 x 8.5 mm) at the upper end, welded at the bottom with turnbuckle (M10)
- Connection to Arc 90° with shackle, Ø 10 mm
Foundations (client-provided)
Concrete quantity: m³
Assembly time
2 fitters 3 hours each.
(without foundation)
Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities
Item number: 027292000
