Actio 251

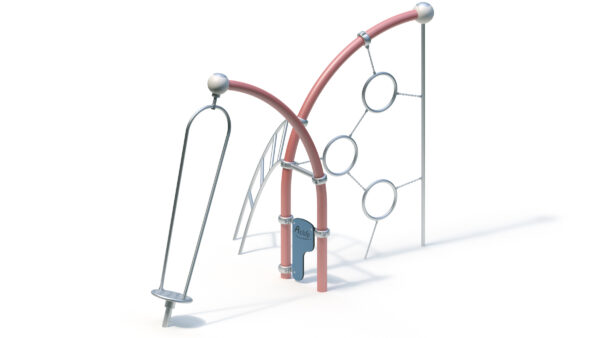

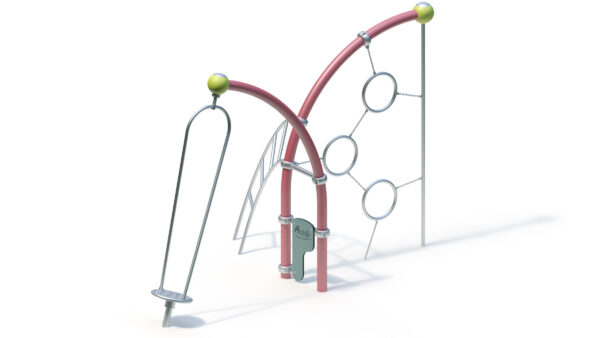

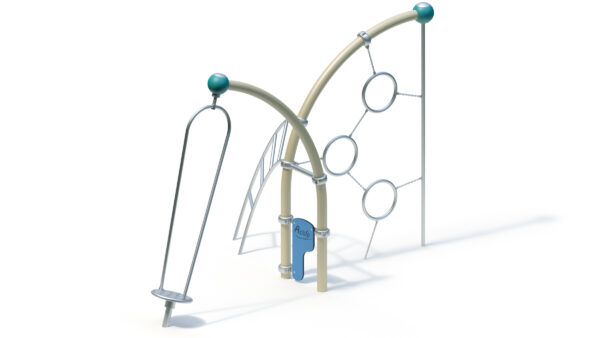

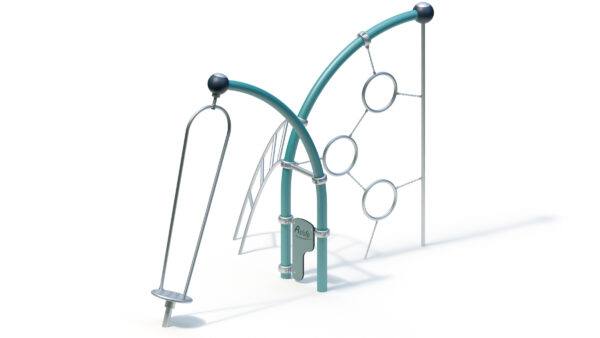

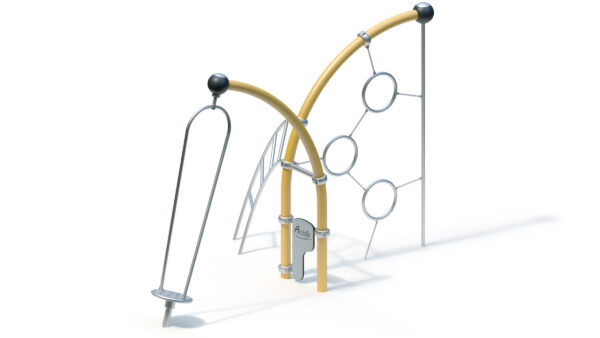

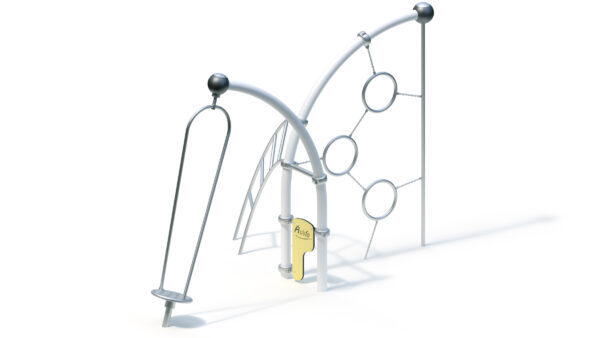

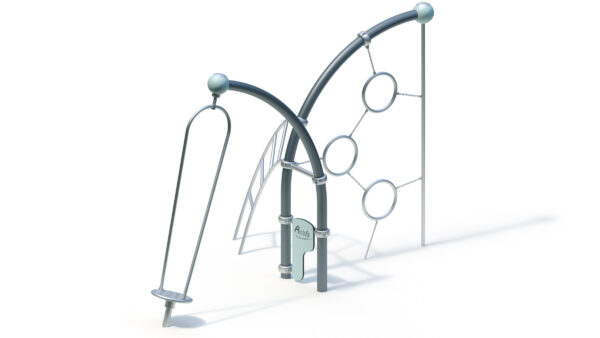

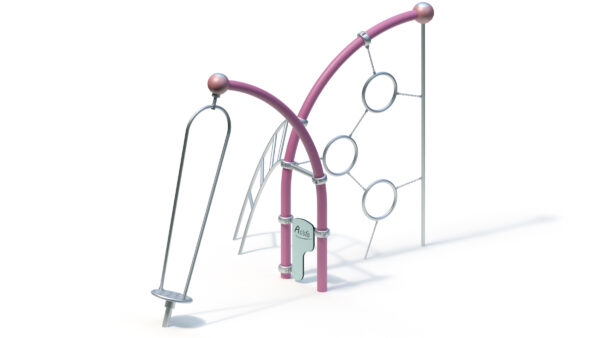

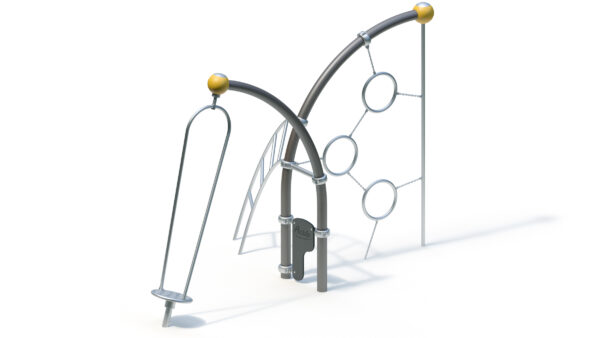

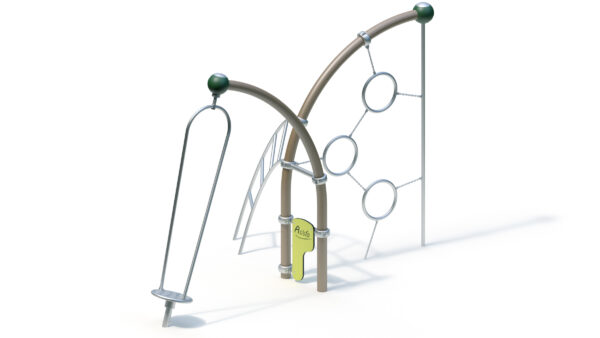

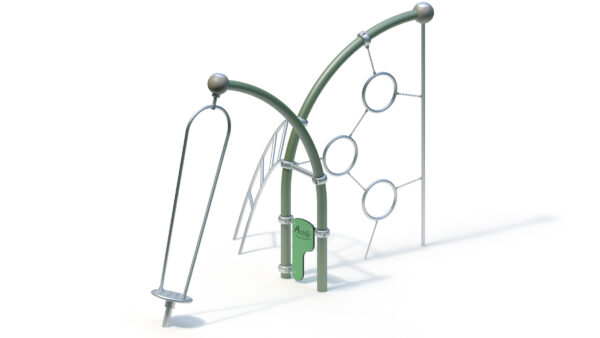

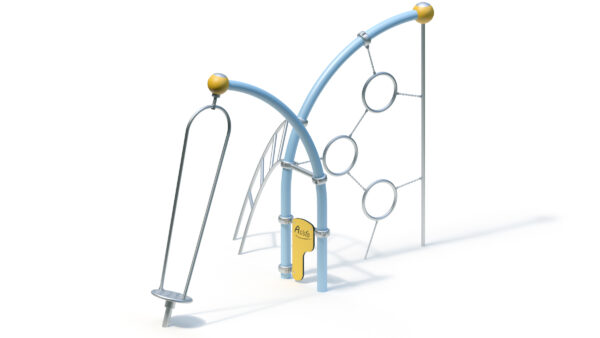

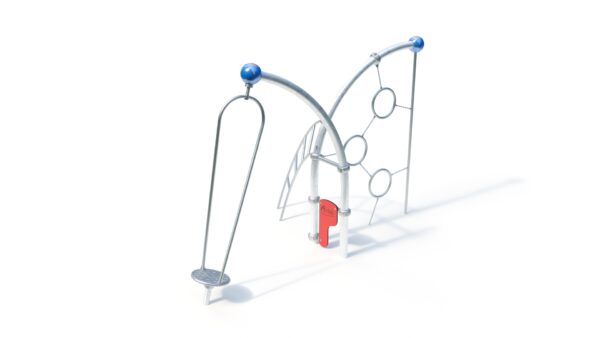

Variante wählen:
The most important information
| Altersgruppe ? | 5+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 9 Personen |
| Aktivitäten ? | Physical activity, Climbing |
Technical data
| Mindestraumlänge ? | 7,96 m |
|---|---|
| Mindestraumbreite ? | 5,33 m |
| Mindestraumhöhe ? | 2.93 m |
| Gerätelänge ? | 4,29 m |
| Gerätebreite ? | 2,29 m |
| Gerätehöhe ? | 2.93 m |
| Freie Fallhöhe ? | 2,86 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 253.00 kg |
| Schwerstes Einzelteil ? | 67.00 kg |
Assembly & Foundations
| Montagezeit ? | 4,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 1 (1.7m x 1m x 0.5m) Quantity: 1 (0.9m x 0.4m x 0.5m) Quantity: 2 (0.6m x 0.6m x 0.5m) |
Product Downloads
Product description
Technical data

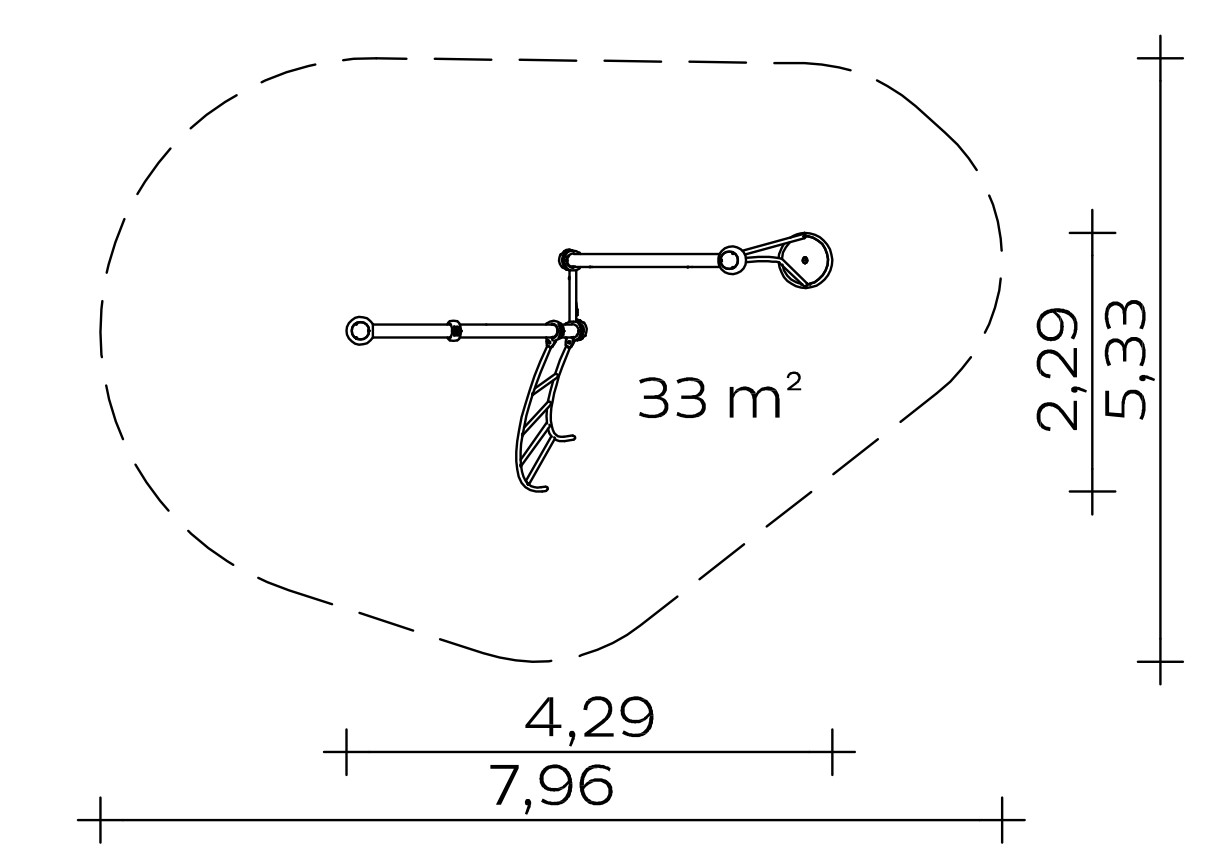

Equipment room: 4.29 x 2.29 x 2.93 m
Minimum space: 7.96 x 5.33 x 2.93 m
Impact area: 33 m²
Total height: 2.93 m
Free fall height: 2.86 m
Weight: 67 kg heaviest individual part
253 kg in total
Arc 90 degrees
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
– Aluminium sphere, Ø 250 mm, powder-coated in a RAL colour of your choice (see items below)
Arc 75°
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
– Aluminium sphere, Ø 250 mm, powder-coated in a RAL colour of your choice (see items below)
Big Hurricane
- Welded, twisted stainless steel tube construction
- Rotating base made from profiled stainless steel sheet
- Roller bearings at the bottom and top: protected against interference and dirt
– top: screw-on connection to Actio construction element
- below: Anchoring via a hot-dip galvanised steel foundation anchor to be set in concrete
Monkey Climber
- Ring combination made of stainless steel tube Ø 38 mm
- Suspension and connection with 7 mm stainless steel chains and swivels
- Above: Connection to Actio construction element
– below: Fixation by site foundations
Actio shield
- Actio sign made of a highly weather-resistant HPL laminate, including „Actio“ marking, 20 mm, colour red similar to RAL 2002.
Connection via aluminium clamps (optionally powder-coated in RAL colour of choice)
Bow ladder
– welded construction made of stainless steel tube Ø 38 mm
- curved ladder
– Top: Connection to Actio construction element using aluminium clamps (optionally powder-coated in a RAL colour of your choice).
– below: Fixation by site foundations
Number of components for optional powder coating
1 pc. 90° pipe elbow
1 pipe bend 75°
7 pcs. Aluminium clamp Ø 114 mm
Number of components for optional powder coating
1 pc. 90° pipe elbow
1 pipe bend 75°
7 pcs. Aluminium clamp Ø 114 mm
Foundations (client-provided)
1 piece 1.70 x 1.00 x 0.50 m
1 piece 0.90 x 0.40 x 0.50 m
2 pcs. 0.60 x 0.60 x 0.50 m
Concrete volume: 1.40 m³
Assembly time
2 fitters 4 hours each.
(without foundation)
Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities
Item number: 027251001
