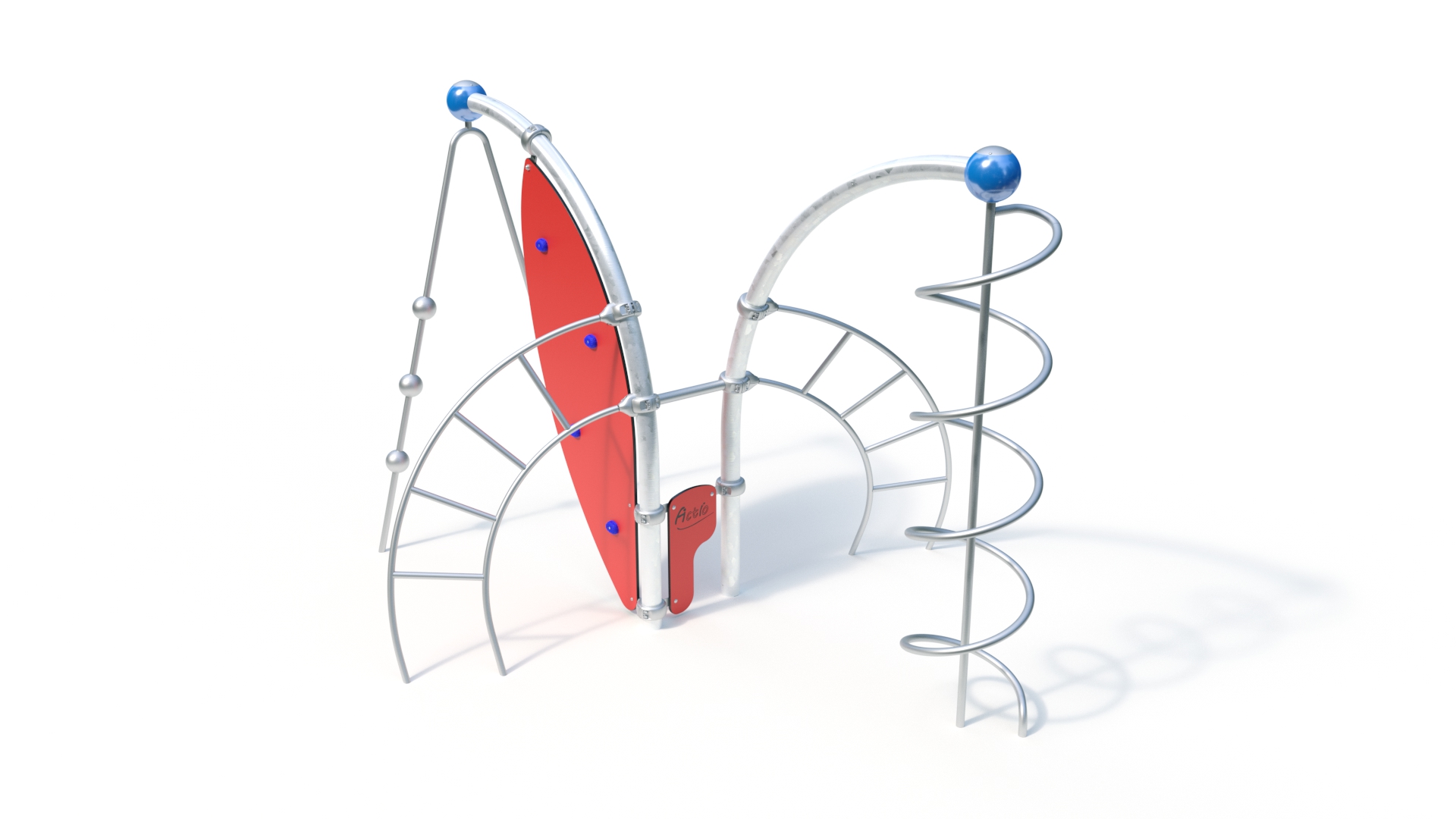

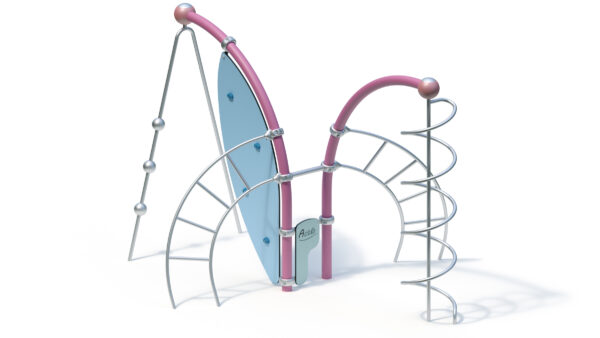

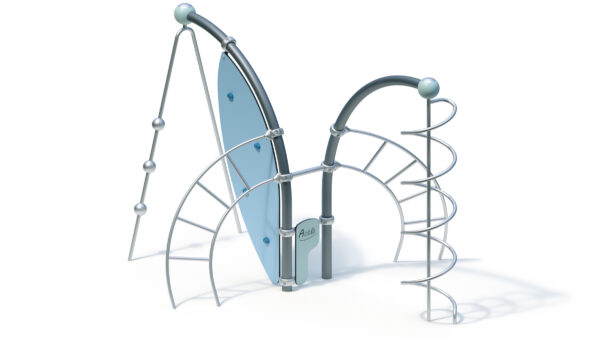

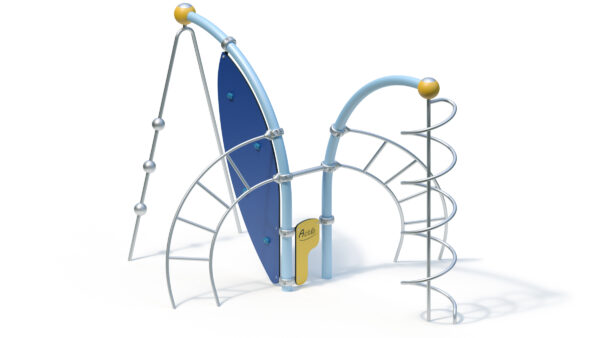

Actio 241

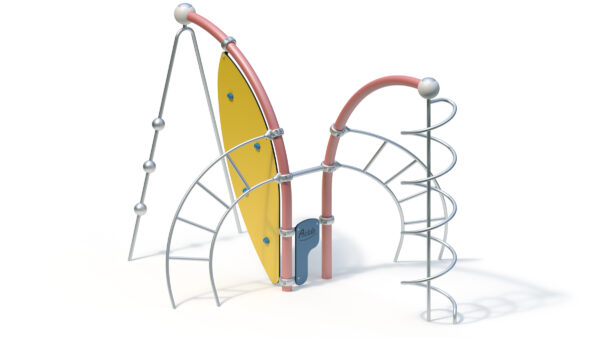

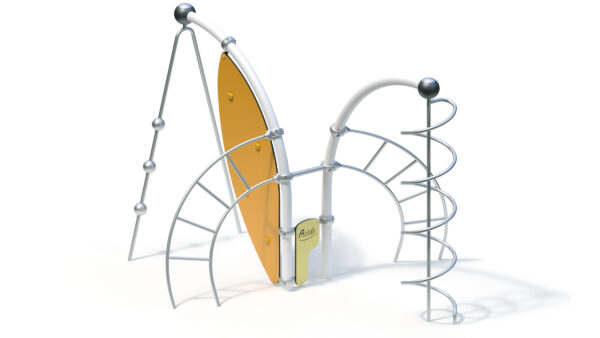

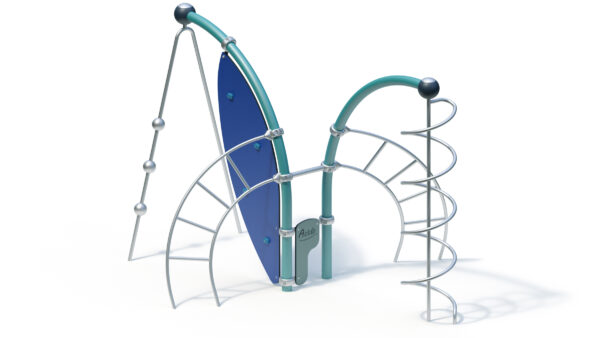

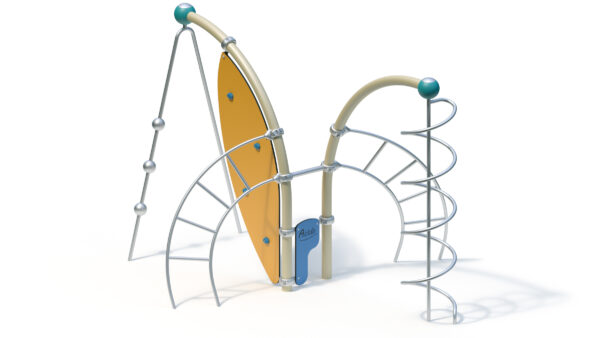

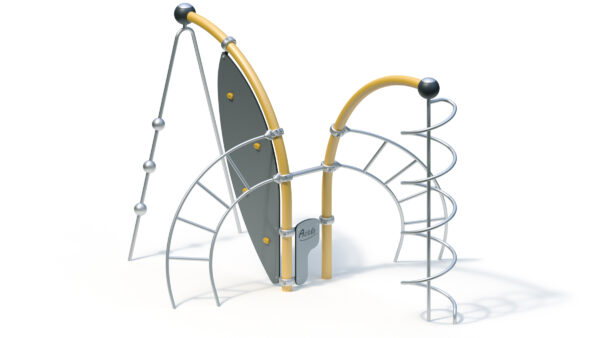

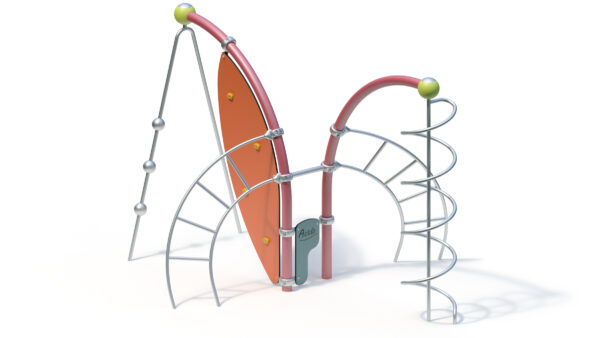

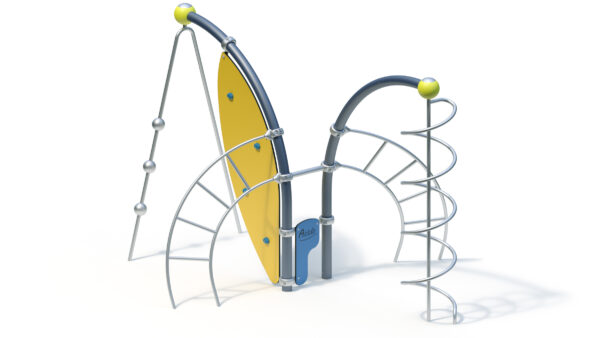

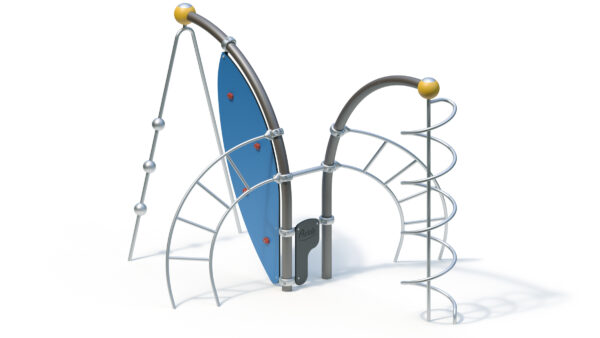

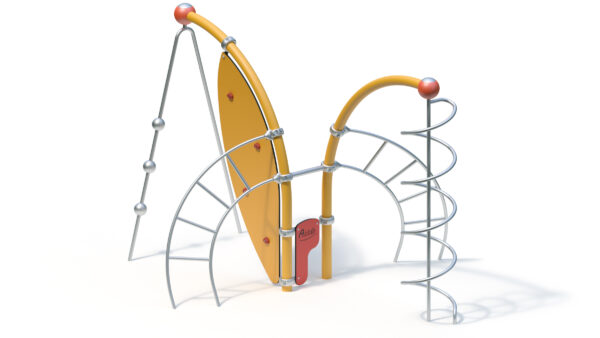

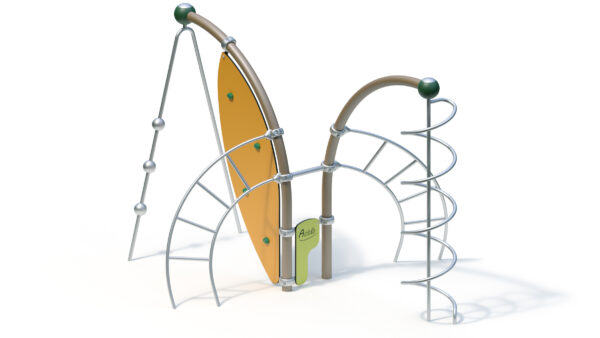

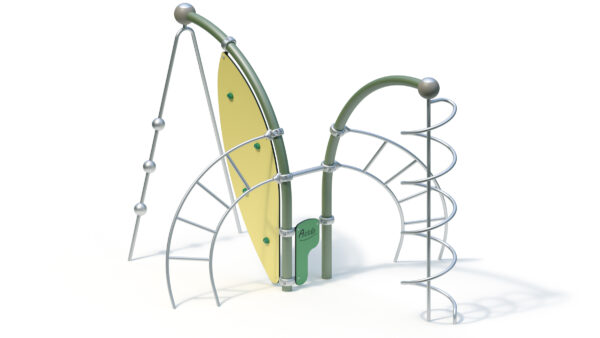

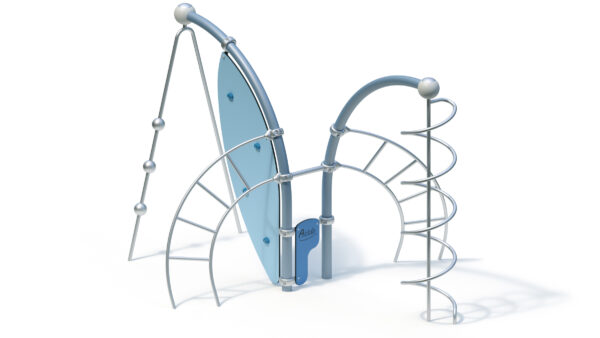

Select variant:
The most important information
| Age group ? | 5+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 12 persons |
| Activities ? | Physical activity, Climbing, Slide |
Technical data
| Device length ? | 4,19 m |
|---|---|
| Device width ? | 3,46 m |
| Device height ? | 2.93 m |
| Free fall height ? | 2,86 m |
| Platform heights | - |
| Total weight ? | 332.00 kg |
| Heaviest single item ? | 67.00 kg |
| Minimum room length ? | 8,35 m |
| Minimum room width ? | 6,46 m |
| Minimum room height ? | 2.93 m |
Assembly & Foundations
| Assembly time ? | 4,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | - |
| Foundations | 170x100x050 |
Product Downloads
Product description
Technical data

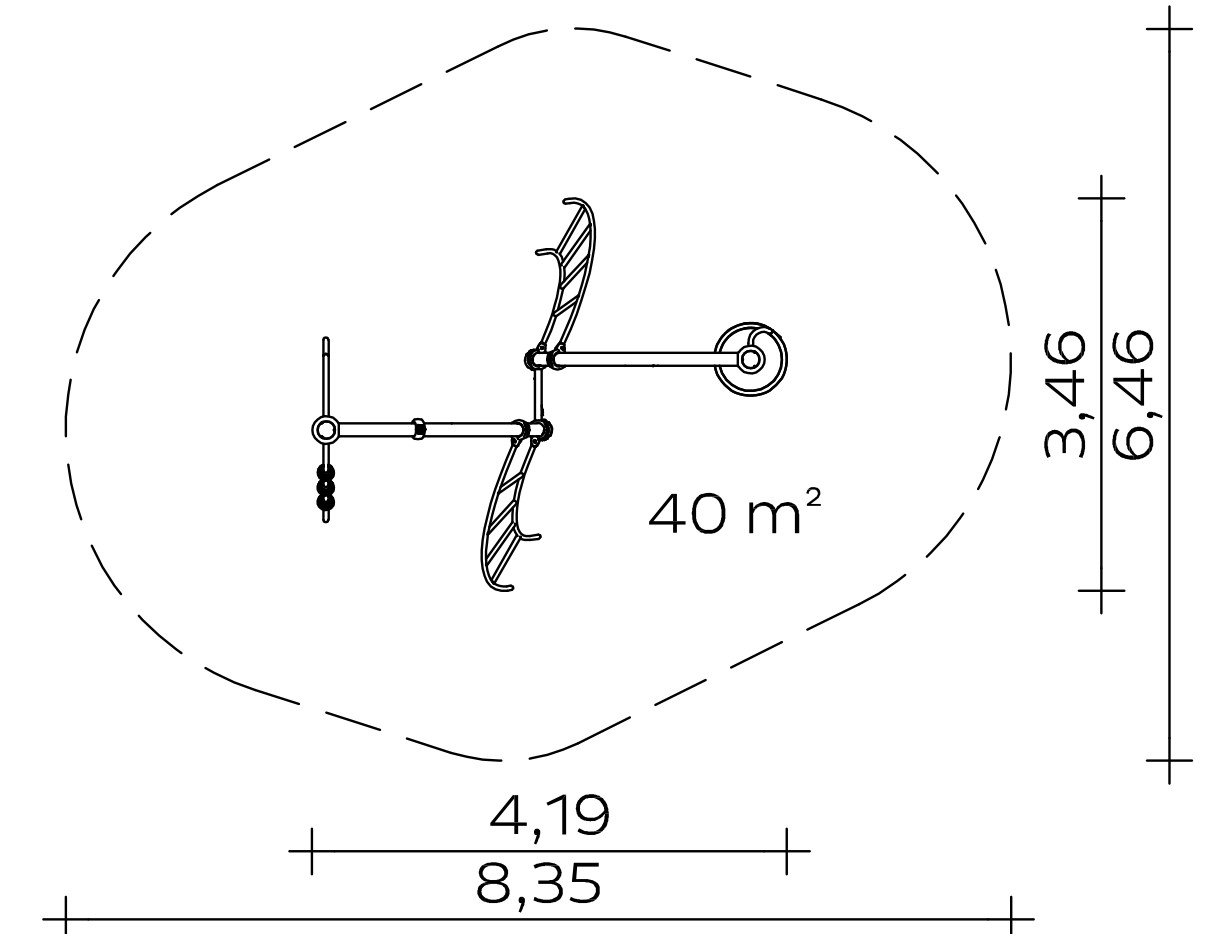

Equipment room:4.19 x 3.46 x 2.93 m
Minimum space: 8.35 x 6.46 x 2.93 m
Impact area: 40 m²
Total height: 2.93 m
Free fall height: 2.86 m
Weight: 67 kg heaviest individual part
332 kg in total
Arc 90 degrees
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
– Aluminium sphere, Ø 250 mm, powder-coated in a RAL colour of your choice (see items below)
Climbing Wall
- Climbing wall made of highly weather-resistant HPL laminate, colour red similar to RAL 2002, 20 mm, with free climbing elements on both sides
- Above: Connection to Actio construction element using aluminium clip (optionally powder-coated in RAL colour of choice) and a welded construction made of stainless steel tube Ø 38
– below: Fixation by site foundations
Climbing Pipe
- Welded construction made of stainless steel tube Ø 38 mm with three stainless steel balls Ø 150 mm
– top: screw-on connection to Actio construction element
– below: Fixation by site foundations
Spring Slide
- Welded construction made of stainless steel tube Ø 42.4 mm
– top: screw-on connection to Actio construction element
– below: Fixation by site foundations
Actio shield
- Actio sign made of a highly weather-resistant HPL laminate, including „Actio“ marking, 20 mm, colour red similar to RAL 2002.
Connection via aluminium clamps (optionally powder-coated in RAL colour of choice)
Bow ladder
– welded construction made of stainless steel tube Ø 38 mm
– Arc-shaped ladder
– Top: Connection to Actio construction element using aluminium clamps (optionally powder-coated in a RAL colour of your choice).
– below: Fixation by site foundations
Number of components for optional powder coating
2 pipe bends 90°
8 pcs. Aluminium clamp Ø 114 mm
Foundations (client-provided)
1 piece 1.70 x 1.00 x 0.50 m
2 pcs. 0.90 x 0.40 x 0.50 m
3 units 0.60 x 0.60 x 0.50 m
Concrete quantity: 2.00 m³
Assembly time
2 fitters 4 hours each.
(without foundation)
Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities
Item number: 027241001
