Actio 220

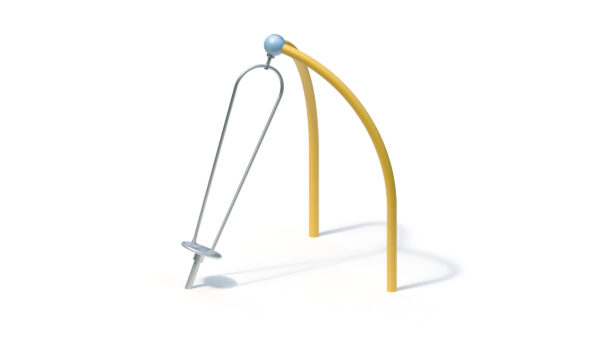

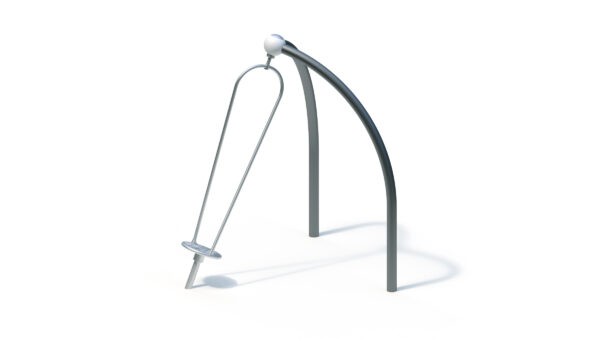

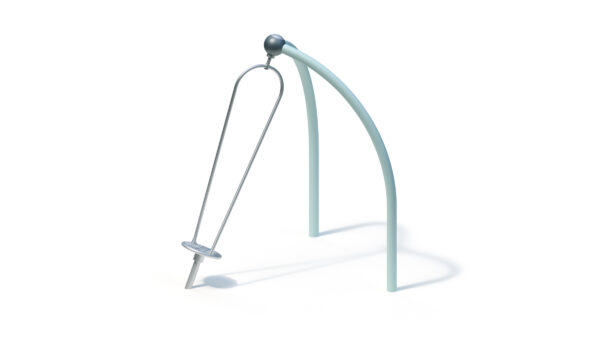

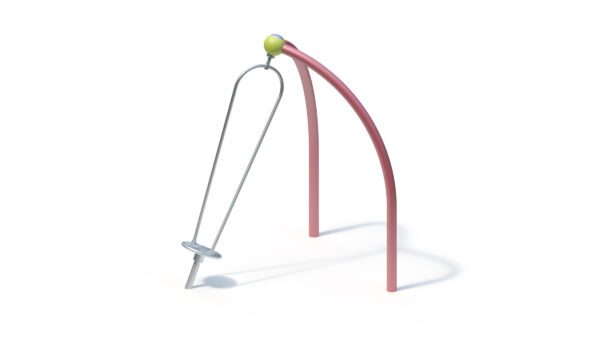

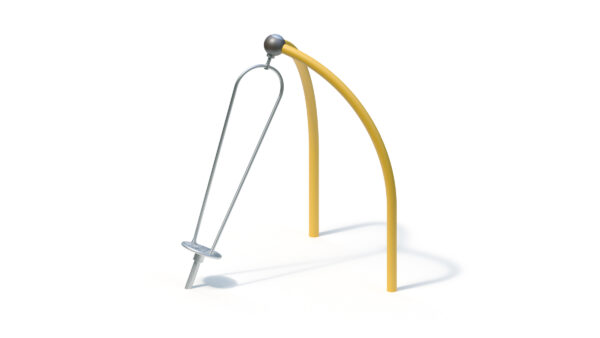

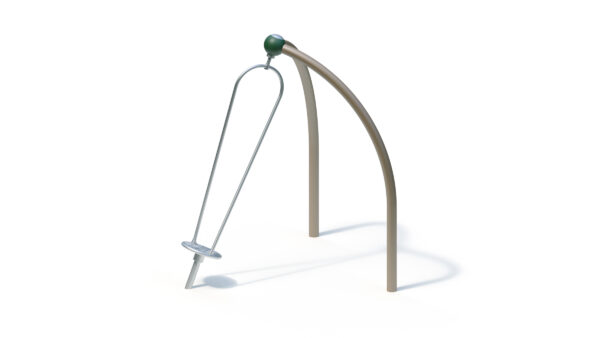

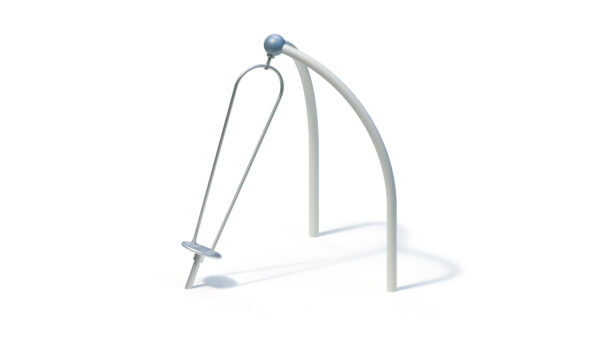

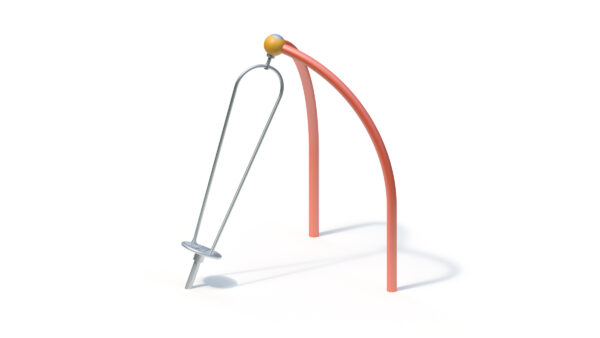

Select variant:
The most important information
| Age group ? | 5+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 1 person |
| Activities ? | Physical activity |
Technical data
| Minimum space length ? | 5,36 m |
|---|---|
| Minimum space width ? | 5,30 m |
| Minimum space height ? | 2,89 m |
| Equipment length ? | 2,40 m |
| Equipment width ? | 2,36 m |
| Equipment height ? | 2,89 m |
| Free-fall height ? | 0,53 m |
| Platform heights | - |
| Total weight ? | 163.00 kg |
| Heaviest single part ? | 63.00 kg |
Assembly & Foundations
| Assembly time ? | 3.0 hours |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 2 (1.3m x 0.5m x 0.5m) Quantity: 1 (0.6m x 0.6m x 0.5m) |
Product Downloads
Product description
Technical data
Equipment room: 2.40 x 2.36 x 2.89 m
Minimum space: 5.36 x 5.30 x 2.89 m
Impact area: 21 m²
Total height: 2.89 m
Free fall height: 0.53 m
Weight: 63 kg heaviest individual part
163 kg in total
Arc 75°
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
- Aluminium ball, Ø 250 mm, powder-coated in RAL colour of choice (see item below)
Big Hurricane
- Welded, twisted stainless steel tube construction
- Rotating base made from profiled stainless steel sheet
- Roller bearings at the bottom and top: protected against interference and dirt
– top: screw-on connection to Actio construction element
- below: Anchoring via a hot-dip galvanised steel foundation anchor to be set in concrete
Number of components for optional powder coating
2 pipe bends 75°
Foundations (client-provided)
2 pcs. 1.30 x 0.50 x 0.50 m
1 piece 0.60 x 0.60 x 0.50 m
Concrete volume: approx. 0.9 m³
Assembly time
2 fitters 3 hours each.
(without foundation)
Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities
Item number: 027220000
This Kaiser & Kühne product enables:
