Actio 166

SKU: 027166000 Category:

Select variant:

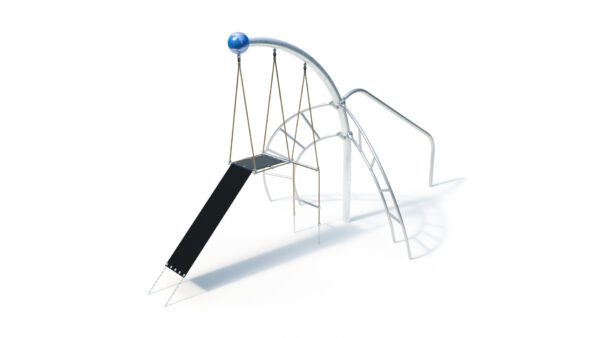

Classic
Classic

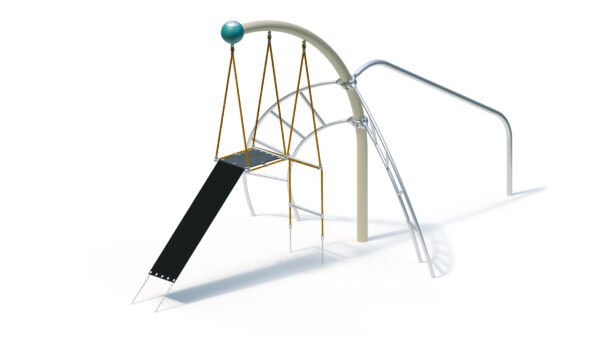

Beach
Beach
Aloha
Aloha
City
City

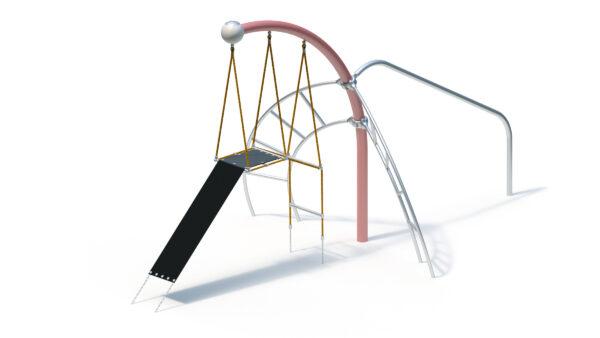

Coral
Coral
Ice Palace
Ice Palace
Jungle
Jungle

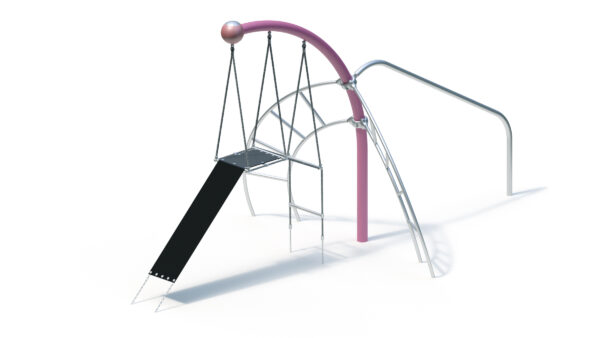

Mermaid
Mermaid
Climbing Rock midi
Climbing Rock midi
Ocean
Ocean
Pirate
Pirate

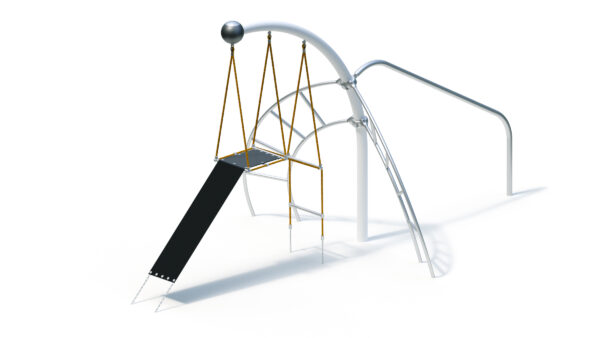

Safari
Safari
Sky
Sky

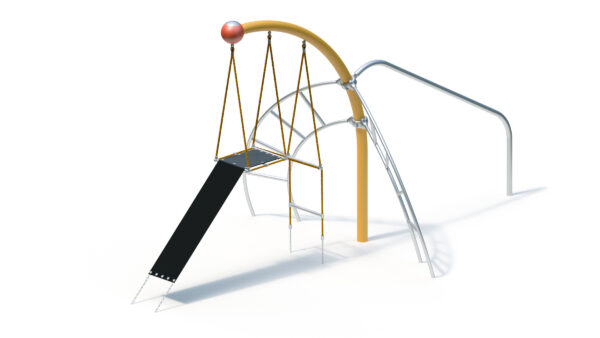

Sun
Sun

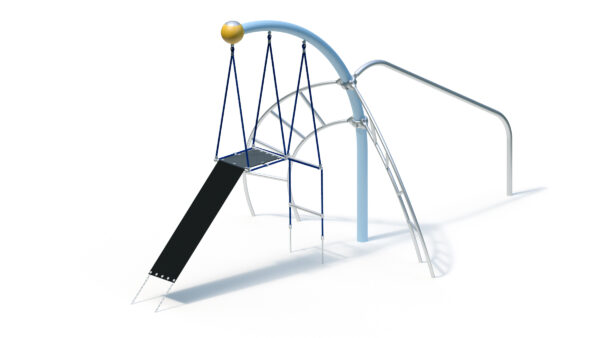

Sunny Day
Sunny Day
Sweden
Sweden
Please note the item number shown above when making your product enquiry, as it changes when you select a specific product variant (e.g. a different colour scheme). The last variant selected is automatically included in your enquiry.
SKU: 027166000 Category:

The most important information

:
;

Age group ?5+
Areas of use ?Public playgrounds
Number of users ?10 people
Activities ?-

Technical data

:
;

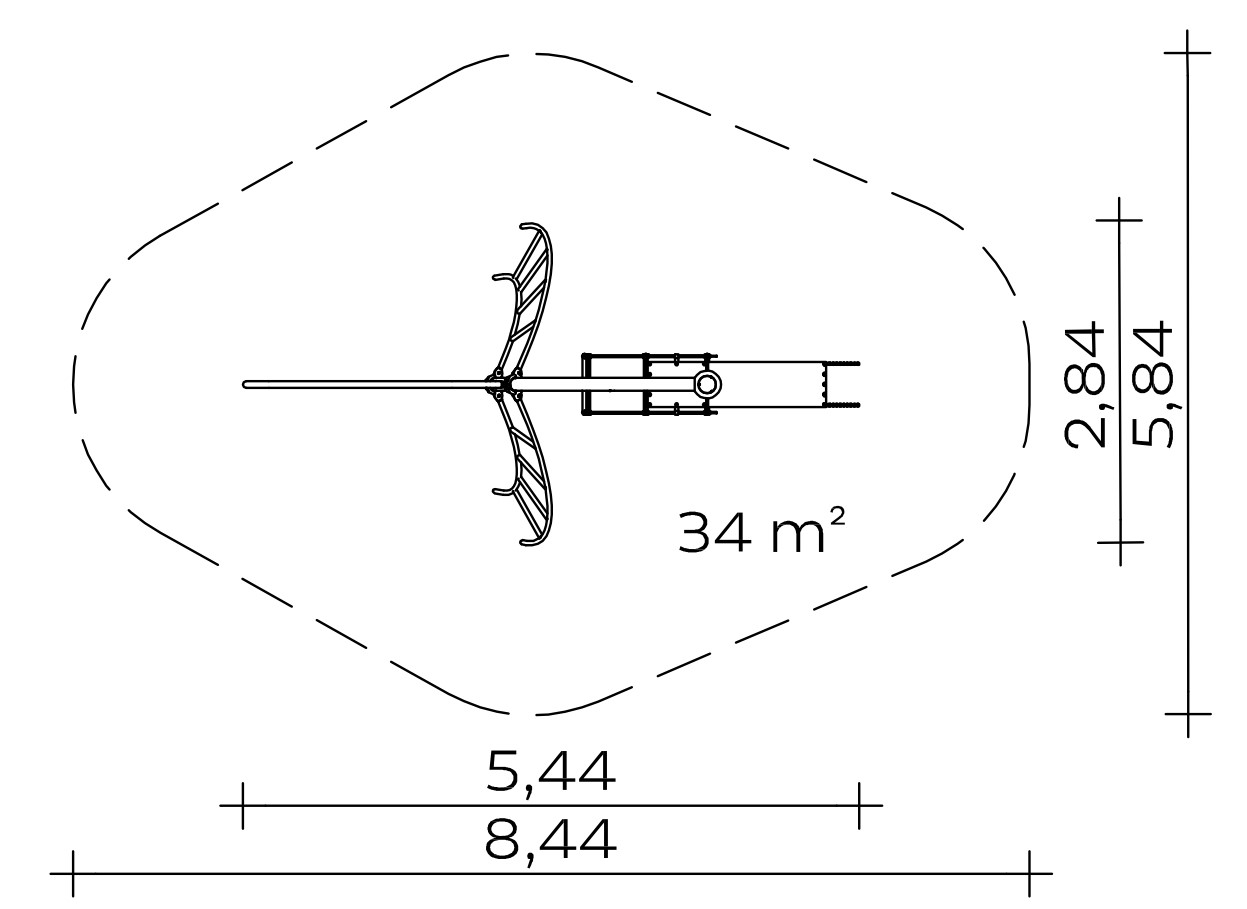

Minimum space length ?8,44 m
Minimum space width ?5.84 m
Minimum space height ?2.93 m
Equipment length ?5,44 m
Equipment width ?2.84m
Equipment height ?2.93 m
Free-fall height ?2,86 m
Platform heights-
Total weight ?153.00 kg
Heaviest single part ?67.00 kg

Assembly & Foundations

:
;

Assembly time ?3.0 hours
Number of fitters ?2 people
Lifting equipment required-
FoundationsQuantity: 1x (1.4m x 0.7m x 0.5m)
Quantity: 2 (0.9m x 0.4m x 0.5m)
Quantity: 1 (0.6m x 0.6m x 0.5m)
Quantity: 1 (0.7m x 0.5m x 0.5m)

Product description

:
;

Technical data
Equipment room:
Minimum space:
Impact surface:
Total height:
Free fall height:
Weight: kg heaviest individual part
kg total

Arc 90° Moving Hill
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
– Aluminium sphere, Ø 250 mm, powder-coated in a RAL colour of your choice (see items below)
- Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)

Moving Hill
- Polypropylene rope (Ø 16 mm), 6-strand, with galvanised steel core
- elastic mat element made of 8 mm thick, PAH-free and 4-fold textile-reinforced rubber
- Mounting bracket for rubber mat, stainless steel construction consisting of clamping tube (Ø 34 x 8.5 mm) welded to sheet metal (30 x 68 mm)
- Cross clamping tube, stainless steel construction consisting of tube (Ø 33.7 x 2 mm) welded to clamping tube (Ø 34 x 8.5 mm)
- Floor fastening, stainless steel chains (Ø 7 mm) welded to flat bars (390 x 35 x 3 mm) at the top end, screwed to foundation tube (40 x 40 x 2 mm) at the bottom.
- Connection to Arc 90° with shackle, Ø 10 mm

Bow ladder
– welded construction made of stainless steel tube Ø 38 mm
- curved, spatially twisted conductors
– Top: Connection to Actio construction element using aluminium clamps (optionally powder-coated in a RAL colour of your choice).
– below: Fixation by site foundations

Pipe Slide
– Welded construction from stainless steel tube Ø 60.3 mm
– Connection to Actio construction element using an aluminium clamp (optional powder-coated in a RAL colour of your choice)
– below: Foundation with on-site footing

Foundations (client-provided)
1 piece 1.40 x 0.70 x 0.50 m
2 pcs. 0.90 x 0.40 x 0.50 m
1 piece 0.60 x 0.60 x 0.50 m
1 piece 0.70 x 0.50 x 0.50 m
Concrete volume: 1.21 m³

Assembly time
2 fitters 3 hours each.
(without foundation)

Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities

Item number: 027166000
