Actio 160

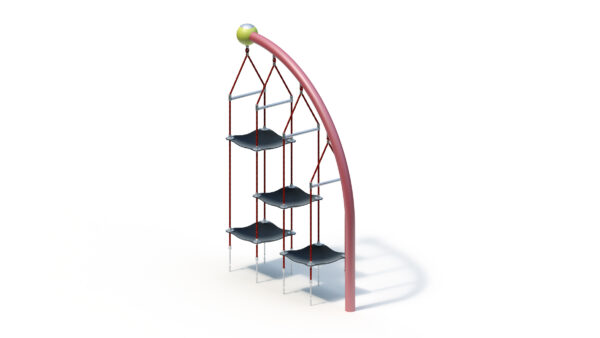

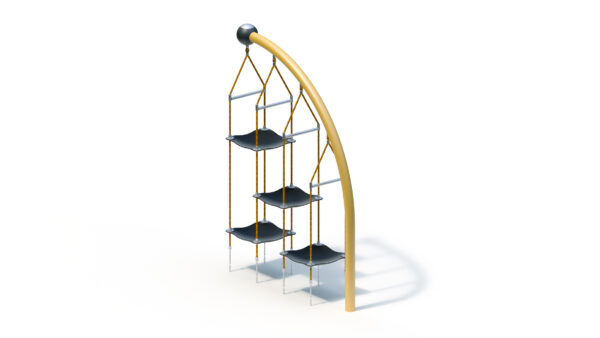

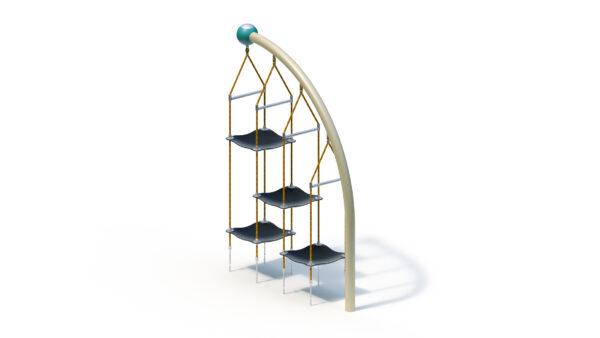

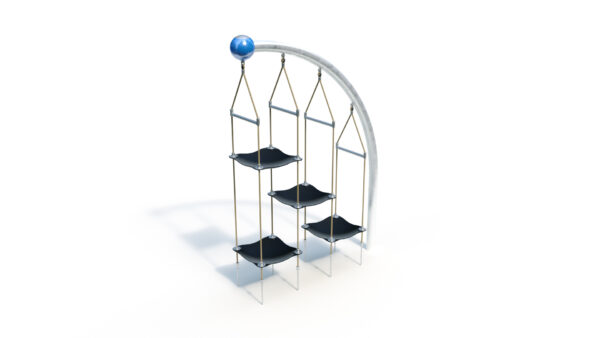

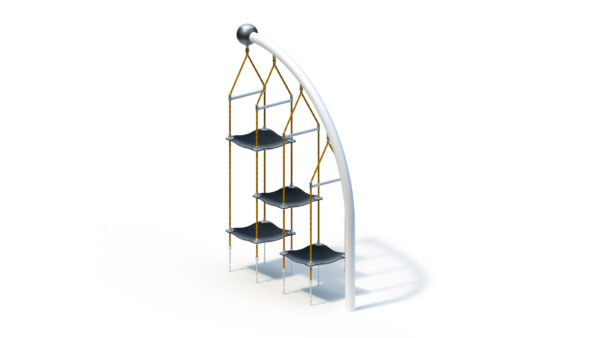

Select variant:
The most important information
| Age group ? | 5+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 8 persons |
| Activities ? | - |
Technical data
| Device length ? | 2,09 m |
|---|---|
| Device width ? | 0,60 m |
| Device height ? | 2.93 m |
| Free fall height ? | 2,86 m |
| Platform heights | - |
| Total weight ? | 106.00 kg |
| Heaviest single item ? | 67.00 kg |
| Minimum room length ? | 5,87 m |
| Minimum room width ? | 4,80 m |
| Minimum room height ? | 2.93 m |
Assembly & Foundations
| Assembly time ? | 3.0 hours |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | - |
| Foundations | 240x085x050 |
Product Downloads
Product description
Technical data
Equipment room: 2.09 x 0.60 x 2.93 m
Minimum space: 5.87 x 4.80 x 2.93 m
Impact area: 22 m²
Total height: 2.93 m
Free fall height: 2.86 m
Weight: 67 kg heaviest single item
106 kg in total
Arc 90° Flying Carpet
- Steel pipe bend, hot-dip galvanised, Ø 114.3 x 3.6 mm (optionally powder-coated in RAL colour of choice)
- Aluminium ball, Ø 250 mm, powder-coated in RAL colour of choice
- Turned part, Ø 40 x 16.2 mm, with plain bearing bush IGUS (plastic)
Flying Carpet
- Polypropylene rope (Ø 16 mm), 6-strand, with galvanised steel core
- Connection to Arc 90° with shackle, Ø 10 mm
- Cross clamping tube, welded stainless steel construction consisting of tube (Ø 33.7 x 2 mm) welded to clamping tube (Ø 34 x 8.5 mm)
- elastic mat elements made of 8 mm thick, PAH-free and 4-fold textile-reinforced rubber
- Ground fixing: Stainless steel chains (Ø 7 mm), welded at the upper end to a round plate (Ø 90 x 3 mm), shackle at the bottom with welded-on threaded rod for screwing into internally threaded anchors in the foundation
Foundation (on site)
1 piece 2.40 x 0.85 x 0.50 m
Concrete volume: 1.02 m³
Assembly time
2 fitters 3 hours each.
(without foundation)
Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities
Item number: 027160000
