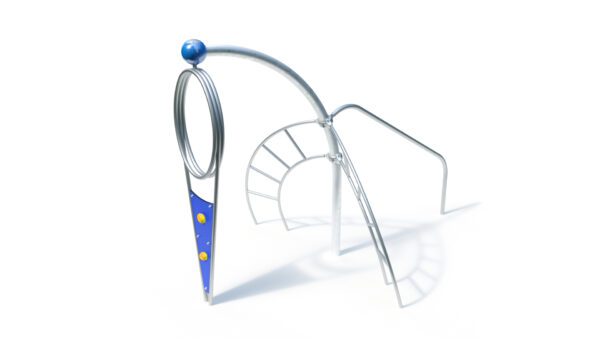

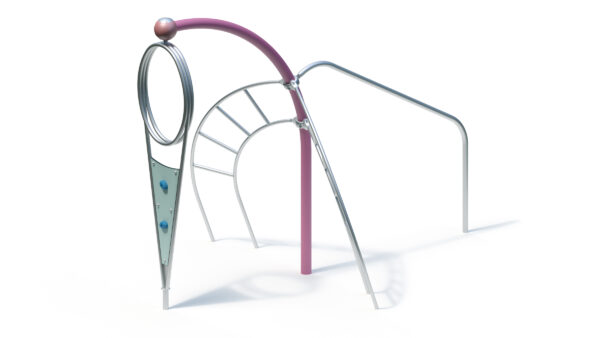

Actio 128

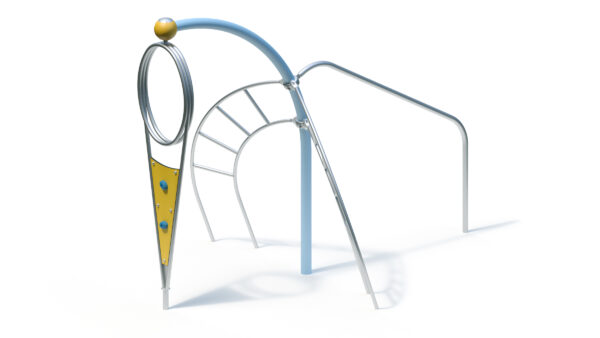

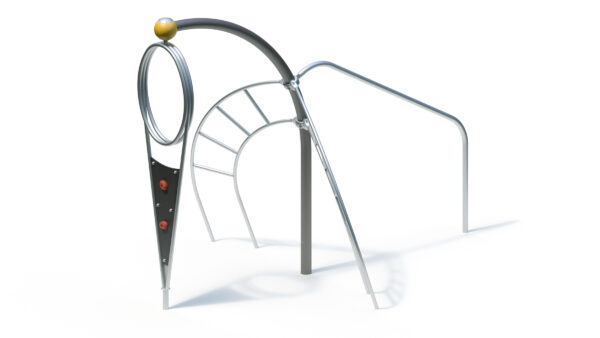

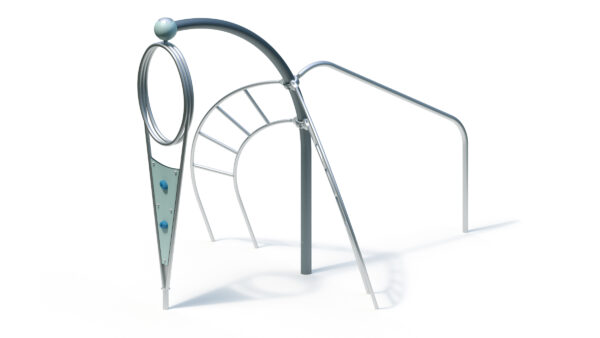

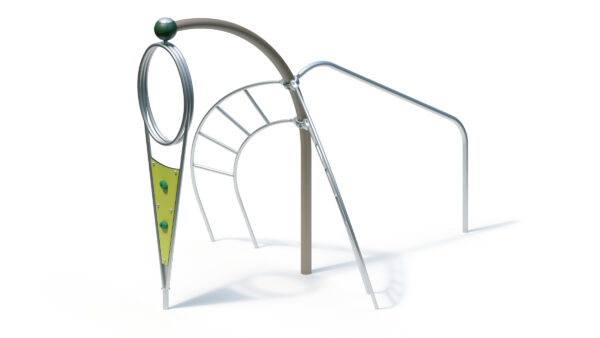

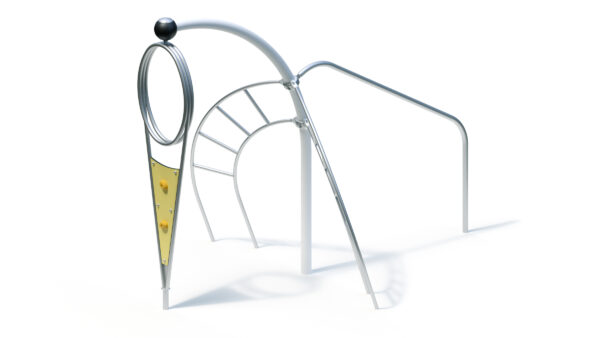

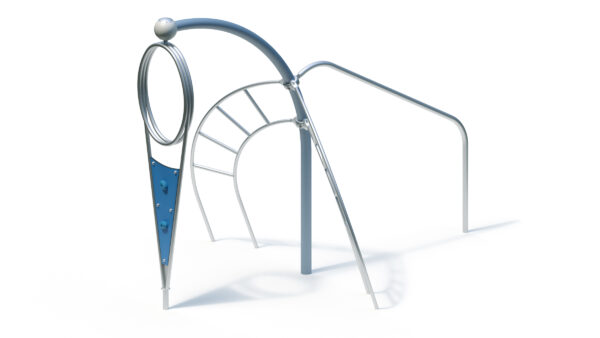

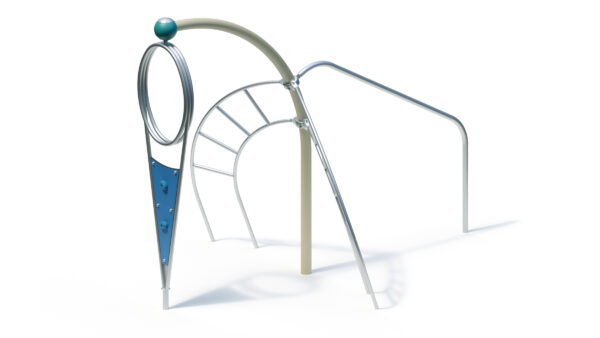

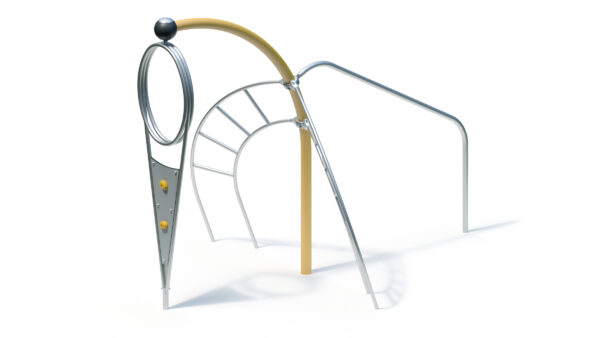

Variante wählen:
The most important information
| Altersgruppe ? | 5+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 8 Personen |
| Aktivitäten ? | Physical activity, Climbing, Slide |
Technical data
| Mindestraumlänge ? | 7,23 m |
|---|---|
| Mindestraumbreite ? | 5.84 m |
| Mindestraumhöhe ? | 2.93 m |
| Gerätelänge ? | 4.23 m |
| Gerätebreite ? | 2.84m |
| Gerätehöhe ? | 2.93 m |
| Freie Fallhöhe ? | 1,99 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 164.00 kg |
| Schwerstes Einzelteil ? | 67.00 kg |
Assembly & Foundations
| Montagezeit ? | 2,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 1 (1.3m x 0.5m x 0.5m) Quantity: 2 (0.9m x 0.4m x 0.5m) Quantity: 2 (0.6m x 0.6m x 0.5m) |
Product Downloads
Product description
Technical data

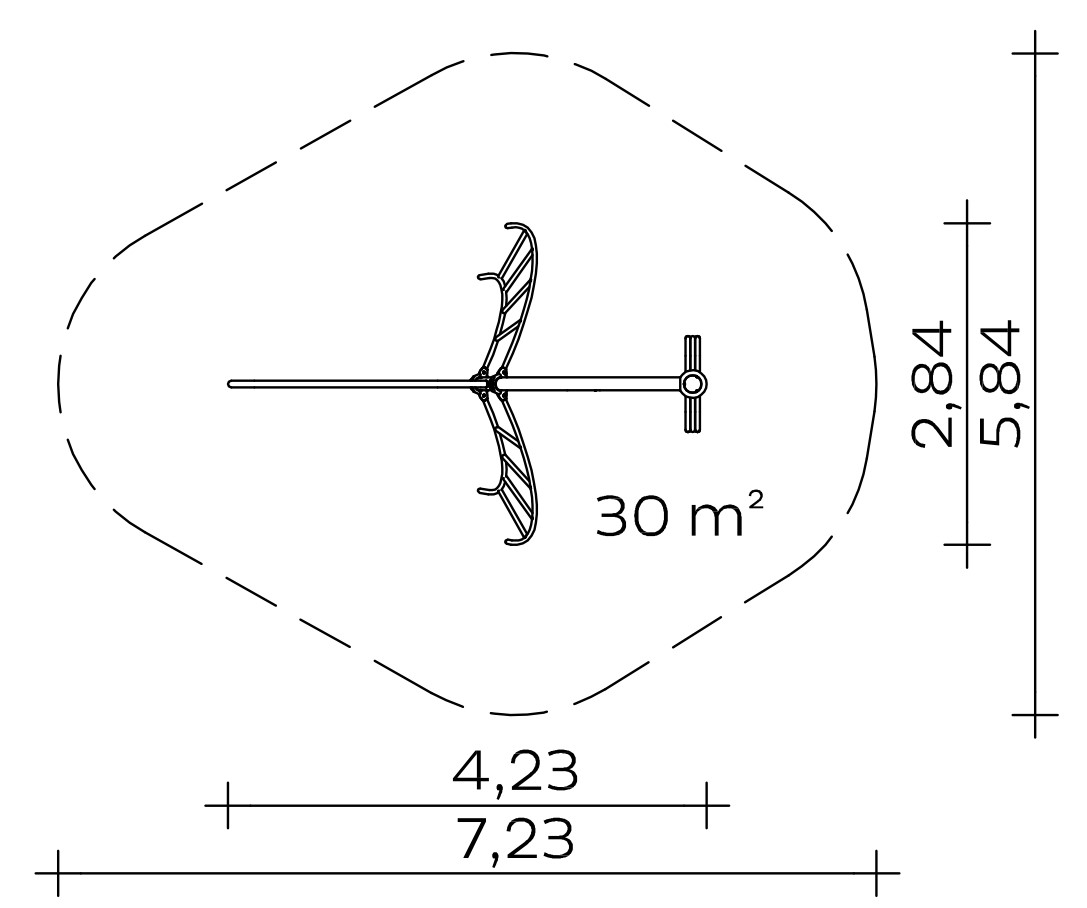

Equipment room: 4.23 x 2.84 x 2.93 m
Minimum space: 7.23 x 5.84 x 2.93 m
Impact area: 30 m²
Total height: 2.93 m
Free fall height: 1.99 m
Weight: 67 kg heaviest individual part
164 kg in total
Arc 90 degrees
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
– Aluminium sphere, Ø 250 mm, powder-coated in a RAL colour of your choice (see items below)
Resting Point
- Climbing wall made of highly weather-resistant HPL laminate, colour blue similar to RAL 5015, 20 mm, in a frame made of stainless steel tube Ø38 ; with free climbing elements attached on one side
– top: screw-on connection to Actio construction element
below: Clamping through in-situ foundations
Pipe Slide
– Welded construction from stainless steel tube Ø 60.3 mm
– Connection to Actio construction element using an aluminium clamp (optional powder-coated in a RAL colour of your choice)
– below: Foundation with on-site footing
Bow ladder
– welded construction made of stainless steel tube Ø 38 mm
– Arc-shaped ladder
– Top: Connection to Actio construction element using aluminium clamps (optionally powder-coated in a RAL colour of your choice).
– below: Fixation by site foundations
Number of components for optional powder coating
1 pc. 90° pipe elbow
2 pcs. Aluminium clamp on Ø 114 mm
Foundations (client-provided)
1 piece. 1.30 x 0.50 x 0.50 m
2 pcs. 0.90 x 0.40 x 0.50 m
2 pcs. 0.60 x 0.60 x 0.50 m
Concrete volume: 1.10 m³
Assembly time
2 fitters 2 hours each.
(without foundation)
Suitable for
Children aged 5 and over,
public playgrounds etc.,
Physical activities
Item number: 027128001
