Tower combination
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of use ? | - |
| Number of users ? | 43 people |
| Activities ? | - |
Technical data
| Minimum space length ? | 20,34 m |
|---|---|
| Minimum space width ? | 8,77 m |
| Minimum space height ? | 8,83 m |
| Equipment length ? | 17,04 m |
| Equipment width ? | 5,42 m |
| Equipment height ? | 8,83 m |
| Free-fall height ? | 2,50 m |
| Platform heights | - |
| Total weight ? | 4600.00 kg |
| Heaviest single part ? | 841.00 kg |
Assembly & Foundations
| Assembly time ? | 32,0 h |
|---|---|
| Number of fitters ? | 3 people |
| Lifting equipment required | - |
| Foundations | Quantity: 2 (0.3m x 0.3m x 0.4m) Quantity: 1 (0.8m x 0.8m x 1m) Quantity: 2 (1m x 0.6m x 0.5m) Quantity: 1 (0.4m x 0.4m x 0.6m) Quantity: 1 (1.4m x 0.75m x 0.4m) Quantity: 22x (0.5m x 0.5m x 0.6m) Quantity: 3 (1m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data

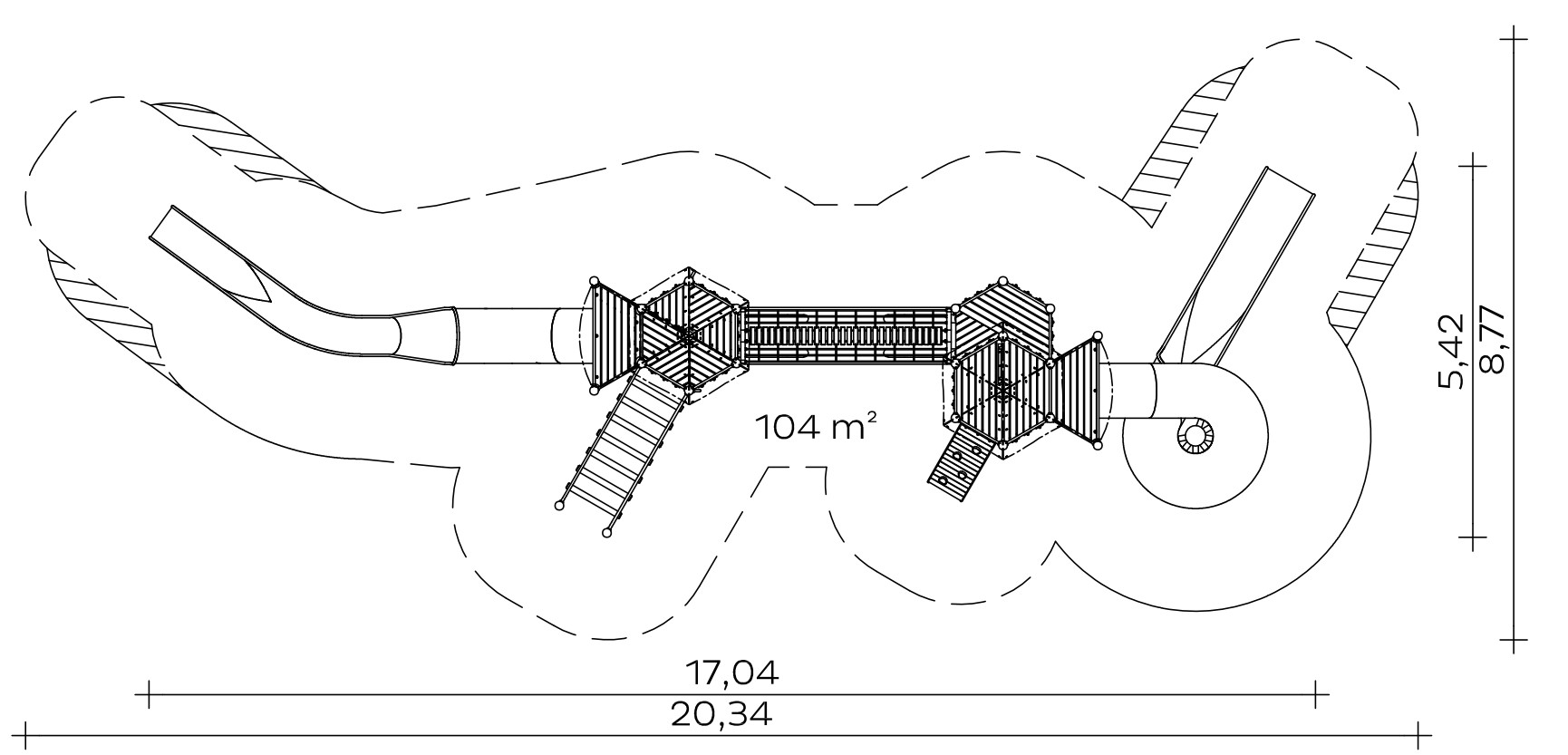

Total height: 8.83 m
Floor area: 5.42 x 17.04 m
Minimum room size: 8.77 x 20.34 m (104 m²)
Platform heights: 1.00 to 4.20 m
Weight: 841 kg – the heaviest individual component
4,600 kg in total
Support post
Stainless steel posts, Ø 120 x 3 mm, covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Vertical handle as climbing aid made of stainless steel tube, Ø 33.7 x 2 mm
- Wooden balustrade made of robinia, 125 x 30 mm, fastening between stainless steel tubes Ø 33.7 x 2 mm, from 1.50 m height with additional crossbar, 30 mm
- Lattice balustrade made of stainless steel tube, Ø 33.7 x 2 / 25 x 2 mm, one-piece welded construction
- Safety attachment for parapet tube 0.80 m, made of stainless steel tube Ø 20 x 2 mm, to prevent head catching points between the upper edge of the parapet and the inner roof surface
- Climbing wall made of robinia wood with attached climbing elements made of HPL laminate panels, 20 mm
- Climbing wall made of highly weather-resistant HPL laminate, 20 mm, frame made of stainless steel tube, 6 climbing openings.
- Wobbly staircase on tandem crossbeam, walkway posts made of robinia Ø 100 mm, fine-linked stainless steel railing chains
- Rung (cranked) made of stainless steel tube, Ø 33.7 mm
- Play table made of highly weather-resistant coloured HPL laminate, 15 mm
- Bench 0.80 m made of highly weather-resistant coloured HPL laminate, 20 mm, on stainless steel tube, Ø 33.7 x 2 mm
- Footbridge, V-shaped net construction made of Hercules rope, walkway made of wooden rungs with approx. 40 mm clear rung spacing, attached to steel frame construction, parapet height approx. 0.75 m
- Awning made of highly weather-resistant coloured HPL laminate, 15 mm
- Tower roof, pitch 72°, made of highly weather-resistant coloured HPL laminate, 13 mm
- Stainless steel canopy, edged for tower roof 6 x 72°, 1.5 mm
- Trapezoidal monopitch roof, pitch 30°, made of highly weather-resistant coloured HPL laminate, 13 mm, attached to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Tunnel slope slide 36°, installation height 3.60 m, curve 36° right, slide segments made of stainless steel, particularly quiet due to tunnel or trough shape, with connection for a support post
- Support post made of stainless steel tube Ø 120 x 3 mm with plug-in base
- Tunnel spiral chute 30°/’38° made of stainless steel, 2.5 mm, particularly quiet due to tunnel shape, welded into a three-part chute spiral around a centre pylon for transport reasons, incl. corresponding connecting flanges for assembly on site
- Ladder ascent made of stainless steel tube Ø 38 x 2 mm, rung height 500 mm, glass bead blasted, for retrofitting to platform floors
For your planning, please note that stainless steel slides and roller tracks should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
2 pcs. 0.30 x 0.30 x 0.40 m
1 piece 0.80 x 0.80 x 1.00 m
1 piece 0.80 x 0.80 x 1.00 m
2 units 0.40 x 0.40 x 0.60 m
2 pcs. 1.00 x 0.60 x 0.50 m
1 piece 0.40 x 0.40 x 0.60 m
1 piece 1.40 x 0.75 x 0.40 m
22 pieces, 0.50 x 0.50 x 0.60 m
3 pcs. 1.00 x 0.40 x 0.40 m
Volume of concrete: 5.608 m³
Assembly time
3 fitters, 11 hours each, plus lifting equipment
(without foundation)
Free fall height
2,50 m
Suitable for
Children aged 4 and over,
public playgrounds etc.,
Physical activities
Item number: 025330500
