Technical data
Device height: 8.33 m

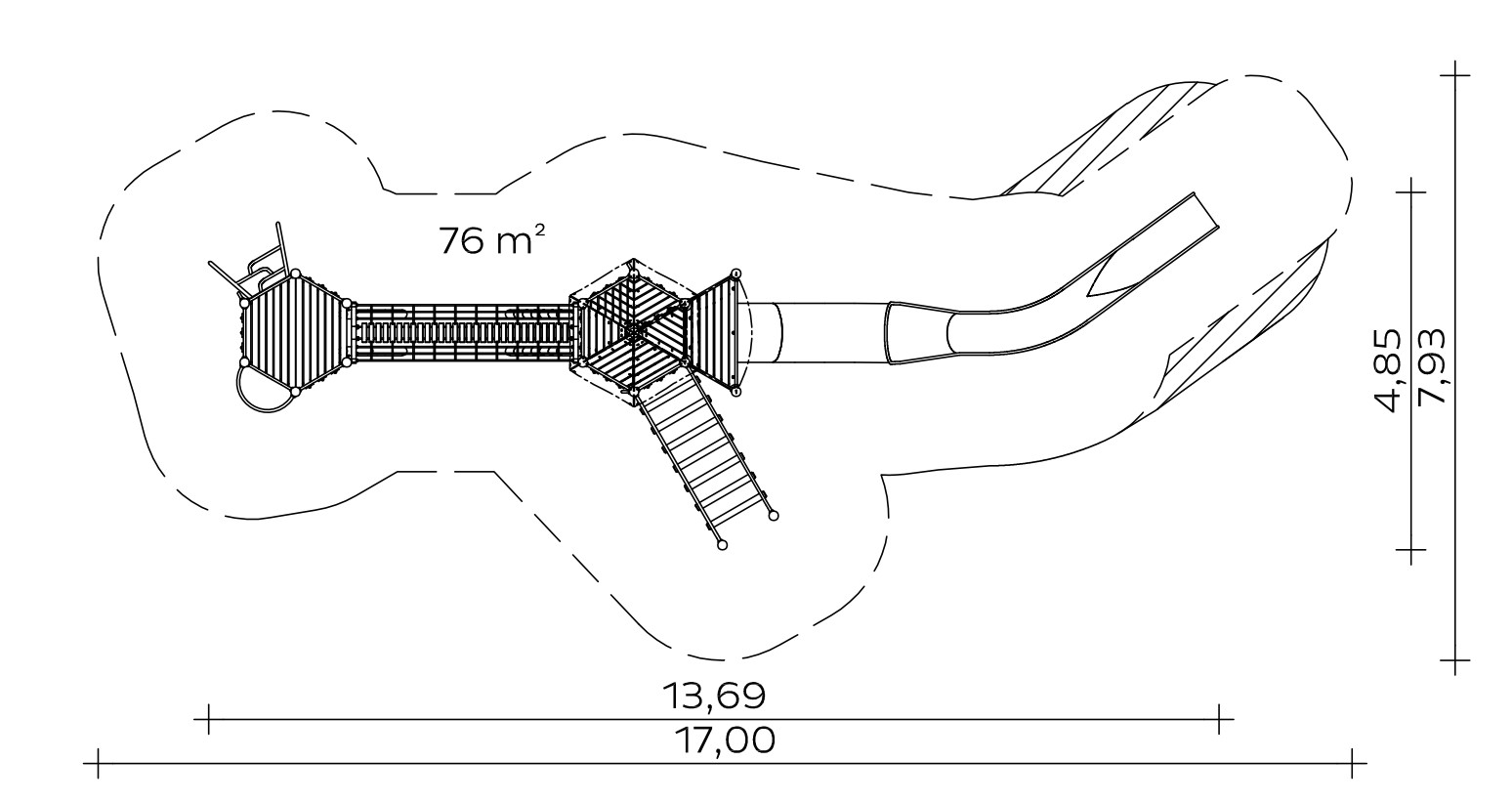

Floor area: 13.69 x 4.85 m
Minimum space: 17.00 x 7.93 x 8.33 m
Free fall height: 2.50 m
Impact area: 76 m²
Platform heights: 1.40/1.60/2.00/2.40/2.80/3.20/3.60 m
Slide attachment height: 3.60 m
Seat height: 3.70 m
Slide inclination: 36°
Slide width: 0.60 m
Sliding plate thickness: 2.5 mm
Weight: 410 kg heaviest individual part
2410 kg total

Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level

Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with continuous bolt fastening.

Attachments
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Lattice balustrade made of stainless steel tube, Ø 33.7 x 2 / 25 x 2 mm, one-piece welded construction
- Wooden balustrades made of robinia, 125 x 30 mm. Fastening between stainless steel tubes Ø 33.7 x 2 mm
- Climbing wall made of highly weather-resistant HPL laminate, 20 mm, frame made of stainless steel tube, 6 climbing openings
- Wobbly steps on tandem crossbeam, walkway posts made of robinia Ø 100 mm. Fine-linked stainless steel railing chains
- Climbing rungs (cranked) made of stainless steel tube, Ø 33.7 x 2 mm
- Vertical handle as climbing aid made of stainless steel tube, Ø 33.7 x 2 mm
- Table/awning made of highly weather-resistant HPL laminate, 15 mm
- Bench 0.80 m made of coloured, highly weather-resistant HPL laminate, 20 mm
- Access railing, roll-preventing, made of stainless steel tube, Ø 33.7 x 2 mm, consisting of horizontal railing tube and balustrade tubes arranged vertically on both sides
- Tower roof, pitch 72°, made of coloured, highly weather-resistant HPL laminate, 13 mm
- Trapezoidal monopitch roof, pitch 30°, made of highly weather-resistant HPL laminate, 13 mm, attached to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Tunnel slope slide 36°, installation height 3.60 m, curve 36° left, slide segments made of stainless steel, particularly quiet due to tunnel or trough shape, incl. stainless steel support posts Ø 120 mm, stainless steel mounting flange
- Vertical climbing pole made of stainless steel tube, Ø 38 mm
- Samba ladder made of stainless steel tube
- Footbridge: V-shaped net construction made of Hercules rope, walkway made of wooden rungs with approx. 40 mm clear rung spacing, attached to steel frame construction, parapet height approx. 0.75 m, support posts made of stainless steel tube Ø 120 mm

For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.

Metal components: Stainless steel
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.

Foundations (client-provided)
9 units 0.50 x 0.50 x 0.60 m
9 units 0.40 x 0.40 x 0.60 m
2 pcs. 1.00 x 0.50 x 0.60 m
1 piece 0.30 x 0.30 x 0.40 m
1 piece 0.90 x 0.75 x 0.40 m

Concrete volume: 3.12 m³

Assembly time
3 fitters 16 hours each
(without foundation)

Suitable for
Children aged 4 and over,
public playgrounds etc.,
Physical activities

Item number: 025310700
