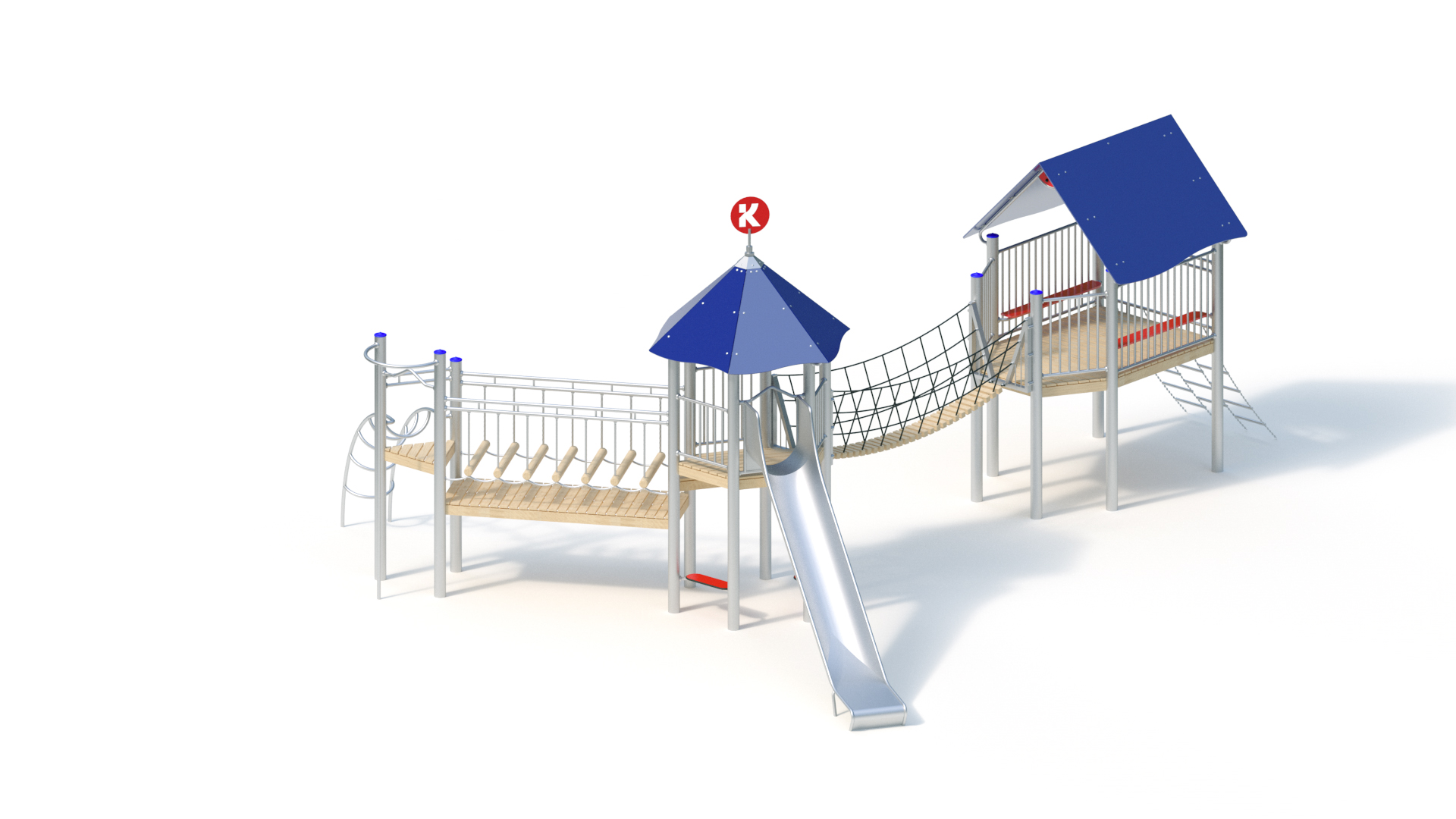

Play structure

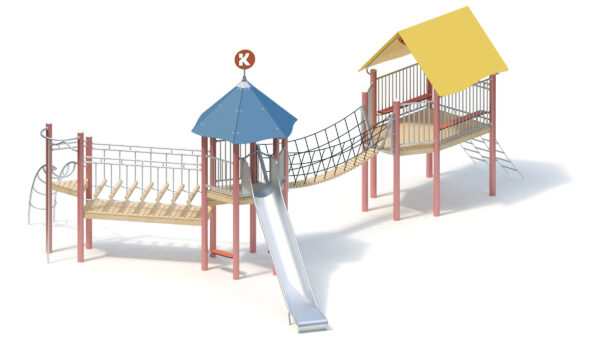

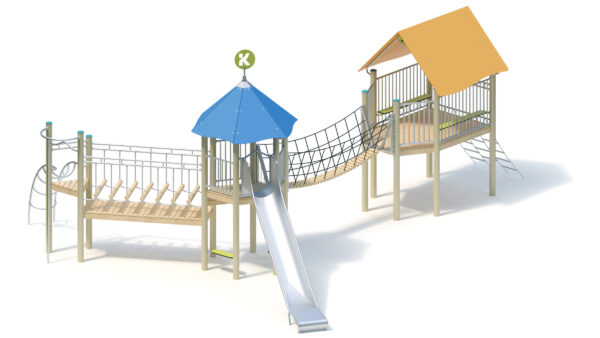

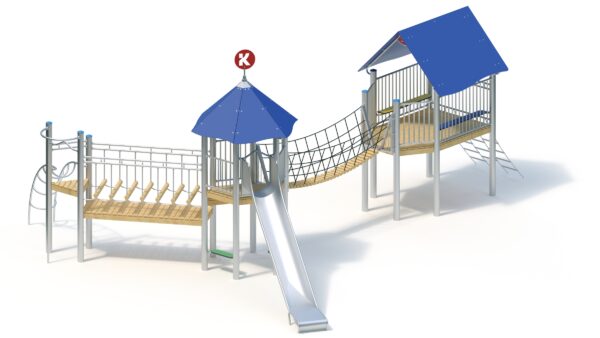

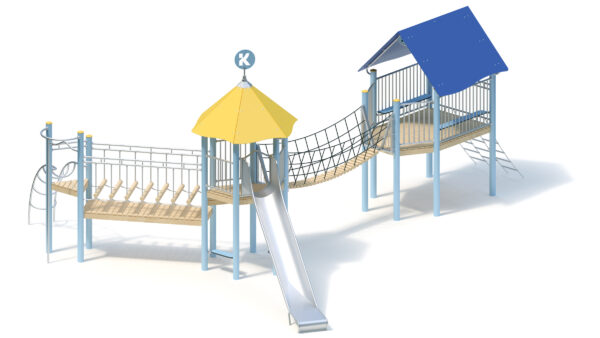

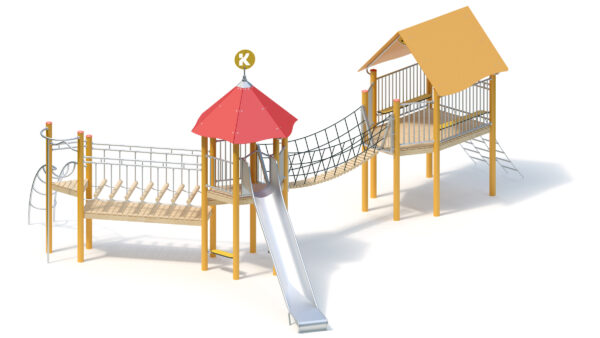

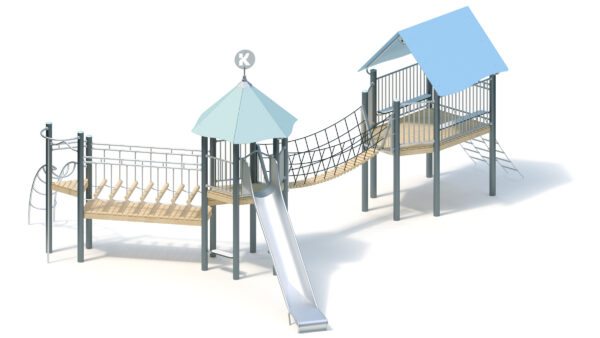

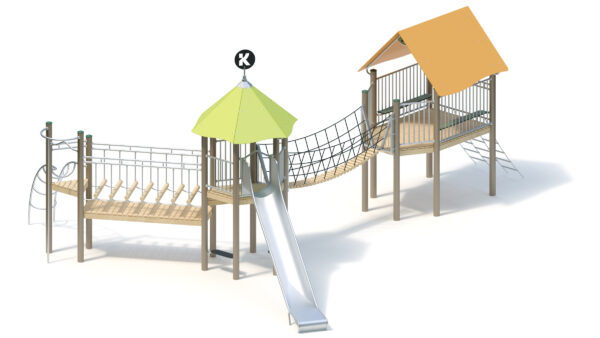

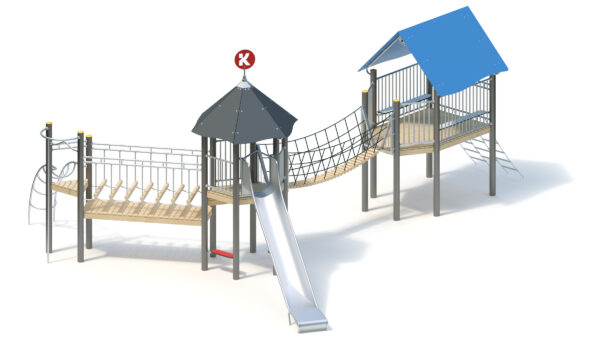

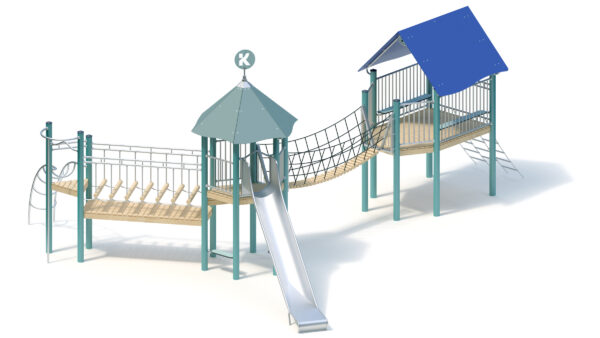

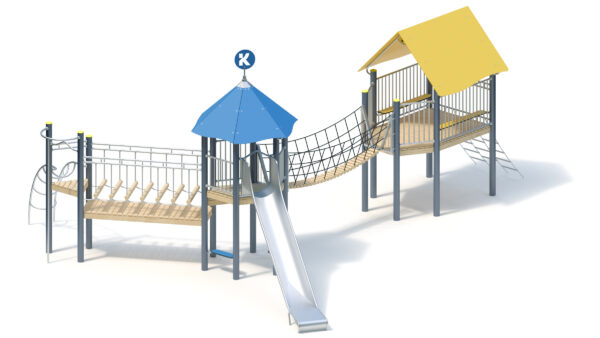

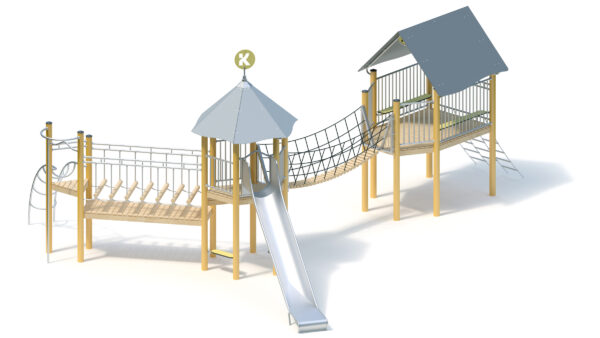

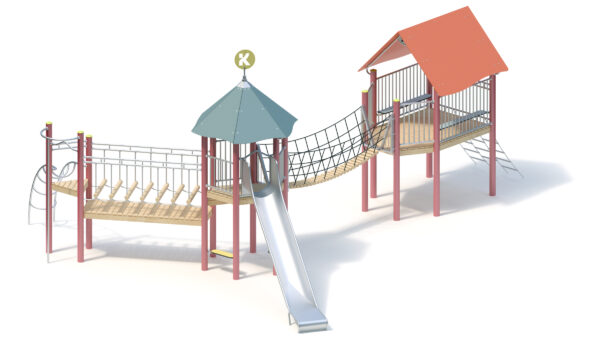

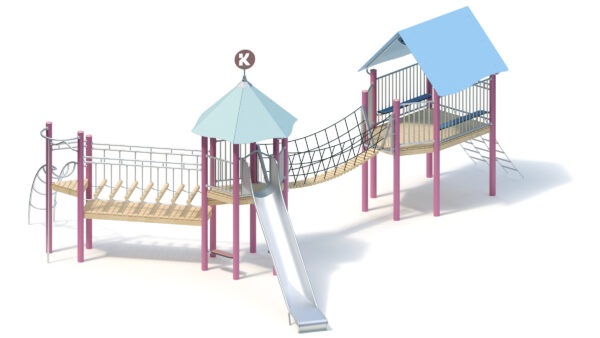

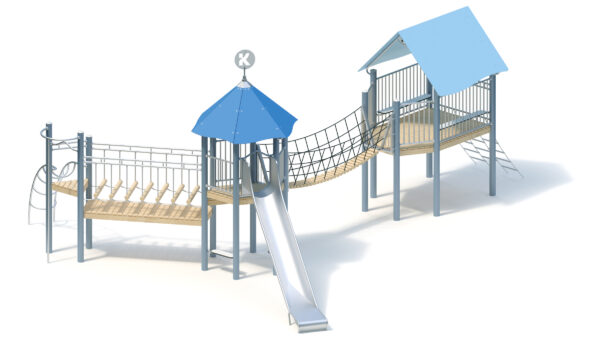

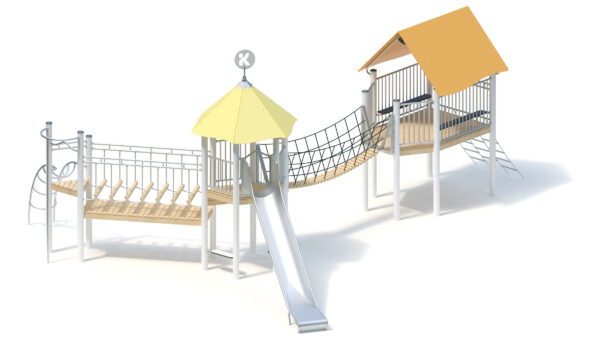

Select variant:
The most important information
| Age group ? | 5+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 37 people |
| Activities ? | Physical activity, Climbing, Slide |
Technical data
| Minimum space length ? | 13,20 m |
|---|---|
| Minimum space width ? | 11,80 m |
| Minimum space height ? | 4,35 m |
| Equipment length ? | 10,20 m |
| Equipment width ? | 8,30 m |
| Equipment height ? | 4,35 m |
| Free-fall height ? | 1,70 m |
| Platform heights | - |
| Total weight ? | 1525.00 kg |
| Heaviest single part ? | 105.00 kg |
Assembly & Foundations
| Assembly time ? | 14,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | Yes |
| Foundations | Quantity: 3 (0.3m x 0.3m x 0.4m) Quantity: 11 (0.4m x 0.4m x 0.4m) Quantity: 1 (0.75m x 0.4m x 0.4m) Quantity: 4 (0.4m x 0.4m x 0.6m) |
Product Downloads
Product description
Technical data

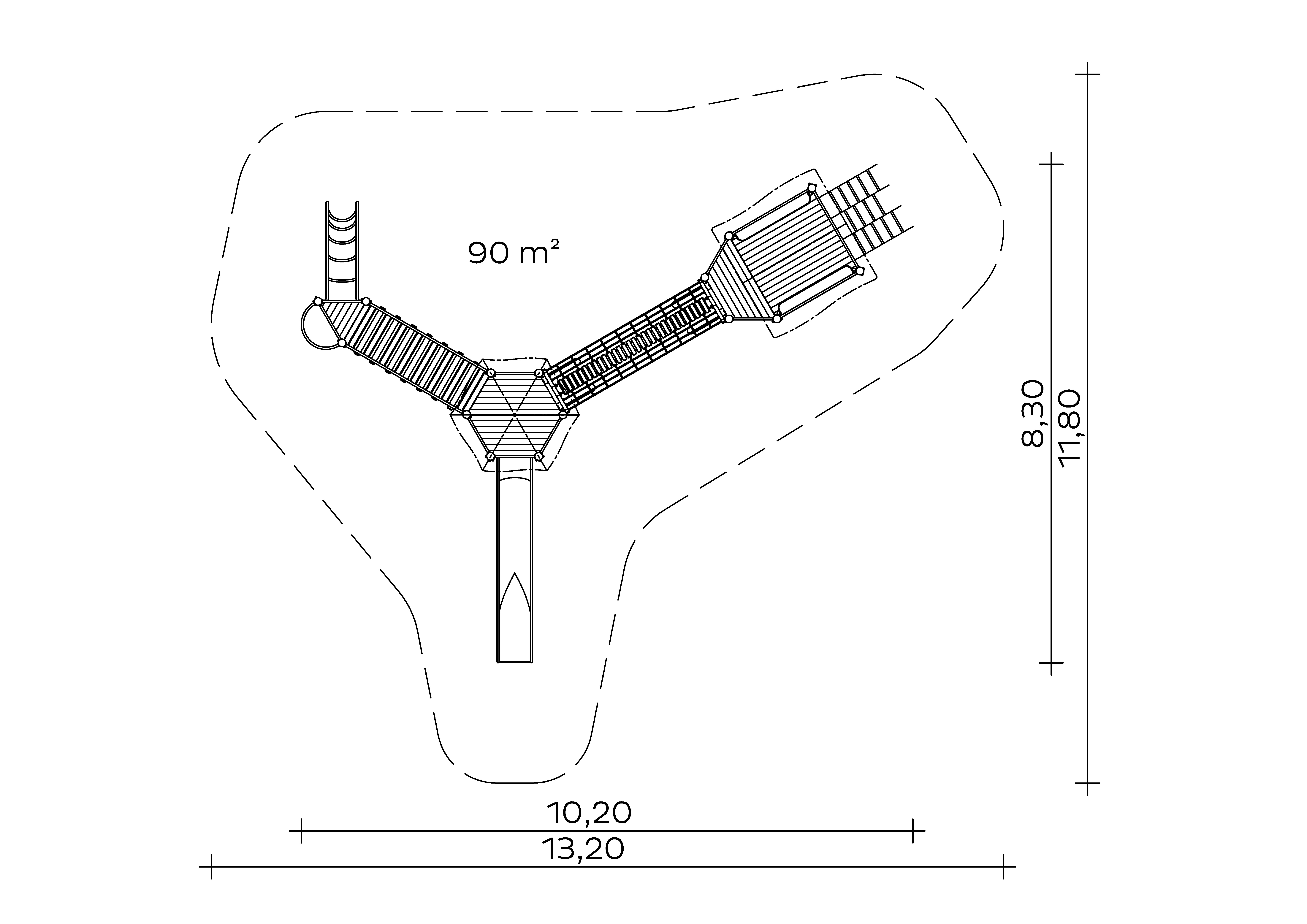

Floor area: 8.30 x 10.20 m
Minimum space: 11.80 x 13.20 m
Impact area: 90 m²
Total height: 4.35 m
Free fall height: 1.70 m
Platform heights: 1.00/1.40/1.60 m
Seat height: 1.70 m
Weight: 105 kg heaviest individual part
1415 kg in total
Support post
Support posts made of stainless steel tube, Ø 120 mm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floors
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Lattice balustrade made of stainless steel tube, Ø 33.7 x 2 / 25 x 2 mm, one-piece welded construction
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Footbridge: V-shaped net construction made of Hercules rope, walkway made of wooden rungs with approx. 40 mm clear rung spacing, attached to steel frame construction, parapet height approx. 0.75 m
- Wobbly bridge on tandem crossbeam, walkway posts made of robinia Ø 100 mm, fine-linked stainless steel railing chains, walk-through protection made of robinia wood
- Gable roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, fastened to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Tent roof, inclination 45°, made of highly weather-resistant HPL laminate, 13 mm, with wind chimes, attached to roof frame made of stainless steel tube Ø 33.7 x 2 mm.
- Seat made of highly weather-resistant HPL laminate, 20 mm
- Climbing pole made of stainless steel tube, Ø 38 mm
- Curved ladder made of stainless steel tube
- Chain ladder with stainless steel rungs
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
3 pcs. 0.30 x 0.30 x 0.40 m
11 units 0.40 x 0.40 x 0.40 m
4 units 0.40 x 0.40 x 0.60 m
1 piece 0.40 x 0.75 x 0.40 m
Concrete volume: 1.41 m³
Assembly time
2 fitters 14 hours each + hoist
(without foundation)
Suitable for
Children aged 5 and over,
public playgrounds etc.
Physical activities
Item number: 022166504
