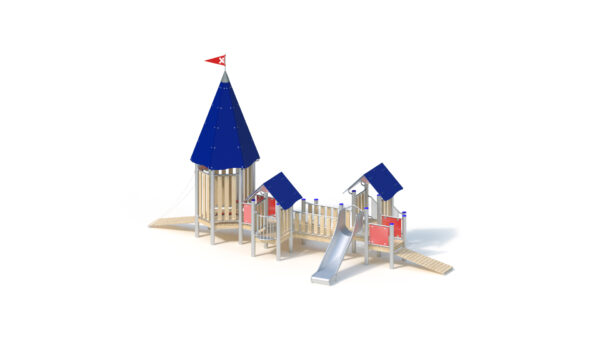

Das 3D-Modell dient der räumlichen Ansicht. Die Farben entsprechen nicht der gewählten Variante.

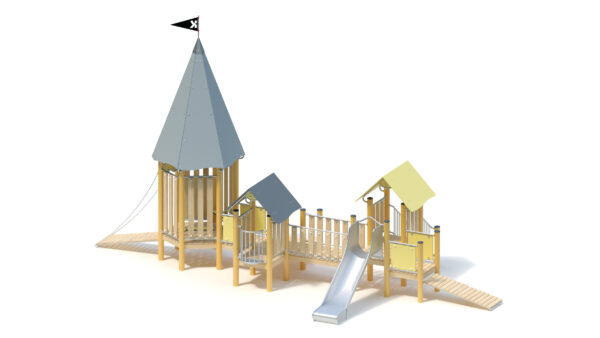

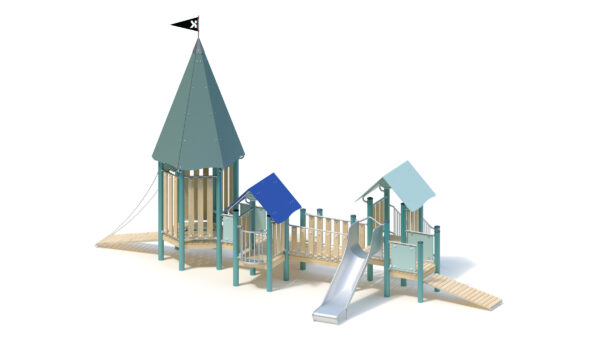

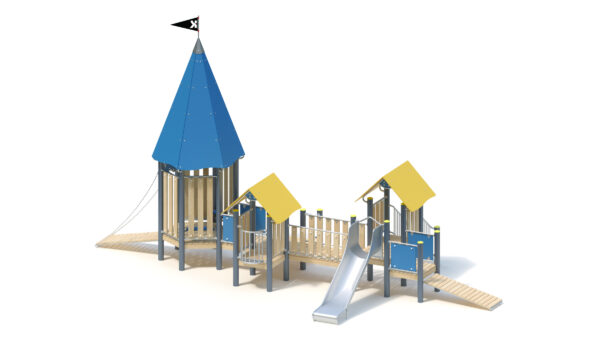

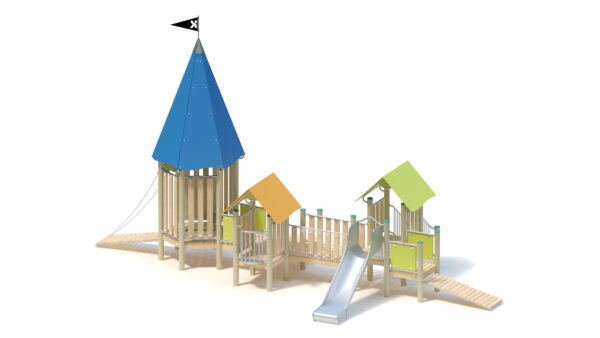

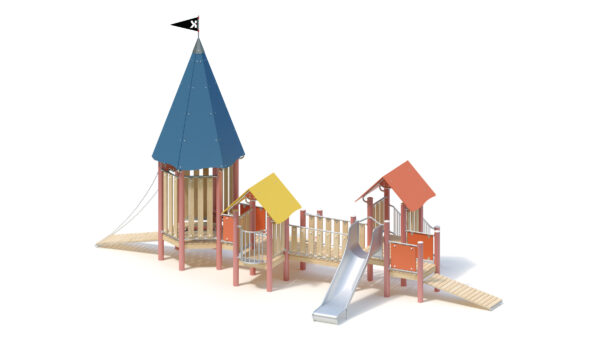

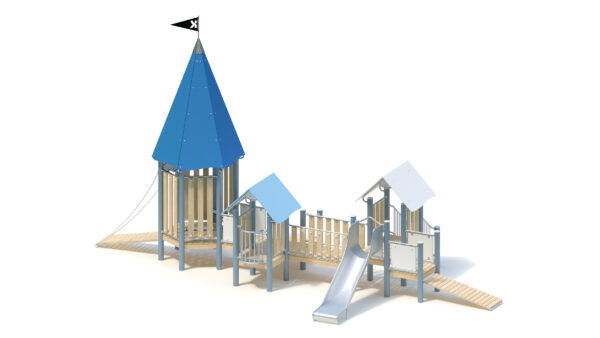

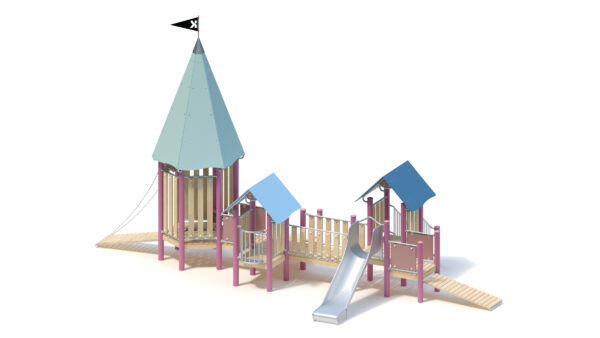

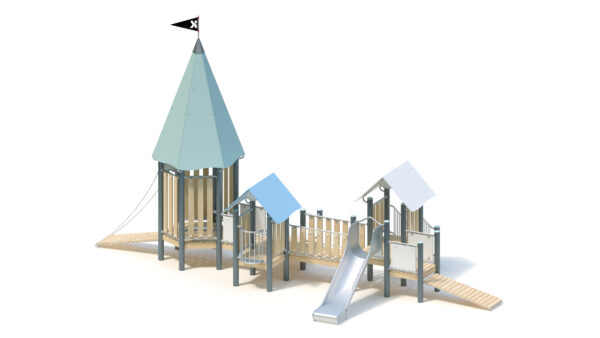

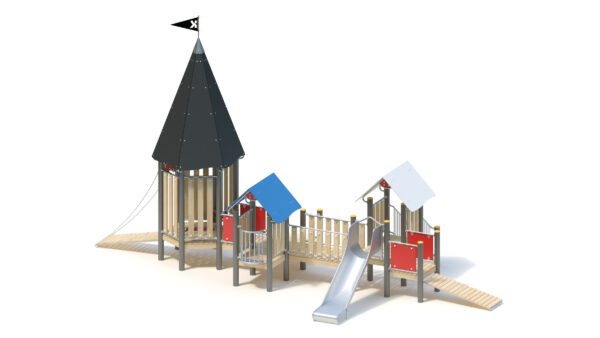

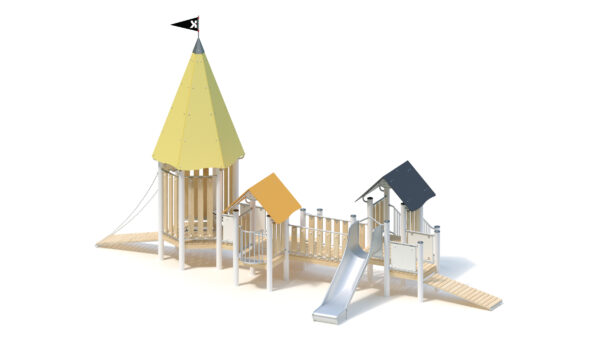

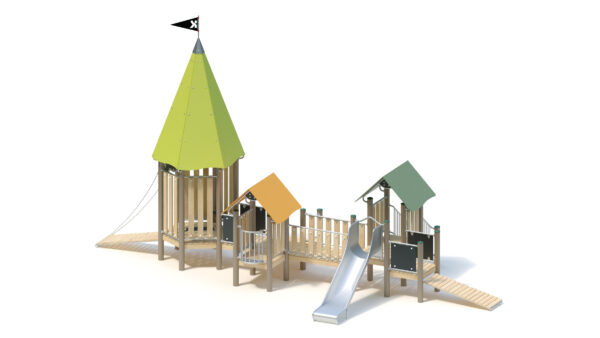

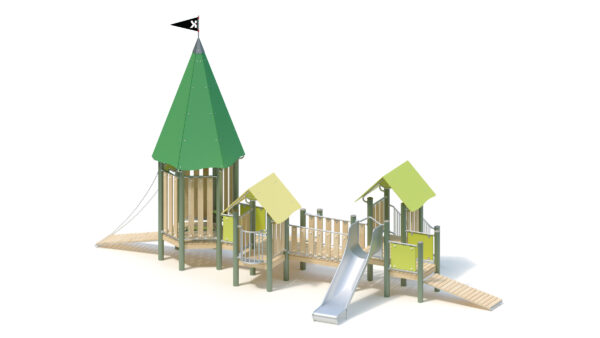

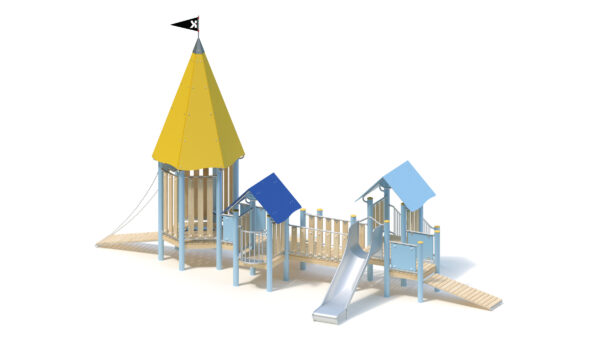

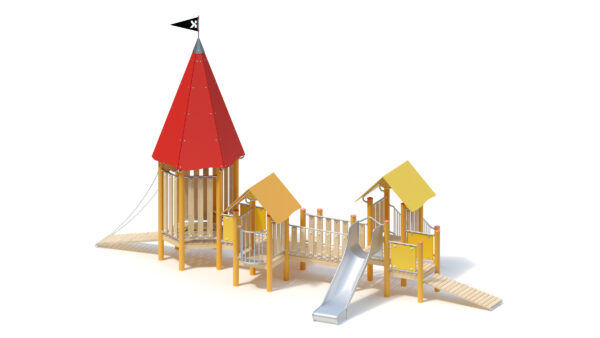

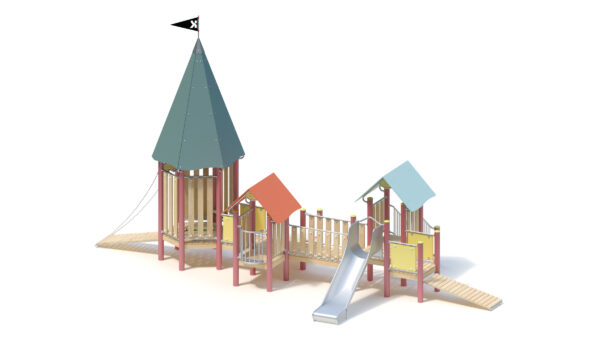

Play structure
Variante wählen:
The most important information
| Altersgruppe ? | 2+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 25 Personen |
| Aktivitäten ? | Physical activity, Slide |
Technical data
| Gerätelänge ? | 9,45 m |
|---|---|
| Gerätebreite ? | 4,65 m |
| Gerätehöhe ? | 5,40 m |
| Freie Fallhöhe ? | 0,90 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 1315.00 kg |
| Schwerstes Einzelteil ? | 75.00 kg |
| Mindestraumlänge ? | 12,45 m |
| Mindestraumbreite ? | 8,15 m |
| Mindestraumhöhe ? | 5,40 m |
Assembly & Foundations
| Montagezeit ? | 15,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | Ja |
| Fundamente | Quantity: 25 x (0.4m x 0.4m x 0.4m) Quantity: 2 (0.7m x 0.3m x 0.4m) Quantity: 1 (0.75m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data

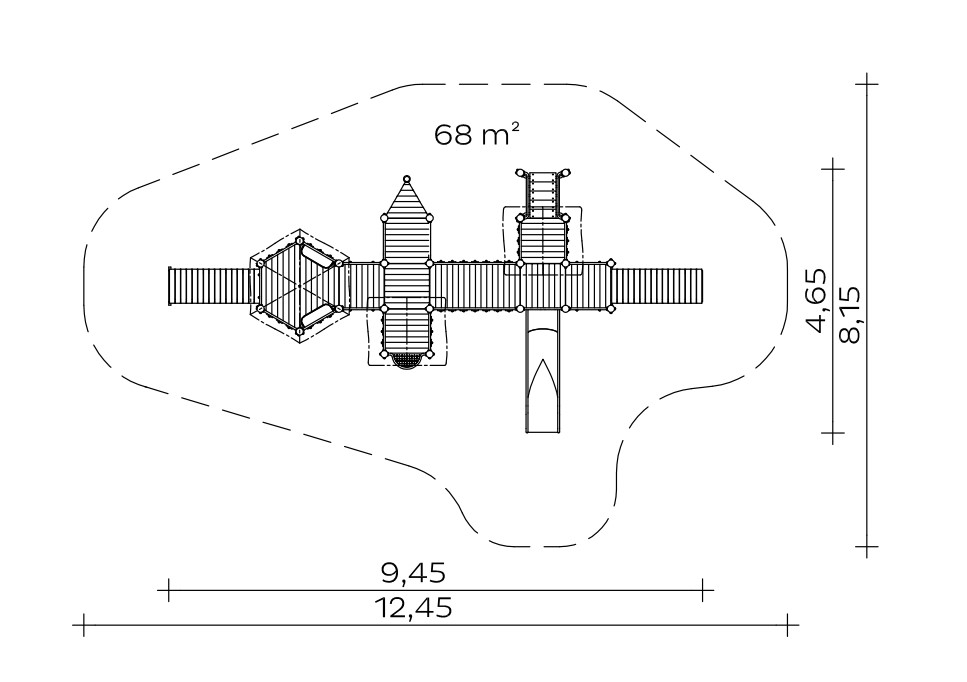

Floor area: 4.65 x 9.45 m
Minimum space: 8.16 x 12.42 m (68 m²)
Total height: 5.49 m
Platform heights: 0.20/0.40/0.60/0.80 m
Slide attachment height: 0.80 m
Seat height: 0.90 m
Support post
Stand posts made of stainless steel Ø 120 mm, covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Step railing made of stainless steel tube, Ø 33.7 x 2 mm
- Panelled balustrade made of highly weather-resistant HPL laminate, 15 mm
- Wooden balustrade made of robinia, 125 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Ramp made of profiled boards, 95 x 30 mm
- Add-on staircase with steps made of robinia 170 x 45 mm, screwed onto stainless steel frame Ø 33.7 x 2 mm, step height 133 mm
- Staircase balustrade made of stainless steel tube, Ø 33.7 x 2 / 20 x 2 mm, one-piece welded construction
- Gable roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, fastened to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Tower roof, inclination 75°, made of highly weather-resistant HPL laminate, 13 mm, with tower flag, rotatable
- Seat made of highly weather-resistant HPL laminate, 20 mm
- Balcony parapet made of stainless steel tube
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
2 units 0.30 x 0.70 x 0.40 m
25 pcs. 0.40 x 0.40 x 0.40 m
1 piece 0.40 x 0.75 x 0.40 m
Concrete volume: 1.89 m³
Assembly time
2 fitters 15 hours each
(without foundations), plus lifting gear
Free fall height
0,90 m
Suitable for
Children from 2 years,
public playgrounds etc.,
Physical activities
Item number: 021212503
