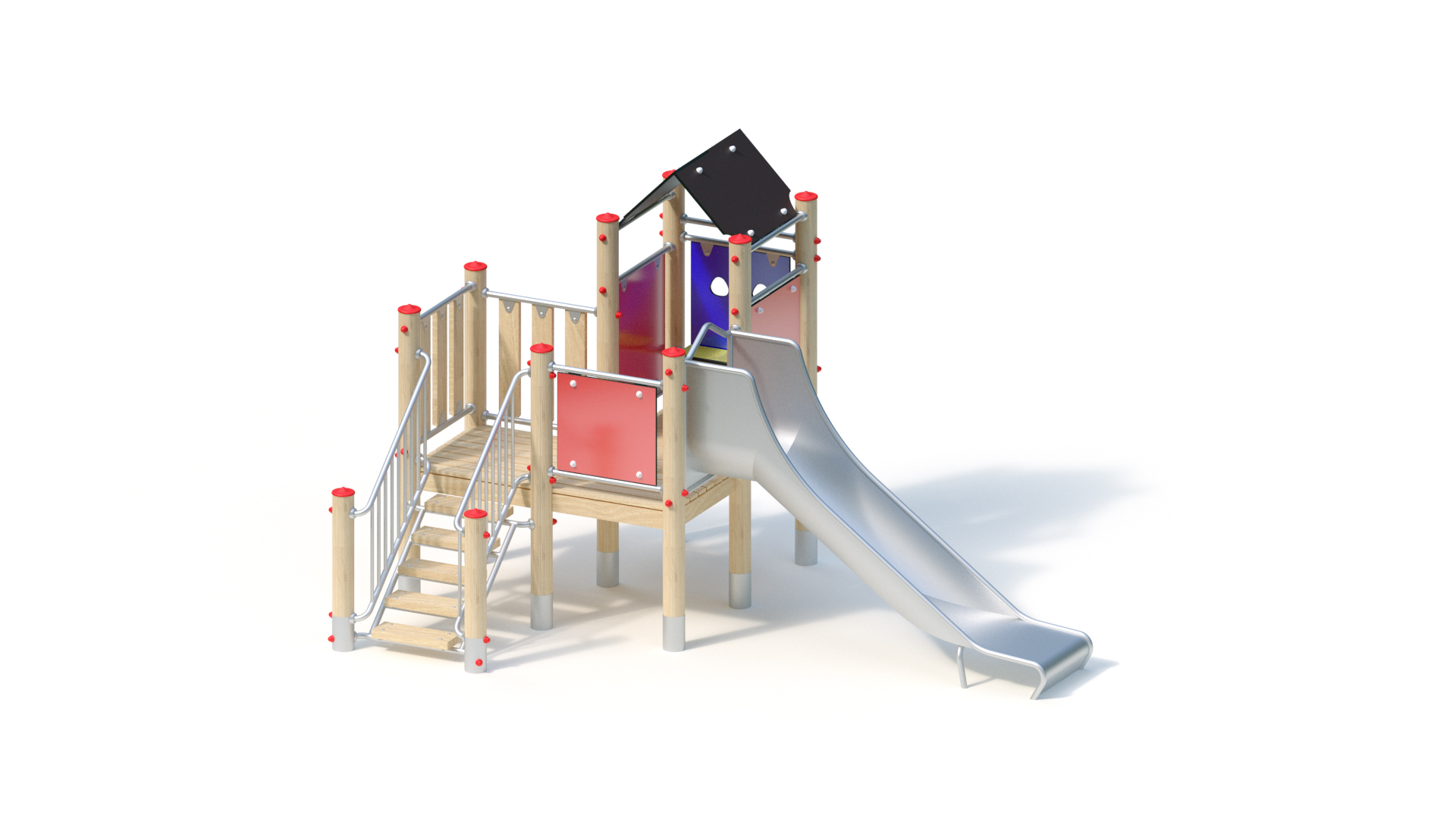

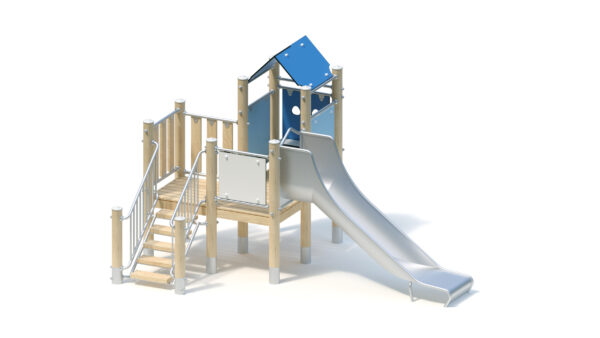

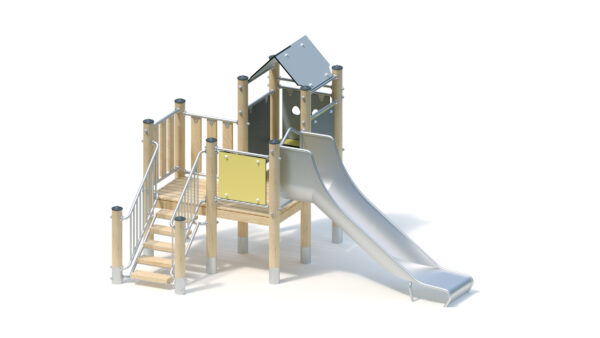

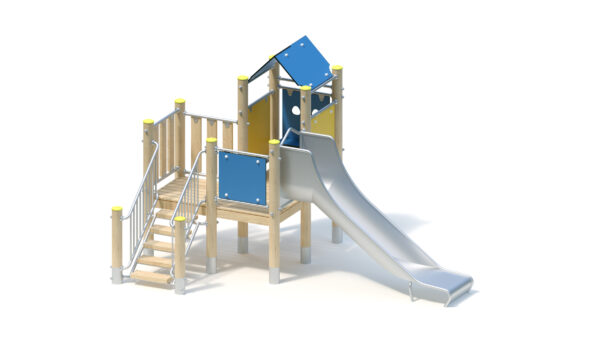

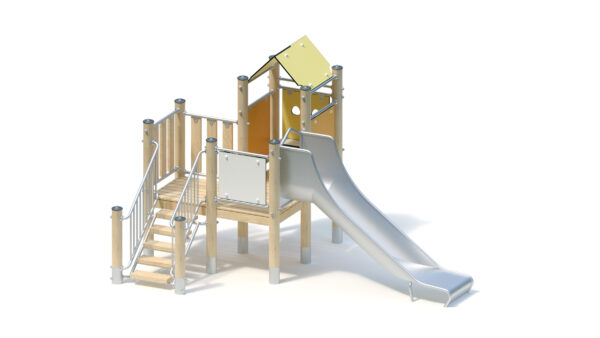

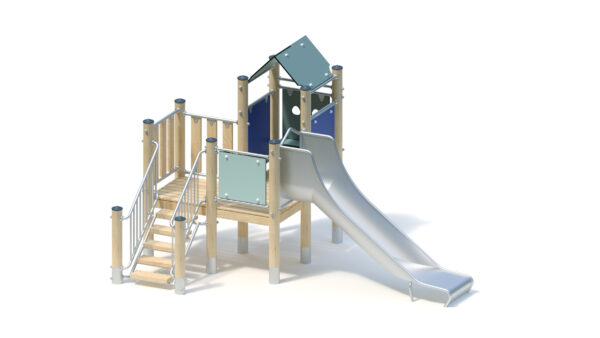

The 3D model serves as a spatial view. The colours do not correspond to the selected variant.
Play structure

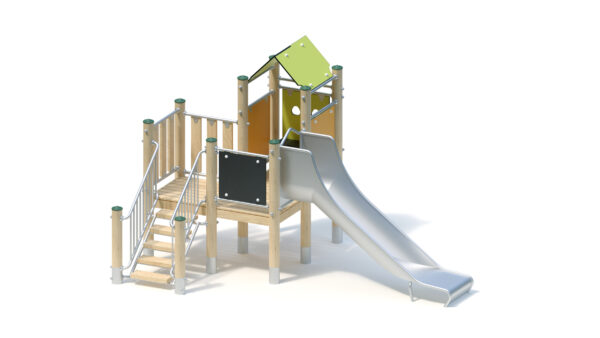

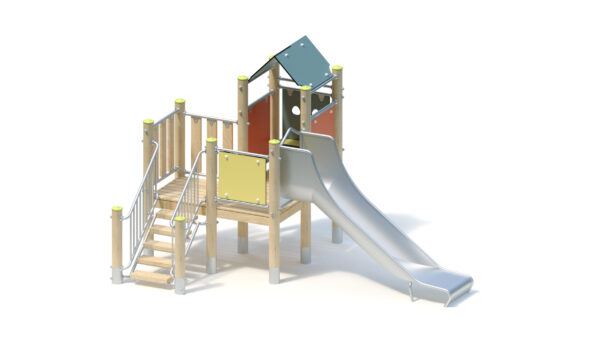

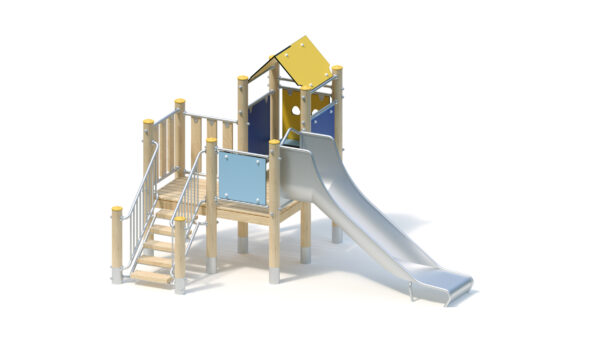

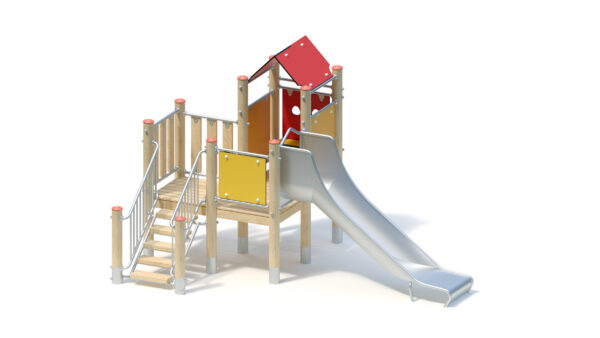

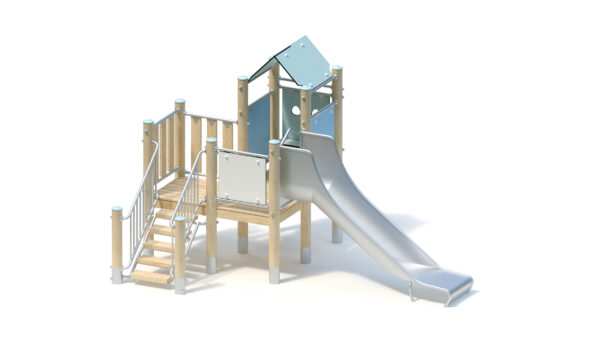

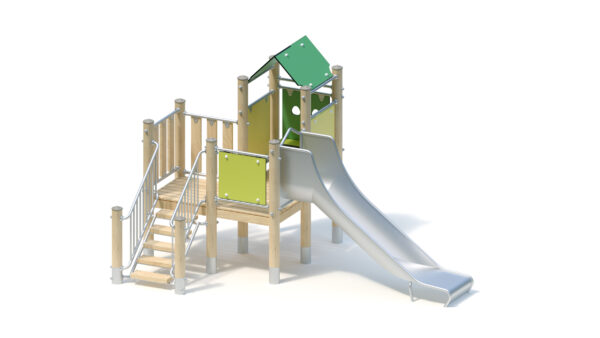

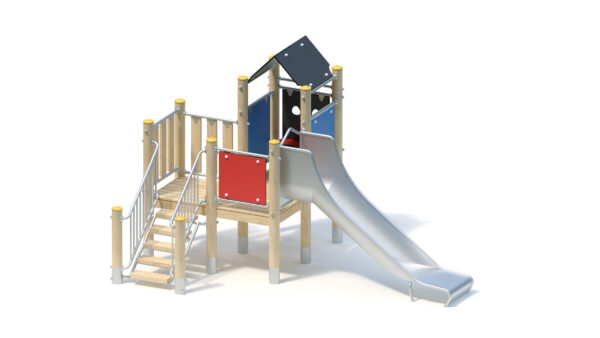

Select variant:
The most important information
| Age group ? | 2+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 8 persons |
| Activities ? | Physical activity, Slide |
Technical data
| Device length ? | 3,90 m |
|---|---|
| Device width ? | 2,55 m |
| Device height ? | 2,45 m |
| Free fall height ? | 1,15 m |
| Platform heights | - |
| Total weight ? | 495.00 kg |
| Heaviest single item ? | 75.00 kg |
| Minimum room length ? | 7,40 m |
| Minimum room width ? | 5,55 m |
| Minimum room height ? | 2,45 m |
Assembly & Foundations
| Assembly time ? | 3.0 hours |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | - |
| Foundations | 040x040x040 |
Product Downloads
Product description
Technical data
Total height: 2.45 m
Floor area: 2.55 x 3.90 m
Minimum space: 5.55 x 7.40 m (33 m²)
Platform height: 0.80 m
Seat height: 0.90 m
Weight: 75 kg heaviest individual part
495 kg in total
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Railing made of stainless steel tube, Ø 38 mm, torsion-resistant
- Wooden balustrade made of robinia, 125 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Panelled balustrade made of highly weather-resistant HPL laminate, 15 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Panelled balustrade (3 holes) made of weather-resistant HPL laminate, 15 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Seat made of highly weather-resistant HPL laminate, 20 mm
- Add-on staircase with steps made of robinia 160 x 45 mm, screwed onto stainless steel frame Ø 33.7 x 2 mm, step height 133 mm
- Stair railing made of stainless steel tube, Ø 33.7 x 2 mm, torsion-resistant
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
- Gable roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, fastened to roof frame made of stainless steel tube Ø 33.7 x 2 mm
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Foundations (client-provided)
10 pcs. 0.40 x 0.40 x 0.40 m
1 piece 0.40 x 0.75 x 0.40 m
Concrete volume: 0.76 m³
Assembly time
2 fitters 3 hours each
(without foundation)
Free fall height
1,15 m
Suitable for
Children from 2 years,
public playgrounds etc.
Physical activities
Item number: 021130702
