The 3D model is for spatial reference only. The colours may not match the selected variant.
Craftwork hut

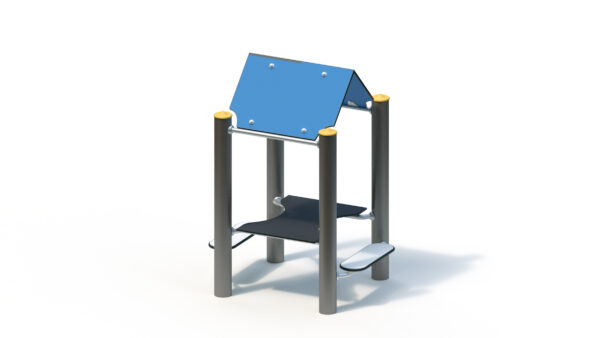

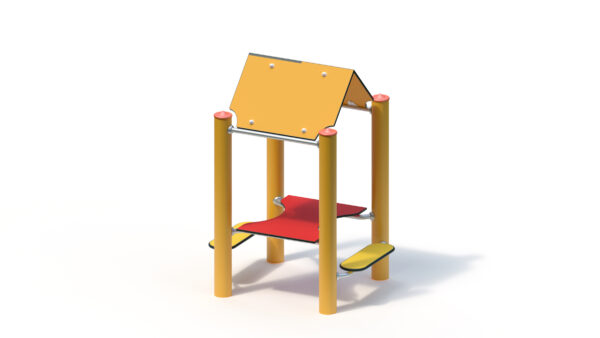

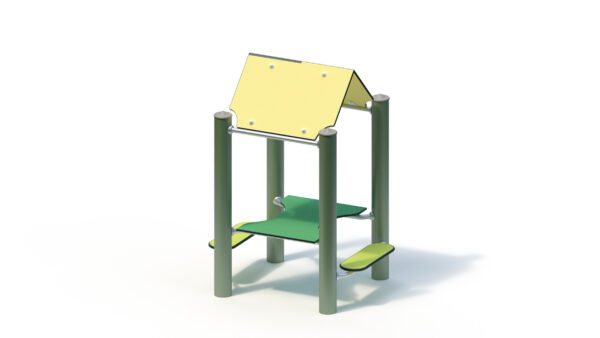

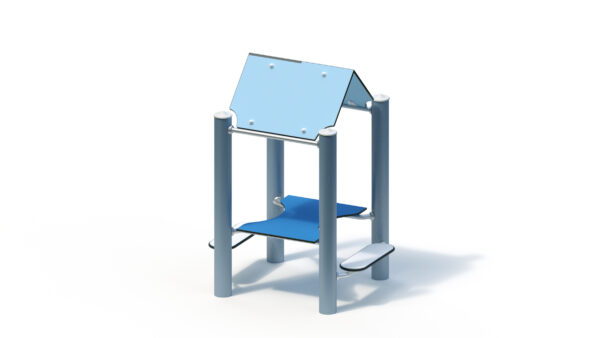

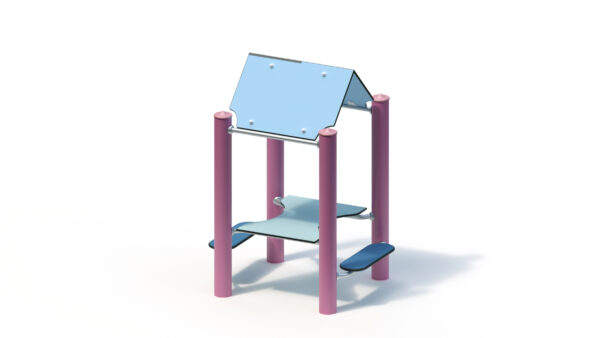

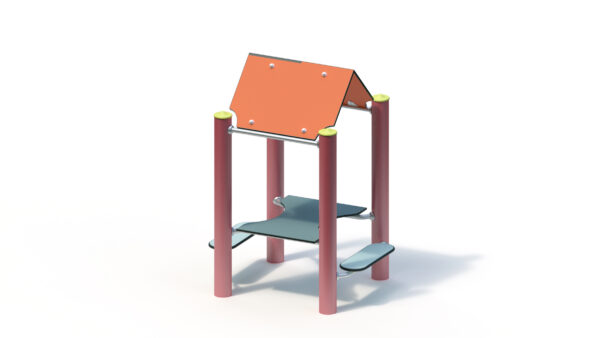

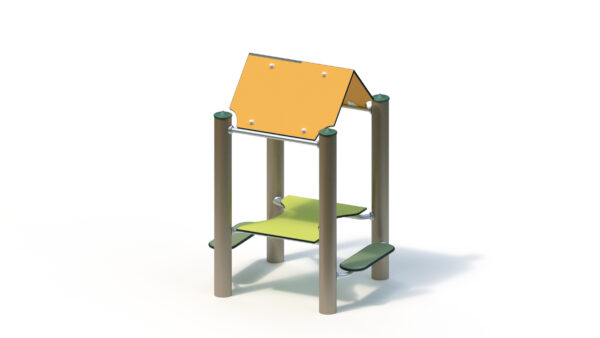

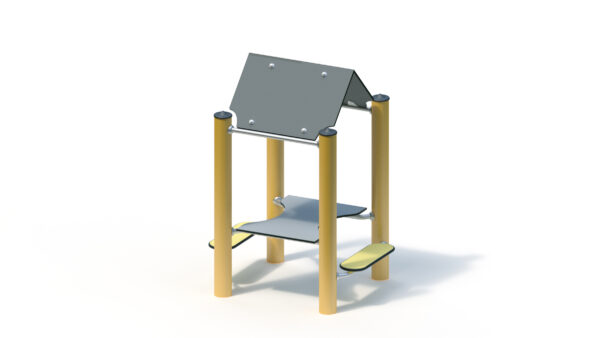

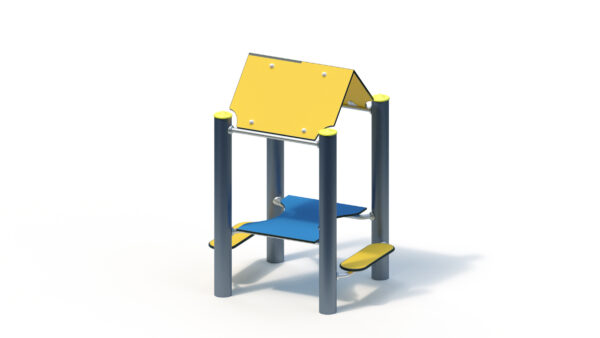

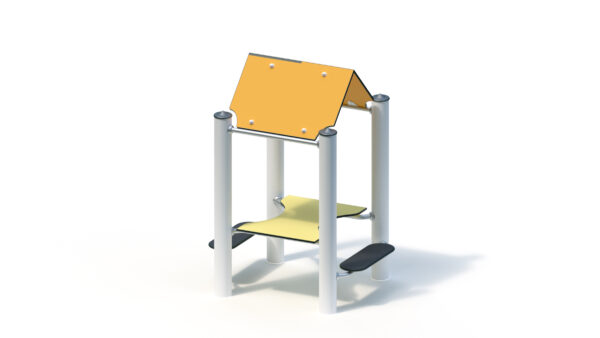

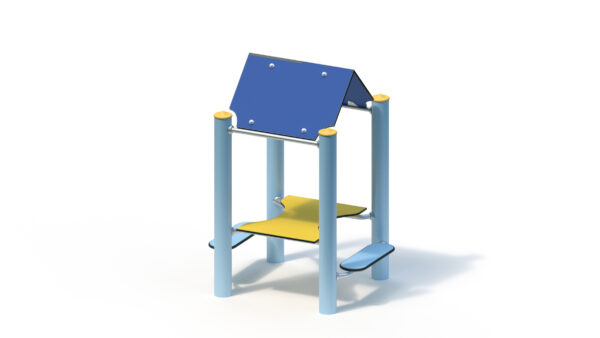

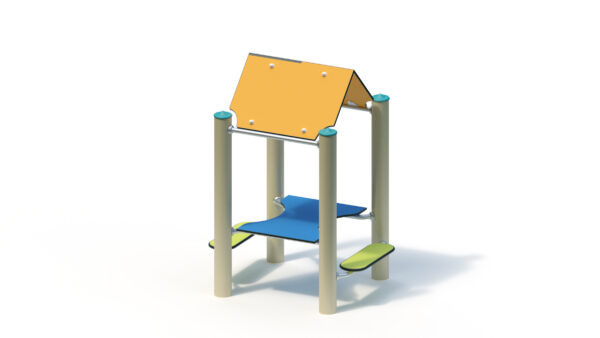

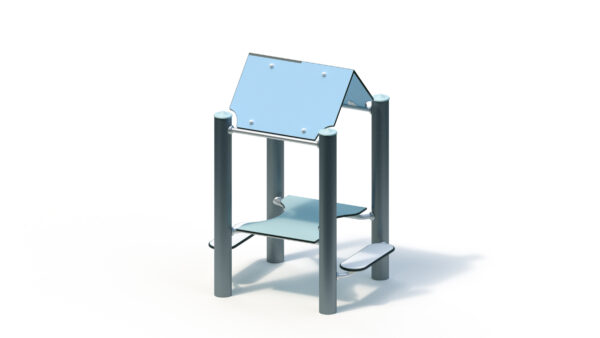

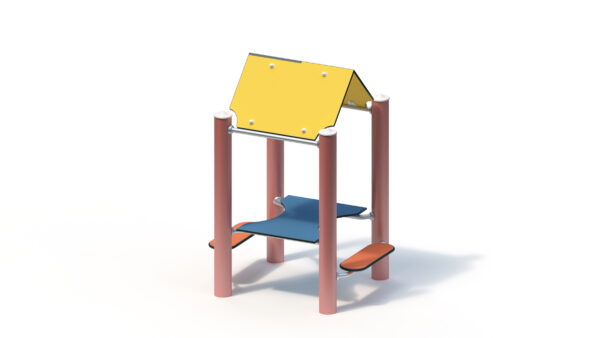

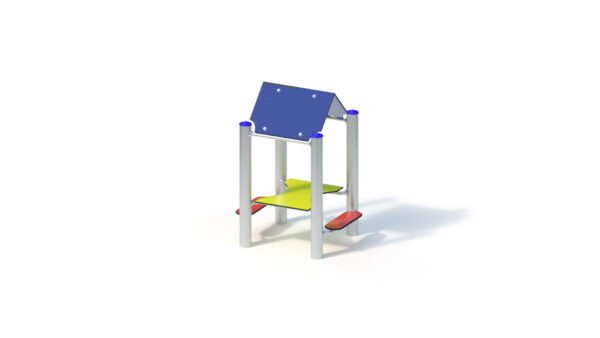

Select variant:
The most important information
| Age group ? | 1+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 4 people |
| Activities ? | Social activity |
Technical data
| Minimum space length ? | 4,20 m |
|---|---|
| Minimum space width ? | 3,95 m |
| Minimum space height ? | 1,65 m |
| Equipment length ? | 1,20 m |
| Equipment width ? | 0,95 m |
| Equipment height ? | 1,65 m |
| Free-fall height ? | 0,50 m |
| Platform heights | - |
| Total weight ? | 115.00 kg |
| Heaviest single part ? | 20.00 kg |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 4 (0.4m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data
Total height: 1.65 m
Base area: 0.95 x 1.20 m

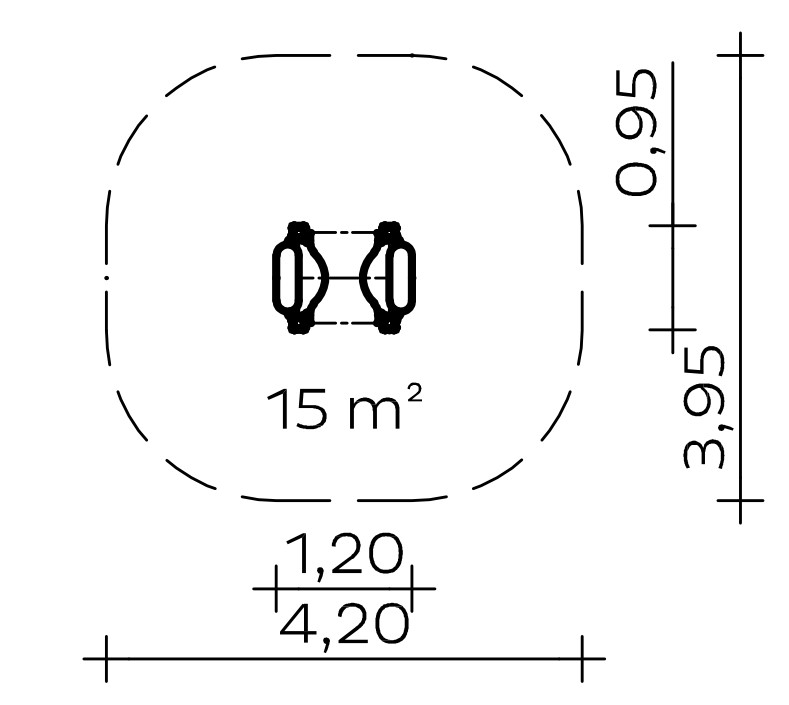

Minimum space: 3.95 x 4.20 m (15 m²)
Seat/table height: 0.30/0.50 m
Weight: 20 kg heaviest individual part
115 kg in total
Support post
Posts made of stainless steel tube Ø 12 cm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Attachments
- Table made of highly weather-resistant HPL laminate 15 mm
- Seat made of highly weather-resistant HPL laminate 20 mm
- Gable roof, pitch 45°, made of highly weather-resistant HPL laminate 13 mm, fastened to roof frame made of stainless steel tube Ø 33.7 x 2 mm
Metal components: Stainless steel
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
Anchoring by tamping or
4 pcs. Foundations 0.40 x 0.40 x 0.40 m
Concrete volume: 0.26 m³
Assembly time
2 fitters 1 hour each
(without foundation)
Free fall height
0,50 m
Suitable for
Children from the age of one,
public playgrounds etc.,
Social activities
Item number: 020020500
