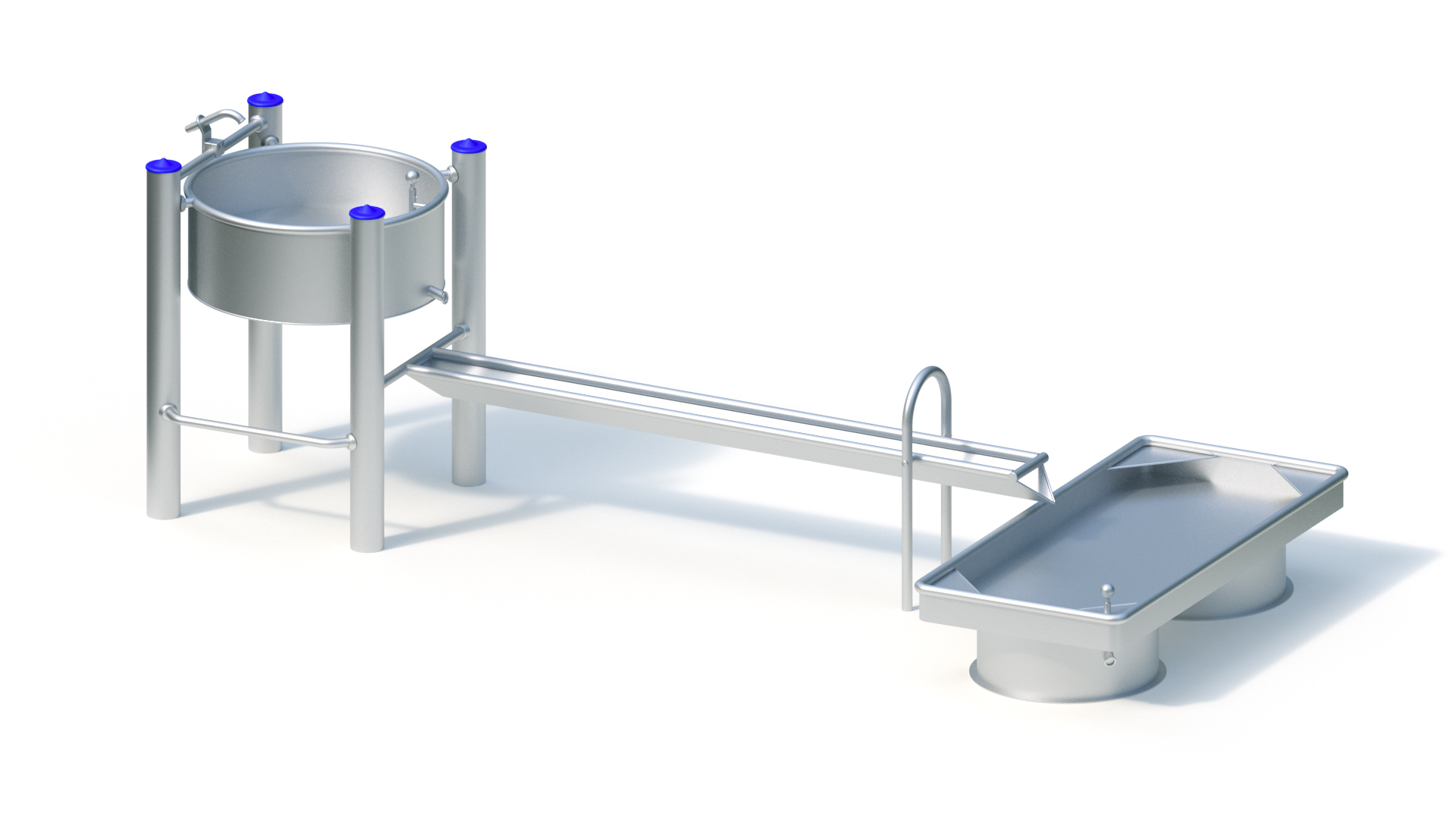

Water play structure
The most important information
| Age group ? | 2+ |
|---|---|
| Areas of application ? | supervised playgrounds |
| Number of users ? | 13 persons |
| Activities ? | Manual activity, Social activity |
Technical data
| Device length ? | 4,15 m |
|---|---|
| Device width ? | 1,85 m |
| Device height ? | 1,40 m |
| Free fall height ? | 0,95 m |
| Platform heights | - |
| Total weight ? | 220.00 kg |
| Heaviest single item ? | 85.00 kg |
| Minimum room length ? | 7,15 m |
| Minimum room width ? | 4,85 m |
| Minimum room height ? | 1,40 m |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | - |
| Foundations | 040x040x040 |
Product Downloads
Product description
Technical data
Total height: approx. 1.40 m
Floor area: approx. 1.85 x 4.15 m
Minimum space: approx. 4.85 x 7.15 m (30 m²)
Weight: 85 kg heaviest individual part
220 kg in total
Support post
Posts made of stainless steel tube Ø 120 mm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Attachments
- Support tube made of stainless steel tube, Ø 38 x 2.5 mm, torsion-resistant
- Climbing rung (cranked) made of stainless steel tube, Ø 33.7 x 2 mm
K&K Water spout Article no. 0-33125-000
Welded stainless steel construction, clamping part for fastening to Ø 38 mm holder pipe, with connection element suitable for connecting a garden hose with 1/2″ or 3/4″ hose section. (e.g. Gardena® or comparable).
K&K water reservoir with 1 drain pipe
Base area: Ø 0.68 m
Welded stainless steel construction with a water drain pipe. Rubber cone closure with locking mechanism for complete water drainage. Sheet thickness: min. 2 mm/pipe Ø 38 mm.
K&K water channel M5 2.40 m
Welded stainless steel construction. Sheet thickness: 2.5 mm / pipe Ø 38 mm. With 1 connection to support posts, stepless inclination for installation for the required gradient for the water inlet and outlet through additional elevation.
K&K water table (0.25) Article no. 0-33445-000
Base area: 0.84 x 1.84 m
Total height: 0.40 m
Welded stainless steel construction with 1 water drain pipe. Rubber cone closure with locking mechanism for complete water drainage. 4 shelves. Sheet thickness: min. 2 mm / pipe Ø 38 mm. Anchored to the flange ring.
Matching ring foundation (15165) for anchoring to the flange ring and moulded stones (15170) for bricking up and levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an extra charge.
Metal components: Stainless steel. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
4 pcs. 0.40 x 0.40 x 0.40 m
1 piece 0.50 x 0.50 x 0.50 m
Concrete volume: 0.38 m³
Assembly time
2 fitters 1 hour each.
(without foundation, without water connection)
Free fall height
0,95 m
Suitable for
Children from 2 years,
supervised playgrounds etc.,
Manual activities
Item number: 034050502
