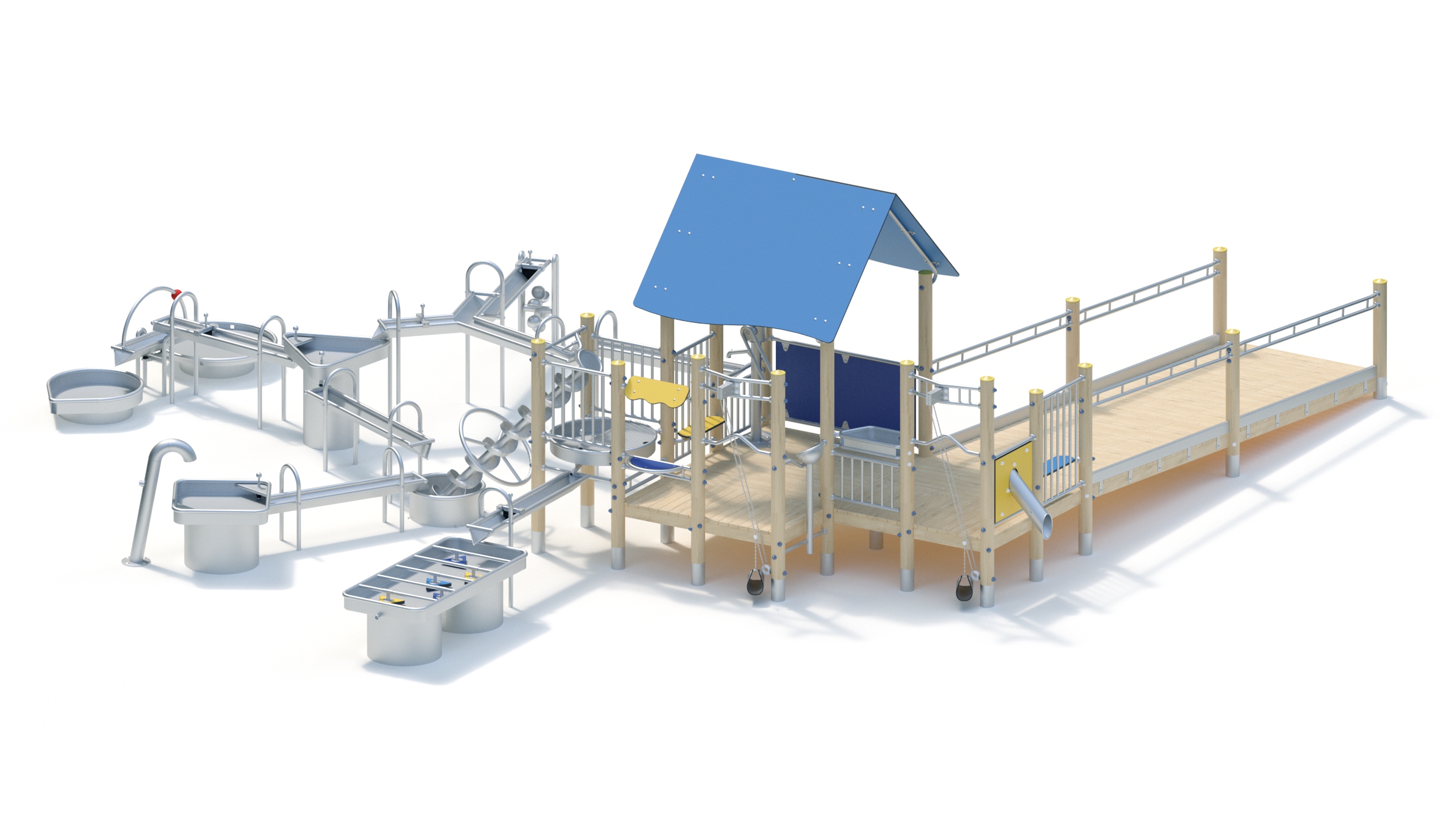

Technical data

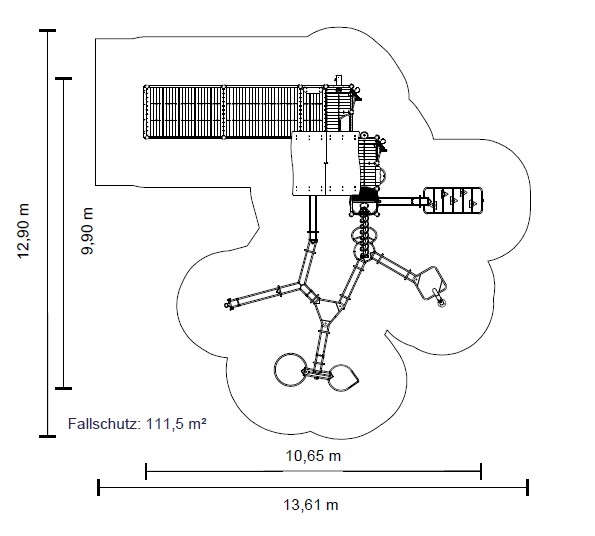

Total height: 3.23 m
Floor area: 9.90 x 10.65 m
Minimum space: 12.90 x 13.61 m
Platform height: 0.60 m
Ramp height at the start: 0.20 m

Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Standing posts that are flush with the platform are not fitted with a post cap.

Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection. Pump platform with profiled stainless steel sheet.

Attachments
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Lattice balustrade made of stainless steel tube, Ø 33.7 x 2 / 25 x 2 mm, one-piece welded construction
- Panelled balustrade made of highly weather-resistant HPL laminate, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Pouring tube wall made of HPL laminate with sand pouring tube including shut-off damper, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Sand pouring pipe with stainless steel hemisphere
- Stainless steel mud table
- Sand lift with rubber transport container and 4 mm stainless steel chain, designed as a circumferential element so that the transport container cannot be pulled into neighbouring play areas or open spaces
- Platform ramp with handrails and stainless steel wheel deflectors
- Awning made of highly weather-resistant HPL laminate 13 mm
- Table made of highly weather-resistant HPL laminate 20 mm
- Seat plate made of highly weather-resistant HPL laminate, 20 mm
- Gable roof, with round eaves, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, attached to roof frame made of stainless steel tube Ø 33.7 x 2 mm

Water pump article no. 0-33130-001
Water pump for direct connection to a water pipe, suction pipe connection 1 ¼ inch (pipe diameter at least ¾ inch)
Welded stainless steel construction, encapsulated pump housing, pump mechanism with roller and plain bearings, upper pump housing with swivel must be removed, e.g. during the frost period. Cover („winterisation plate“) for the remaining pump base is supplied.

Please note:
When connecting the water pump to a pressurised water line, the K&K valve combination (item no. 0-33190-000 or 0-33195-000) is required.
Please also observe the framework data specified in the installation instructions (spacing, diameter of the cables, etc.); these are available on request from K&K or directly as a PDF from our website at www.kaiser-kuehne.com.

If the water supply is intentionally interrupted temporarily (timer or similar), a negative pressure builds up in the pipe system when the pump is operated again, which causes the pump swivel to kick back.
It is therefore essential to prevent the pump swivel arm from being actuated (e.g. by using the pump lock, part number 1040639).

Water tap Article no. 0-33119-003
Height: 1.10 m
Weight: 20 kg heaviest individual part

Stainless steel construction with self-closing valve for direct connection (3/4 inch) to a pressurised water pipe (equal to or larger than 1/2 inch or equal to or larger than DN 15).
Control unit consisting of control module, waterproof sealed 6V battery and piezo button. Hygiene flush set at the factory (12 hours after last actuation).
Wintering plate included.

Note: Depending on the cleanliness of the water (suspended matter, dirt particles, etc.), we recommend installing a fine filter (e.g. K&K item no. 3990039) to prevent the self-closing valve from becoming contaminated and thus prevent malfunctions. Installation and connection should be carried out by a specialised installation company.

Flange pipe article no. 1040065
Flange pipe for screwing onto K&K water tapping point.
For setting in concrete below the play level.

Water channel 1.60 m, 5 pieces
Welded stainless steel construction. Sheet thickness: min. 2 mm. Bevelled spout.
Stepless inclination for installation for the required gradient for the inlet and outlet of the water through additional elevation

Water channel 1.60 m with water mill
Welded stainless steel construction with supports and water channel for upper water supply. Sheet thickness: min. 2 mm / tube Ø 38 mm. Water mill made of 6 hemispheres with edge protection. Wheel bearings with maintenance-free roller bearings.

Y-channel
Y-shaped water channel with one inlet area and two outlets, sheet thickness: min. 2 mm / pipe Ø 38 mm. Stepless inclination for installation for the required gradient for the inlet and outlet of the water through additional elevations.

Stowage flap, 4 pieces
Storage flap for K&K water channels, freely positionable, stainless steel handle, rubber blade with fabric insert.

Water distribution table (0.50) Article no. 0-33480-000
Total height: 0.65 m
Welded stainless steel construction with 2 water drain pipes. Rubber cone closure with locking mechanism for complete water drainage. Sheet thickness min. 2 mm/ pipe Ø 38 mm.
Matching ring foundation (15166) for anchoring to the flange ring and moulded stones (15167) for bricking up and levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an extra charge.

Distribution tray Article no. 0-33493-000
Height: approx. 1.15 m
Weight: 35 kg in total
Welded stainless steel construction with adjustable, shock-absorbing tilting mechanism for two-way water distribution, sheet thickness: min. 2 mm / pipe Ø 38 mm, with elevation and water channel with edge protection pipe Ø 38 x 2 mm

Mud plate (0.25) Article no. 0-33450-000
Welded stainless steel construction with 6 water drainage openings. Sheet thickness: min. 2 mm / pipe Ø 38 mm. Anchored to the flange ring.
Matching ring foundation (15165) for anchoring to the flange ring and moulded stones (15170) for bricking up and levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an extra charge.

Water bowl (0.25) Article no. 0-33430-000
Total height: 0.40 m
Welded stainless steel construction with 1 water drainage opening. Sheet thickness: min. 2 mm/pipe Ø 38 mm.
Matching ring foundation (15165) for anchoring to the flange ring and moulded stones (15170) for bricking up and levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an extra charge.

Water table (0.50) Article no. 0-33441-000
Total height: 0.65 m
Welded stainless steel construction with 1 water drain pipe. Rubber cone closure with locking mechanism for complete water drainage. 2 shelves. Sheet thickness: min. 2 mm / pipe Ø 38 mm. Anchored to the flange ring.
Matching ring foundation (15165) for anchoring to the flange ring and moulded stones (15170) for bricking up and levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an extra charge.

Whirling table (0.50)
Base area: 0.84 x 1.84 m
Welded stainless steel construction with 1 water drainage opening and 5 adjustable HPL prisms as flow obstacles. Sheet thickness: min. 2 mm. Anchored to the flange ring.
Matching ring foundations (15165) for anchoring to the flange ring and moulded stones (15170) for bricking up and levelling height differences or for secure foundations in loose fall protection (sand, fine gravel, etc.) can be supplied at an extra charge.

Conveyor basin Article no. 0-33215-001
Pool height: 0.29 m
Welded stainless steel construction with mounting device for the base bearing of the water spiral. Water inlet directly below or e.g. with a water channel above the pipe ring. Sheet thickness min. 2 mm / pipe Ø 38 mm. Matching ring foundation (15165) for anchoring to the flange ring and moulded stones (15170) for bricking up and levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an extra charge.

Water spiral (2.00) with handwheel drive and rotating disc at the top
Spiral length: 2.00 m
Outer diameter: 0.25 m
Welded stainless steel construction with roller bearings, screw-on foot bearing.

Collecting basin modular RS120
Welded stainless steel construction for water absorption with a water drainage opening (90°). Sheet thickness min. 2 mm / pipe Ø 38 mm.
For connection to posts.

Metal components: Stainless steel.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.

Foundations (client-provided)
19 units 0.40 x 0.40 x 0.40 m
12 pcs. 0.50 x 0.50 x 0.50 m
2 units 0.50 x 0.70 x 0.50 m

Assembly time
2 fitters 16 hours each.
(without foundation, without water connection)

Free fall height
0,90 m

Suitable for
Children aged 3 and over,
public playgrounds etc.,
Manual activities

Each of our units is manufactured in accordance with the highest quality standards and the current EN 1176 standard, and this model serves as an inspirational suggestion and can be supplied with posts made of laminated robinia wood or stainless steel on request. The colour design is flexible and can be individually adapted to your wishes.

Item number: L734000326
