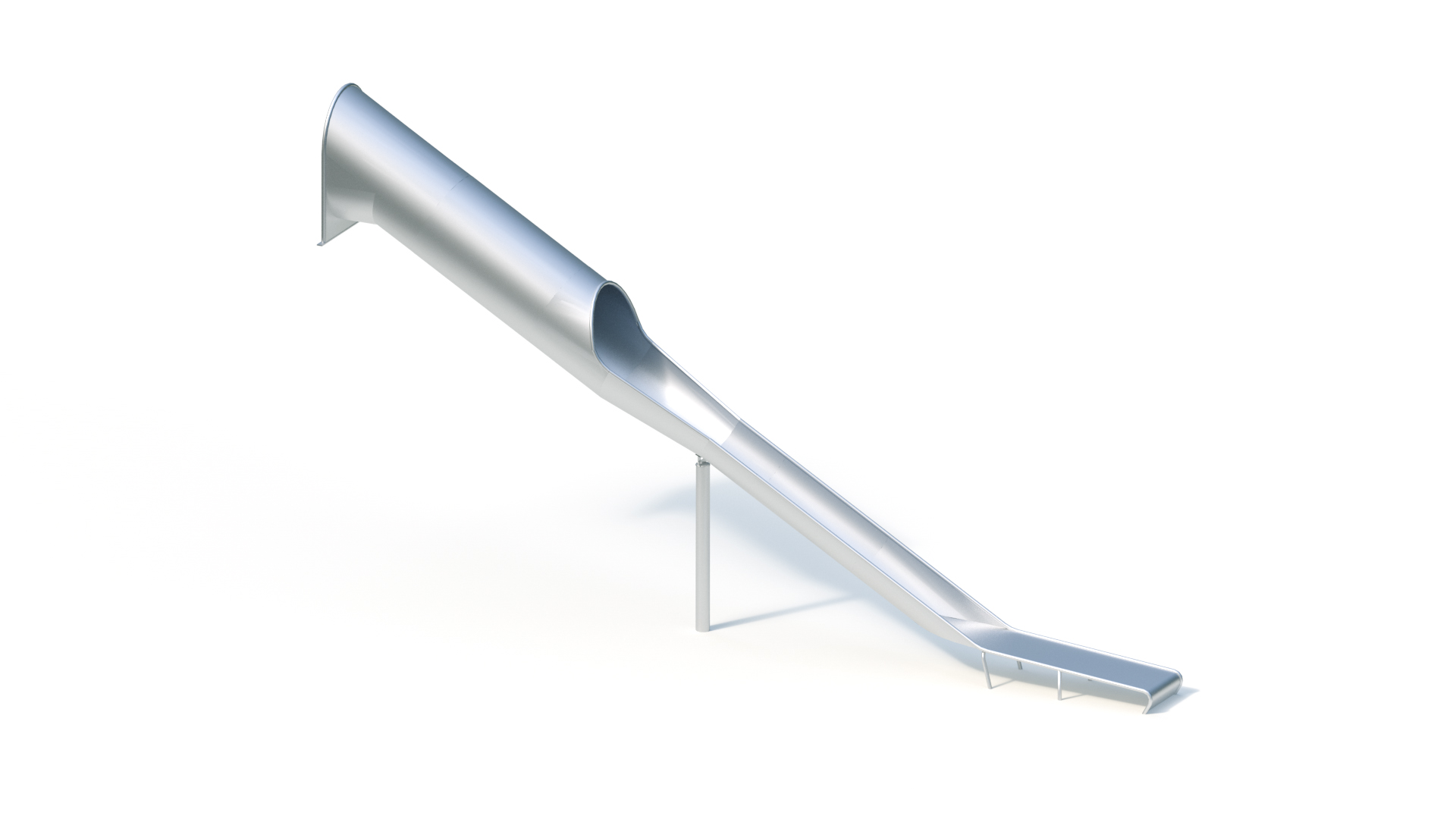

Tunnel hill slide 30° , H 3,00 m
The most important information
| Altersgruppe ? | 4+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 2 Personen |
| Aktivitäten ? | Physical activity, Slide |
Technical data

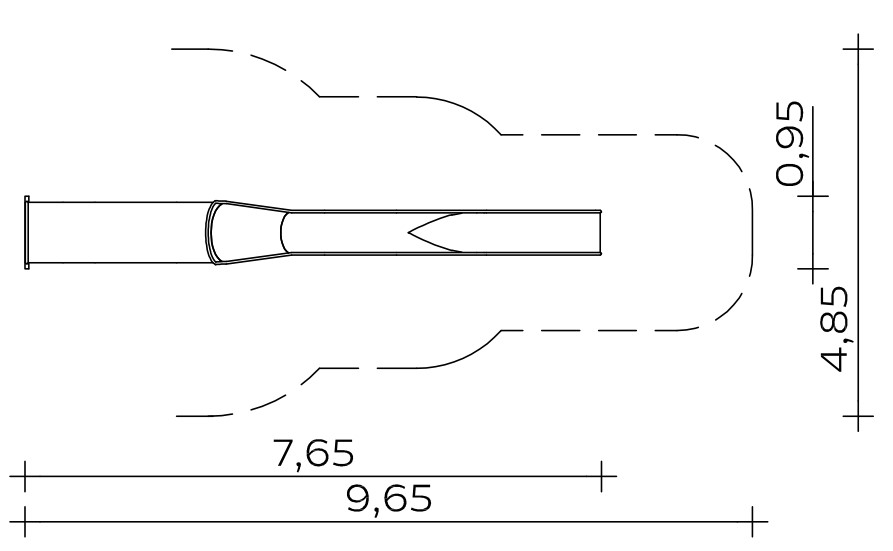

| Mindestraumlänge ? | 9,65 m |
|---|---|
| Mindestraumbreite ? | 4,85 m |
| Mindestraumhöhe ? | 0,00 m |
| Gerätelänge ? | 7,65 m |
| Gerätebreite ? | 0,95 m |
| Gerätehöhe ? | 4,30 m |
| Freie Fallhöhe ? | 1,95 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 340.00 kg |
| Schwerstes Einzelteil ? | 320.00 kg |
Assembly & Foundations
| Montagezeit ? | 2,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | Ja |
| Fundamente | Quantity: 1 (0.4m x 0.4m x 0.6m) Quantity: 1 (1.4m x 0.75m x 0.4m) |
Product Downloads
Product description
Technical data
Floor area: approx. 1.00 x 7.65 m
Minimum space: approx. 4.00 x 9.65 m
Slide attachment height: 3.00 m
Slide inclination: 30°
Slide width: 0.60/0.80 m
Sliding plate thickness: 2.5 mm
Course: straight
Please note that a suitable surface for flanging (wooden platform or planks, concrete foundation or similar) must be available on site in the area of the flange on the slide seat.
Slide segments made of stainless steel, particularly quiet due to tubular trough shape, welded to form a one-piece slide.
Including support post made of stainless steel tube Ø 120 mm, mounting flange made of stainless steel.
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Foundations (client-provided)
1 piece 0.40 x 0.40 x 0.60 m
1 piece 1.40 x 0.75 x 0.40 m
Concrete volume: 0.52 m³
Assembly time
2 fitters 2 hours each plus lifting gear
(without foundation)
Suitable for
Children aged 5 and over,
public playgrounds etc.
Movement activities.
Item number: 941001715
