Roller/Tunnel slide combination
The most important information
| Altersgruppe ? | 4+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 11 Personen |
| Aktivitäten ? | Physical activity, Slide |

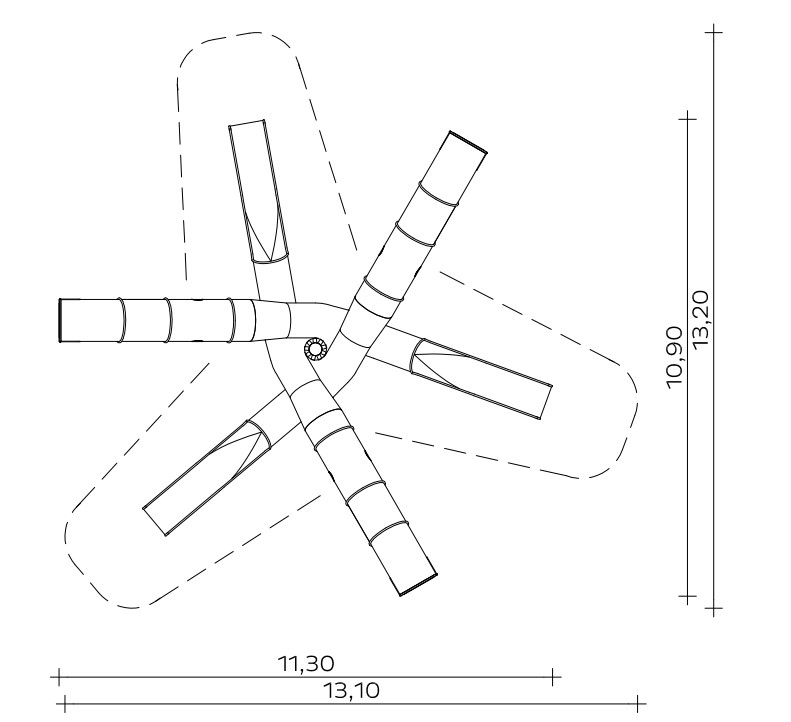

Technical data
| Mindestraumlänge ? | 13,20 m |
|---|---|
| Mindestraumbreite ? | 13,10 m |
| Mindestraumhöhe ? | 0,00 m |
| Gerätelänge ? | 11,30 m |
| Gerätebreite ? | 10,90 m |
| Gerätehöhe ? | 11,40 m |
| Freie Fallhöhe ? | 0,71 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 6230.00 kg |
| Schwerstes Einzelteil ? | 3780.00 kg |
Assembly & Foundations
| Montagezeit ? | 10,0 h |
|---|---|
| Monteuranzahl ? | 4 Personen |
| Hebezeug erforderlich | Ja |
| Fundamente | Quantity: 9 (1m x 0.4m x 0.4m) Quantity: 1 (0.8m x 0.8m x 1m) |
Product Downloads
Product description
Technical data
Flange mounting
Mounting height: 10.25 m
Seat height: 10.42 m
Roller conveyor inclination: 15°
Roller conveyor diameter: 0.96 m
Slide inclination: 30°/38°
Tunnel diameter: 0.80 m
Sheet thickness: 2.5 mm
Stainless steel roller conveyor segments
Single-seat section with handle openings on both sides,
Internal web guide, roller bearings
Stainless steel rollers, light openings made of
shatterproof polycarbonate
Roller diameter: 50 mm
Centre pylon:
Tubular steel Ø 298.5 x 7.1 mm, hot-dip galvanised/
Stainless steel tube Ø 313 x 2.5 mm
Stainless steel slide segments, through
Tube shape particularly quiet,
seven-part roller conveyor/slide, incl.
Connecting flanges for installation on site.
Each consisting of:
- 17100 K&K Roller conveyor single seat
- 17120 K&K Roller conveyor straight line
- 17110 K&K Roller conveyor straight, 3 pcs.
- 17150 K&K roller conveyor adapter
- 16155 K&K tunnel slide screw 38°, clockwise rotation
- 16148 K&K tunnel slide shaft 38/30°
- 16110 K&K tunnel slide-straight 30°
- 16180 K&K tunnel slide outlet 30°
Concrete volume: 2.27 m³
Item number: 941000804
