Dalben tower (8,50)
Select variant:
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of application ? | - |
| Number of users ? | 21 persons |
| Activities ? | - |
Technical data
| Device length ? | 5,65 m |
|---|---|
| Device width ? | 9,55 m |
| Device height ? | 8,50 m |
| Free fall height ? | 2,00 m |
| Platform heights | - |
| Total weight ? | 2300.00 kg |
| Heaviest single item ? | 450.00 kg |
| Minimum room length ? | 8,80 m |
| Minimum room width ? | 12,80 m |
| Minimum room height ? | 8,50 m |
Assembly & Foundations
| Assembly time ? | 16,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | - |
| Foundations | 100x100x050 |
Product Downloads
Product description
Dalbentur system consisting of:
Dalben tower (8.50) with tunnel slide 30°/36° (4.00 m) and net ascent (2.00 m);
Powder-coated uprights red/RAL 2002, tower cover yellow / similar to RAL 1021, with wind chimes RAL 2002
Technical data

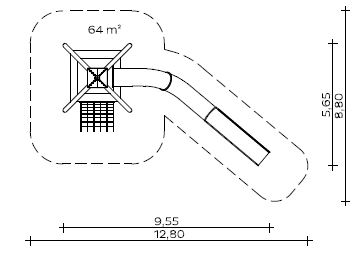

Floor area: 5.65 x 9.55 m
Minimum space: 8.80 x 12.80 m (64 m²)
Height: 8.50 m + tower top
Platform heights: 1.00 / 2.00 / 3.00 / 4.00 m
Slide attachment height: 4.00 m
Seat height: 4.10 m
Slide inclination: 30°/36°
Slide width: 0.80 m
Sliding plate thickness: 2.5 mm
Weight: 450 kg heaviest individual part
2300 kg in total
Support post
Steel Ø 193.7 x 4 mm, hot-dip galvanised and powder-coated red/RAL 2002
Platform floors
Triangular stainless steel pedestals, welded construction with tear plate covering, glass bead blasted, screw-on flange connections on the uprights.
Ladder steps made of stainless steel tube, rung height 500 mm, including fall protection, between the landings, glass bead blasted.
Safety gate (from 1.00 m platform height)
Welded construction made of stainless steel tube Ø 21 / 33.7 mm, glass bead blasted, from 1.00 m platform height, screw-on flange connections on the uprights
Tower bonnet
High-pressure laminate 15 mm, colour yellow / similar to RAL 1021
Tower top
Wind chime, colour yellow / RAL 1021
Ascent on platform 2.00 m
- Net access made of Hercules rope Ø 16 mm, mesh size 300 m x 300 mm (centre-to-centre dimension)
K&K tunnel slide 30°/36°, Ah 4.00 m
Slide segments made of stainless steel, particularly quiet due to the tunnel shape, welded to form a one-piece tunnel slide, consisting of the following elements:
- 16100 K&K tunnel slide single seat
- 16130 K&K tunnel slide shaft
- 16166 K&K tunnel slide curve, 8 pcs,
Turning 40°, right
- 16116085 K&K tunnel slide straight,
Length 0.85 m
- 16186 K&K tunnel slide outlet
Including K&K tunnel slide support posts for the curve area, stainless steel support posts Ø 12 cm, stainless steel fastening flange.
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Anchoring
Dowelling of the pedestal base with 2 injection anchor rods made of A4 stainless steel.
The tower is equipped with a lightning conductor to protect it from damage.
Foundations (client-provided)
4 pcs. 1.00 x 1.00 x 0.50 m
3 pcs. 1.00 x 0.40 x 0.40 m
1 piece 0.40 x 0.40 x 0.60 m
Concrete volume: 2.58 m³
Assembly time
2 fitters 16 hours each, plus lifting gear
(without foundation)
Free fall height
2,00 m
Suitable for
Children aged 8 and over,
public playgrounds etc.
Physical activities
Item number: 910085073
This Kaiser & Kühne product enables:
