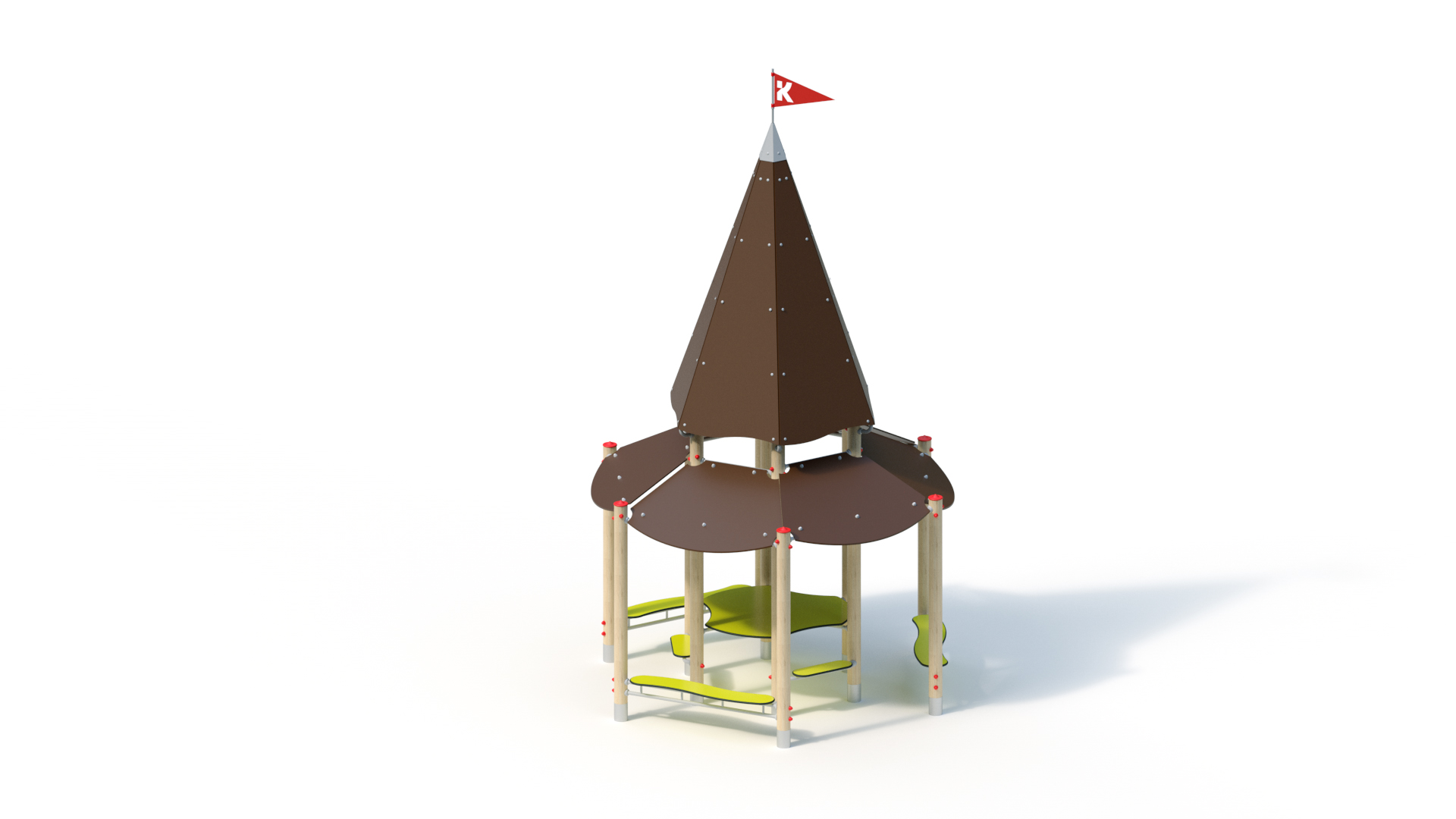

Meeting arbour

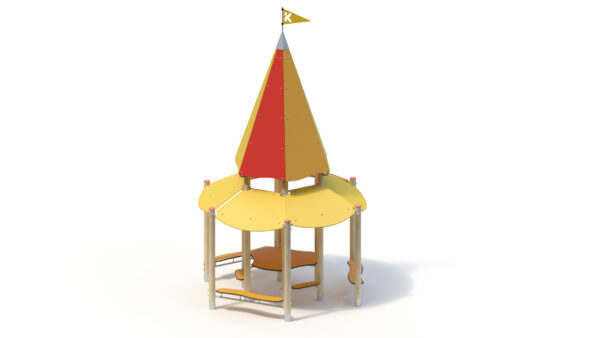

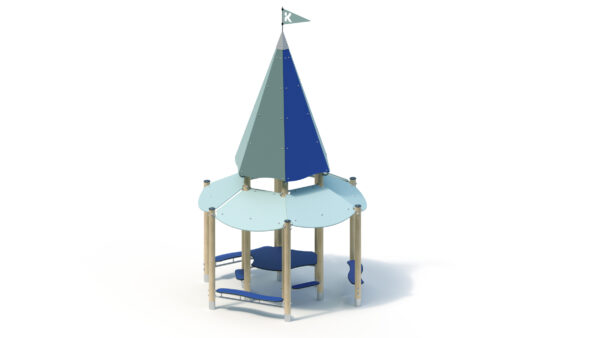

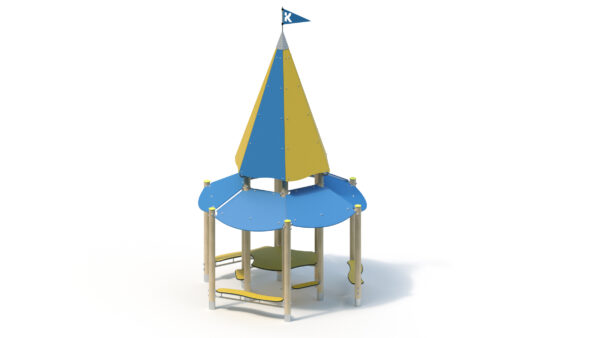

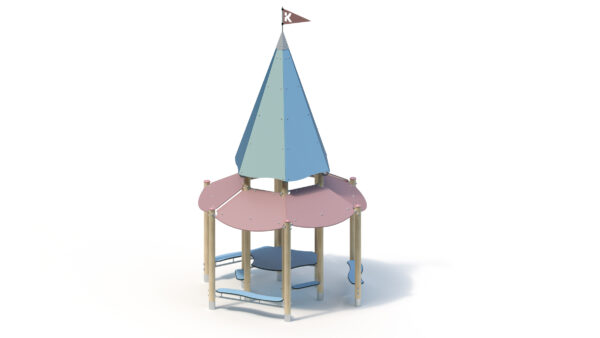

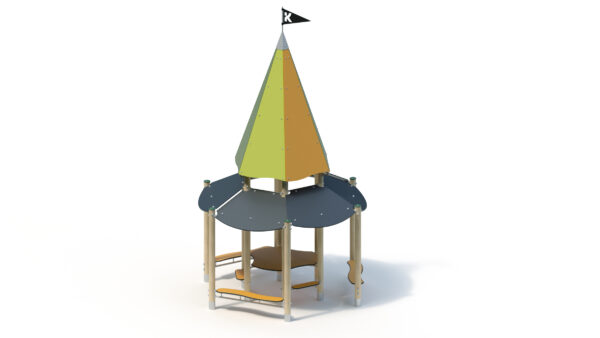

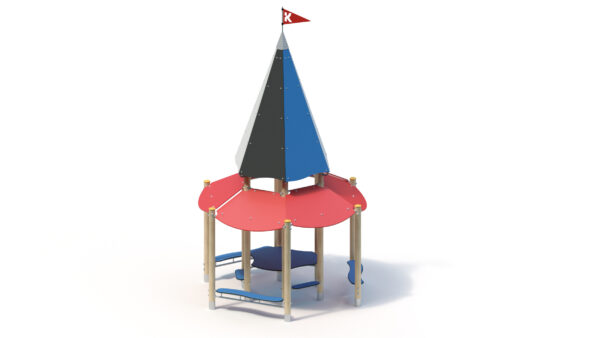

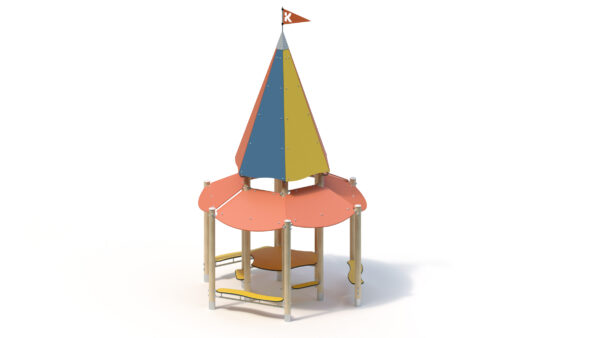

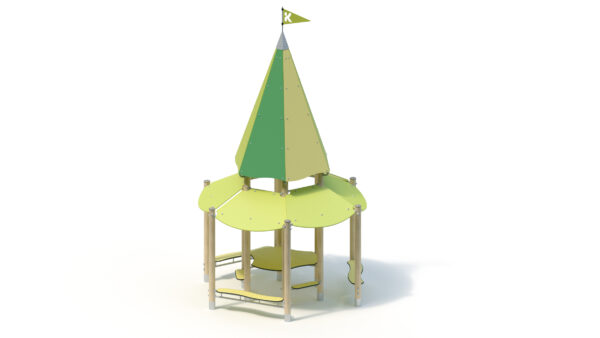

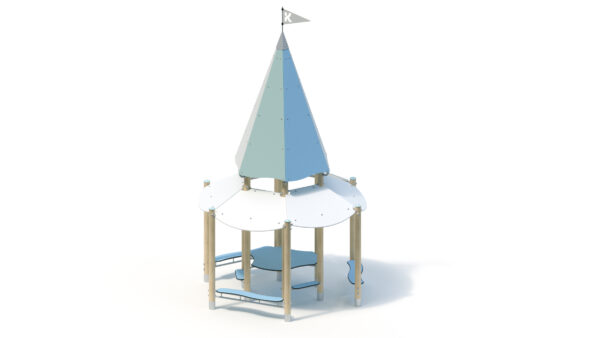

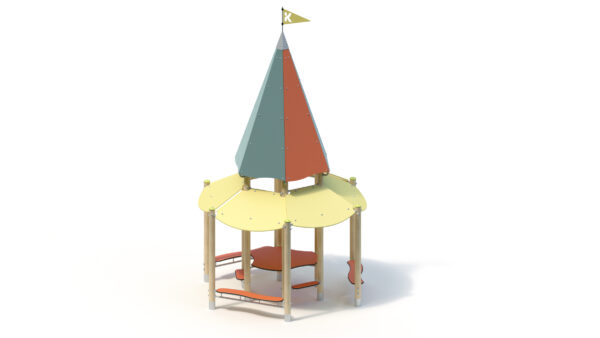

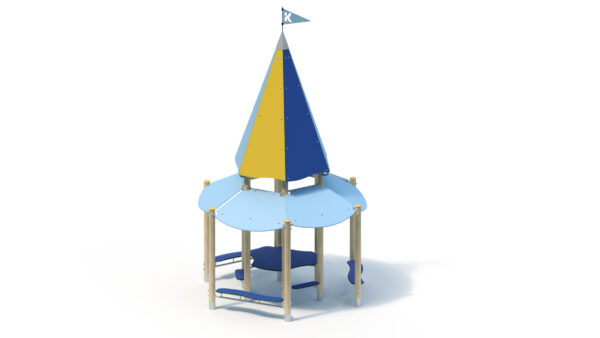

Select variant:
The most important information
| Age group ? | 1+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 20 persons |
| Activities ? | Social activity |
Technical data
| Device length ? | 3,35 m |
|---|---|
| Device width ? | 3,00 m |
| Device height ? | 5,80 m |
| Free fall height ? | 0,75 m |
| Platform heights | - |
| Total weight ? | 1210.00 kg |
| Heaviest single item ? | 160.00 kg |
| Minimum room length ? | 6,35 m |
| Minimum room width ? | 6,00 m |
| Minimum room height ? | 5,80 m |
Assembly & Foundations
| Assembly time ? | 9,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | Yes |
| Foundations | 040x040x040 |
Product Downloads
Product description
Technical data

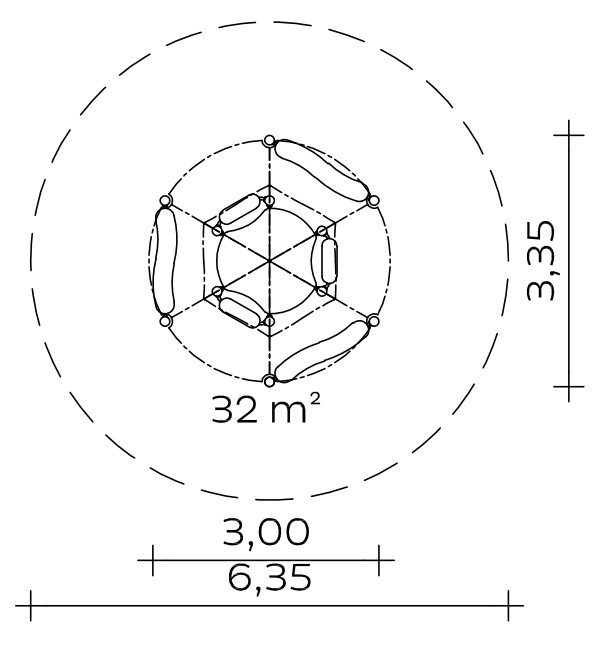

Floor area: 3.00 x 3.35 m
Minimum space: 6.00 x 6.35 m (32 m²)
Total height: 5.80 m
Seat height: 0.45 m
Table height: 0.75 m
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Attachments
- Table 6 x 0.80 m / made of highly weather-resistant HPL laminate, 20 mm/yellow, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Bench 2 / 0.80 m / made of highly weather-resistant HPL laminate, 20 mm/yellow
- Counter, 1.60 m, wave-shaped, made of yellow, highly weather-resistant HPL laminate, 20 mm
- Pitched roof, pitch 30° / 0.80 m x 1.60 m made of highly weather-resistant HPL laminate, 13 mm/brown. Attached to roof frame made of stainless steel tube Ø 33.7 x 2 mm.
- Tower roof, pitch 72°, made of highly weather-resistant HPL laminate, 13 mm/brown. Attached to roof frame made of stainless steel tube Ø 33.7 x 2 mm.
- Flag (smooth) for roof bonnet / red RAL 2002
Metal components: Stainless steel.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
12 pcs. 0.40 x 0.40 x 0.40 m
Concrete volume: 0.77 m³
Assembly time
2 fitters 9 hours each
(without foundations)+ lifting gear
Free fall height
0,75 m
Suitable for
All age groups,
public playgrounds etc.
Item number: 062220701
